A 12 ft (144-inch) industrial HVLS ceiling fan for warehouses, factories, workshops and gyms, using five aluminum airfoil blades, a PMSM direct-drive motor and a wired wall-mounted VFD controller. Published airflow reaches 148,322 CFM with 10–81 RPM stepless speed control.
12 FT / 144" HVLS Diameter
148,322 CFM Max Airflow
PMSM Direct-Drive Motor
5 Aluminum Airfoil Blades
10–81 RPM Stepless Control
36 dBA Published Noise
Description
xQuick Browse: 42005-BK 12 FT HVLS Fan Details
12 FT • HIGH VOLUME • LOW SPEED

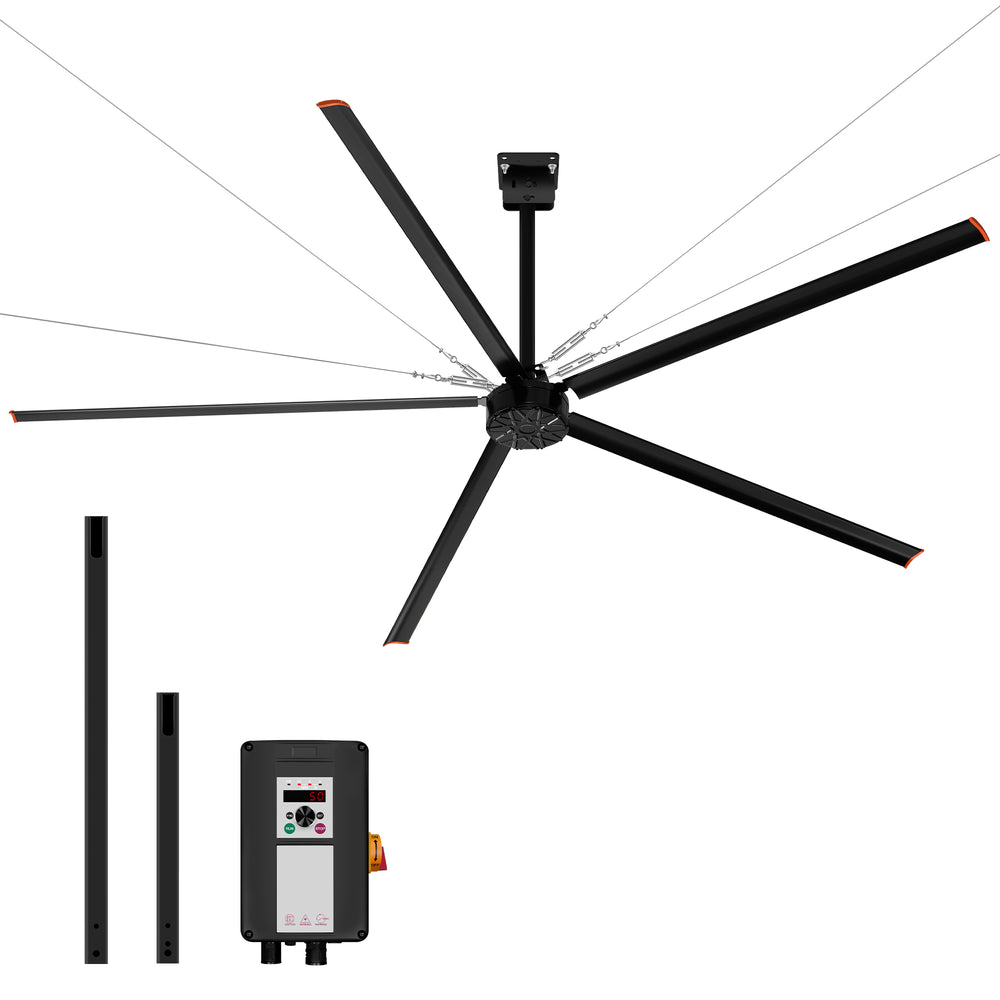

12 FT HVLS Industrial Ceiling Fan for Warehouses & Factories

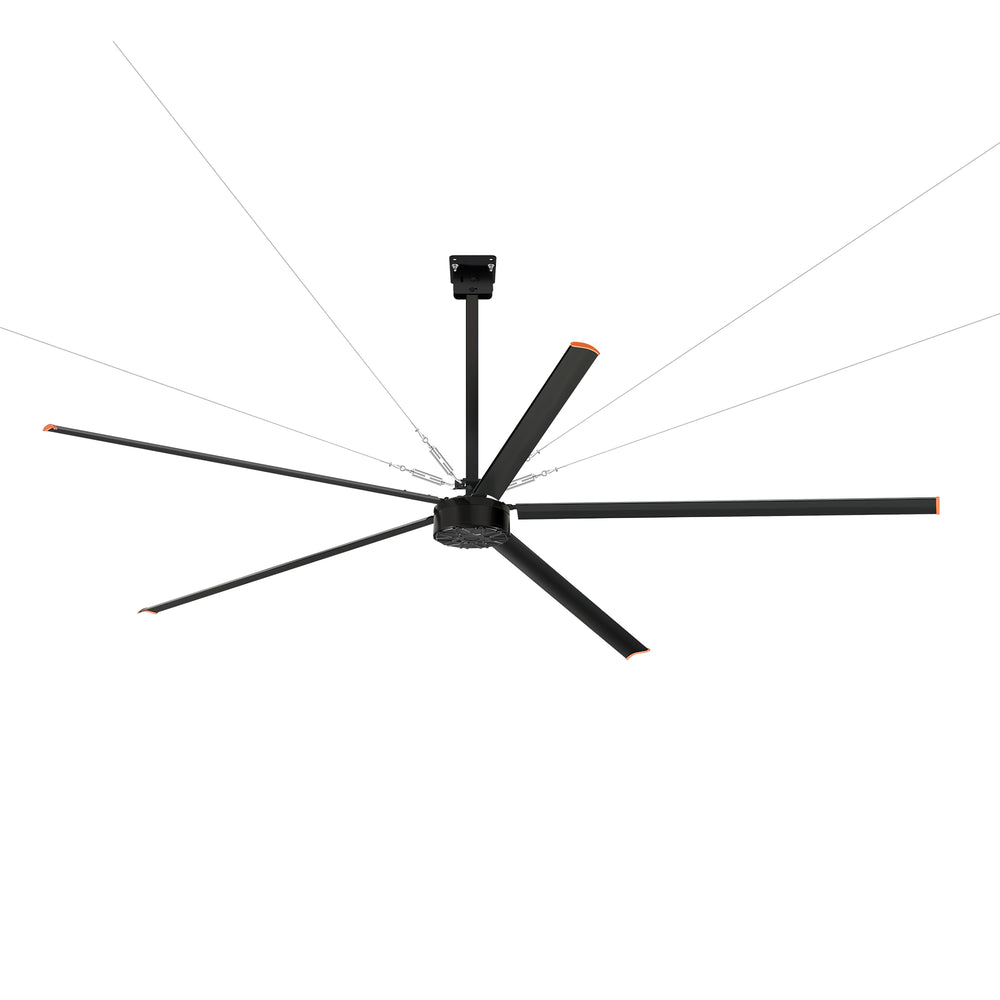

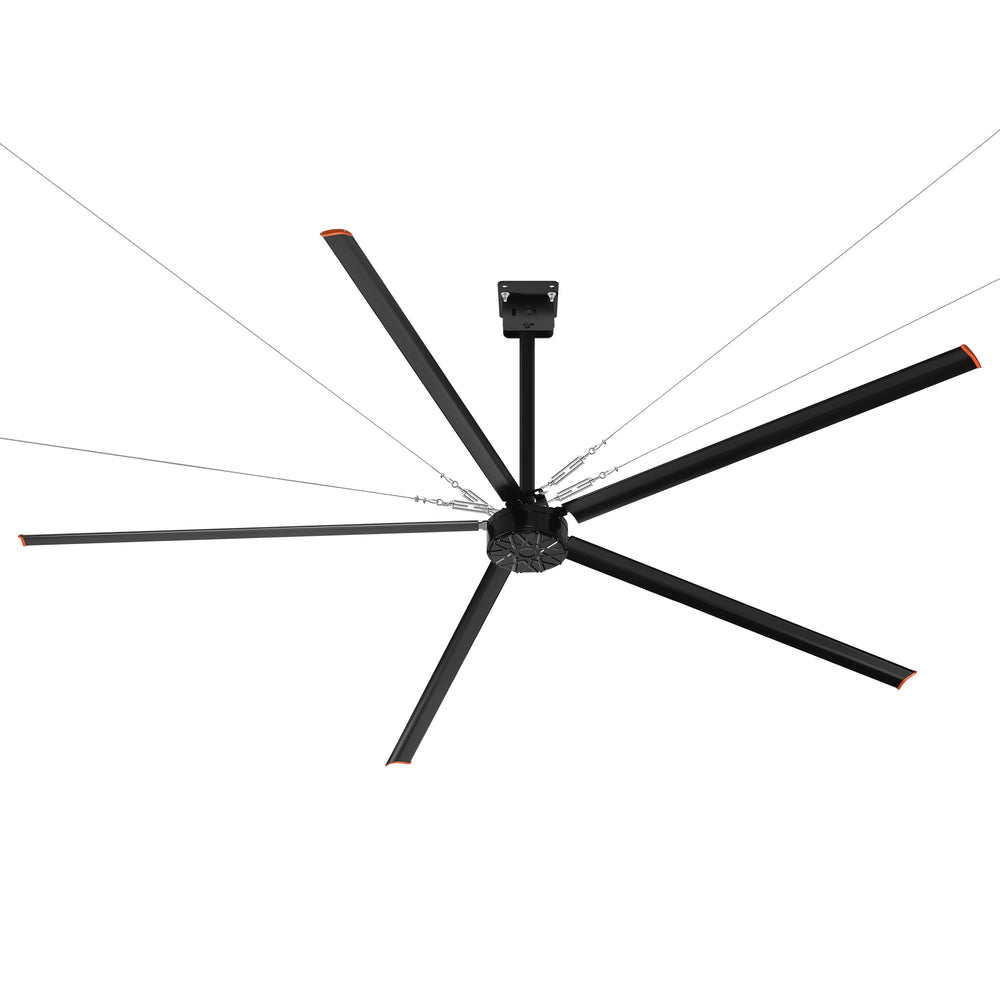

The Breezary 42005-BK is a 144-inch HVLS industrial ceiling fan designed for broad, low-speed air circulation in large indoor work areas. Five aluminum airfoil blades are driven by a permanent magnet synchronous direct-drive motor, while a wired wall-mounted VFD controller provides stepless speed adjustment from 10 to 81 RPM. The published maximum airflow is approximately 148,322 CFM, with stated coverage up to 3,770 sq. ft.
144"12 FT blade span
148,322Published max CFM
10–81RPM speed range
5Aluminum blades
36 dBAPublished noise
120V1-phase / 60Hz

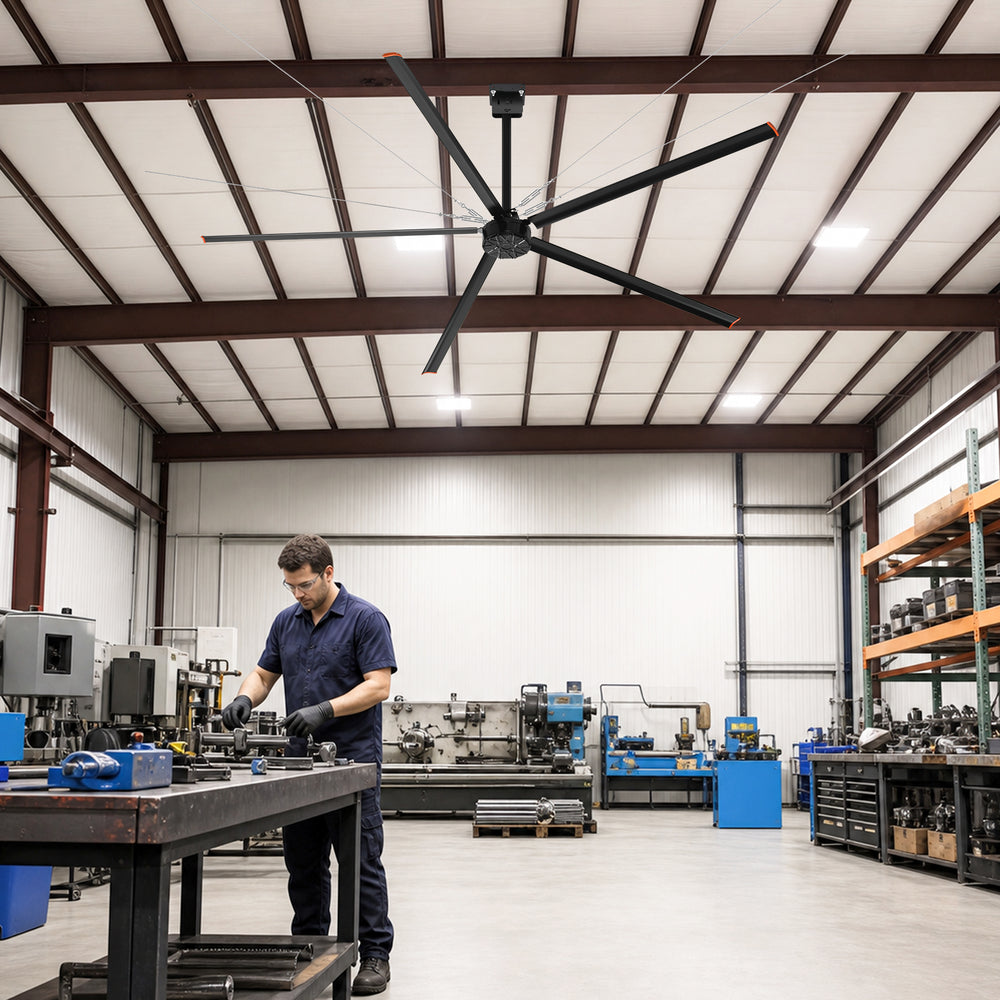

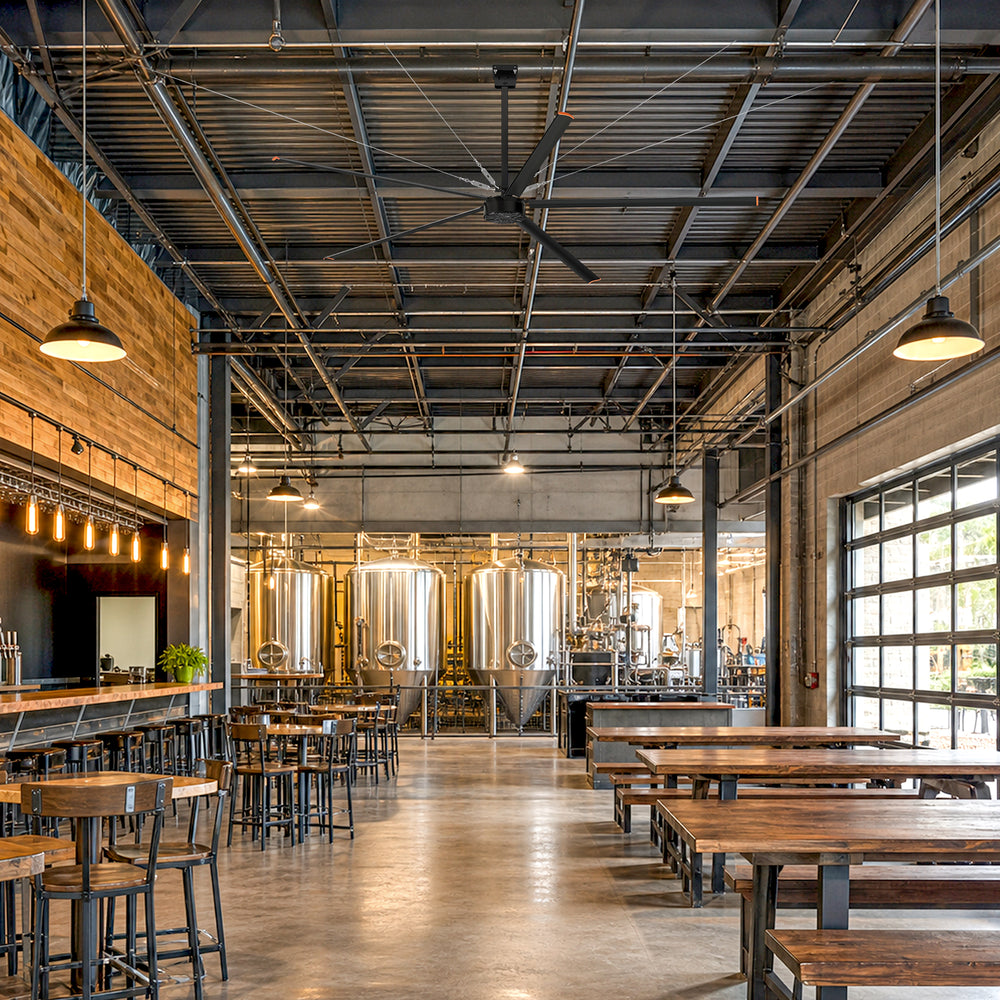

INDUSTRIAL APPLICATIONS
144-Inch HVLS Fan for Large Indoor Work Zones
A 12 ft industrial HVLS fan should be selected around the actual occupied zone, building structure and clearance—not simply the total square footage of the facility. The 42005-BK is most relevant where broad overhead circulation is needed without adding portable floor fans near equipment, vehicles or work paths.
PUBLISHED PERFORMANCE

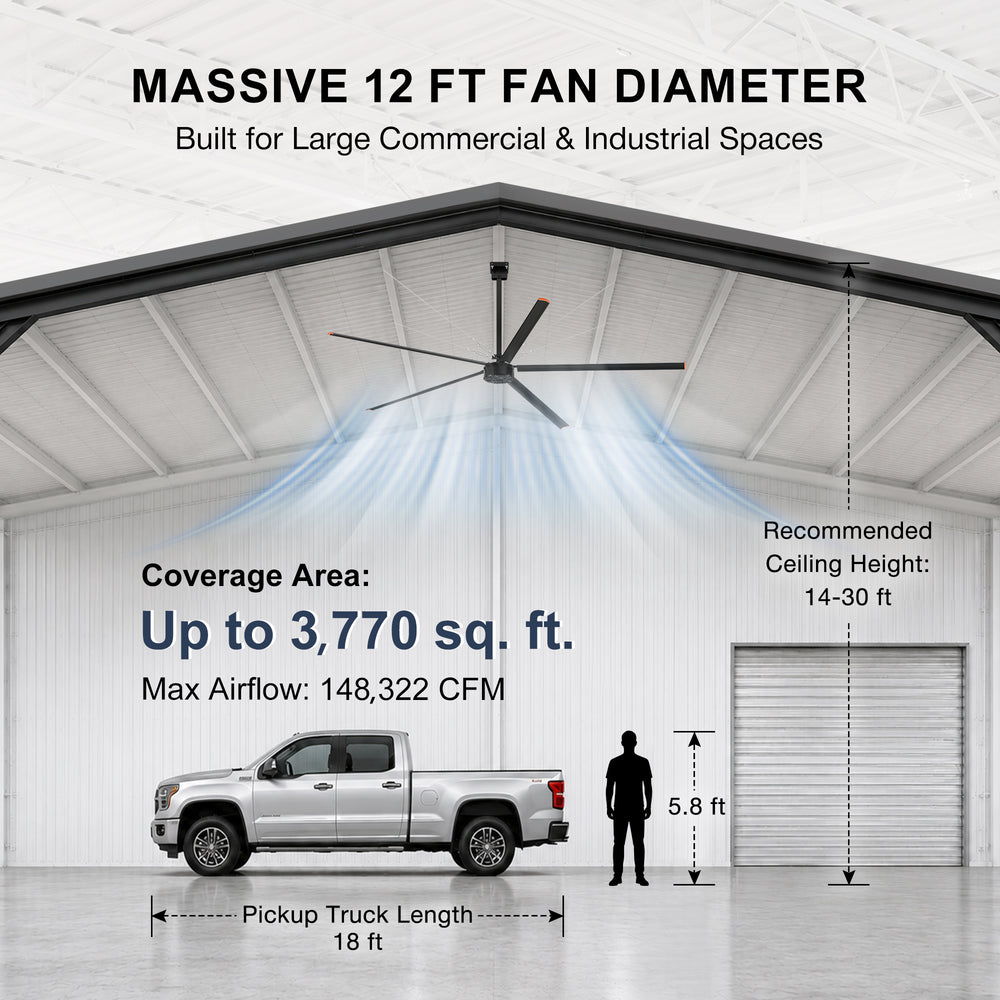

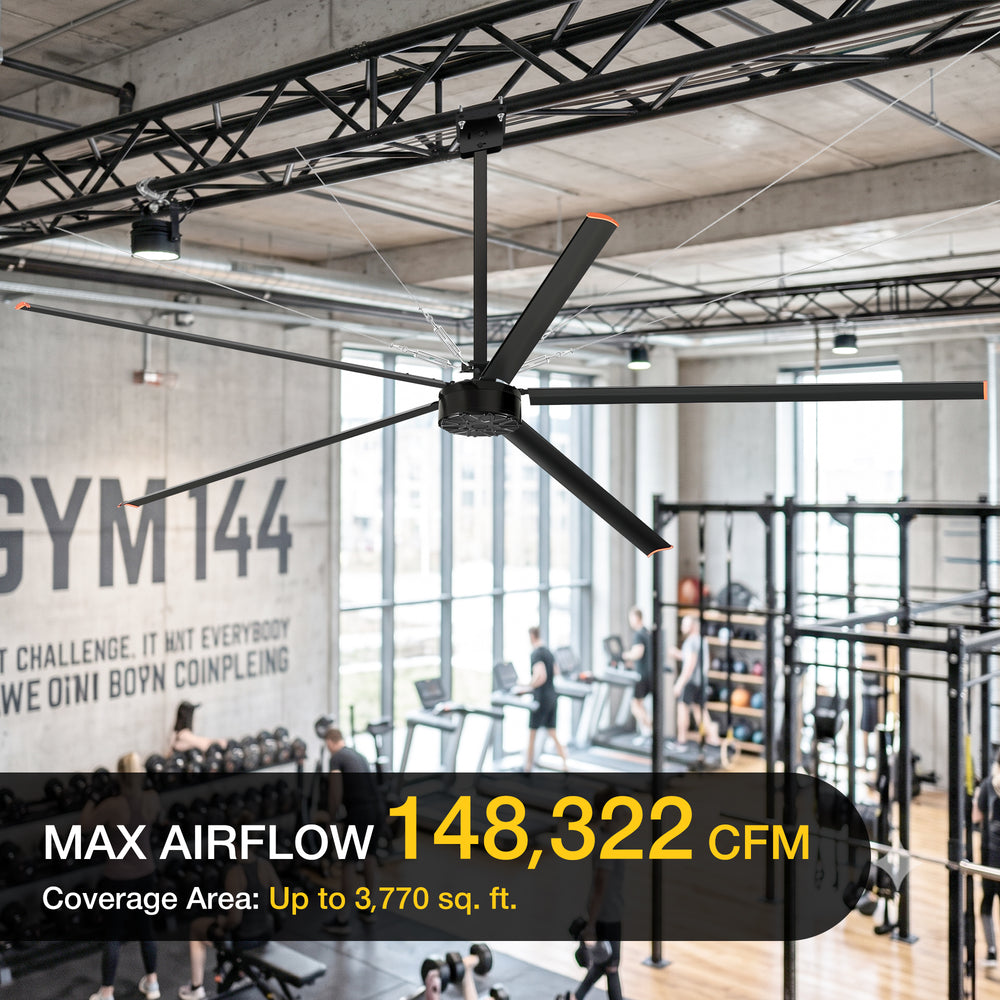

148,322 CFM Airflow for Large Indoor Areas
The product documentation lists an air volume of 4,200 m³/min, equivalent to approximately 148,322 CFM. Published coverage is up to 3,770 sq. ft. (350 m²).
These figures should be treated as product performance references, not a guarantee that one fan will serve every 3,770 sq. ft. building. Rack layout, ceiling height, machinery, open doors, structural members and the location of occupied work zones can all affect how air reaches the floor.
DIRECT DRIVE

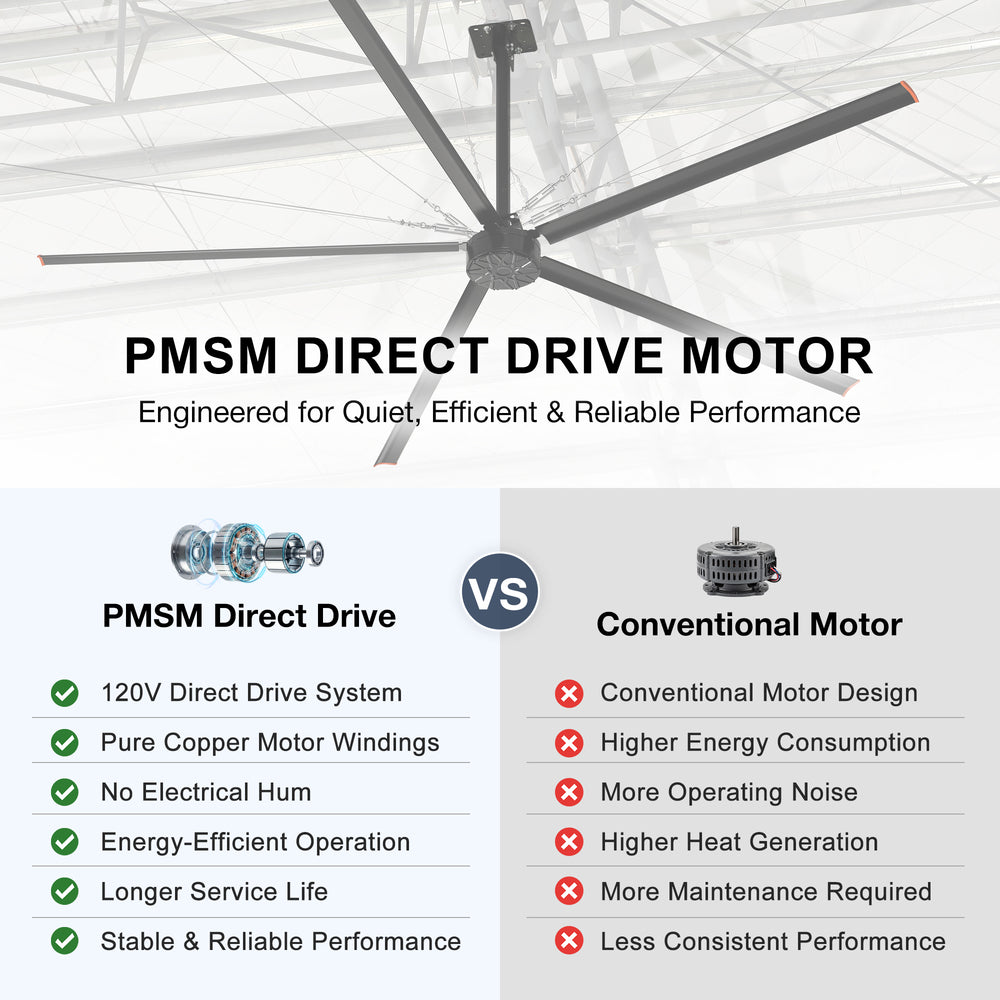

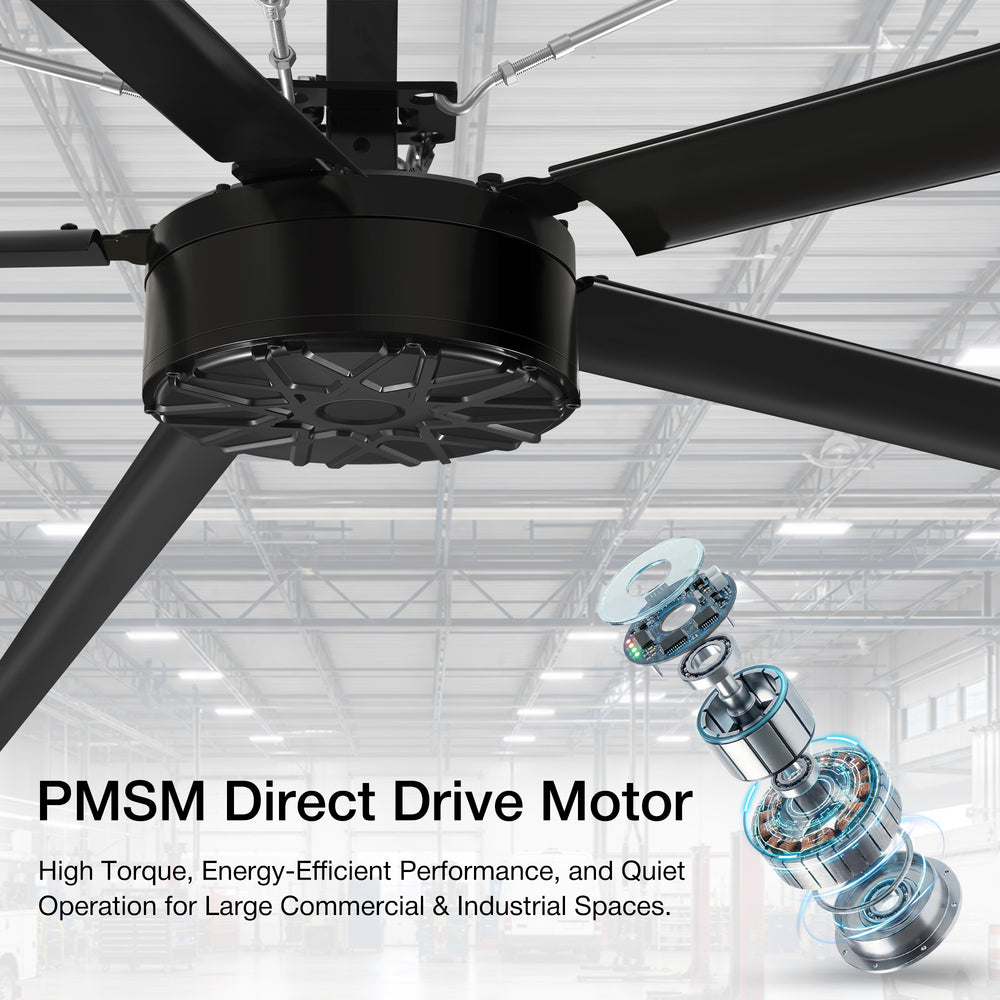

PMSM Direct-Drive Motor for Industrial HVLS Fan Operation
The 42005-BK uses a rare-earth permanent-magnet synchronous external-rotor motor that directly drives the fan blades. The manual describes the direct-drive structure as simple and suitable for long-term maintenance-free use.

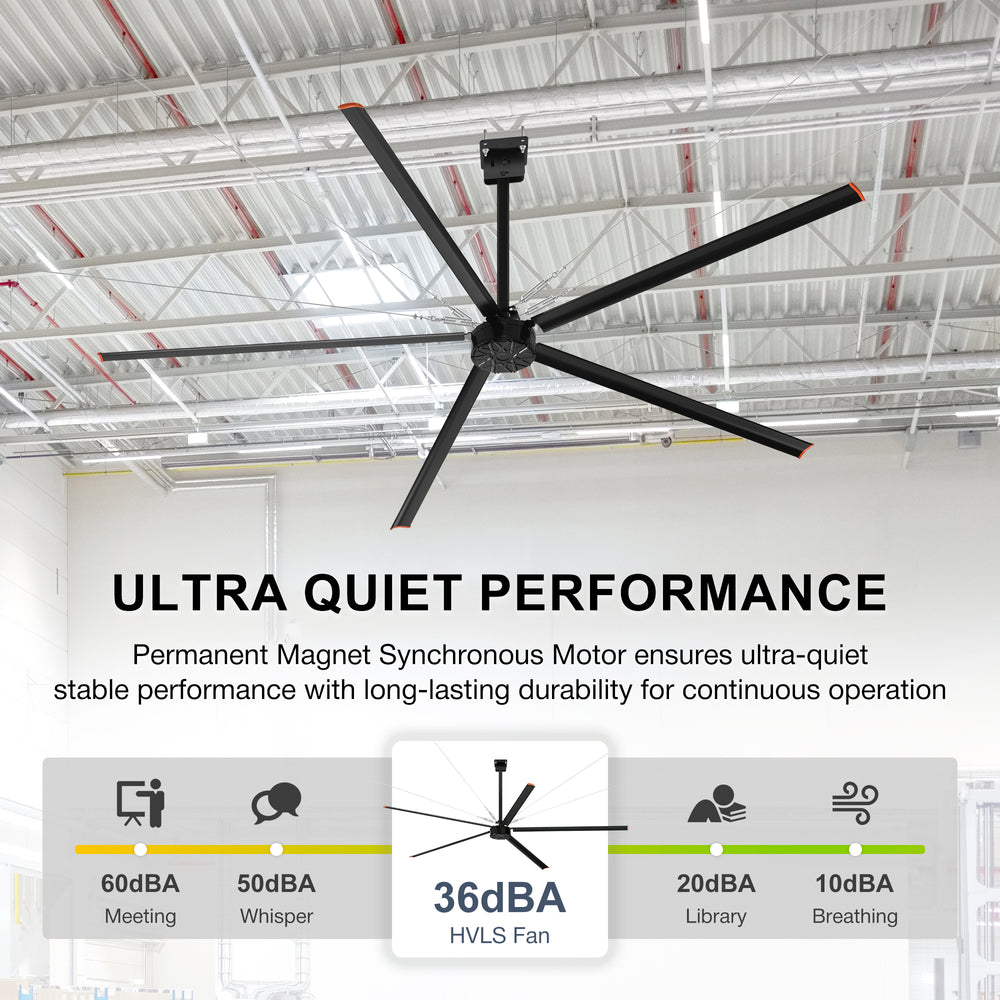

Published operating noise is 36 dBA. For facilities where communication, customer areas or focused work take place beneath the fan, the published noise specification provides a more useful comparison point than unsupported terms such as “silent.”
BLADE & SAFETY SYSTEM

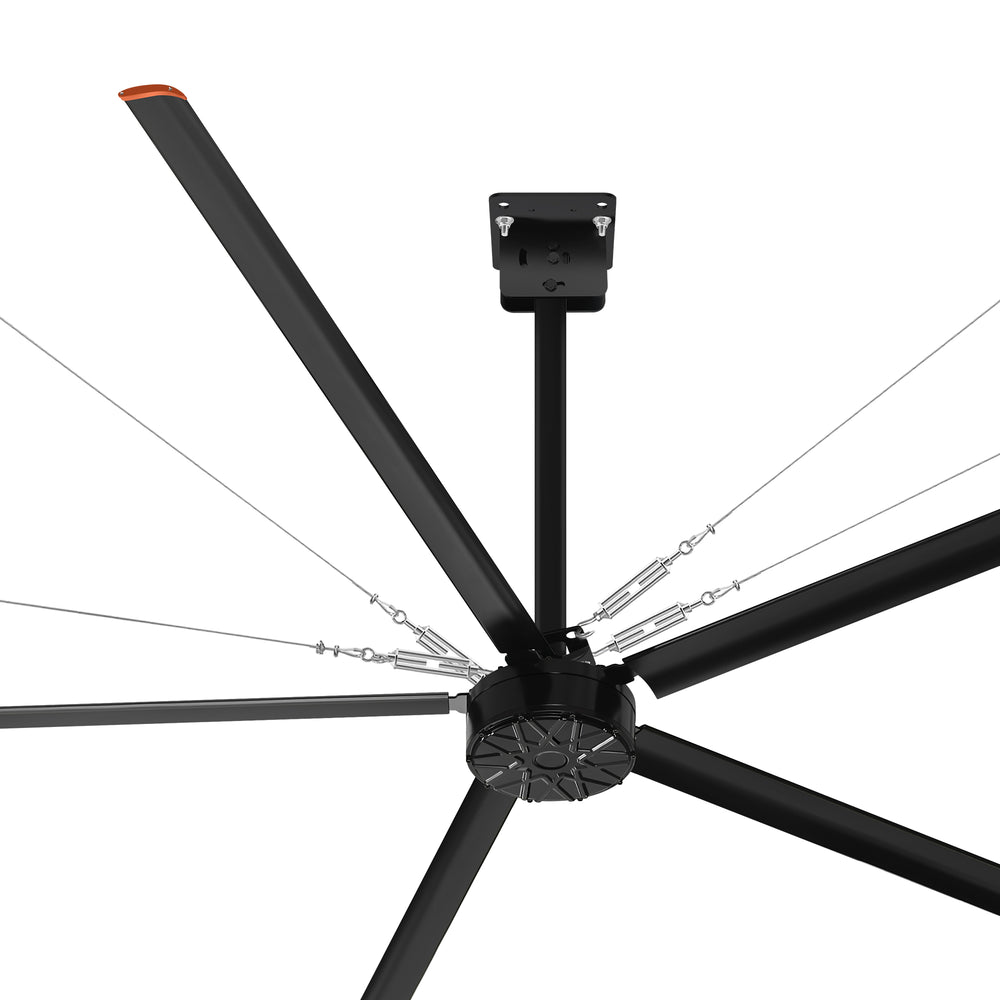

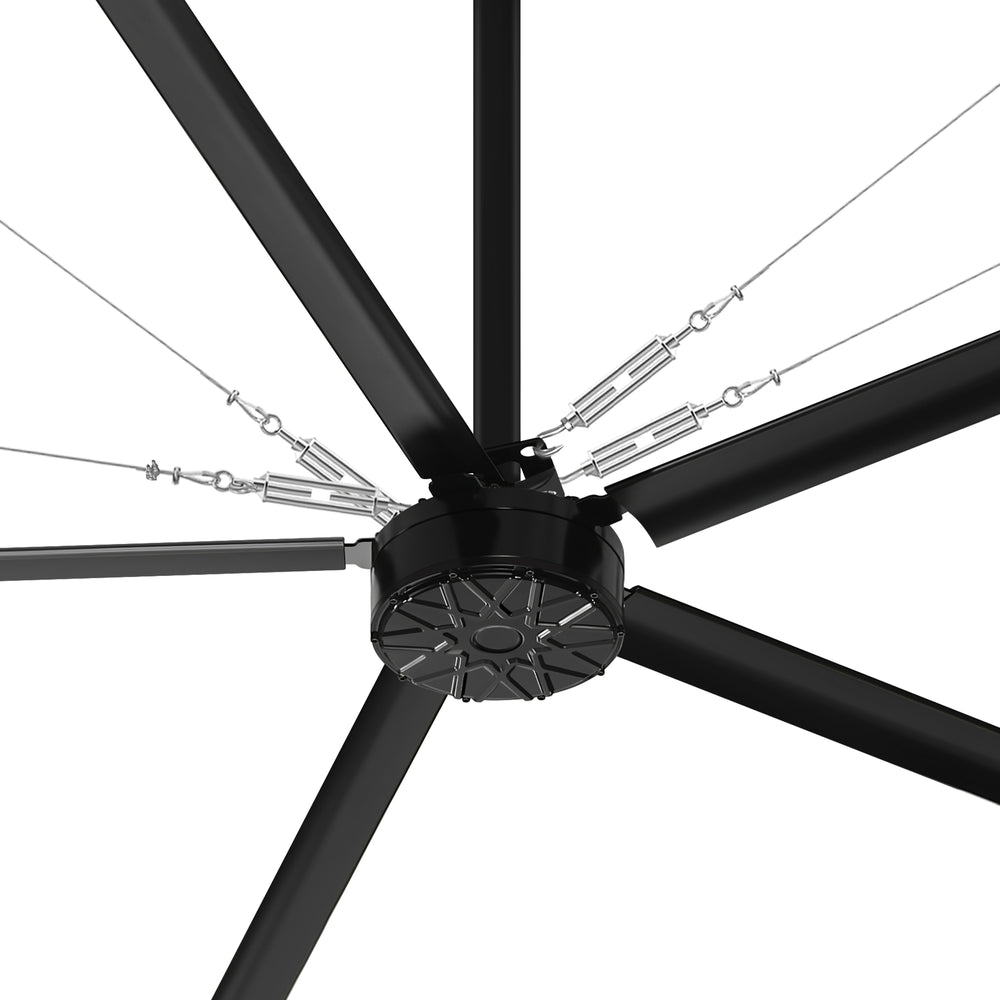

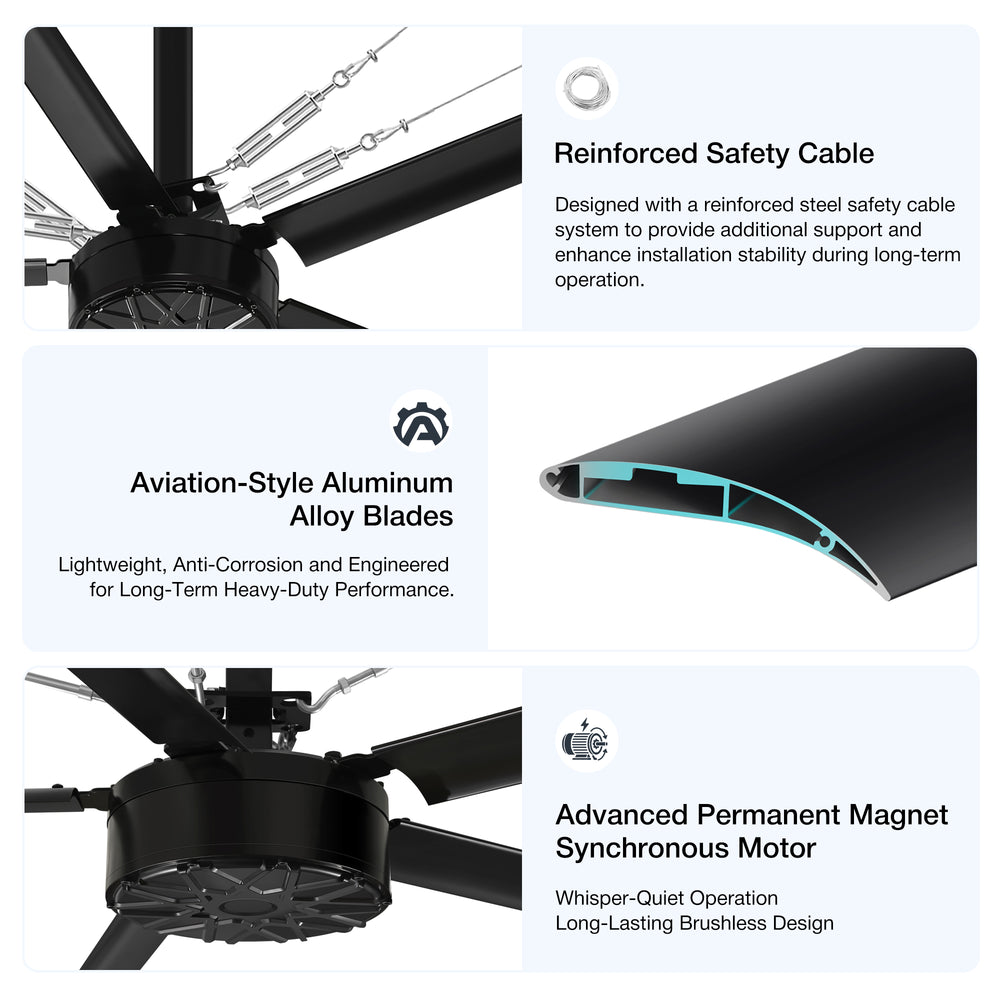

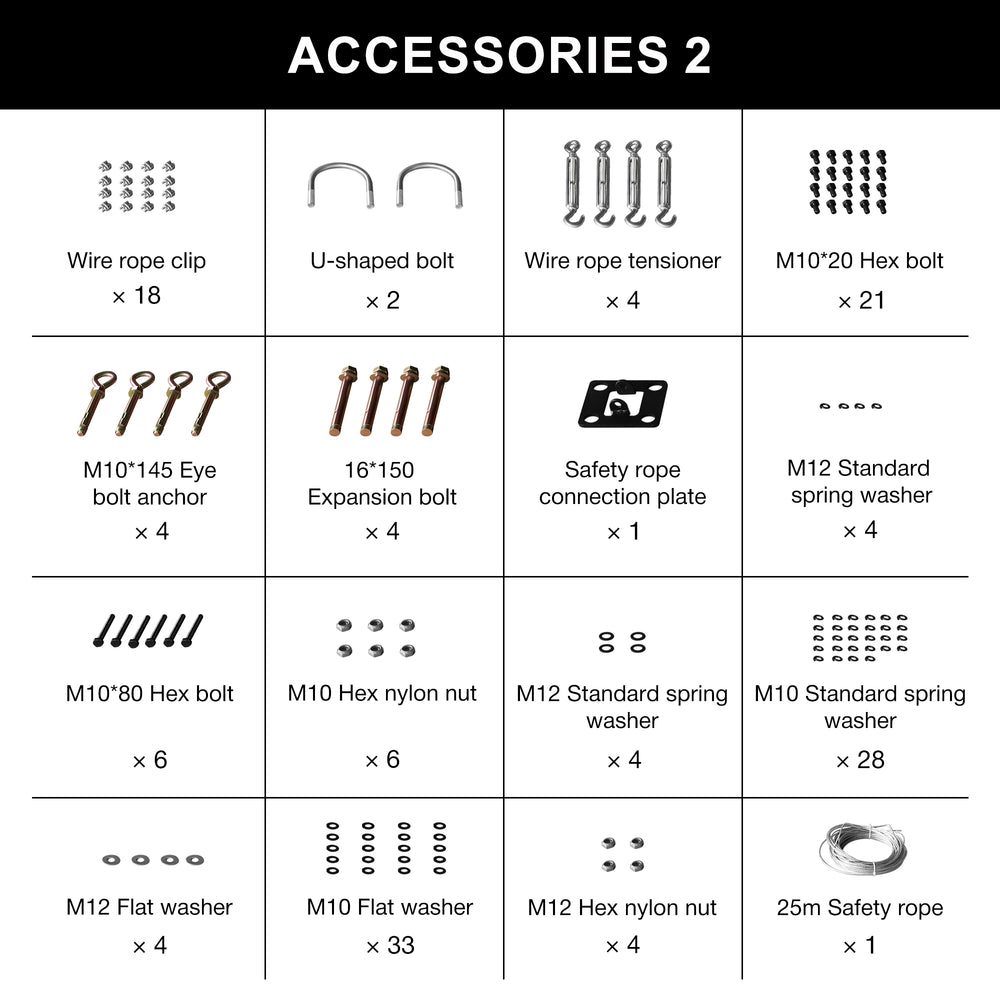

5 Aluminum Airfoil Blades with Reinforced Safety Cables
Five high-strength aluminum alloy blades use an aviation-wing-style profile designed for broad airflow at low rotational speeds. The fan assembly also uses safety ropes and tensioning components as part of the installation system.
Because this is a 144-inch rotating system rather than a conventional residential fan, blade clearance, structural support and the complete safety-cable installation must be reviewed before operation.
WALL-MOUNTED CONTROL

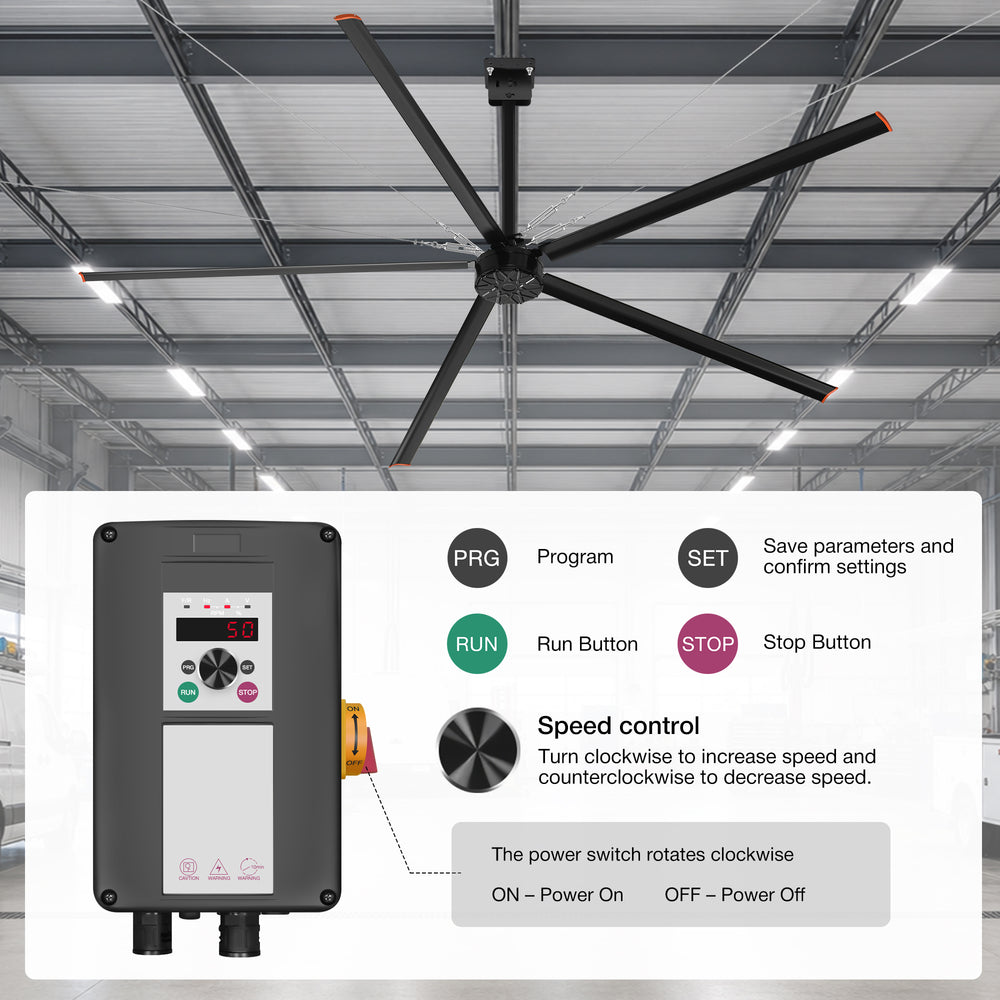

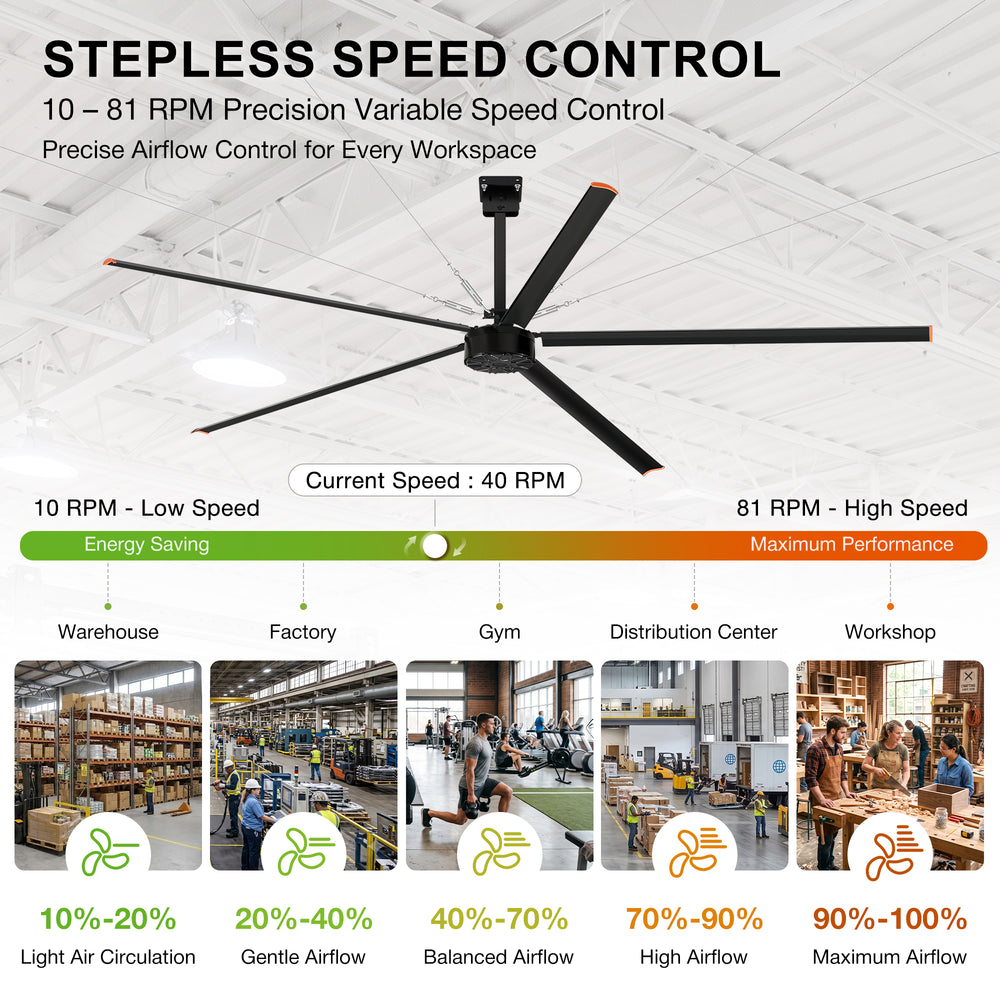

Wall-Mounted VFD Controller with 10–81 RPM Stepless Speed Control
This model does not use a hand-held remote. The included wired VFD controller provides a fixed control point for starting, stopping and adjusting fan speed.
The published speed range is 10–81 RPM, allowing the airflow level to be adjusted according to the work zone and operating conditions. Use only the controller specified for this model.
NO-LIGHT CONFIGURATION
No-Light HVLS Ceiling Fan for Facilities with Existing Lighting
The 42005-BK has no integrated light kit. For facilities already using high-bay, task or production lighting, choosing a ceiling fan with no lights keeps airflow and lighting systems separate. If the project specifically requires a fan-mounted light, compare another product before ordering.
FACILITY FIT
Is This 12 FT Industrial HVLS Fan Right for Your Facility?
Select this model around the building, mounting point, electrical supply and airflow zone—not the industry name alone.

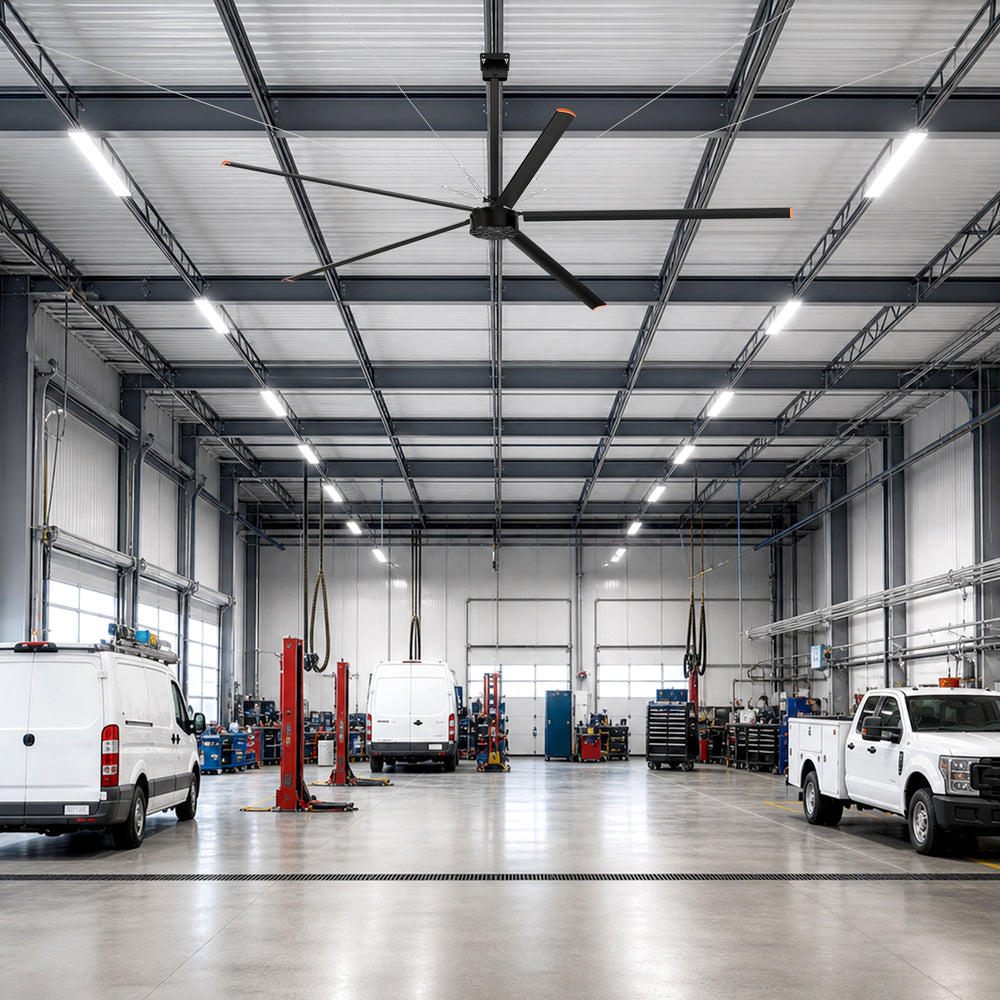

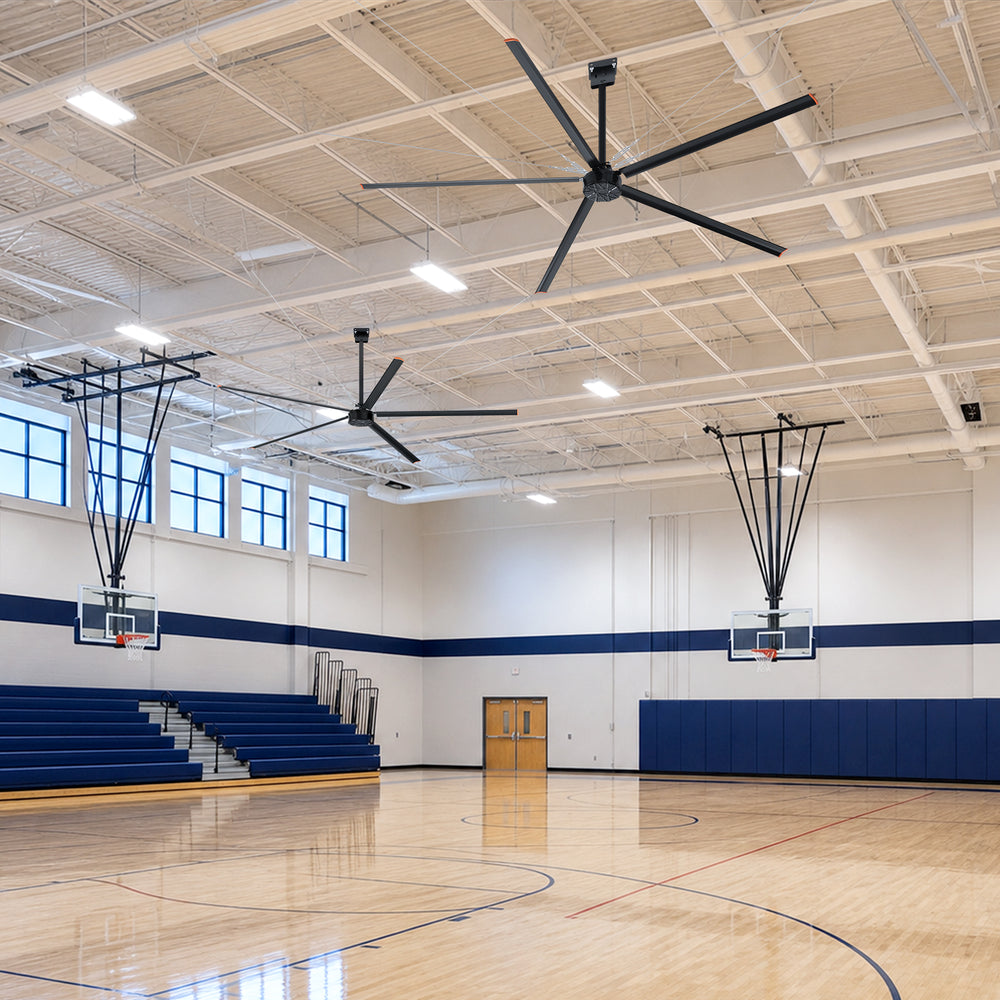

Good Match Large indoor warehouse zones, factories, workshops, distribution areas, gyms and other high-ceiling commercial or industrial spaces.
Electrical Fit Projects designed around a 120V, 60Hz, single-phase supply and a wired wall-mounted controller.
Choose Another Model If... You require reverse operation, integrated lighting, an outdoor/exposed installation or an extra-large 20–24 ft whole-area HVLS system.
Environment Limits The manual says not to operate the fan in freezing, corrosive, explosive or severely dusty environments.
BEFORE INSTALLATION
Installation Planning for a 144-Inch HVLS Industrial Ceiling Fan
Installation and maintenance must be performed by professionally trained, experienced personnel with appropriate electrical qualifications. The supporting structure, electrical supply, blade clearance and safety-rope system must be reviewed before operation.

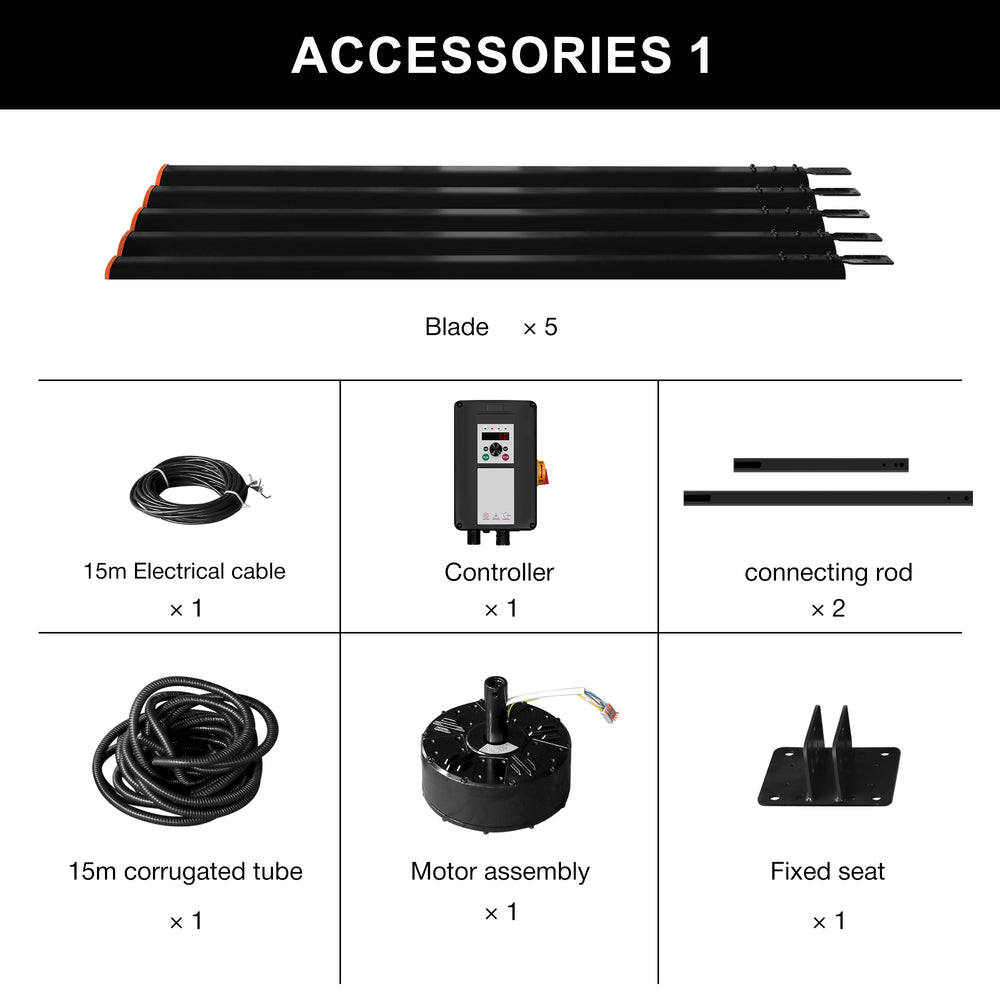

0.6 m + 1 m rodsListed in the manual parts list
500–1500 mmManual downrod range E
≥ 400 mmVertical obstacle distance A
2.5–5 mBlade-surface-to-ground distance C

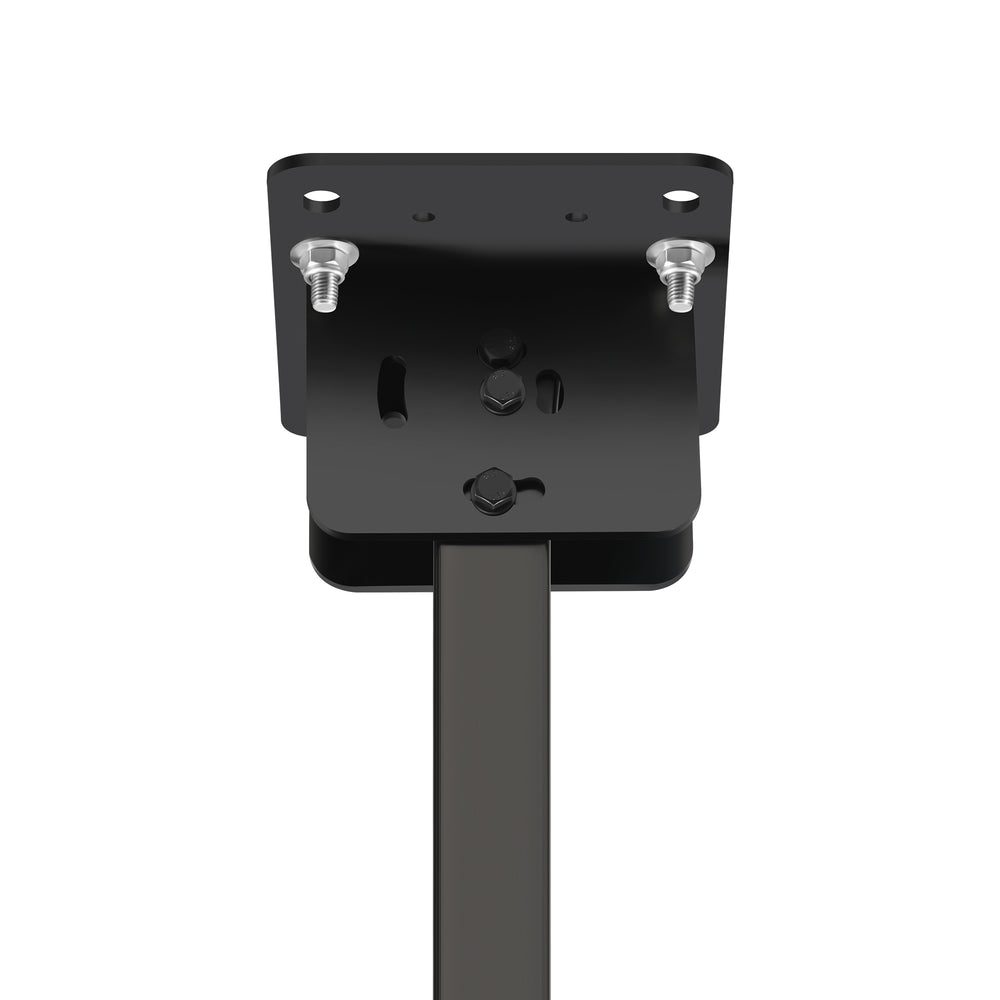

The manual illustrates mounting to concrete-beam and circular-steel-pipe structures. Final mounting design must comply with the actual building structure and local safety/electrical requirements.
COMPARE BY REQUIREMENT
Compare HVLS Fans by Size, Application & Control Type
If 42005-BK does not match the building or control requirement, move to the relevant HVLS collection instead of forcing one 12 ft configuration into every facility.
Stay at 12 FT 12 FT Industrial HVLS Fans Compare 144-inch configurations, blade counts and control options. Need another size? All HVLS Fans Compare 12 ft, 14/16 ft and extra-large 20–24 ft industrial options. Warehouse project? HVLS Fans for Warehouses Plan around racks, loading zones, occupied areas and ceiling clearances. No light required? Ceiling Fans Without Light Compare no-light fans across different sizes and applications.
INSTALLATION SUPPORT
42005-BK HVLS Fan User Manual
Review the model-specific manual before mounting, wiring, controller setup, safety-rope installation, maintenance or troubleshooting.
View 42005-BK User ManualPRODUCT QUESTIONS
12 FT HVLS Industrial Ceiling Fan FAQs
General & Warranty

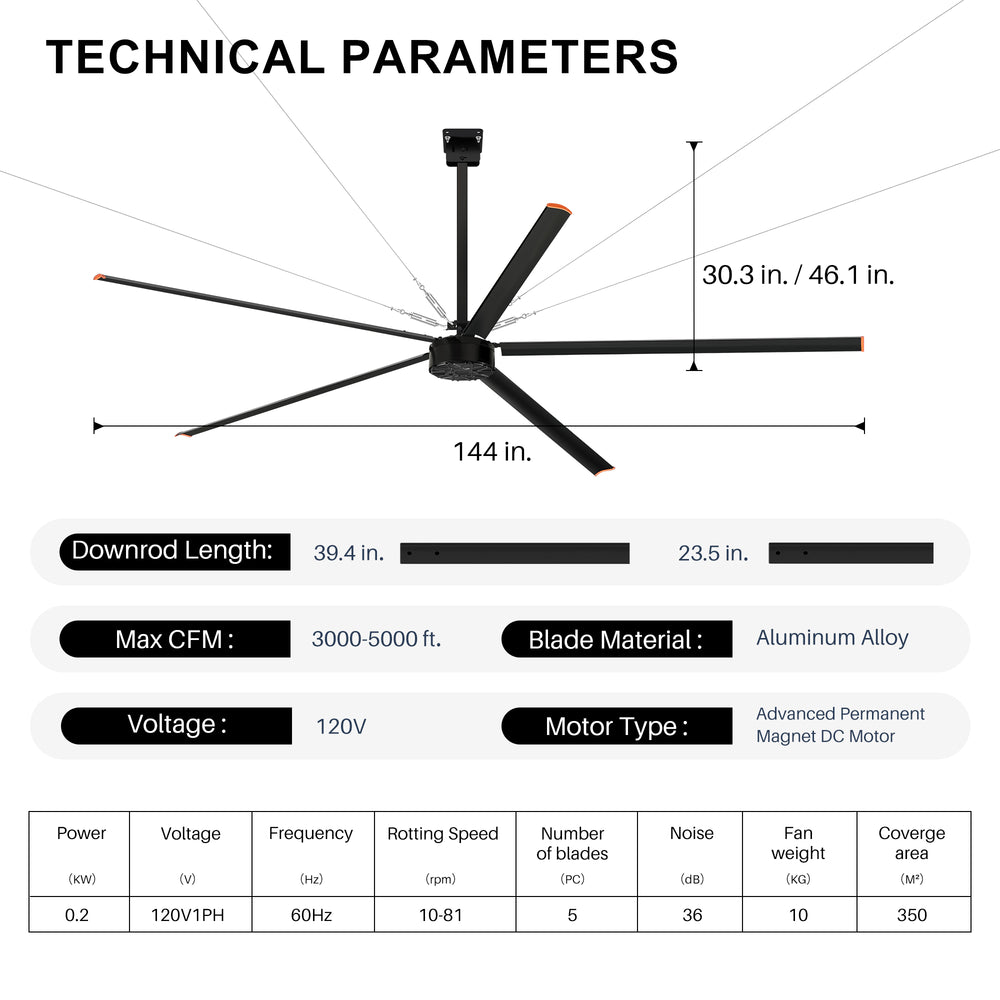

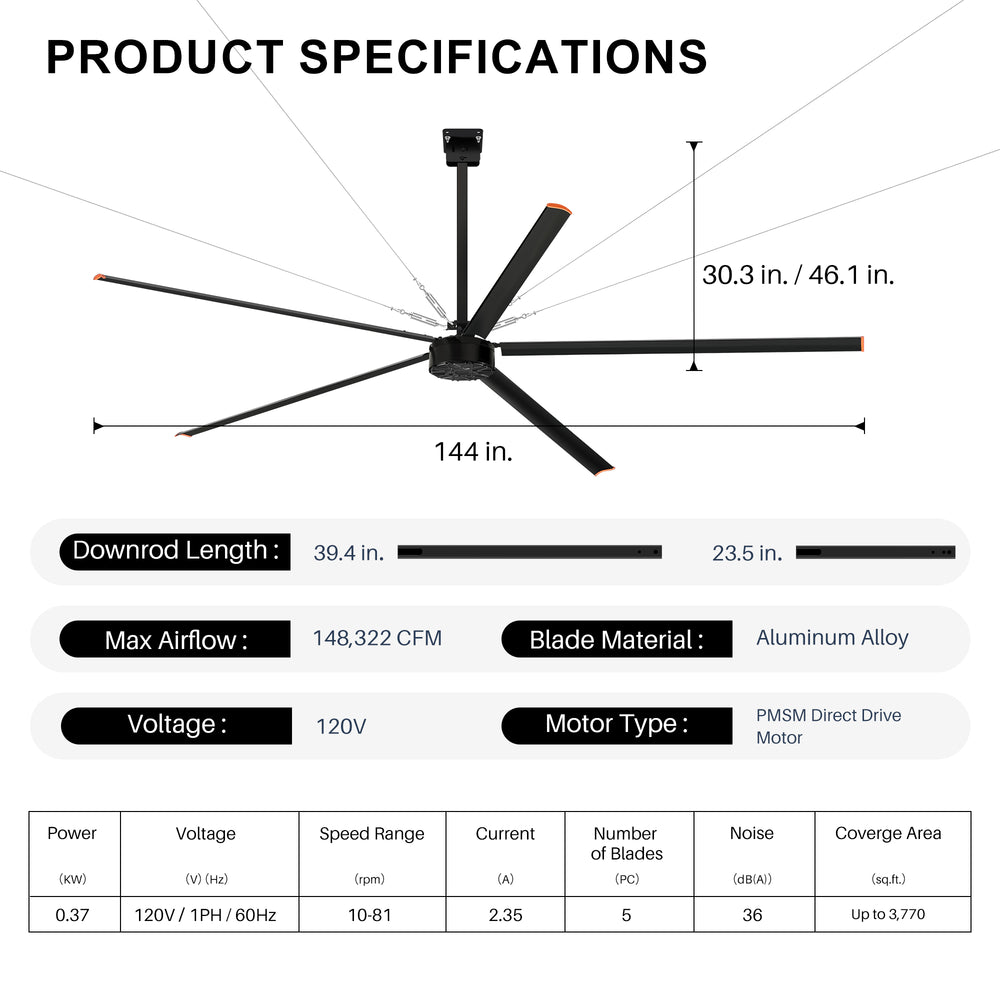

x| Assembly Required | Yes | Fan Diameter (Inches) | 144 in |
|---|---|---|---|
| Fan Type | Standard, Windmill | Fan Mounting Type | Downrod |
| Style | Industrial, Modern & Contemporary | Housing Color | Matte Black |
| Body Material | Metal | Shade Material | Metal |
| Number of Fan Speeds | 10–81 RPM, Stepless Speed Control | Use Location | Indoor |
| Compatible Room Size | Great Room(more than 350 sq. ft） | Room | Office, Warehouse, Factory, Gym |
| Overall Width*Depth*Height (Inches) | 144*144*46.1 in | Net Weight (lbs) | 132 lbs |
| Product Warranty | Yes | Warranty Length | 1 Year |
Blade & Lighting & Motor
x| Number of Blades | 5 | Blade Material | Aluminum |
|---|---|---|---|
| Blade Color | Black | Blade Size (Inches) | 65*4.1 in |
| Light / No Light | No Light | Motor Type | Permanent Magnet Synchronous Motor |
| Maximum RPM | 81 | Maximum Airflow (CFM) | 148, 322 CFM |
| Airflow Efficiency(CFM/W) | 741.6 CFM/W |
