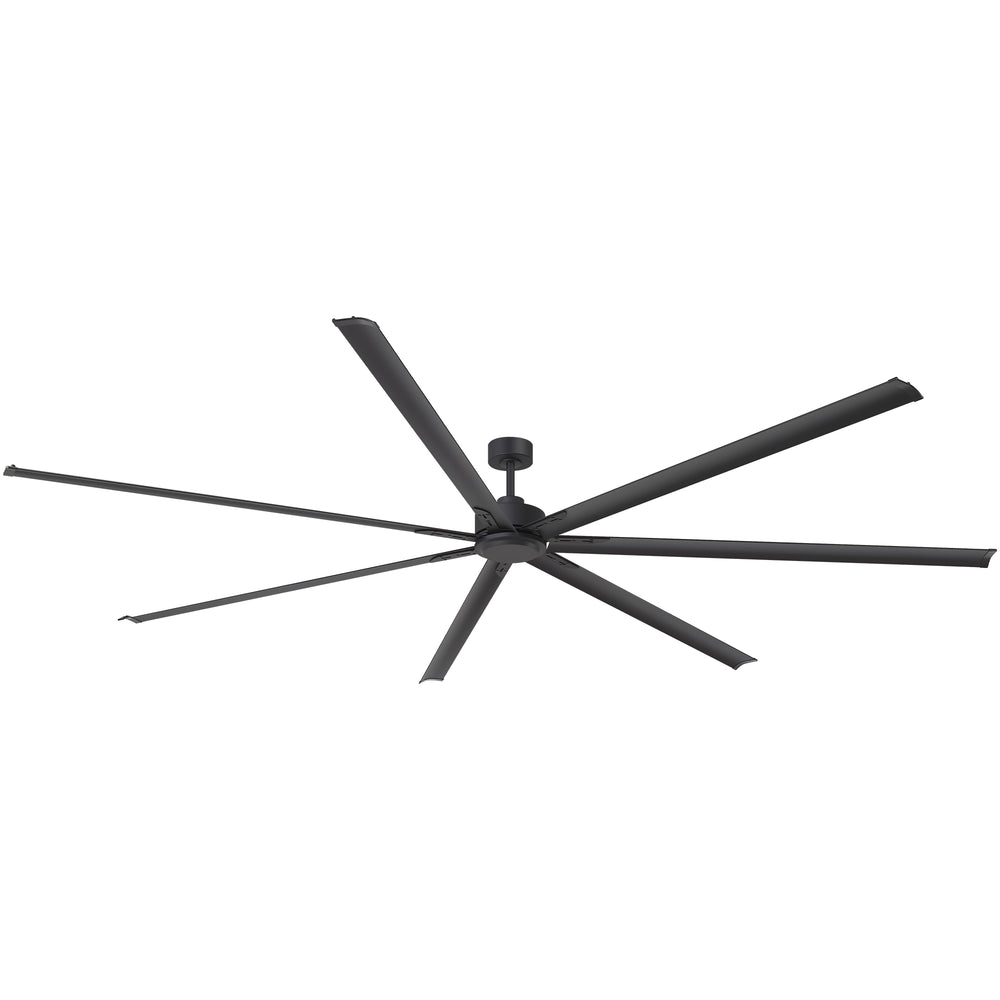

A 120-inch industrial ceiling fan for warehouses, factories, gyms and other large spaces. It combines aluminum alloy blades, a 6-speed remote, reversible airflow and three listed downrod options. The 8-blade flagship configuration uses a PMSM motor, while the 6- and 7-blade versions use standard DC motors.
120" / 10-Ft Blade Span
Up to 9,500 CFM
8-Blade PMSM Option
Aluminum Alloy Blades
6-Speed Remote
No Light Design
Description
xQuick Browse: 29016 120-Inch HVLS Industrial Ceiling Fan
10-FOOT INDUSTRIAL AIR CIRCULATION
120-Inch HVLS Industrial Ceiling Fan for Large Commercial Spaces
Model 29016 is a 120-inch HVLS industrial ceiling fan designed to move a broad volume of air across warehouses, factories, gyms, large offices, restaurants and other expansive commercial spaces. Its 10-foot blade span is paired with aluminum alloy blades, a six-speed handheld remote, reversible rotation and a no-light configuration so air circulation can be specified separately from the building's lighting system.
Three 120-inch HVLS fan configurations are offered on the current listing. The flagship 8-blade version is listed with a PMSM motor, while the 6-blade and 7-blade versions use standard DC motors. Select the exact HVLS configuration by verified motor, RPM, blade pitch, clearance and project requirements rather than blade count alone.
120"10-foot blade span

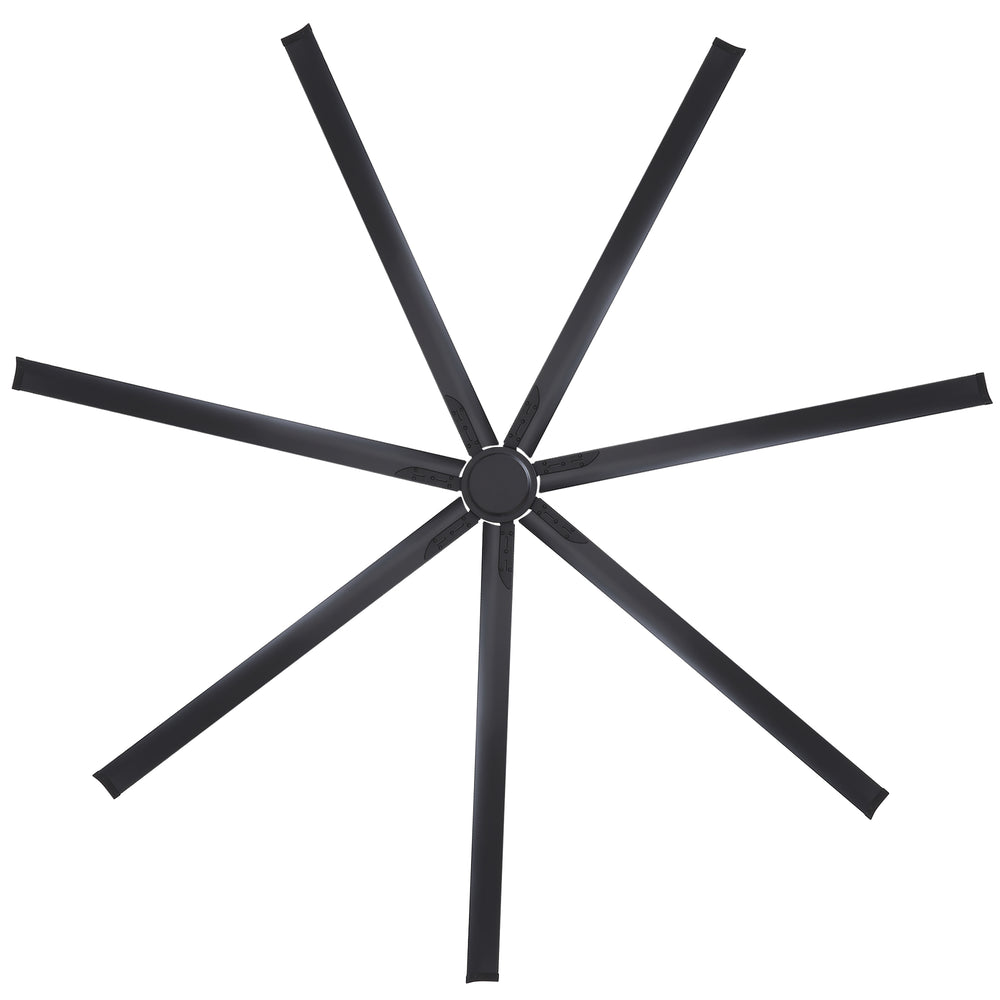

6 / 7 / 8Blade options
9,500Published max CFM
6Remote speeds
6 / 12 / 24"Listed downrods
No LightAirflow-focused design

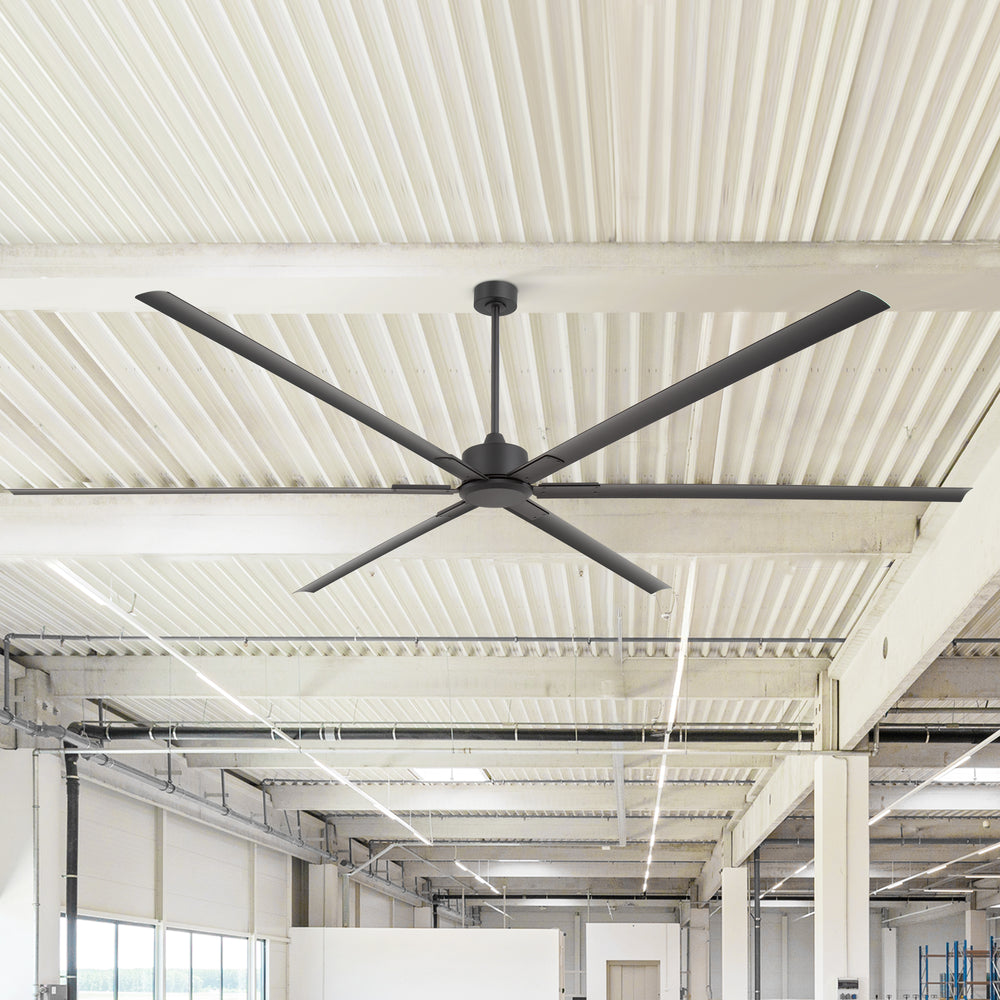

APPLICATION FIRST

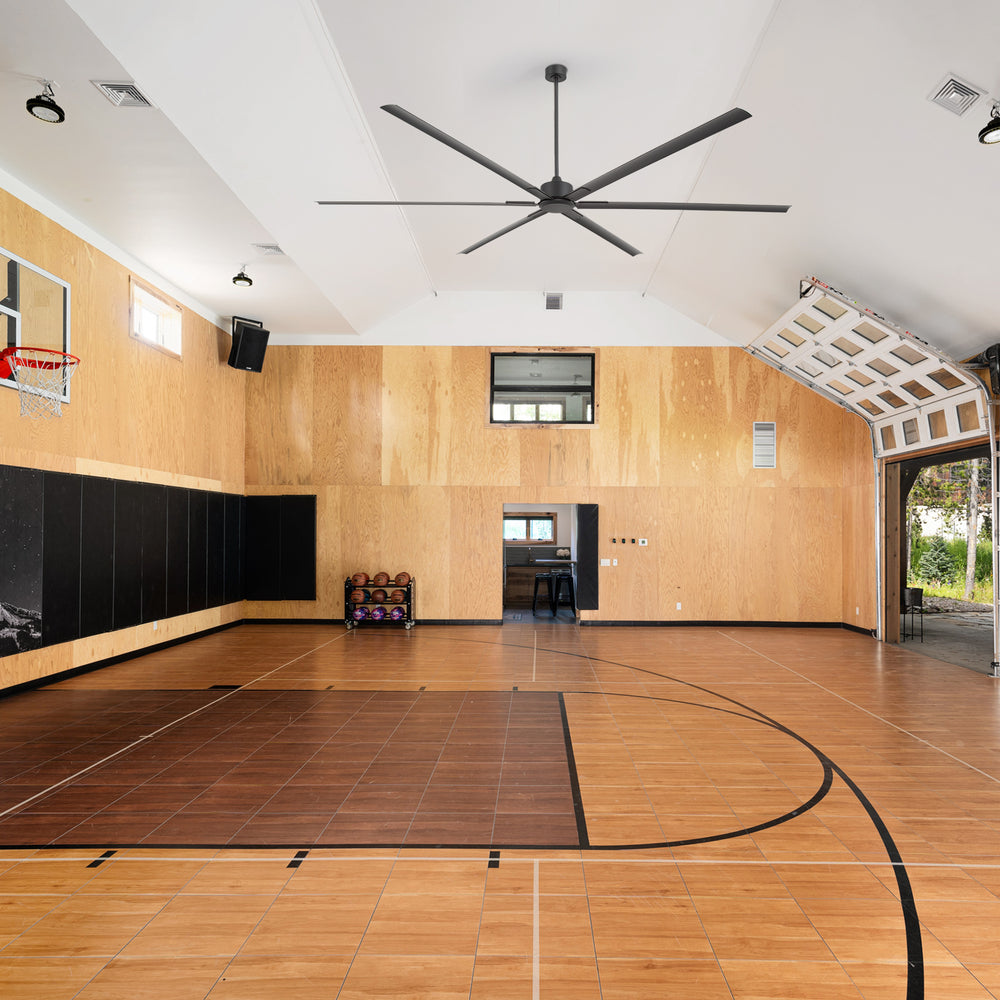

HVLS Fans for Warehouses, Factories, Gyms & Commercial Spaces

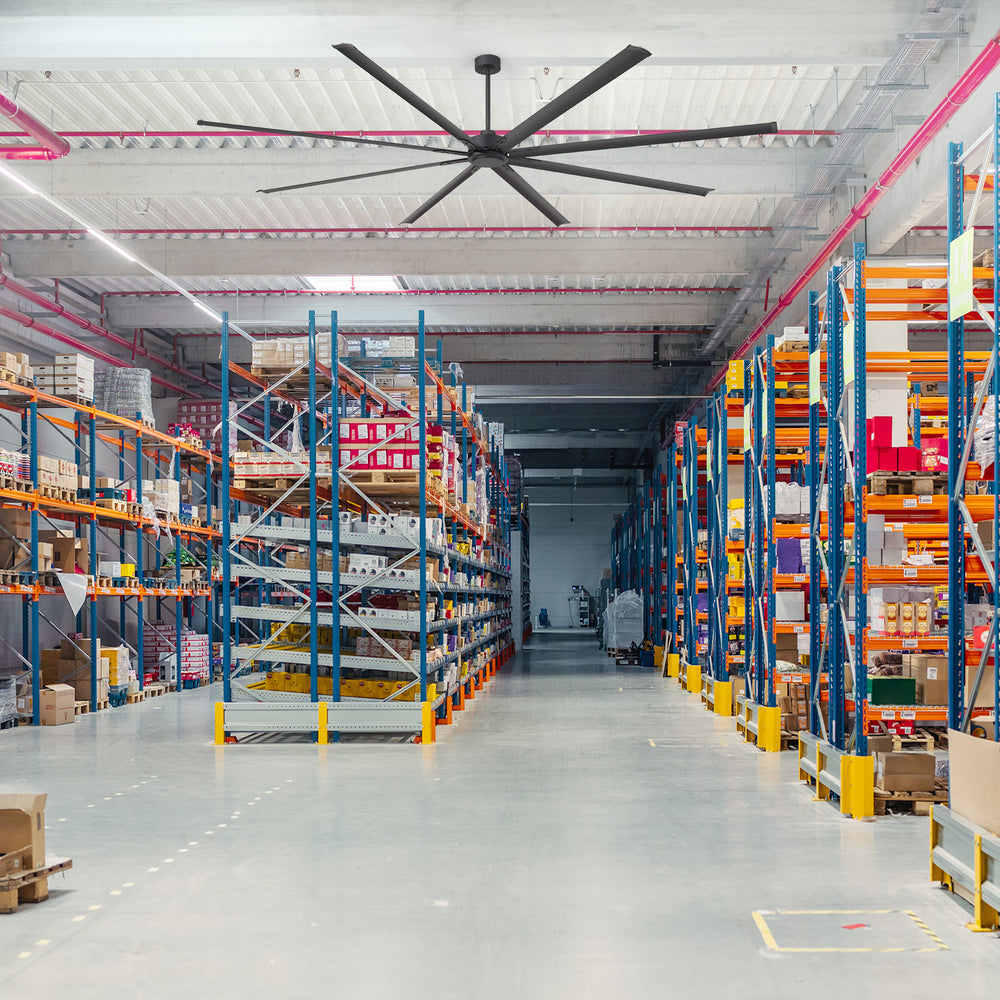

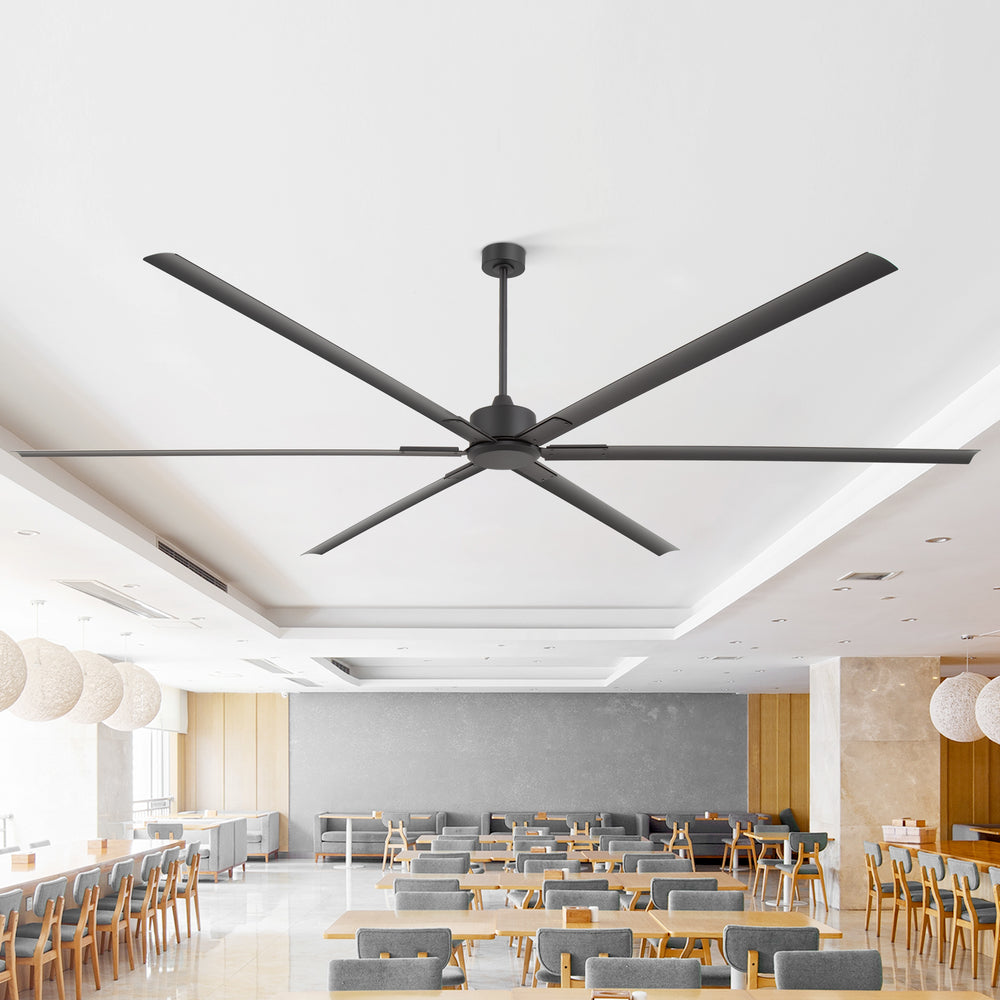

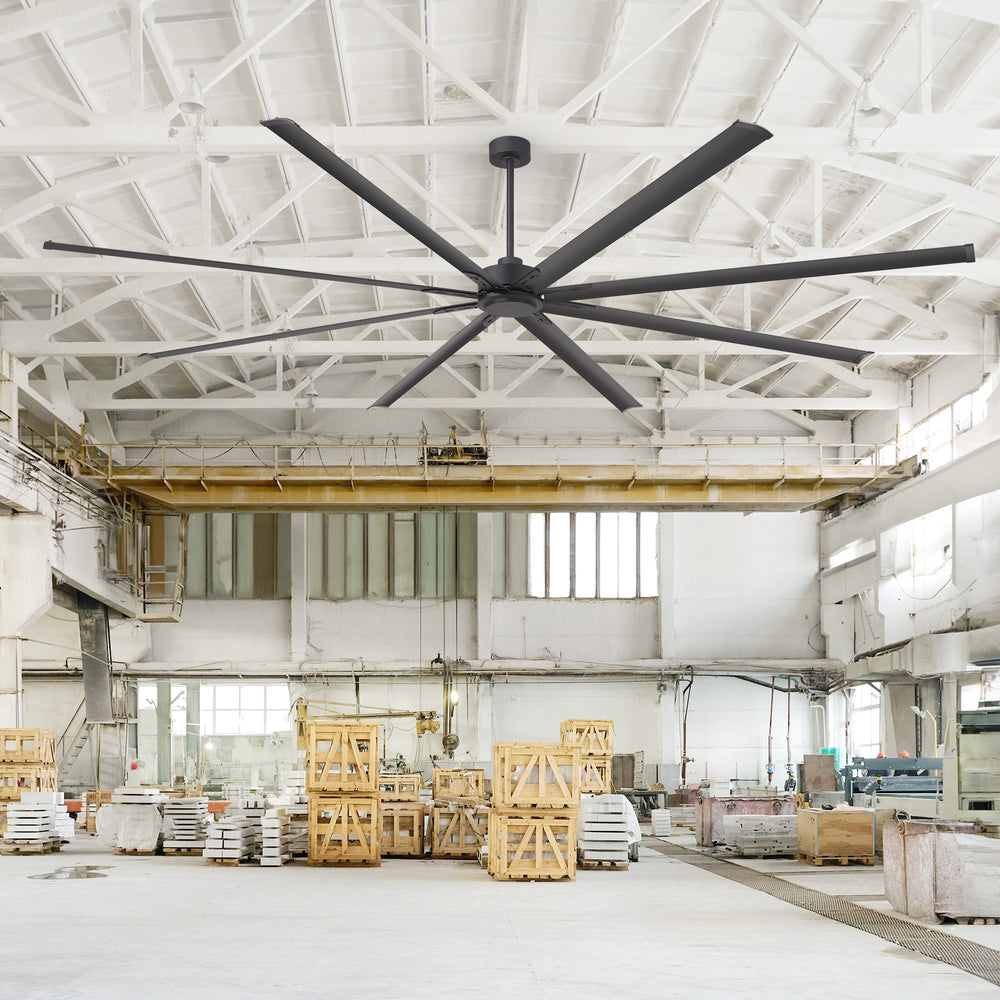

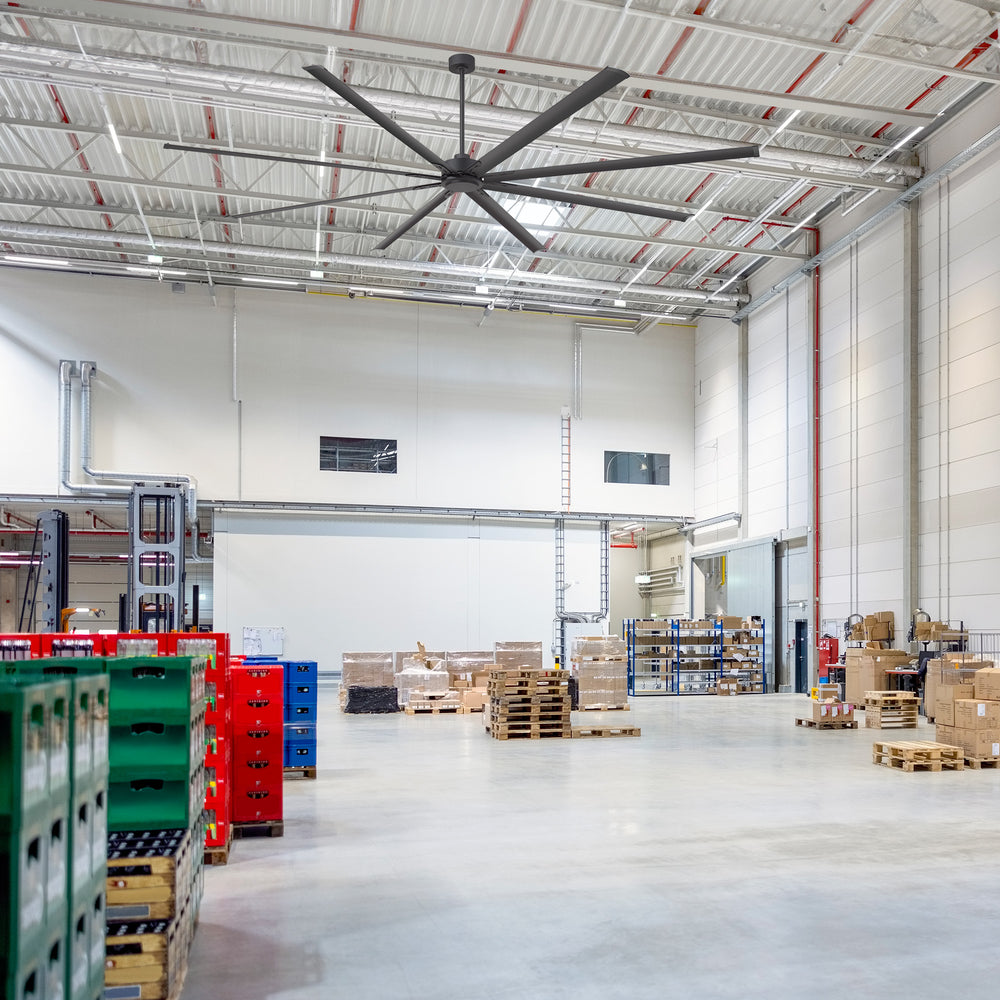

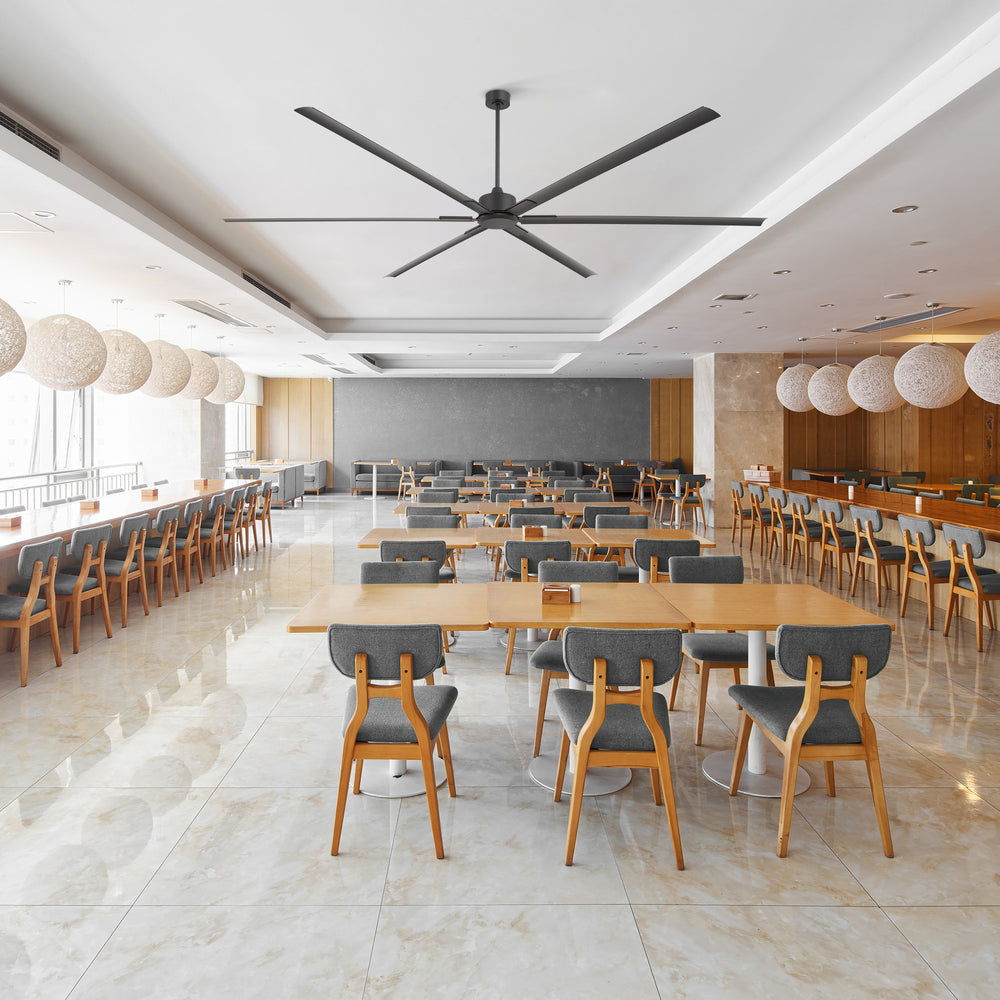

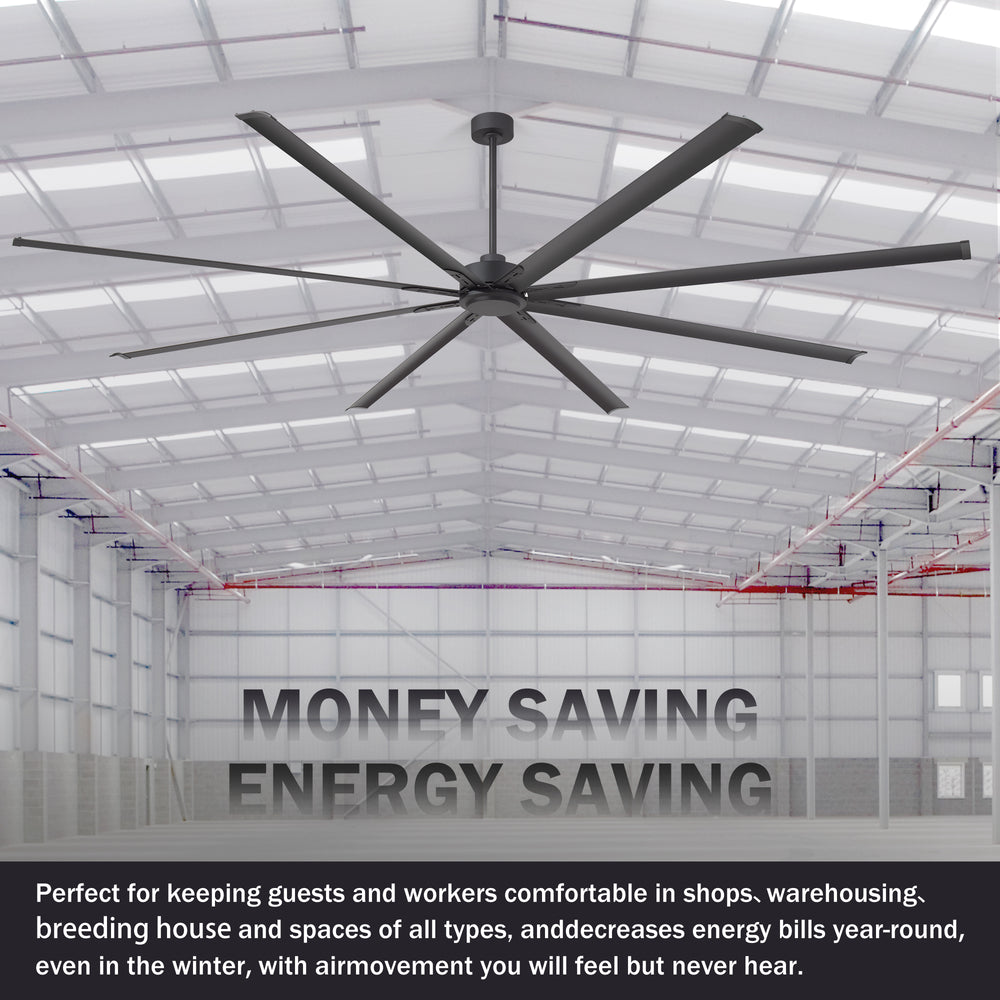

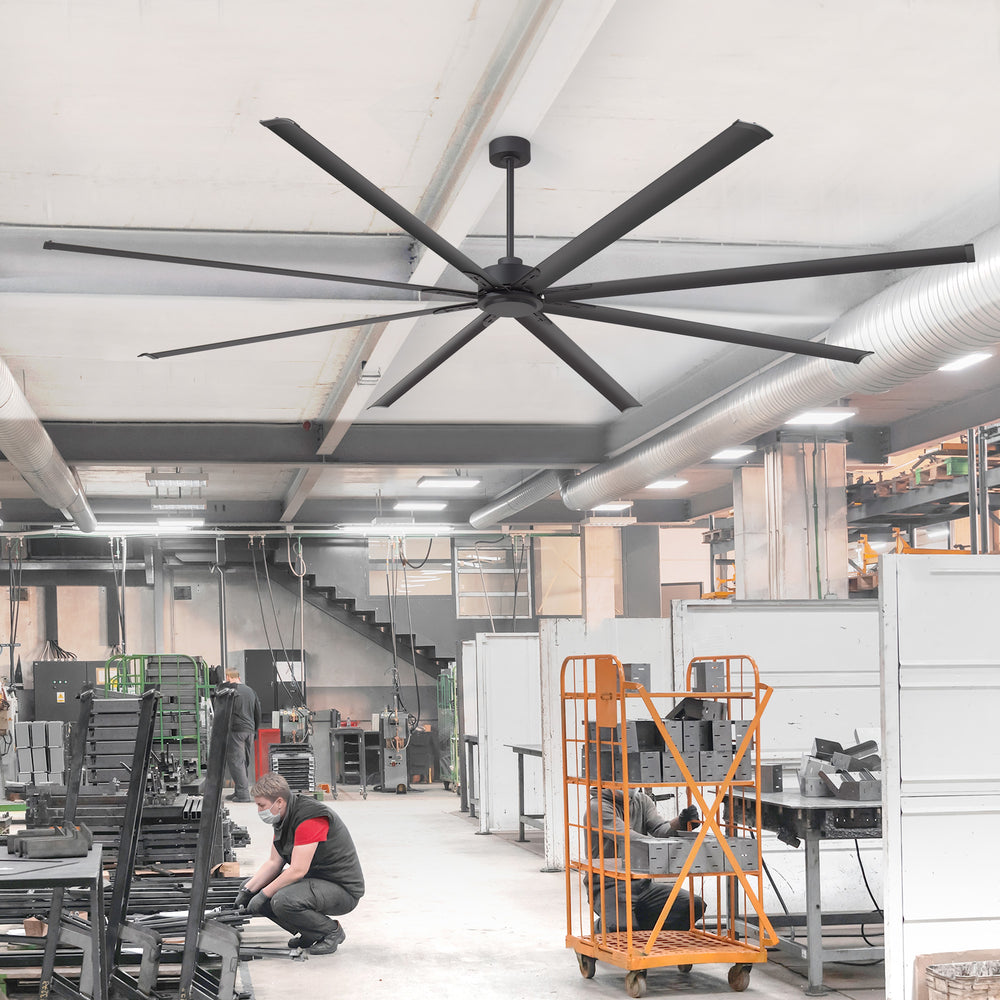

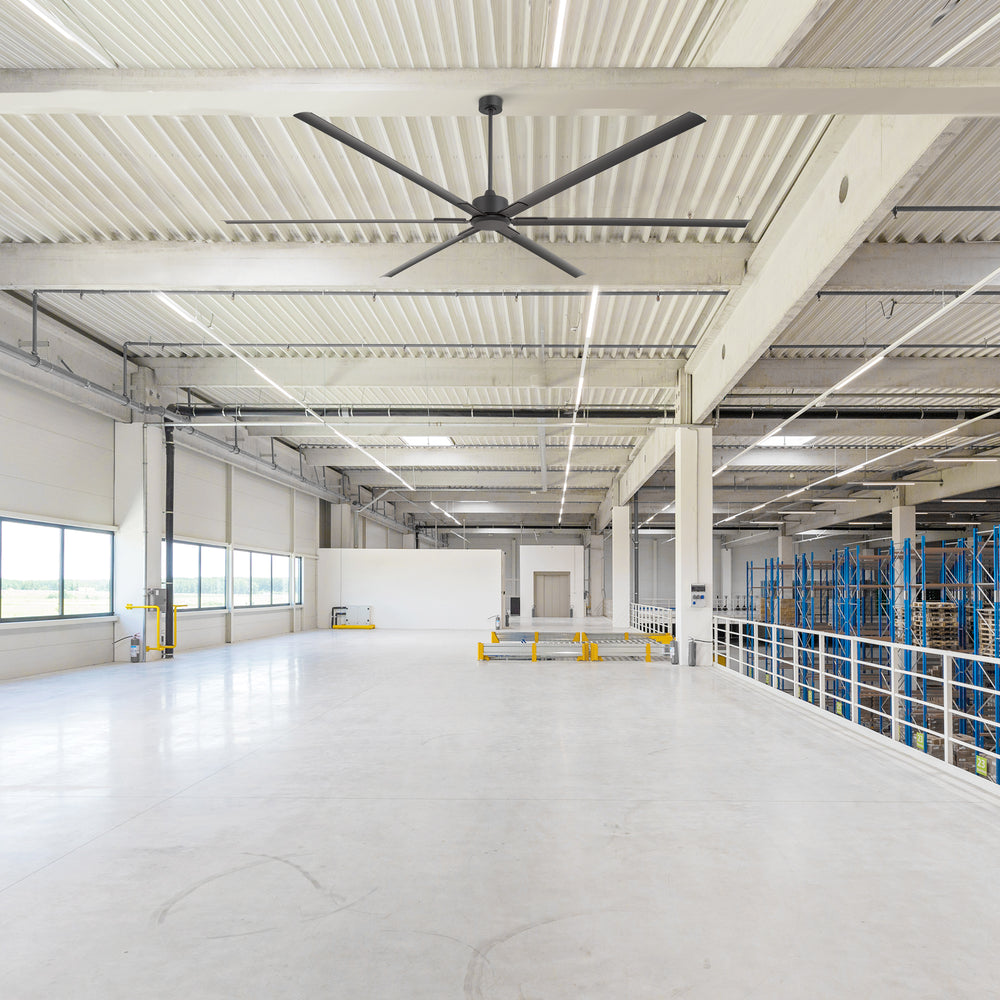

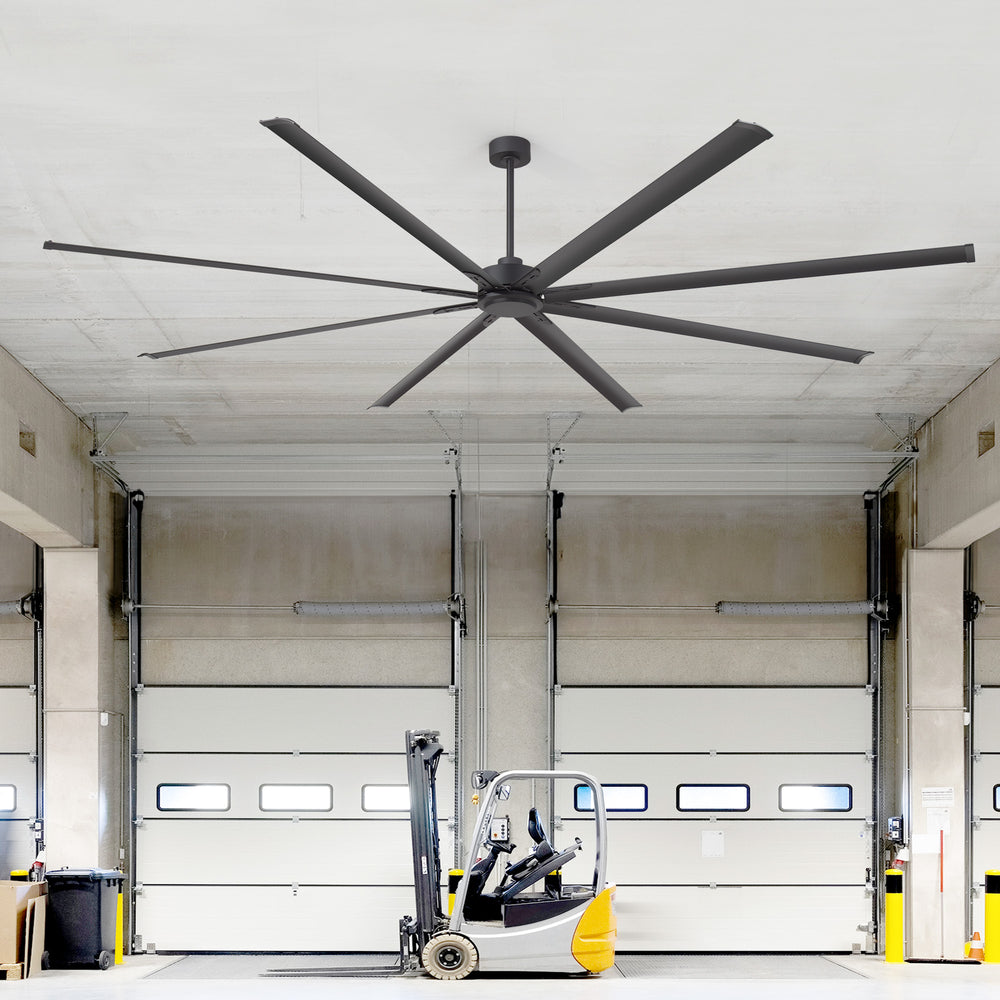

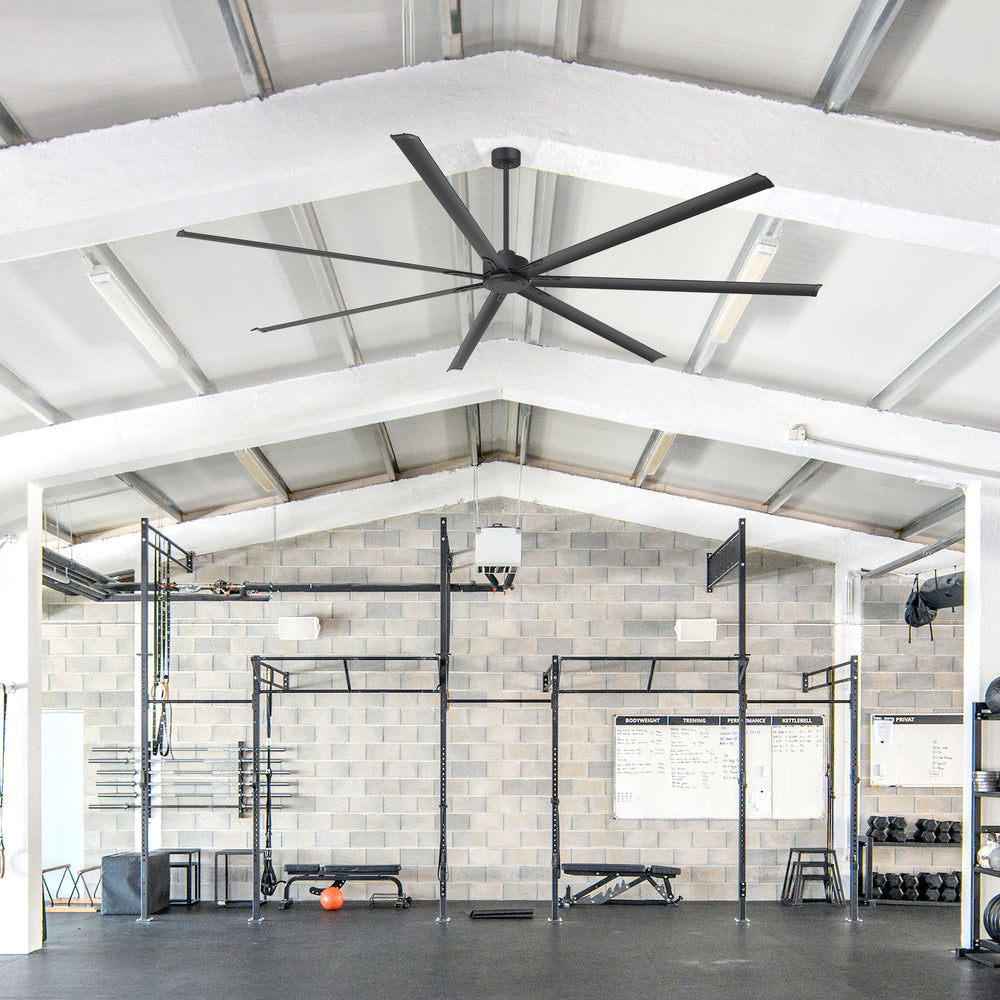

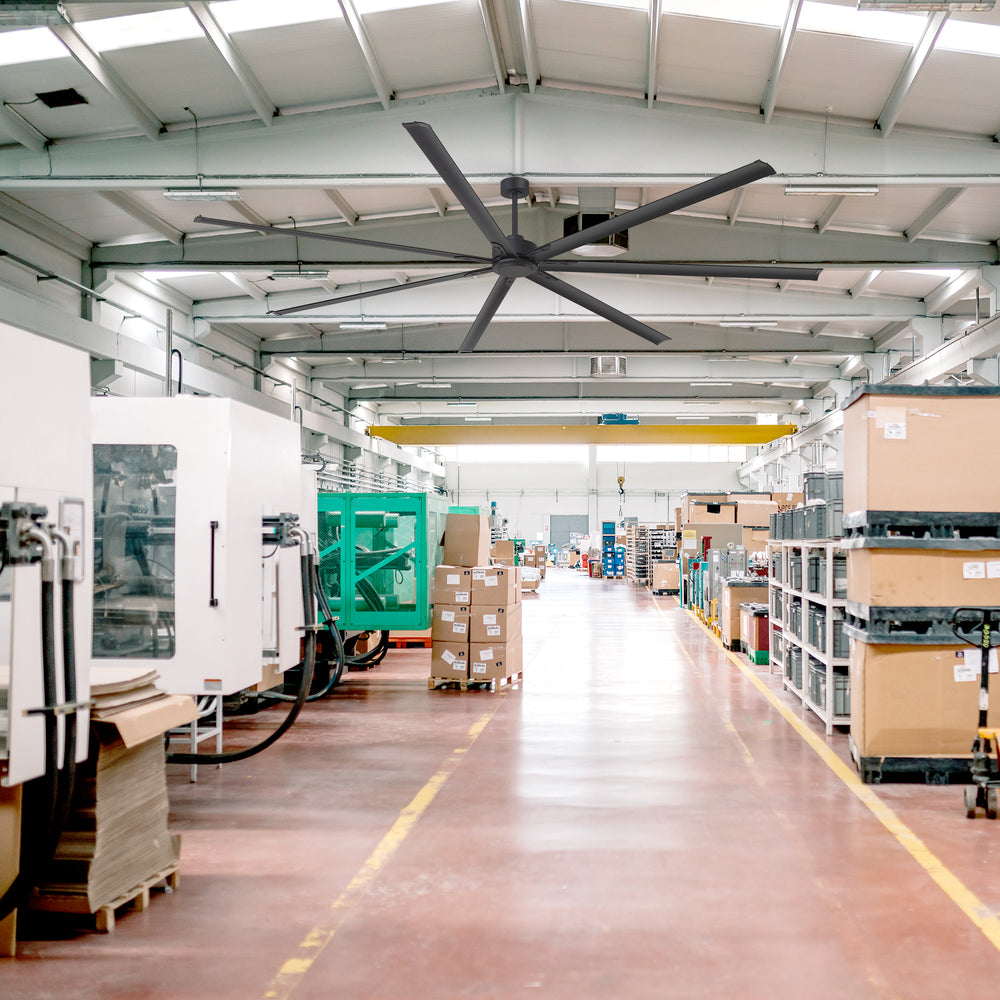

A 120-inch HVLS fan should be selected around actual ceiling height, floor layout, occupied zones and required clearances. The current product listing identifies warehouses, factories, gyms, large offices, restaurants and cafeterias as relevant applications for this large commercial air-circulation fan.
CONFIGURATION GUIDE
Which 120-Inch HVLS Industrial Fan Configuration Fits Your Project?
The 29016 listing groups three 120-inch HVLS configurations on one product page. The important distinction is not simply the number of blades: motor type, published RPM and blade pitch also change by configuration, so each variant should be treated as a separate project choice.
| Configuration | Motor Listed | Published Max RPM | Blade Pitch | Best Reason to Choose |
|---|---|---|---|---|

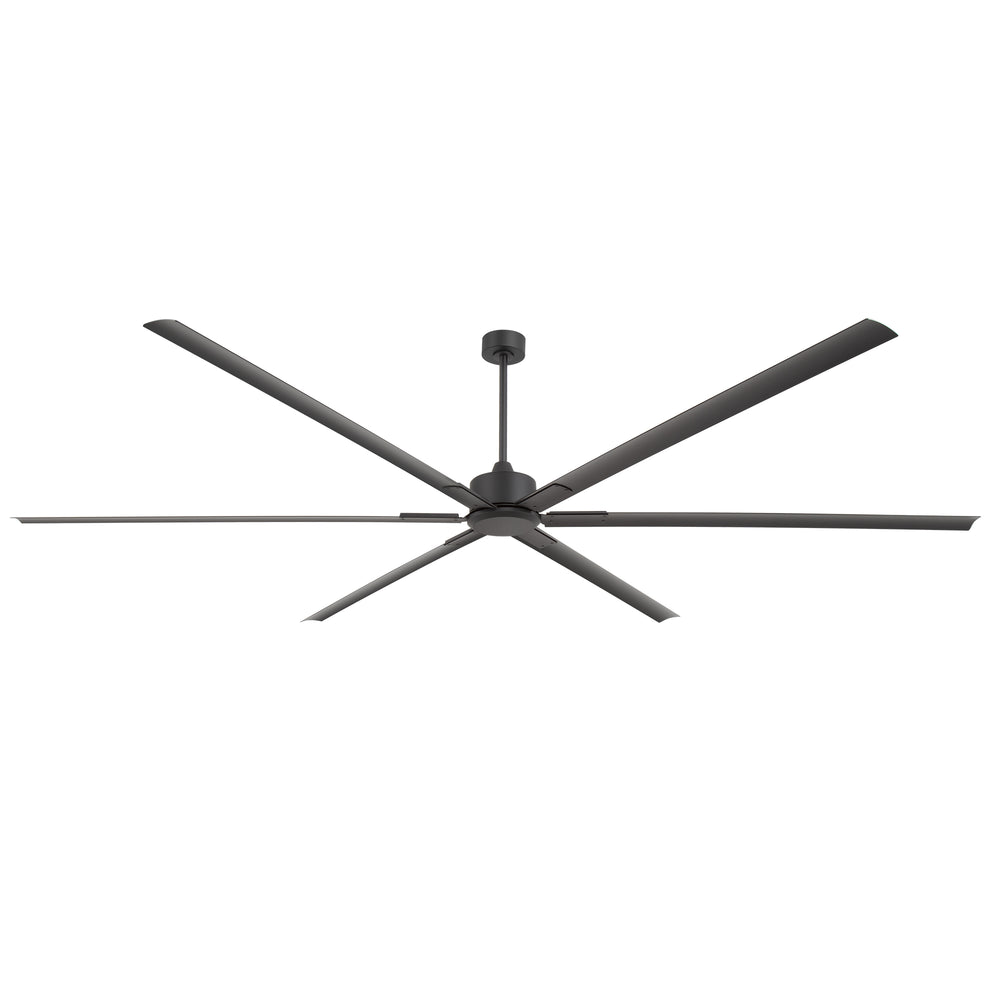

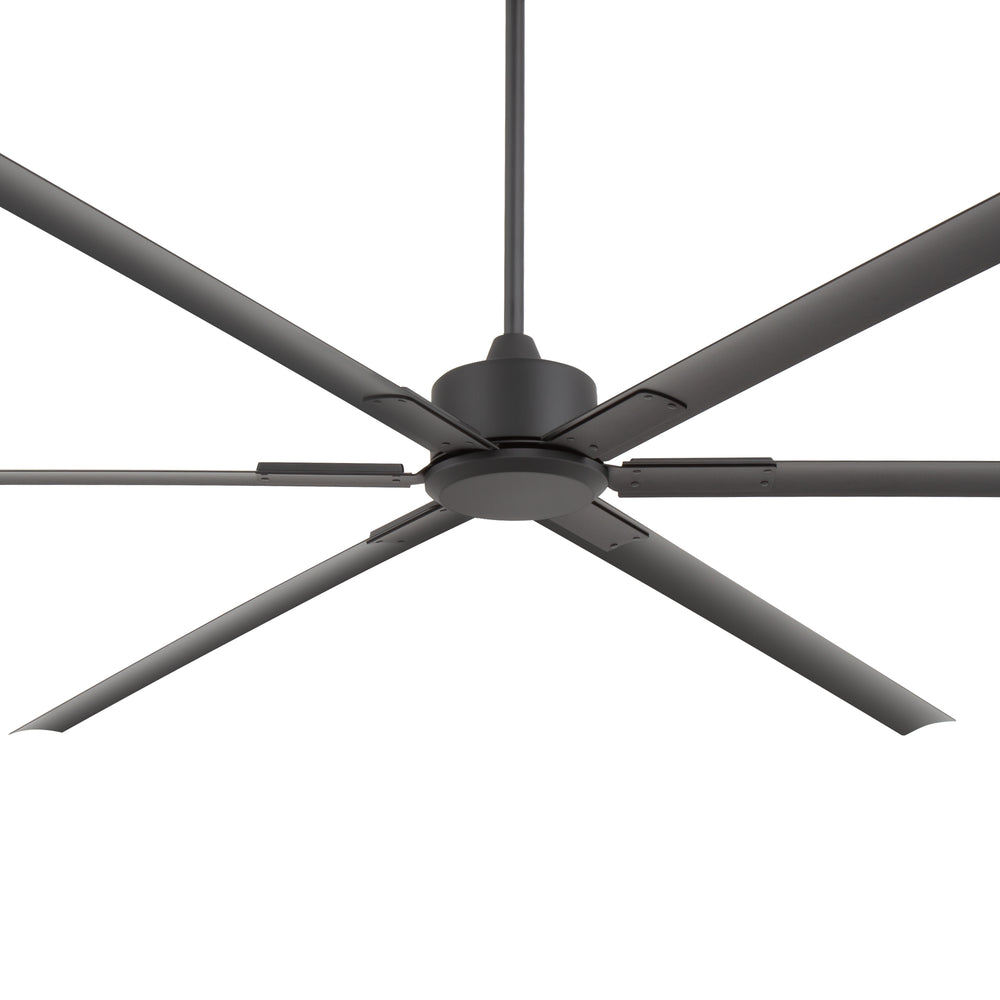

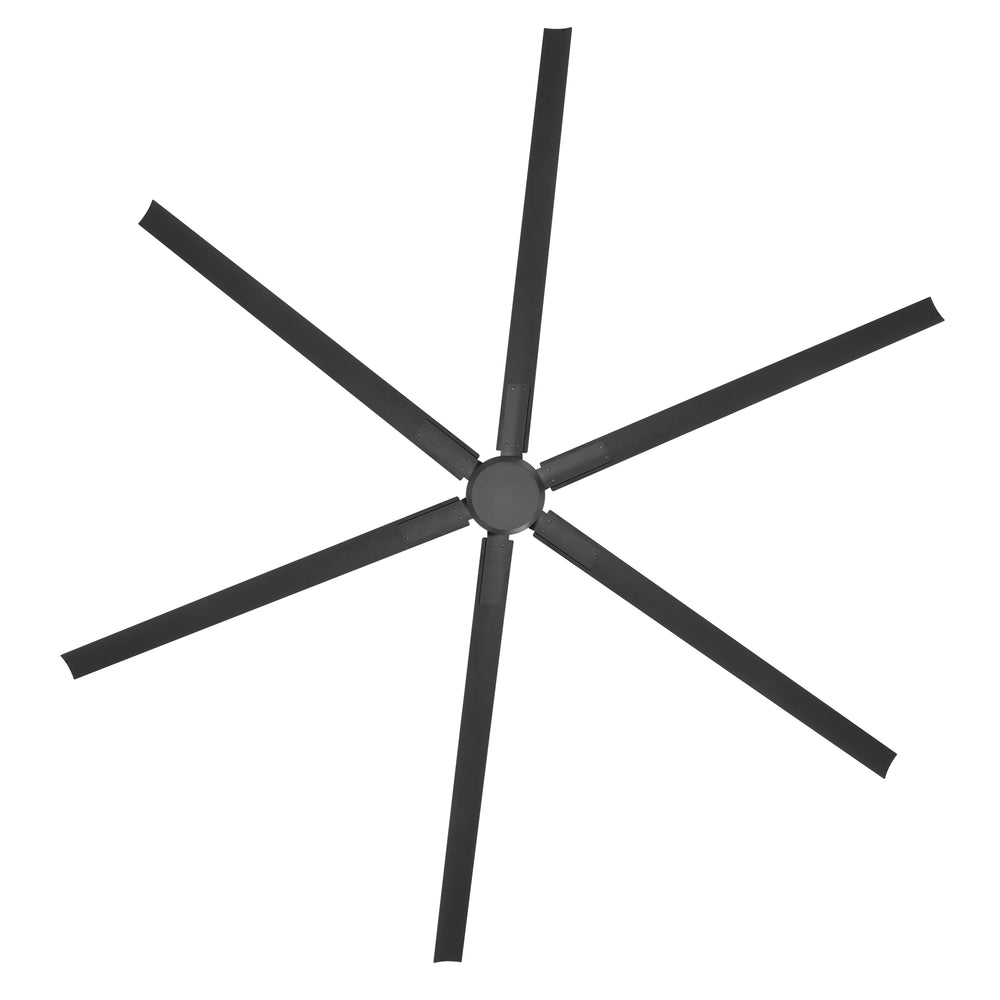

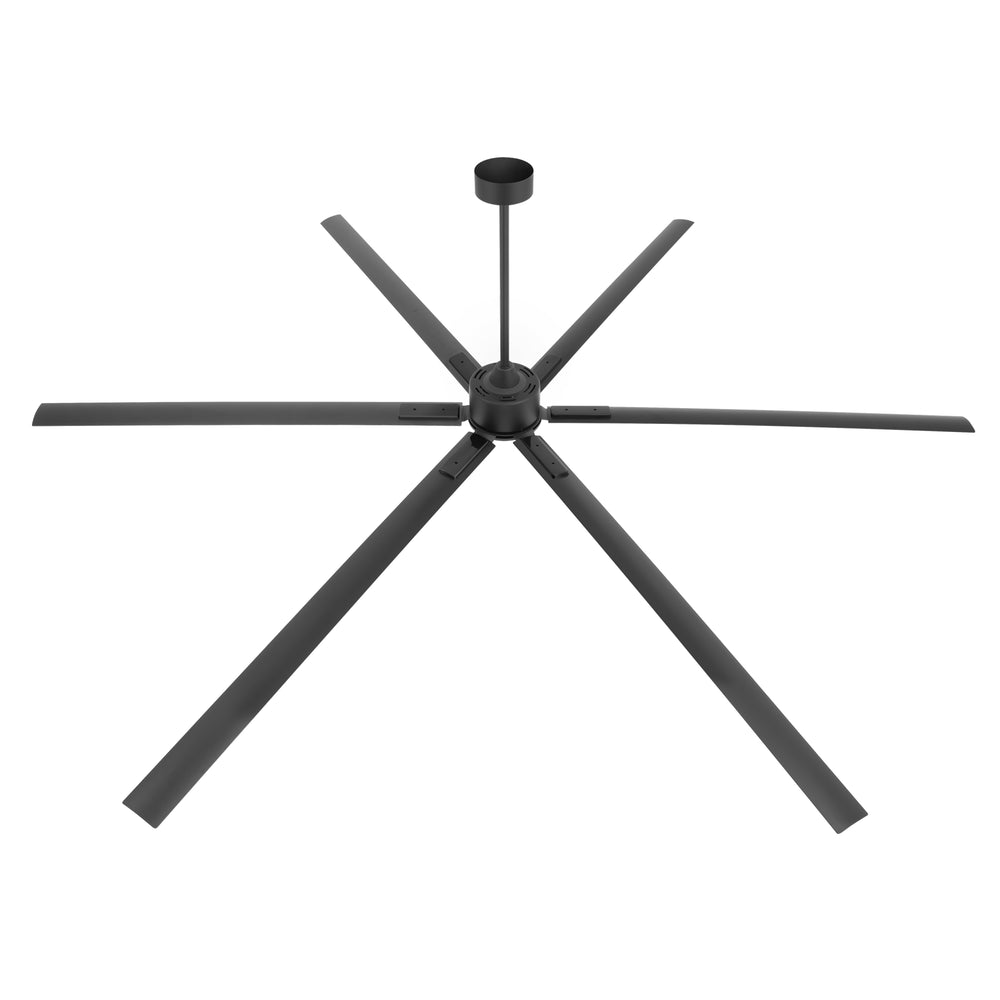

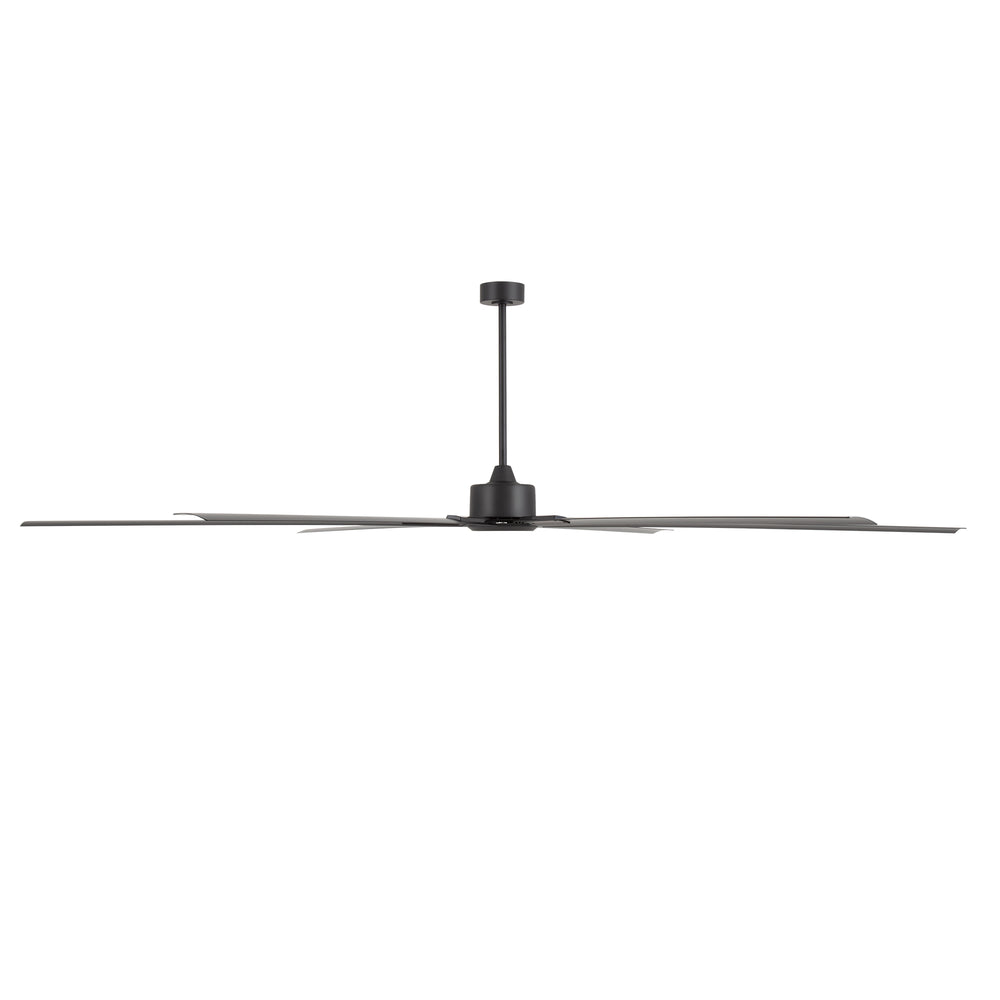

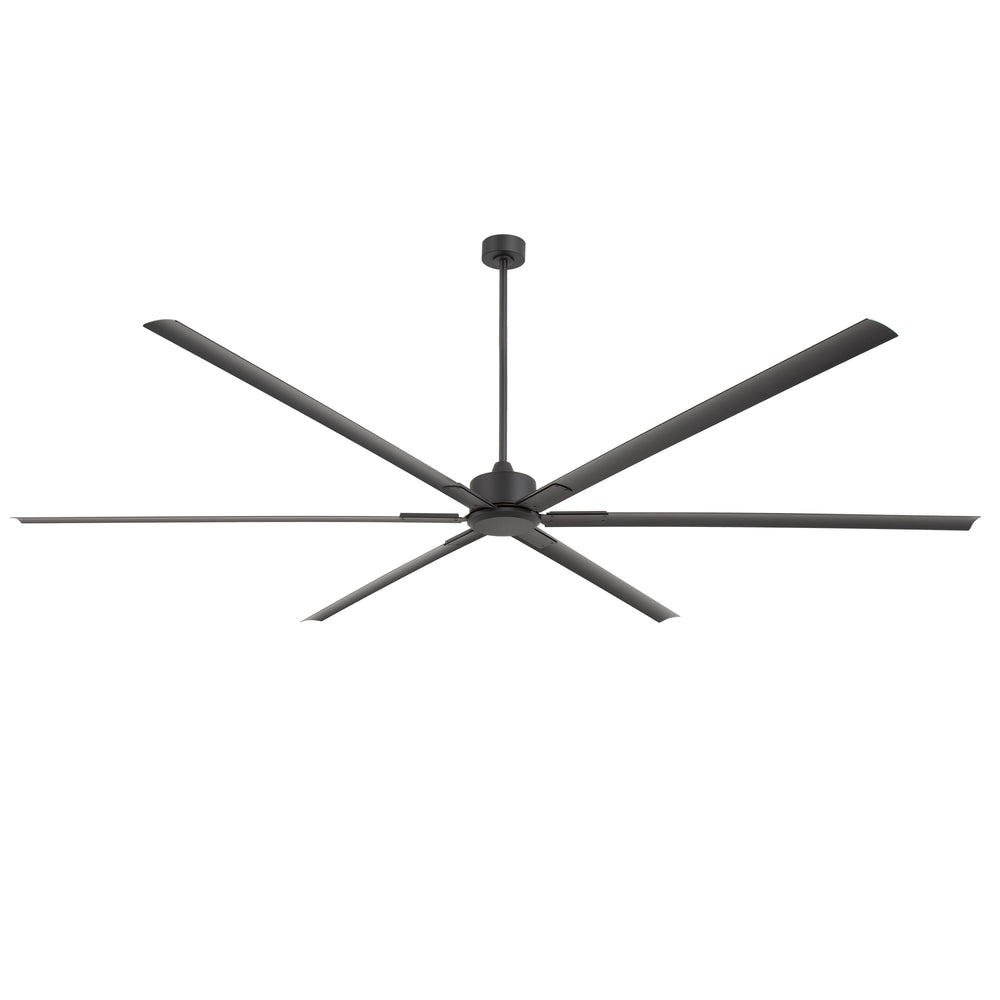

| 6 Blades | DC Motor | 73 RPM | 8° | Standard 120-inch configuration |

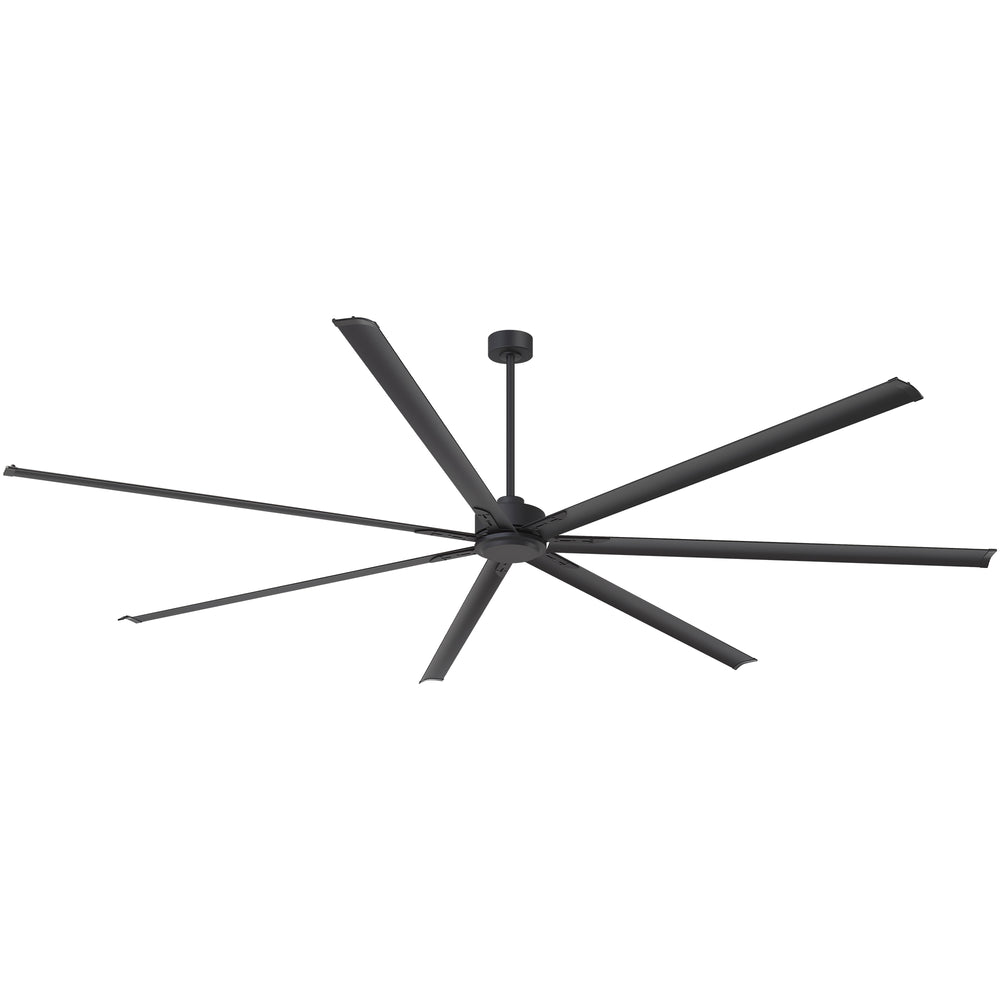

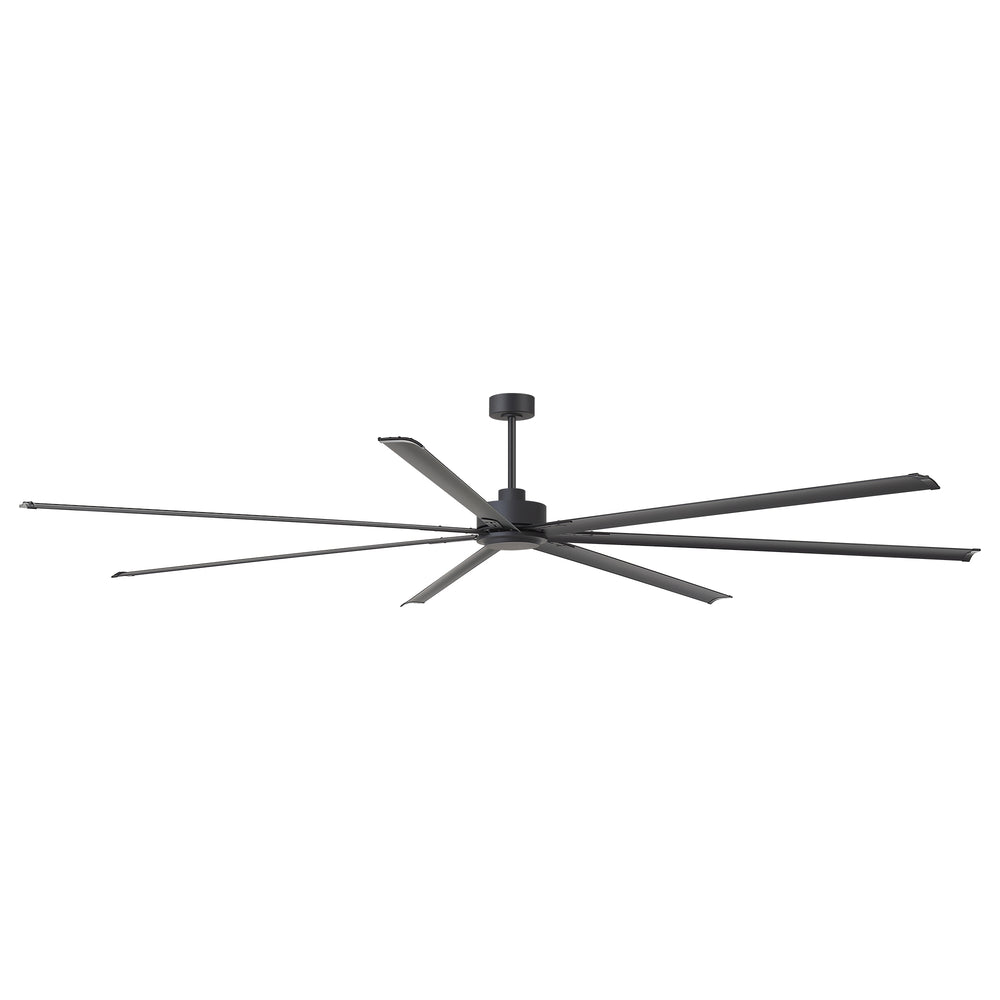

| 7 Blades | DC Motor | 55 RPM | 11° | Enhanced blade-count option |

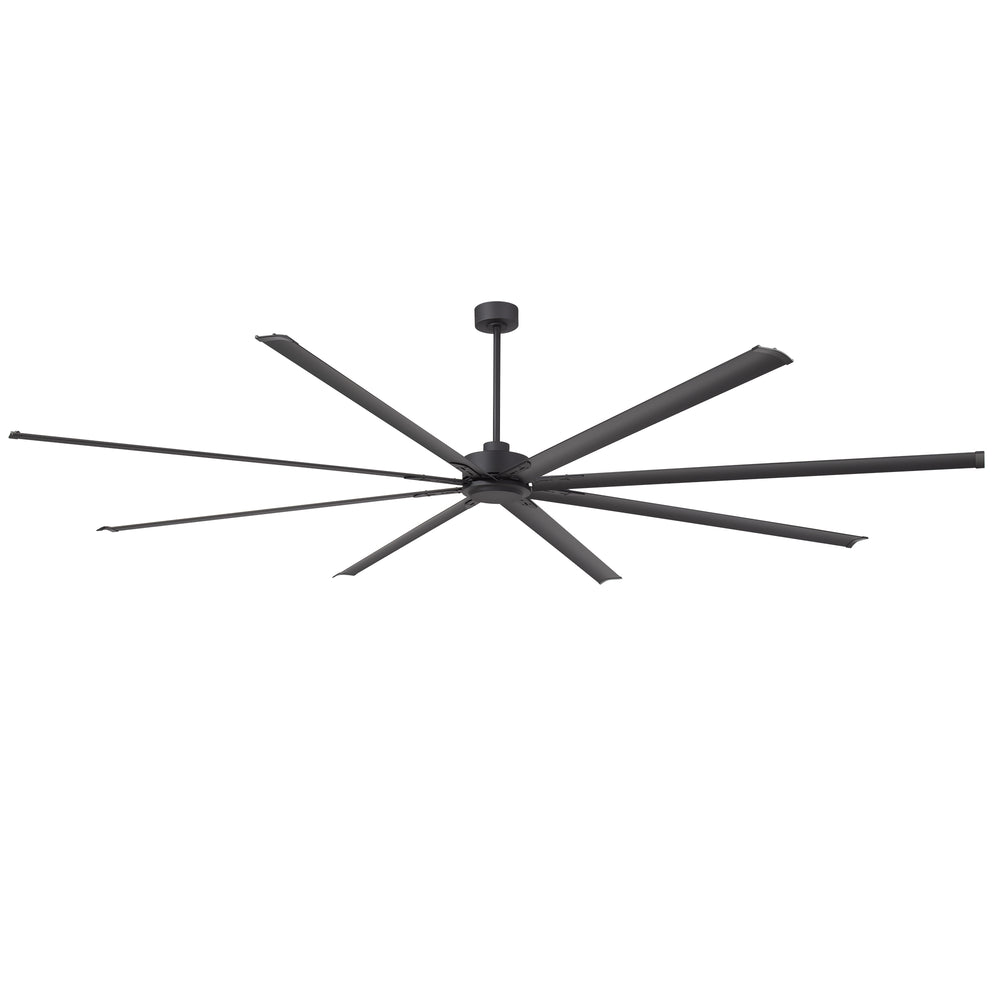

| 8 Blades | PMSM | 60 RPM | 11° | Choose when the PMSM flagship configuration is required |
Published maximum airflow for the product family is listed at up to 9,500 CFM. Do not assume blade count alone predicts airflow; confirm the exact selected variant and project requirements before ordering.

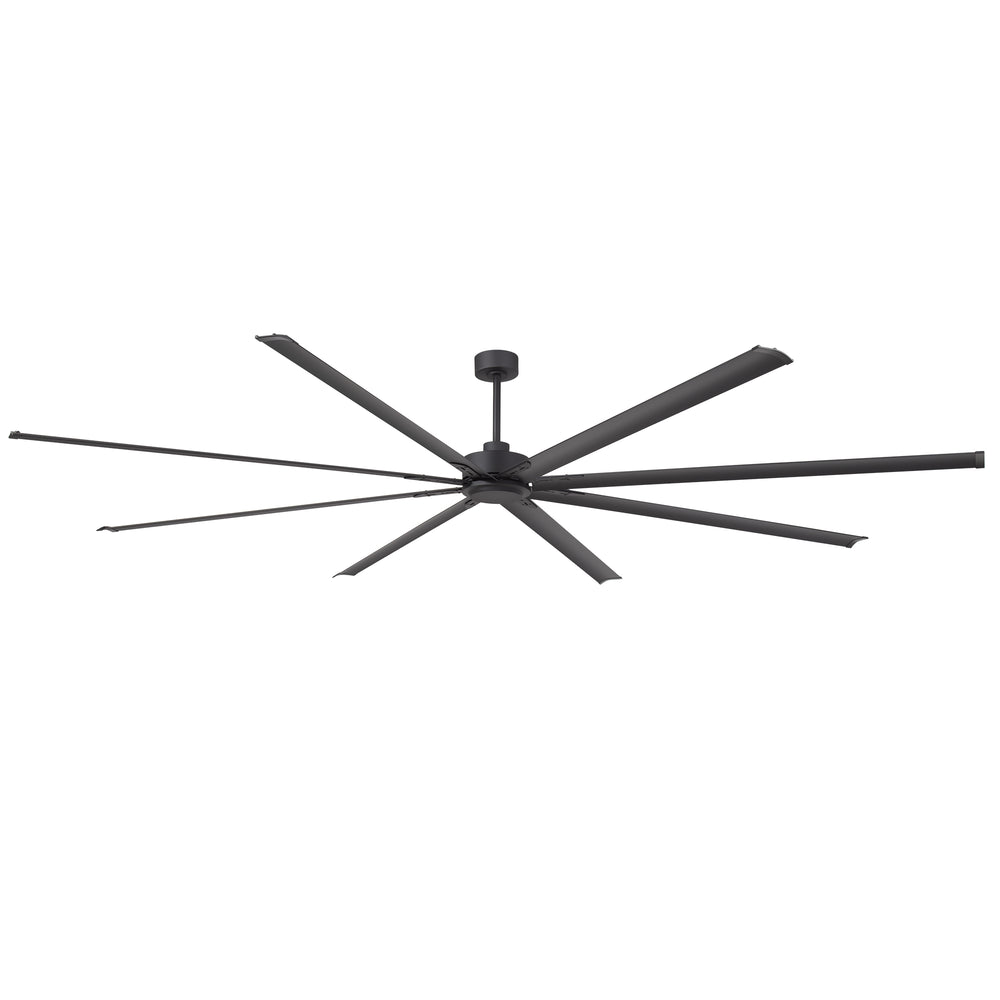

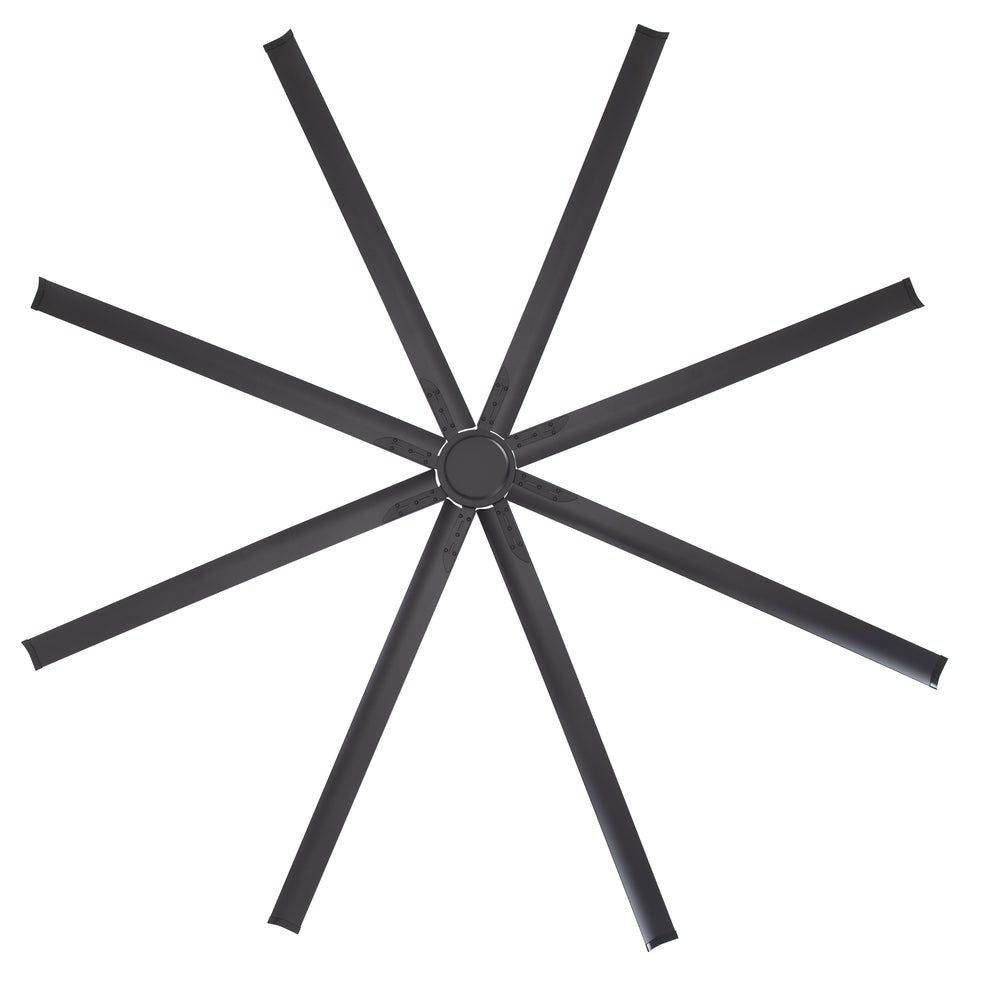

8-BLADE FLAGSHIP OPTION

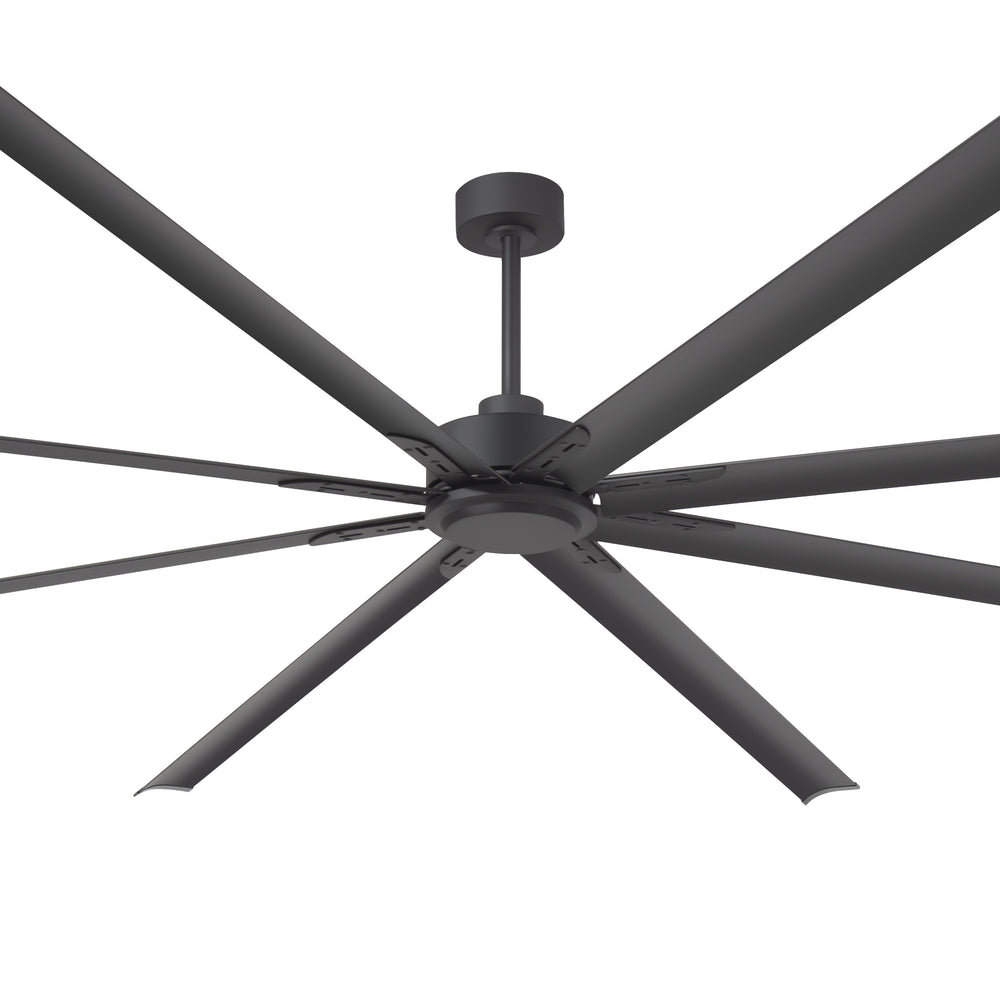

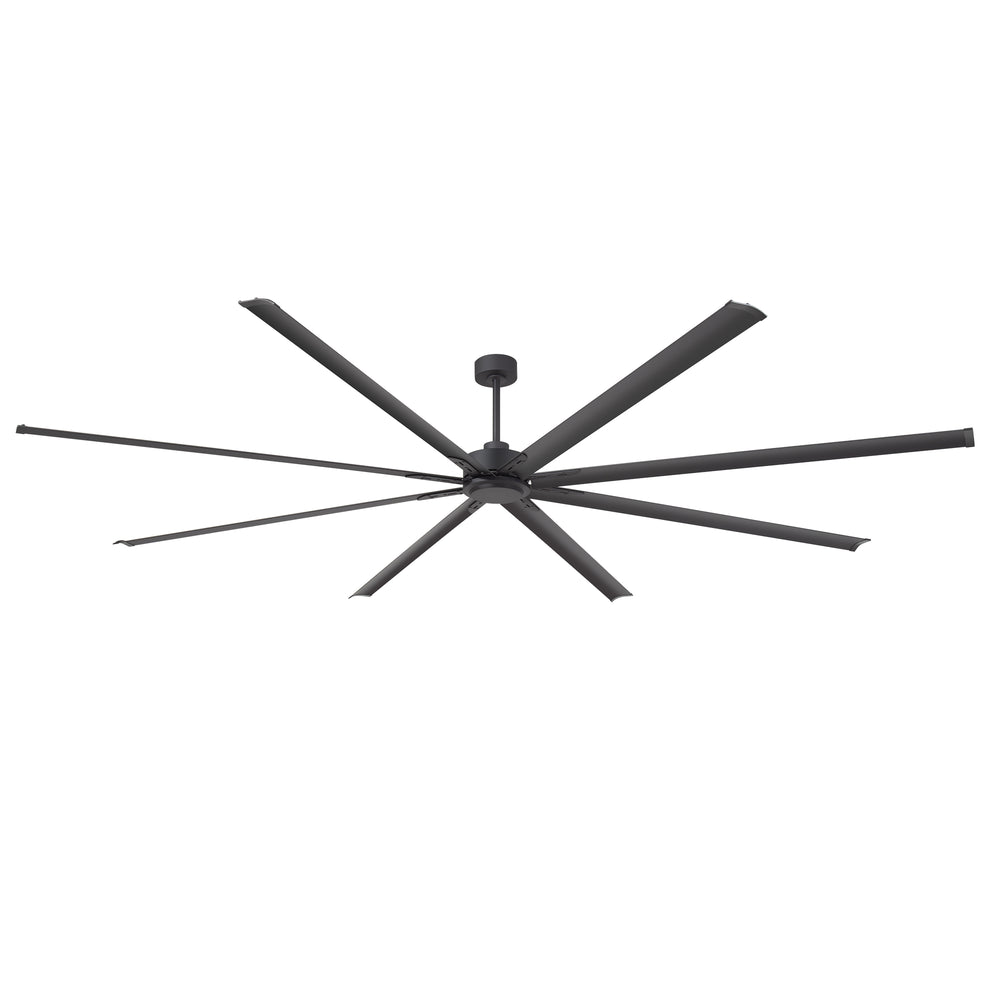

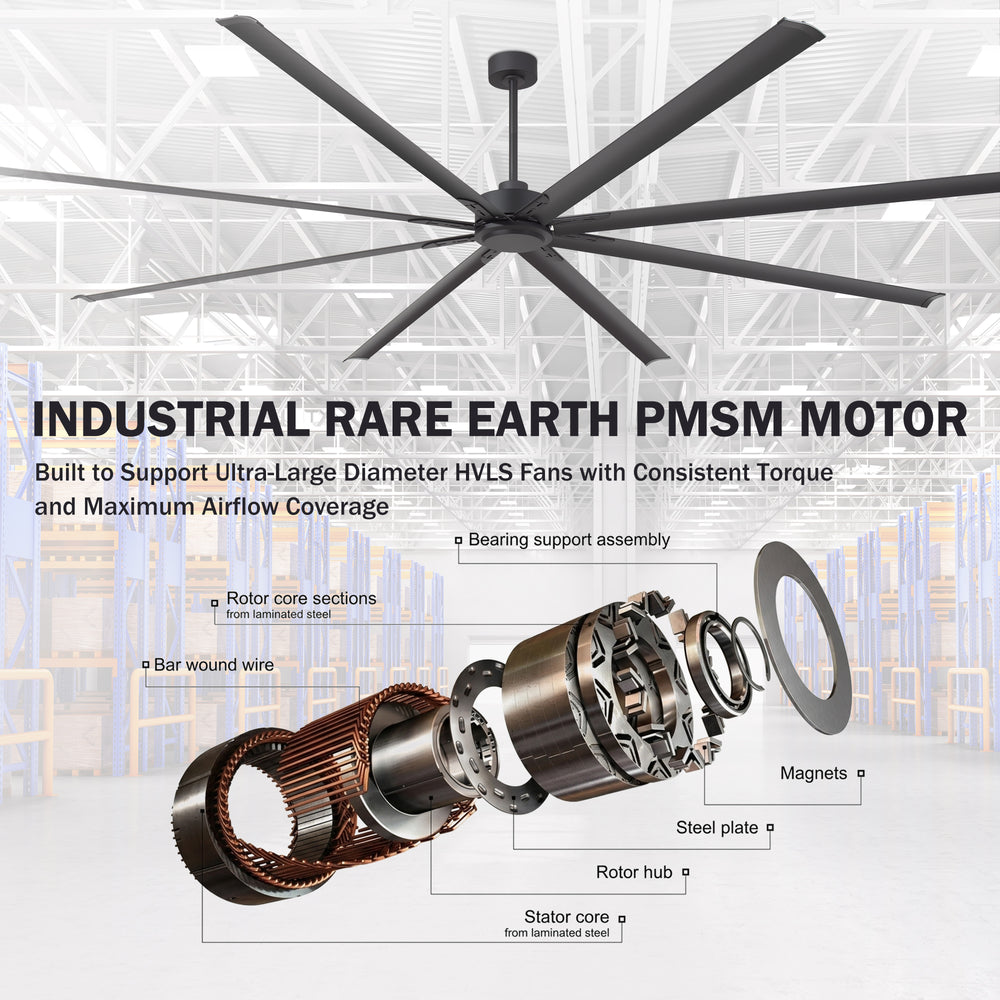

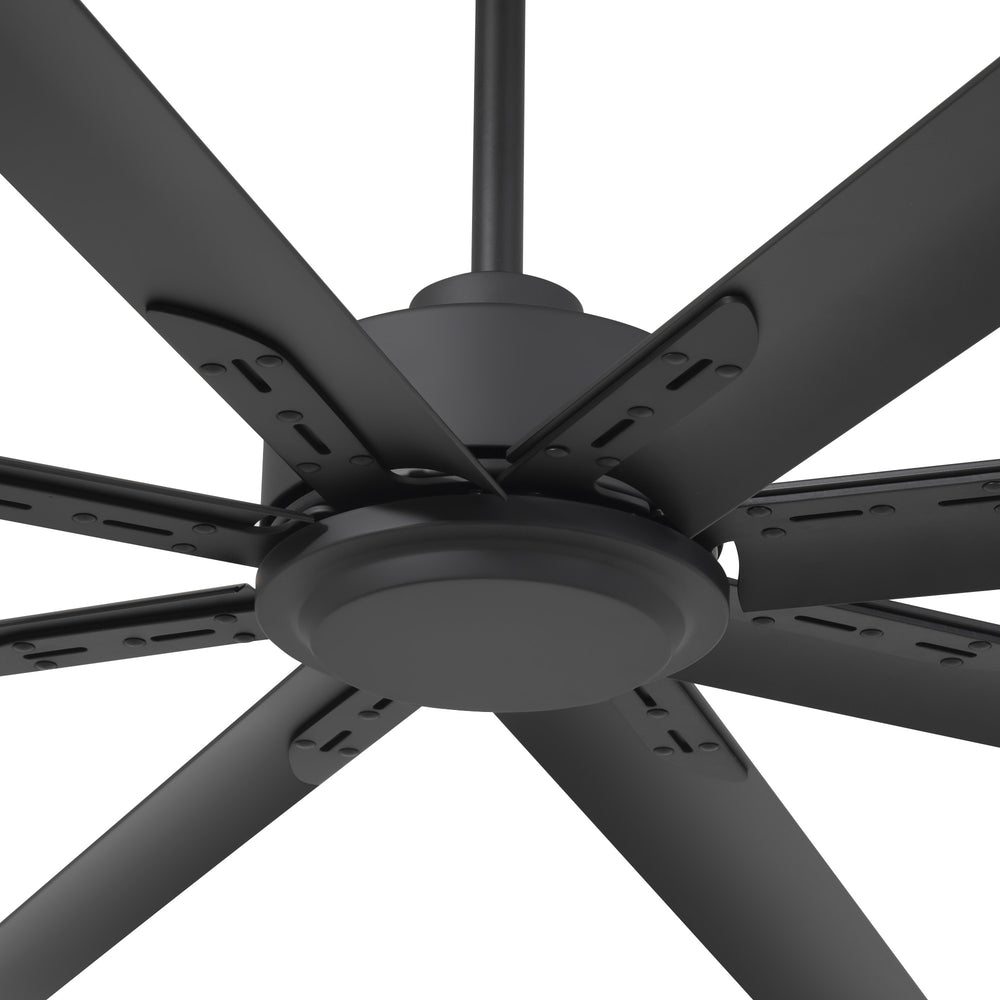

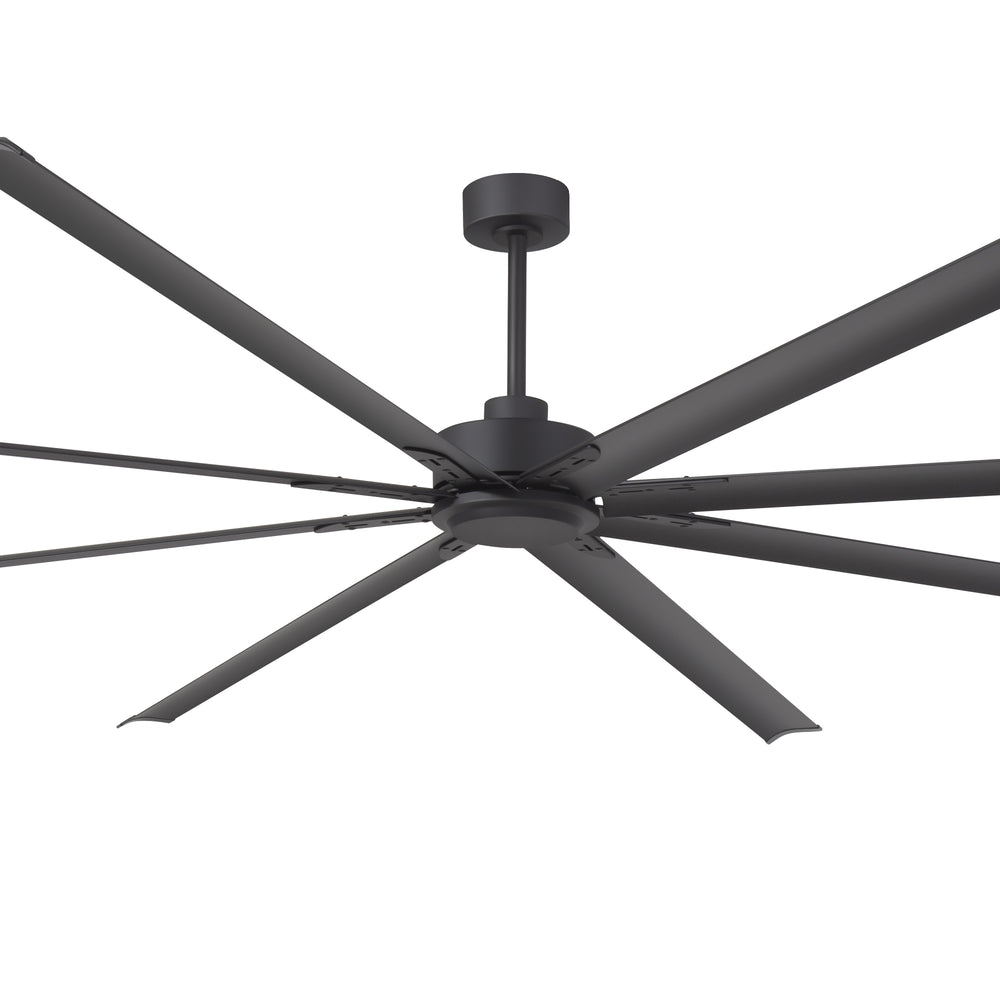

PMSM HVLS Motor Option with Aluminum Alloy Blades
The current Breezary listing identifies the 8-blade configuration as the PMSM HVLS version. The 6-blade and 7-blade versions use standard DC motors, so PMSM should not be described as a feature of every 29016 HVLS variant.

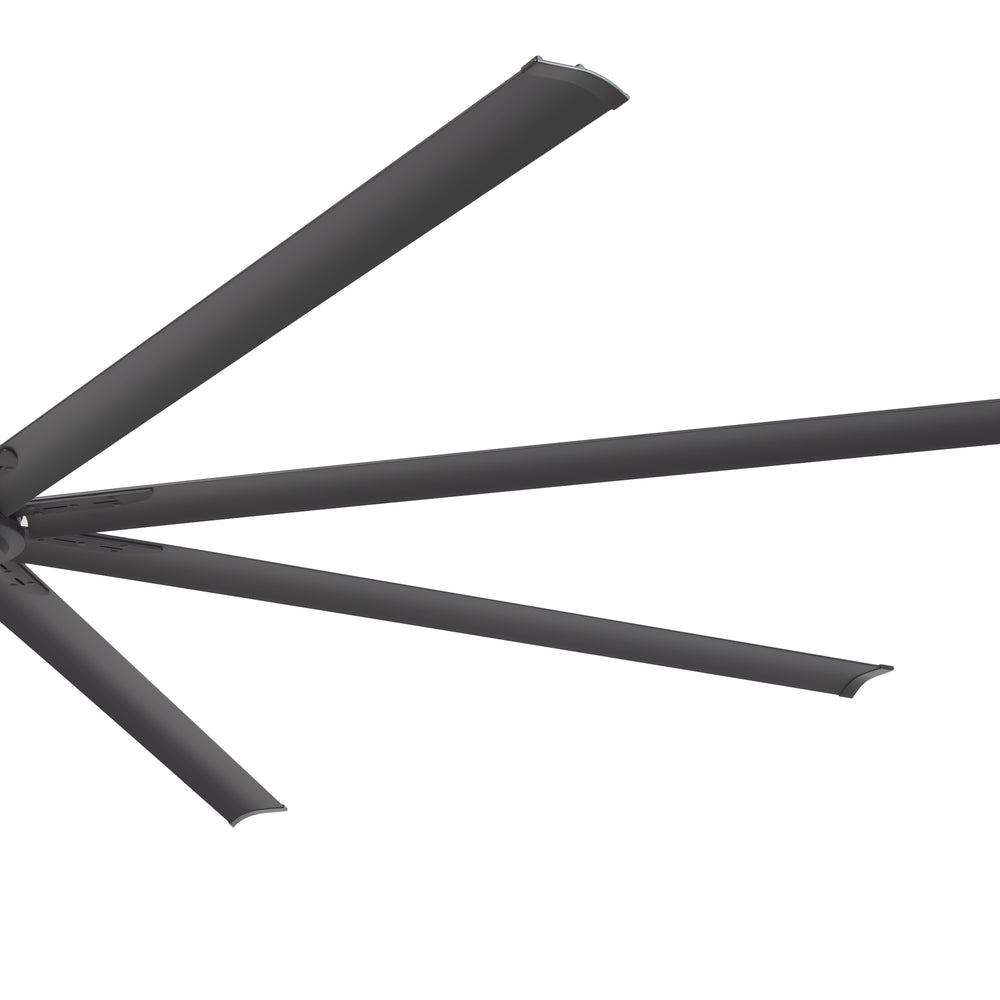

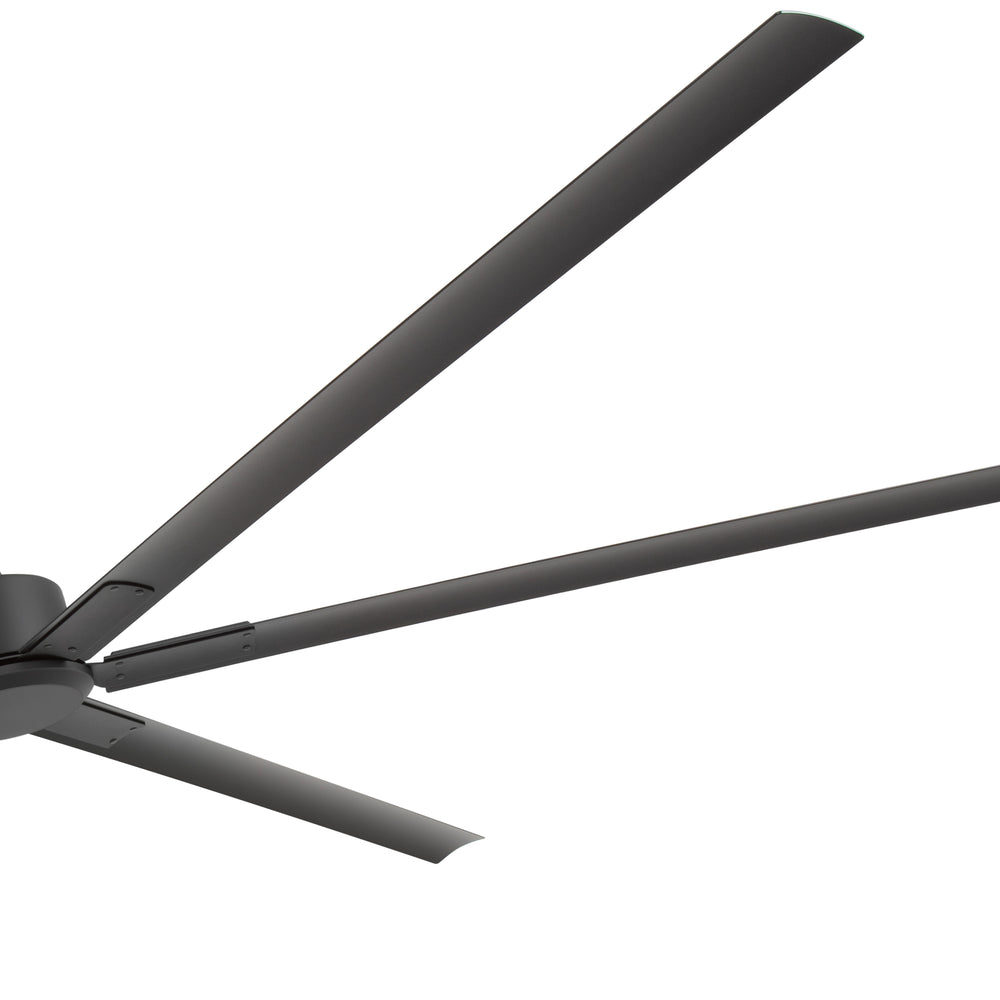

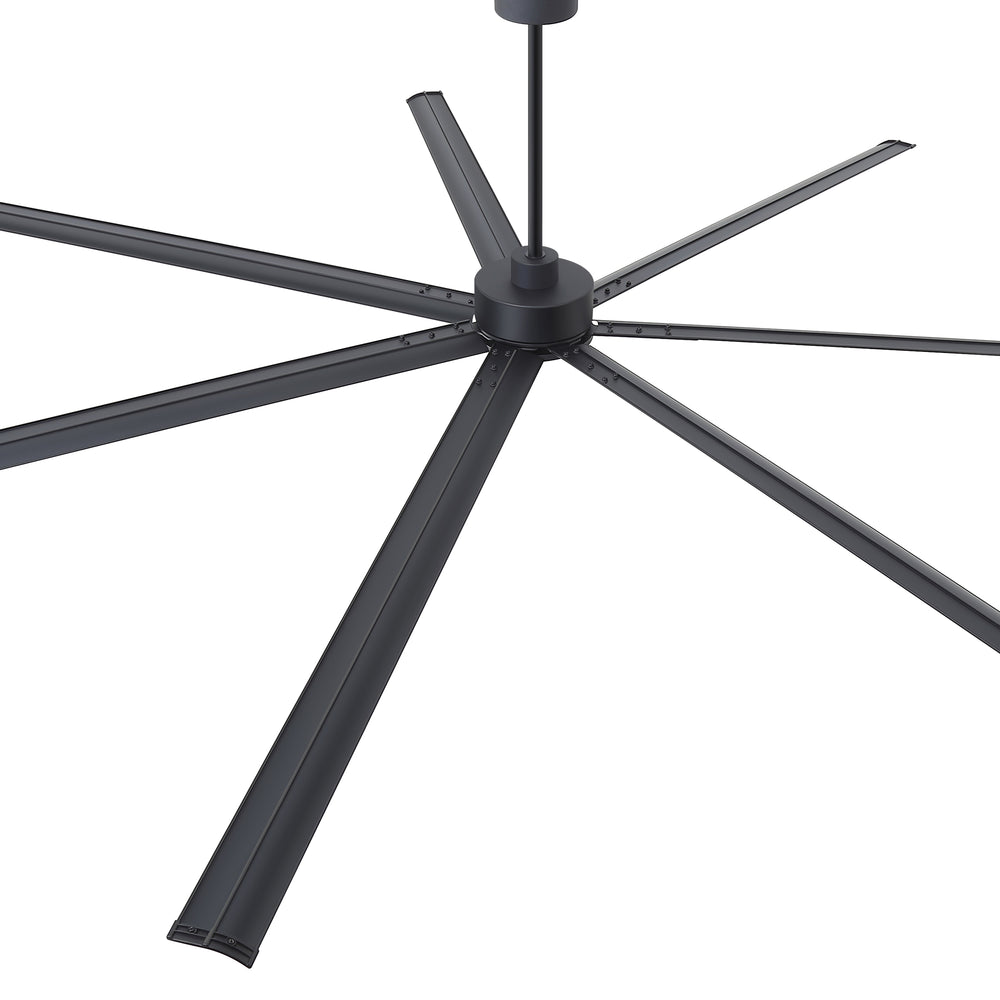

All listed 120-inch configurations use aluminum alloy blades. For a warehouse, factory or commercial project where PMSM motor architecture is a specific purchasing requirement, select the 8-blade HVLS option and confirm the exact variant before checkout.
NO LIGHT • FULL FAN CONTROL
120-Inch HVLS Ceiling Fan Without Light with 6-Speed Remote

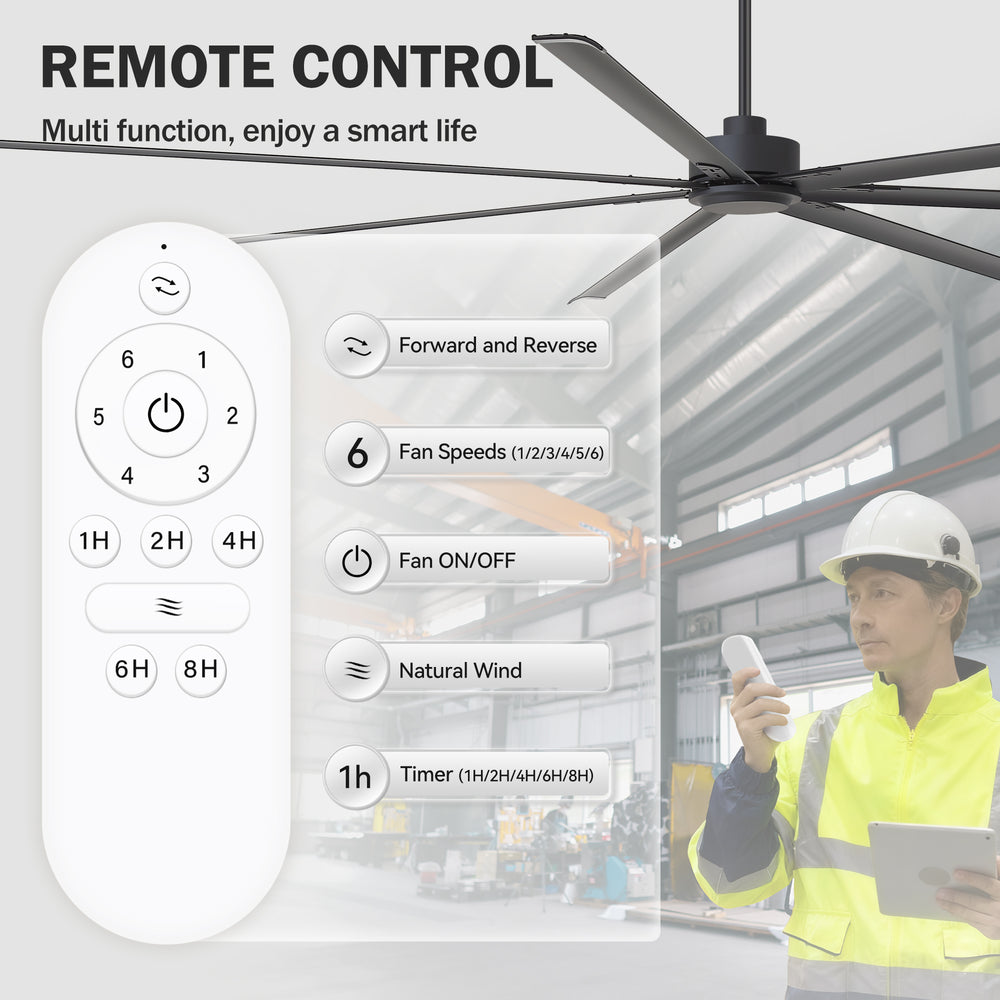

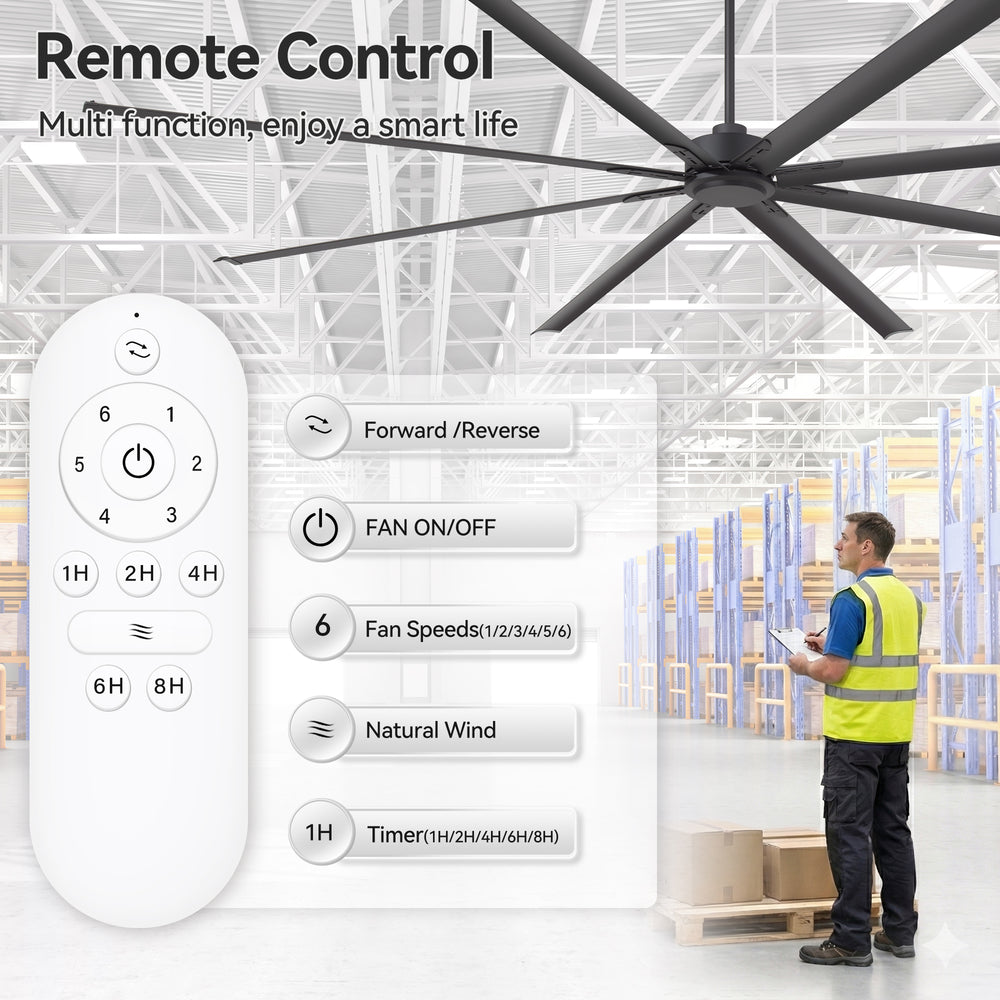

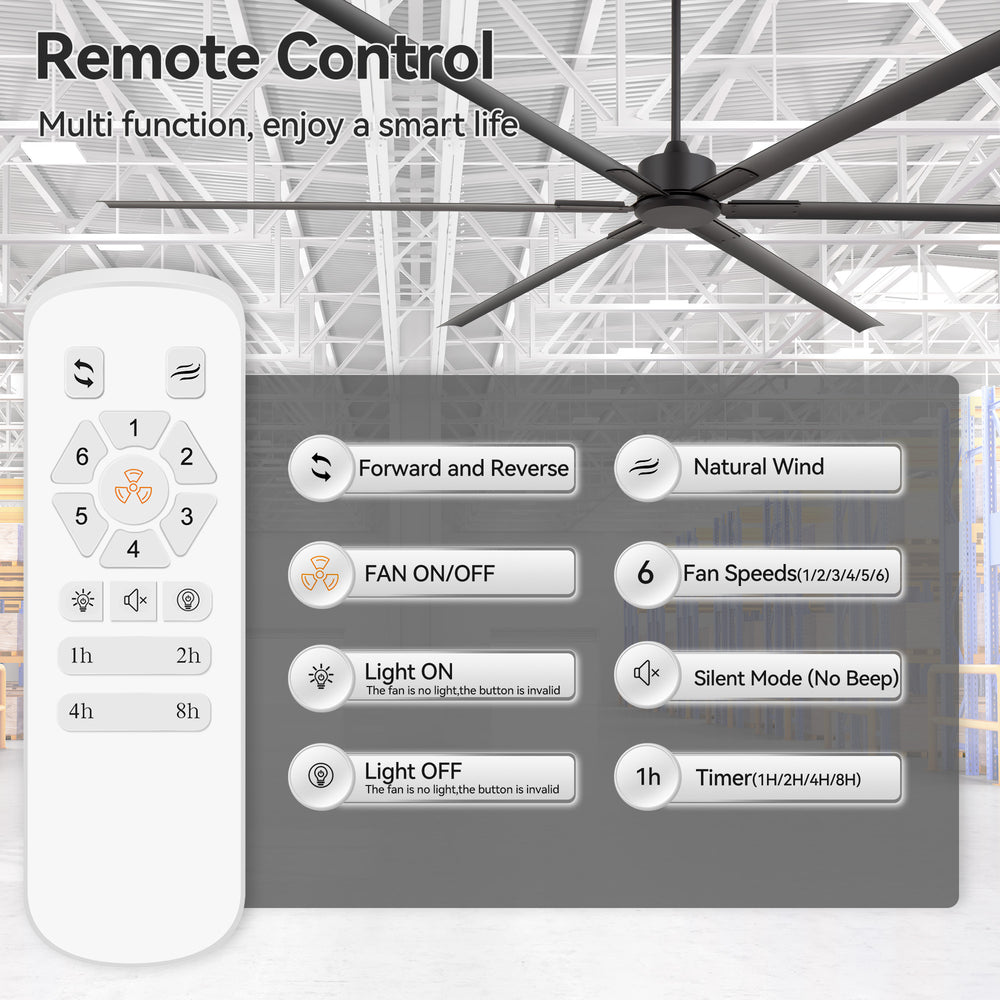

For warehouses and commercial facilities that already use dedicated overhead or task lighting, this HVLS ceiling fan without light keeps the air-circulation system separate from the lighting plan. The included handheld remote provides six fan speeds, fan on/off, direction control, natural-wind mode, mute and timer settings.
The shared remote layout may show light buttons, but model 29016 is an HVLS fan without light, so those light controls are not functional for this configuration.
6 Fan Speeds
Forward / Reverse
1 / 2 / 4 / 8H Timer
Natural Wind Mode

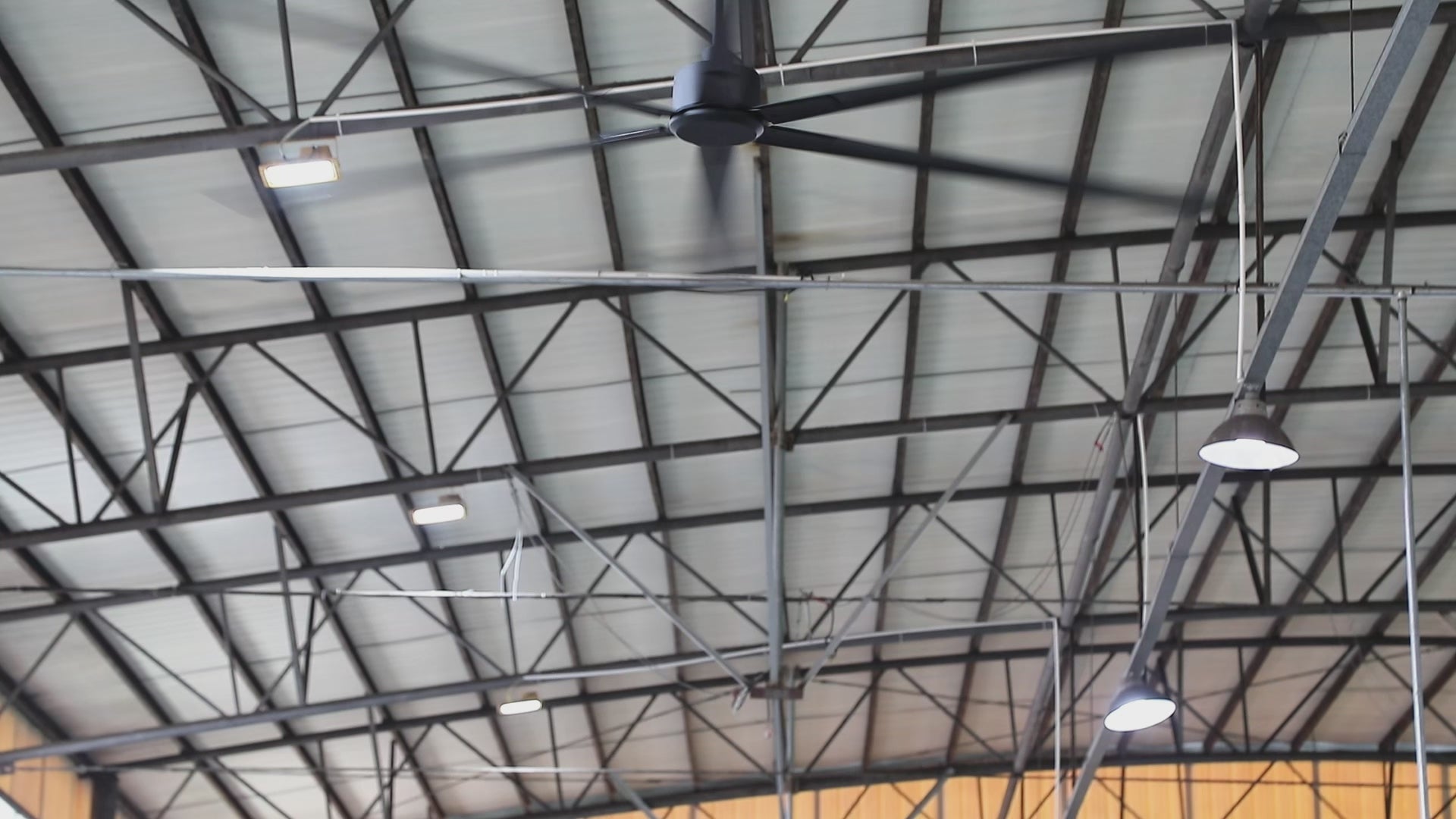

INSTALLATION CHECK

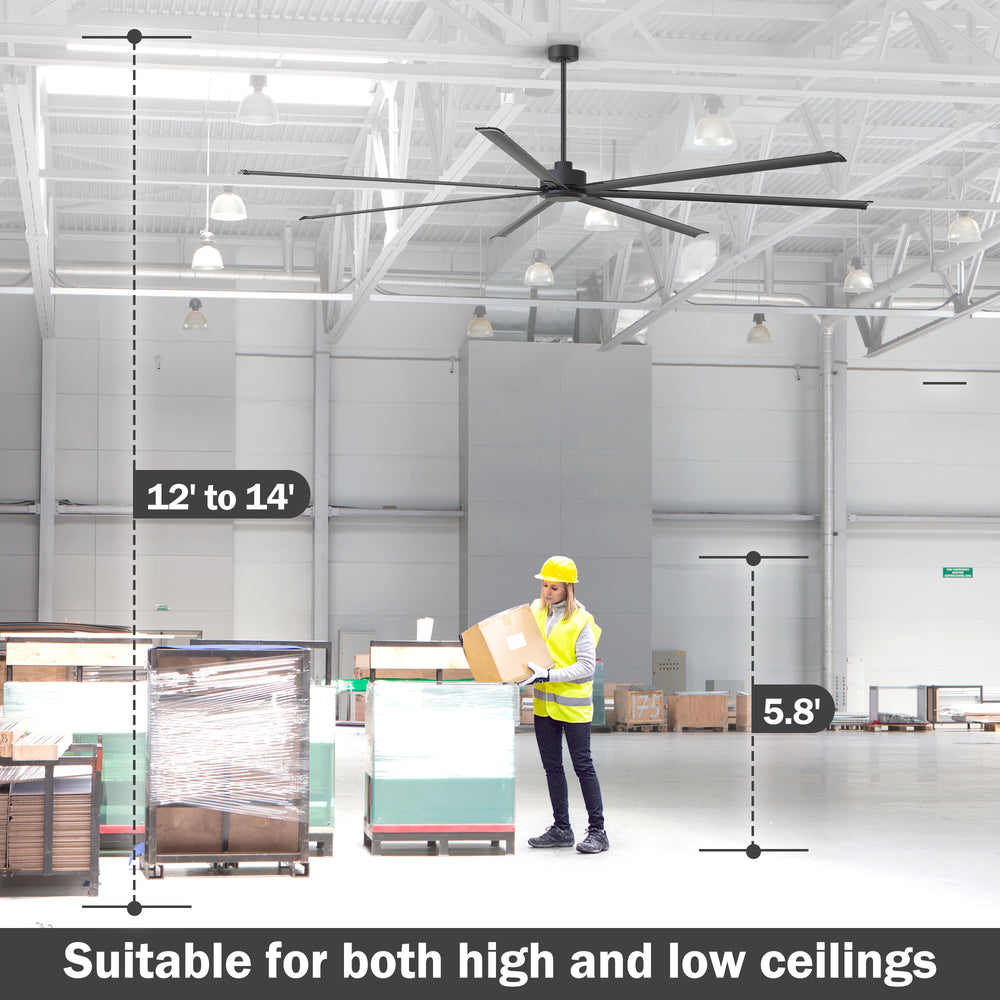

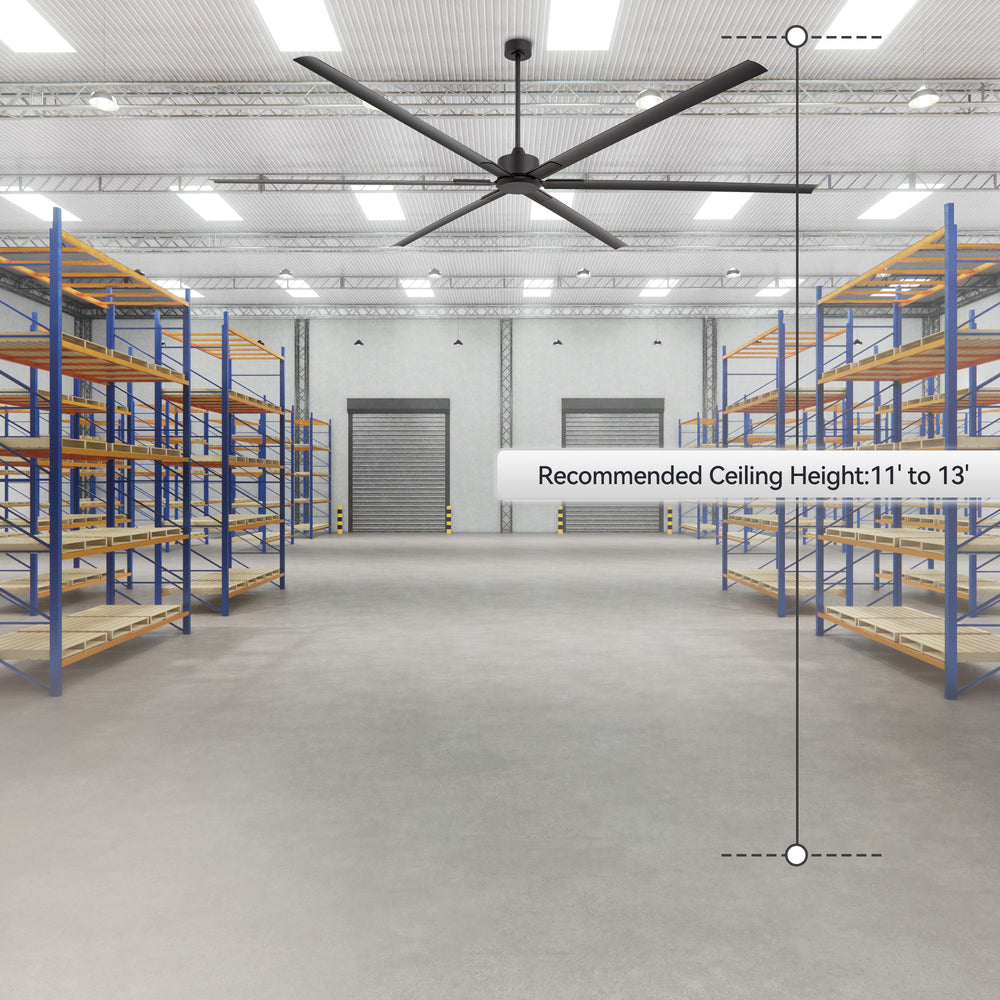

Install This 120-Inch HVLS Fan with the Required 10-Foot Clearance

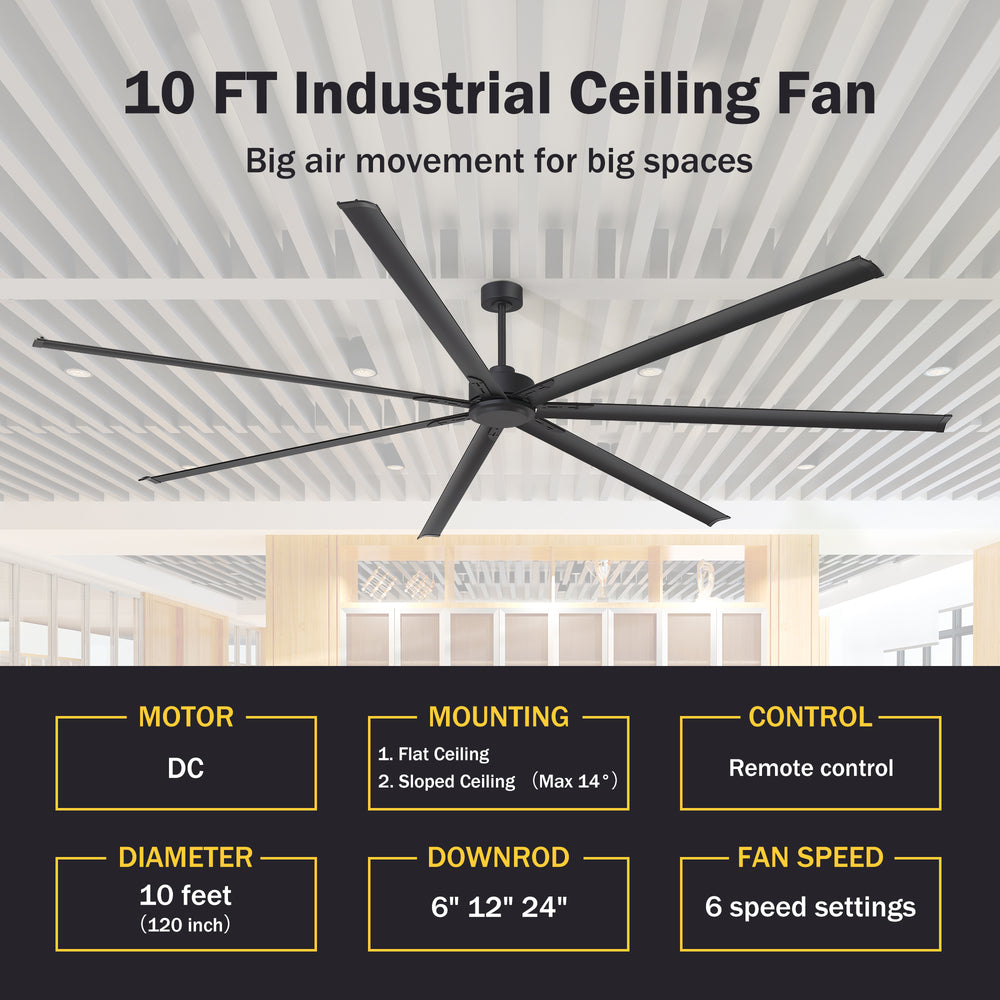

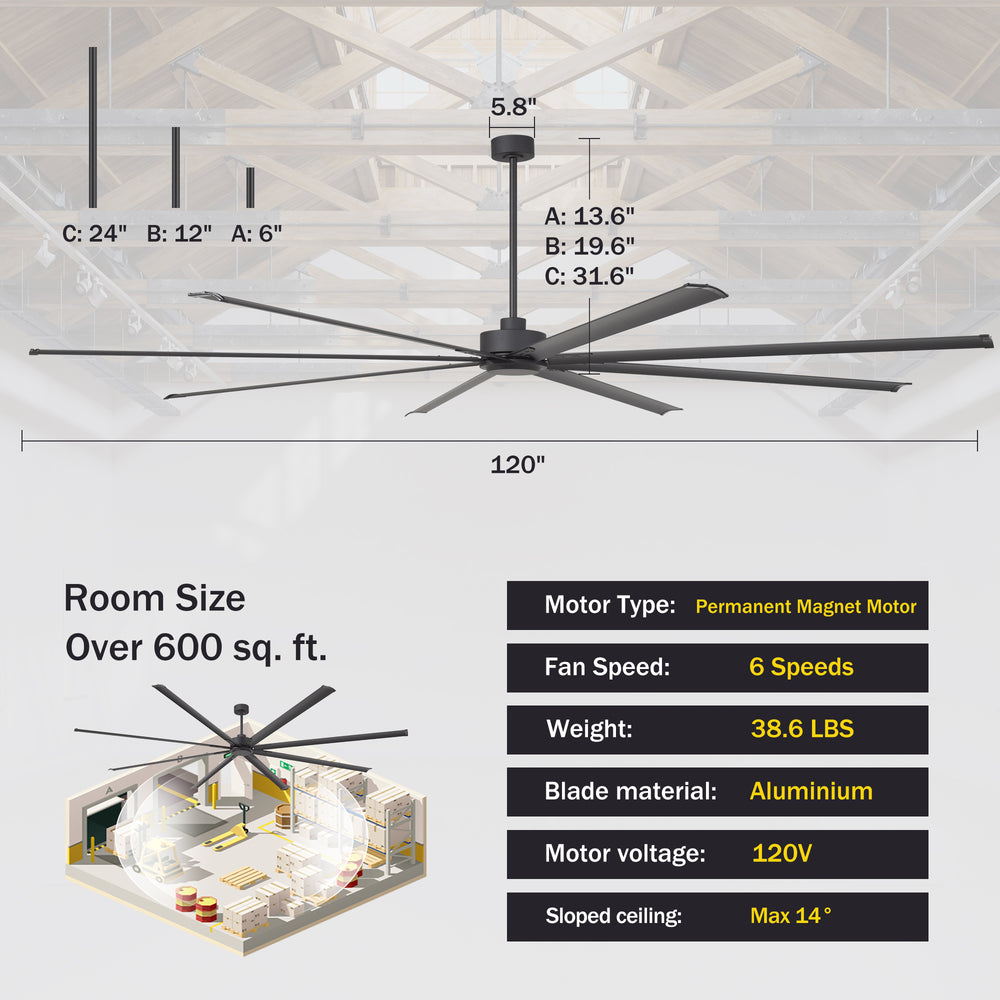

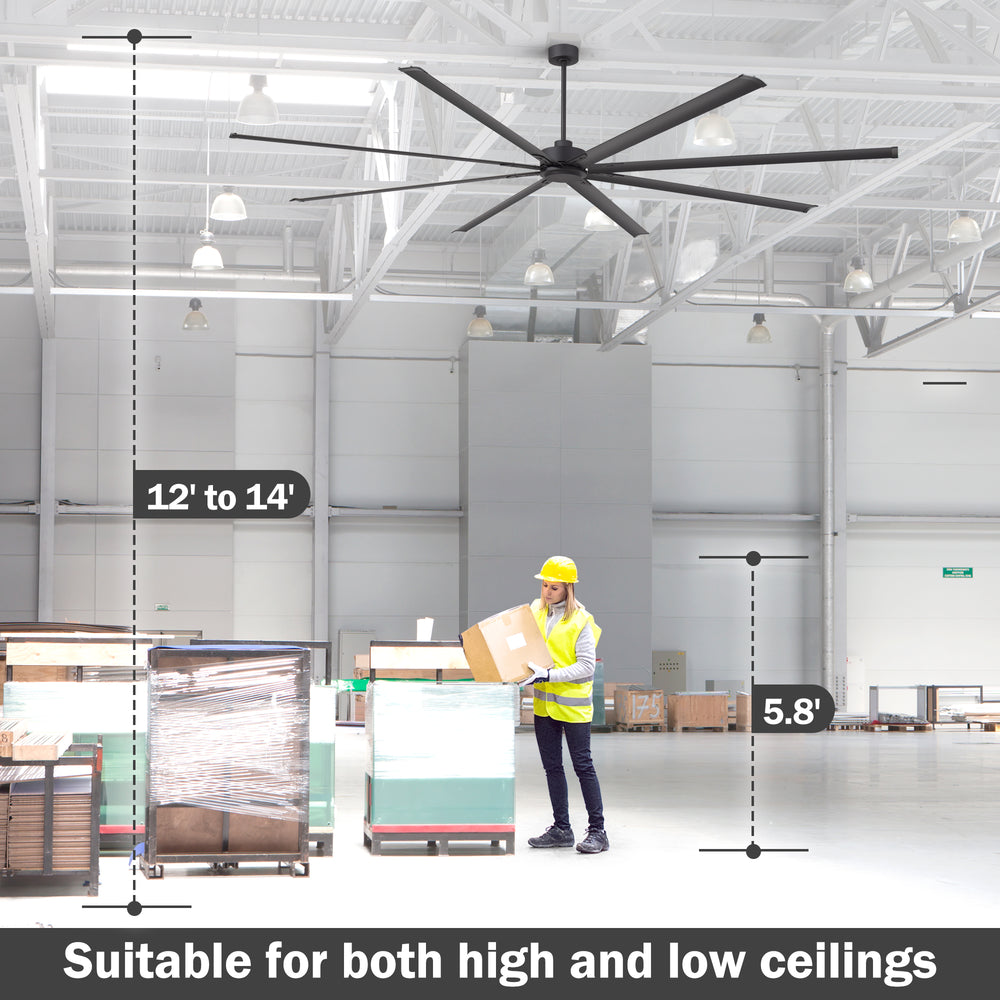

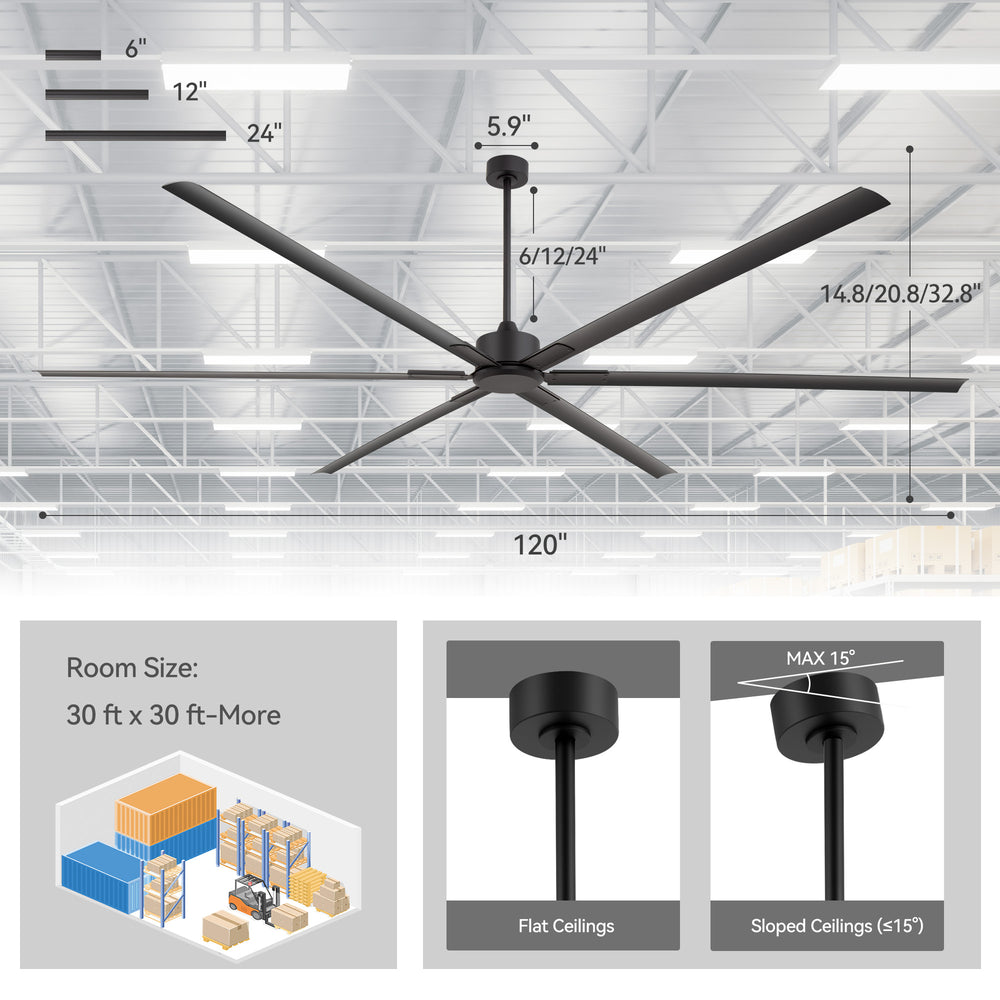

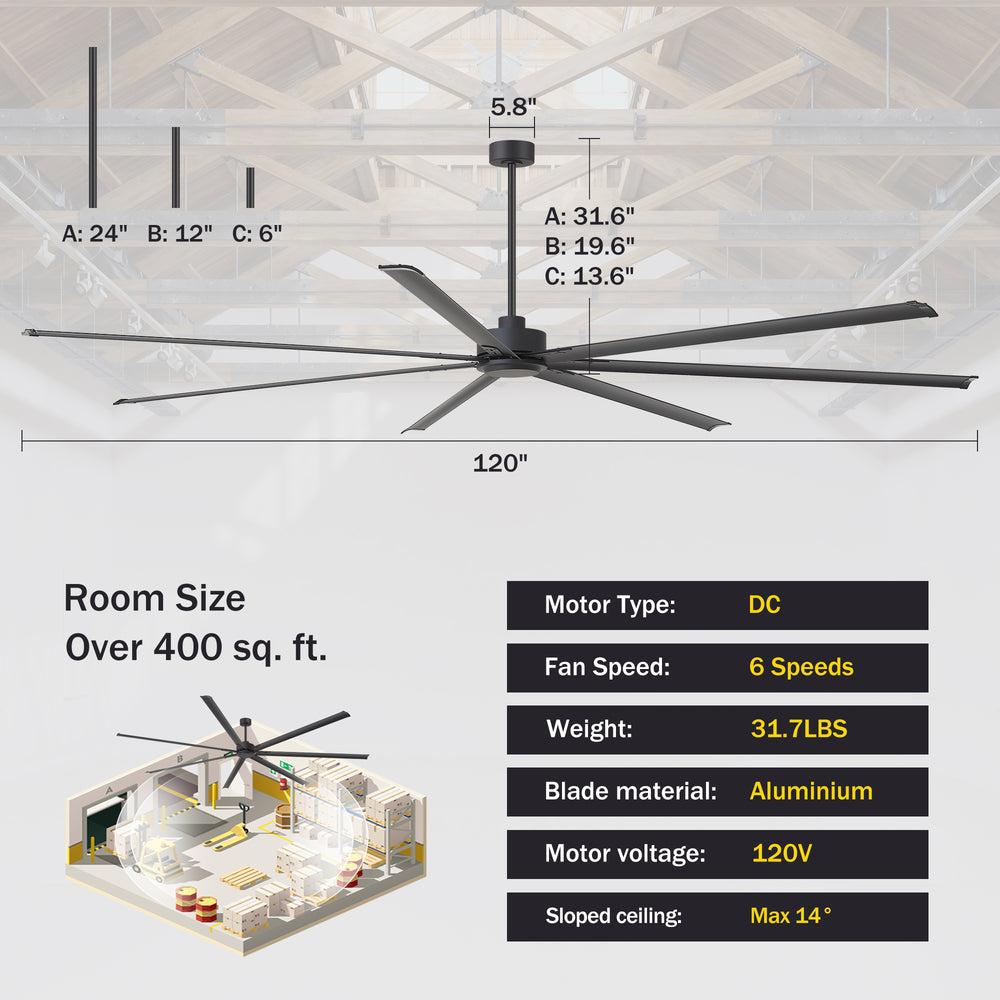

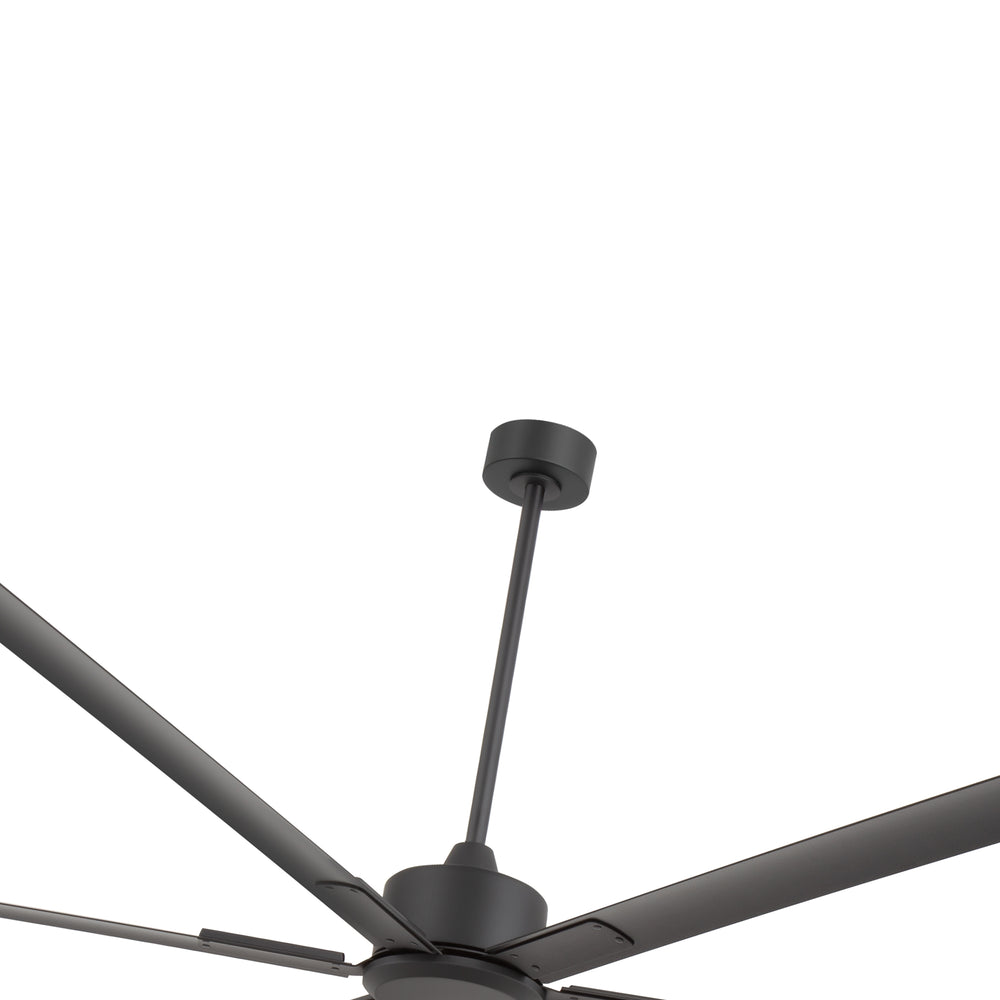

The current product listing includes 6-inch, 12-inch and 24-inch downrod options and lists sloped-ceiling compatibility up to 14 degrees. For this 120-inch HVLS industrial fan, the installation manual adds a critical safety requirement: the trailing edge of the blades must be at least 10 ft (3.05 m) above the floor.
The manual diagrams a 120V/60Hz supply circuit and states that electrical installation should be performed by a qualified licensed electrician in accordance with applicable electrical codes.
Do not select a downrod from ceiling height alone. Confirm the building structure, obstruction clearances, final HVLS blade height and the model-specific installation instructions before installation.
SEASONAL AIRFLOW

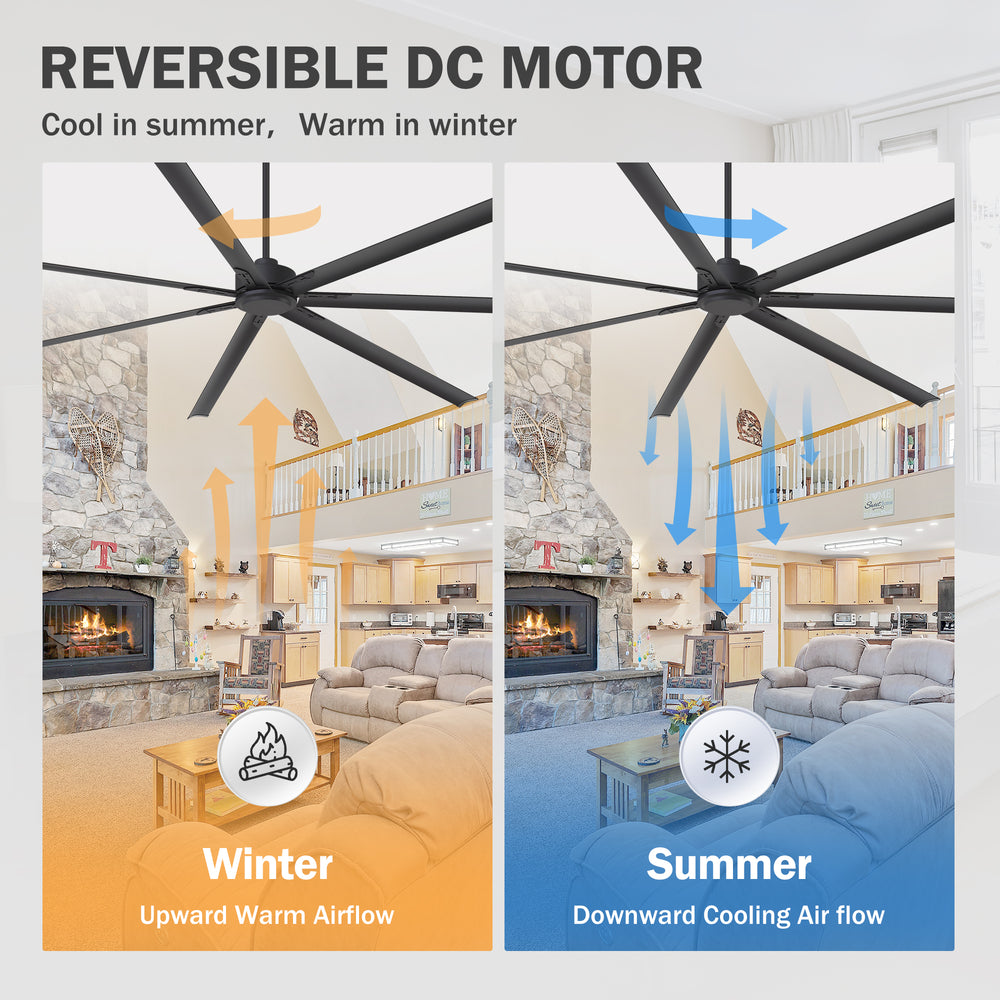

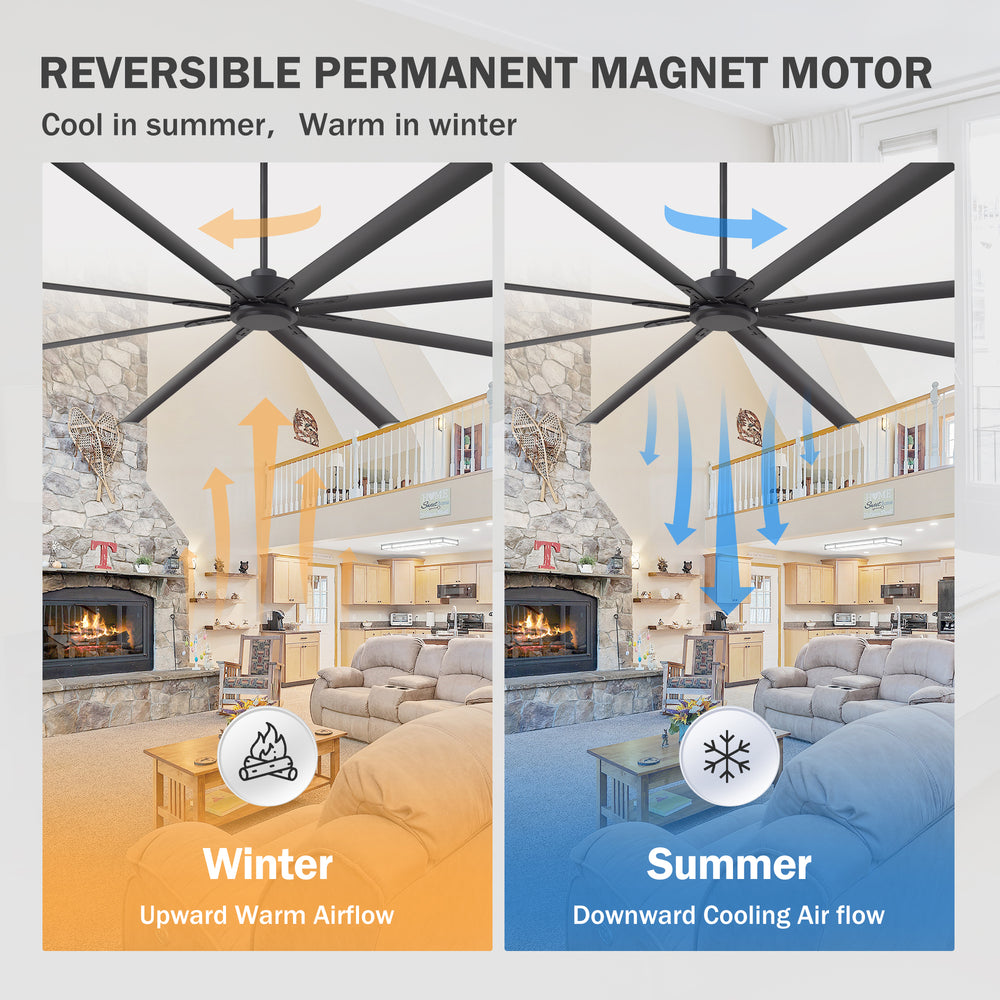

Reversible HVLS Airflow for Year-Round Industrial Air Circulation

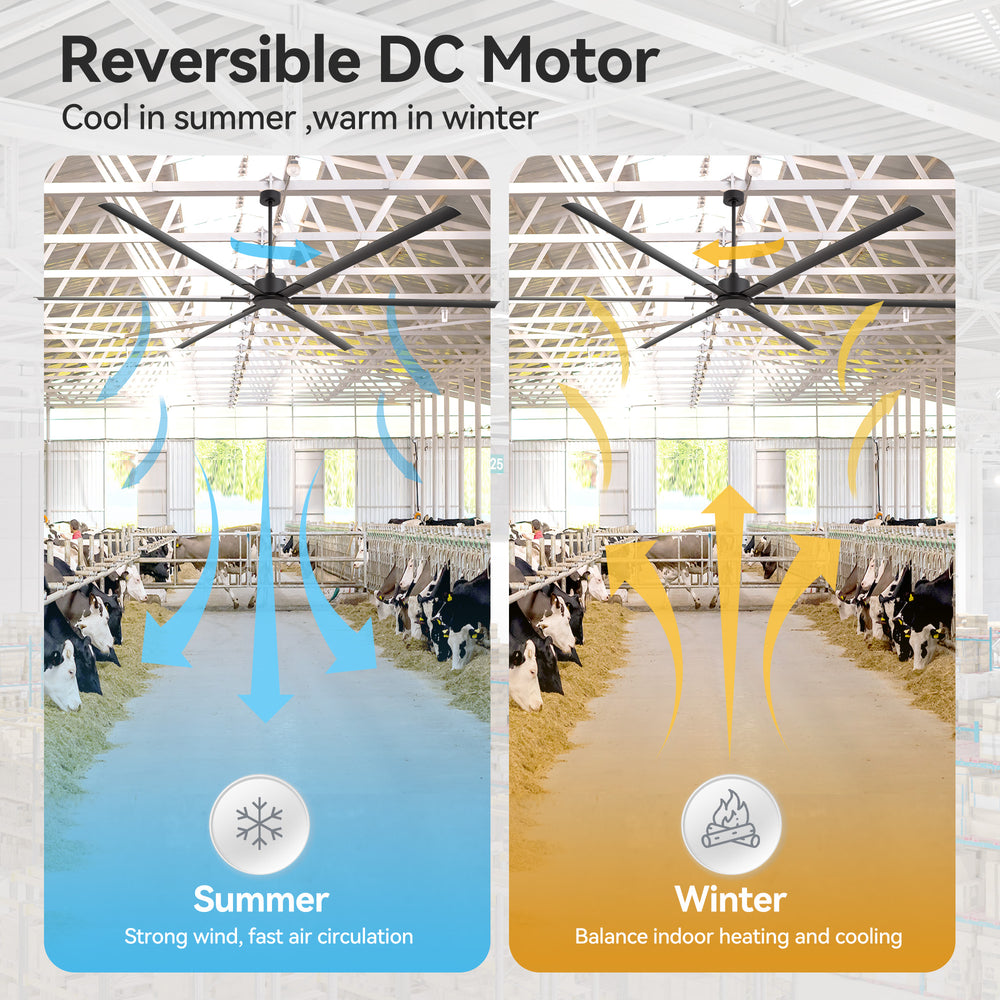

The remote provides forward and reverse rotation. Forward HVLS airflow can be used when downward air movement is desired, while reverse operation can help recirculate stratified air in suitable high-ceiling industrial and commercial spaces.
Fan direction is one part of a larger ventilation and comfort strategy; it does not replace required mechanical ventilation, exhaust or HVAC equipment.
DECISION GUIDE
Is This 10-Foot HVLS Industrial Ceiling Fan Right for Your Space?
Choose this 120-inch HVLS fan by application, motor configuration and installation conditions rather than by diameter alone.
Good Match
Warehouses, factories, gyms, large offices, restaurants and other commercial spaces that need a 120-inch HVLS fan and have adequate structure and blade clearance.
Choose a Smaller Fan
Spaces where a 120-inch HVLS span would be oversized, where the required 10-foot blade clearance cannot be maintained, or where structural conditions do not suit this installation.
Need a Larger HVLS System?
For projects requiring 12-foot (144-inch) and larger HVLS fans, compare Breezary's larger industrial HVLS range instead of assuming this 120-inch model is interchangeable.
Exposed Outdoor Installation

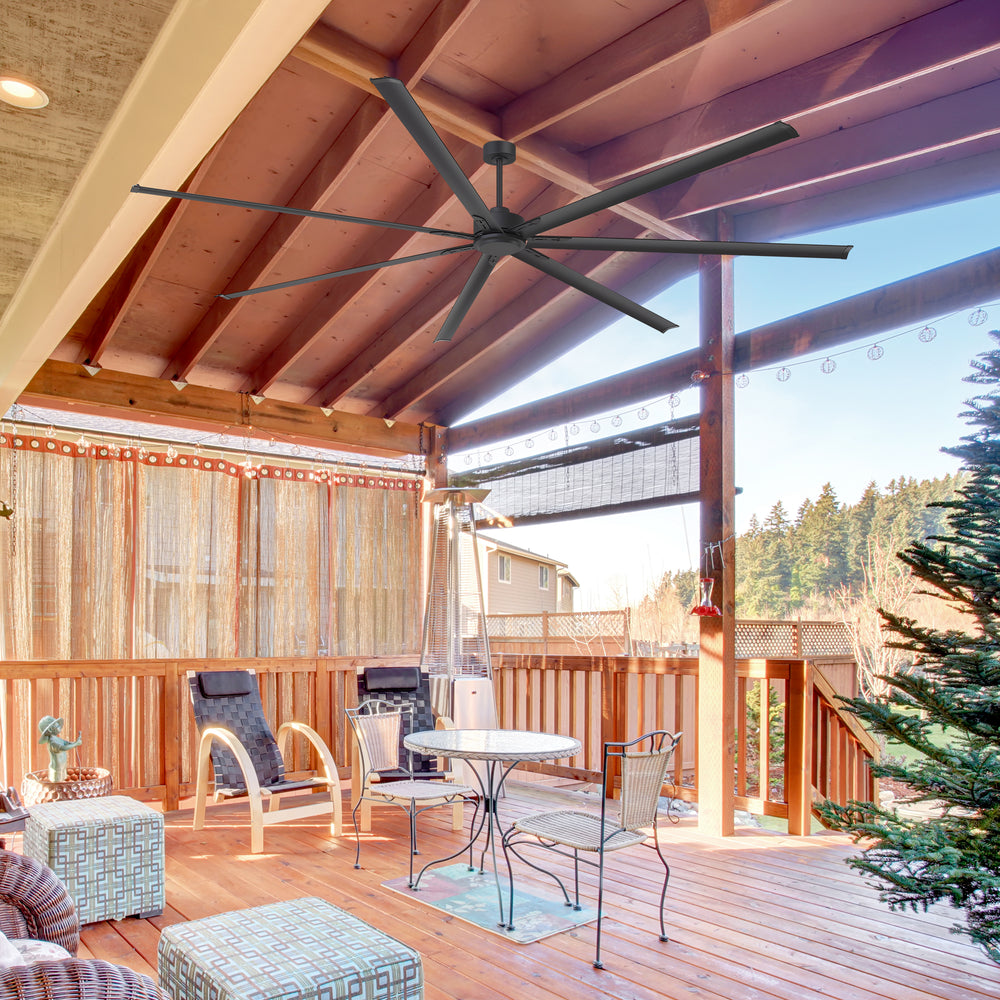

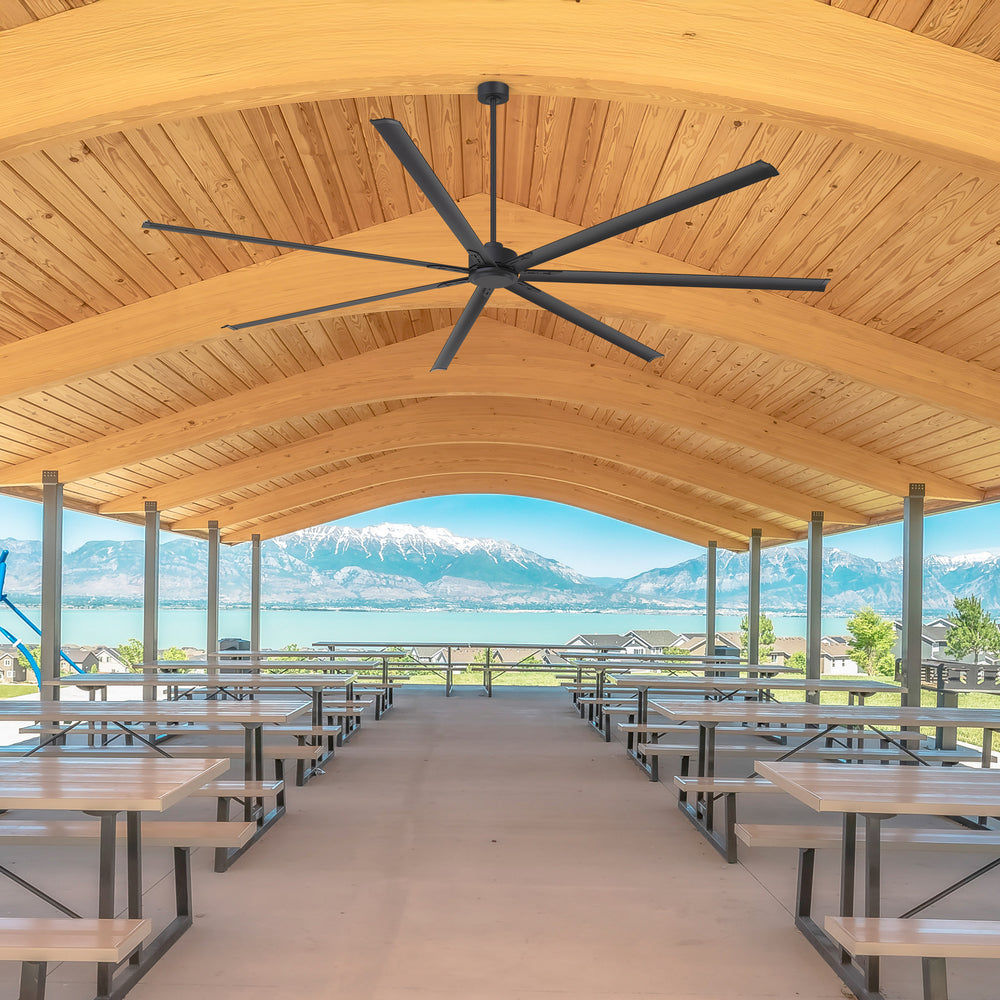

The current listing identifies indoor and covered outdoor use. Do not treat the fan as wet-rated or suitable for direct weather exposure unless the exact installation rating is confirmed.
COMPARE BY NEED
Compare HVLS Industrial & Commercial Ceiling Fans by Requirement
If this 120-inch HVLS fan is not the correct fit, continue to the Breezary category that matches the actual building type, fan diameter, motor, mounting height and control requirements.
Large industrial airflowHVLS FansCompare Breezary's broader HVLS product range.
Commercial buildingsCommercial HVLS FansCompare fans for commercial and public-space applications.
Need 12 ft / 144 in?12 FT Industrial HVLS FansMove up to the dedicated 144-inch industrial range.
Need a different diameter?Large Ceiling FansCompare large fan sizes, mounting and airflow requirements.
No integrated lightingCeiling Fans Without LightCompare other airflow-focused no-light configurations.
Need a comparison guide?Best HVLS FansCompare size, motor, controls and project requirements.
INSTALLATION SUPPORT
29016 HVLS Industrial Fan Installation Manual
Review the model-specific HVLS fan safety, mounting, wiring, remote pairing and troubleshooting instructions before installation.
View 29016 User ManualPRODUCT QUESTIONS
120-Inch HVLS Industrial Ceiling Fan FAQs
General & Warranty
x| Assembly Required | Yes | Fan Diameter (Inches) | 120 Inch |
|---|---|---|---|
| Fan Type | Standard | Fan Mounting Type | Angled, Downrod |
| Style | Industrial, Modern & Contemporary | Housing Color | Matte Black |
| Body Material | Metal | Number of Fan Speeds | 6 |
| Slope Ceiling Compatibility (in degrees) | 14° | Control Type | Remote Control |
| Use Location | Indoor, Covered Outdoor | Compatible Room Size | Large Room(up to 350 sq. ft）, Great Room(more than 350 sq. ft） |
| Room | Factory, Warehouse, Gym, Office | Overall Width*Depth*Height (Inches) | 120*120*32.8in(6-Blade), 120*120*31.6in(7-Blade & 8-Blade) |
| Net Weight (lbs) | 35.4lbs(6-Blade), 31.7lbs(7-Blade), 38.6lbs(8-Blade) | Product Warranty | Yes |
| Warranty Length | 1 Year |
Blade & Lighting & Motor
x| Number of Blades | 6/7/8 | Blade Material | Aluminum |
|---|---|---|---|
| Blade Pitch (in degrees) | 8°(6-Blade), 11°(7-Blade & 8-Blade) | Reversible Blades | No |
| Blade Color | Black | Blade Size (Inches) | 55.1*3.94(in.) |
| Light / No Light | No Light | Motor Type | DC Motor, Permanent Magnet Synchronous Motor |
| Motor Power (Watts) | 63W | Reversible Motor | Yes |
| Maximum RPM | 73RPM(6-Blade), 55RPM(7-Blade), 60RPM(8-Blade) | Maximum Airflow (CFM) | 9500 |
| Airflow Efficiency(CFM/W) | 150 |
