Warehouse Zones
Consider the 12 ft format for packing areas, loading zones, storage work areas and warehouse sections where a 20–24 ft system would require more open blade clearance.
HVLS Fans for Warehouses →
">
">

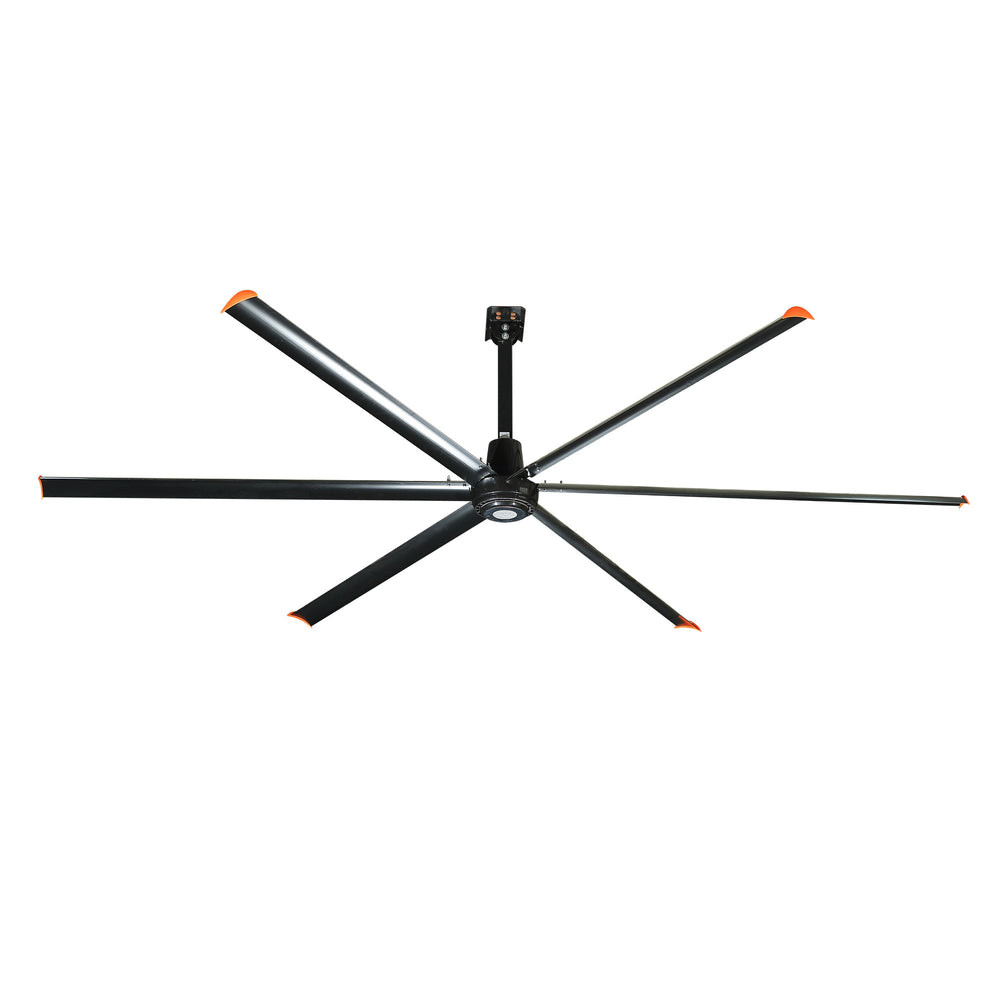

A 144-inch industrial HVLS ceiling fan for warehouses, manufacturing areas, gyms and high-ceiling commercial spaces, combining six aluminum blades, a PMSM direct-drive motor and wired wall control.
144" / 12 FT HVLS
6 Aluminum Blades
Up to 141,000 CFM
PMSM Direct Drive
Wired Wall Controller
120V/220V 1-Phase
Description
xQuick Browse: 29029-SR 144-Inch HVLS Fan Details
12 FT INDUSTRIAL AIR CIRCULATION

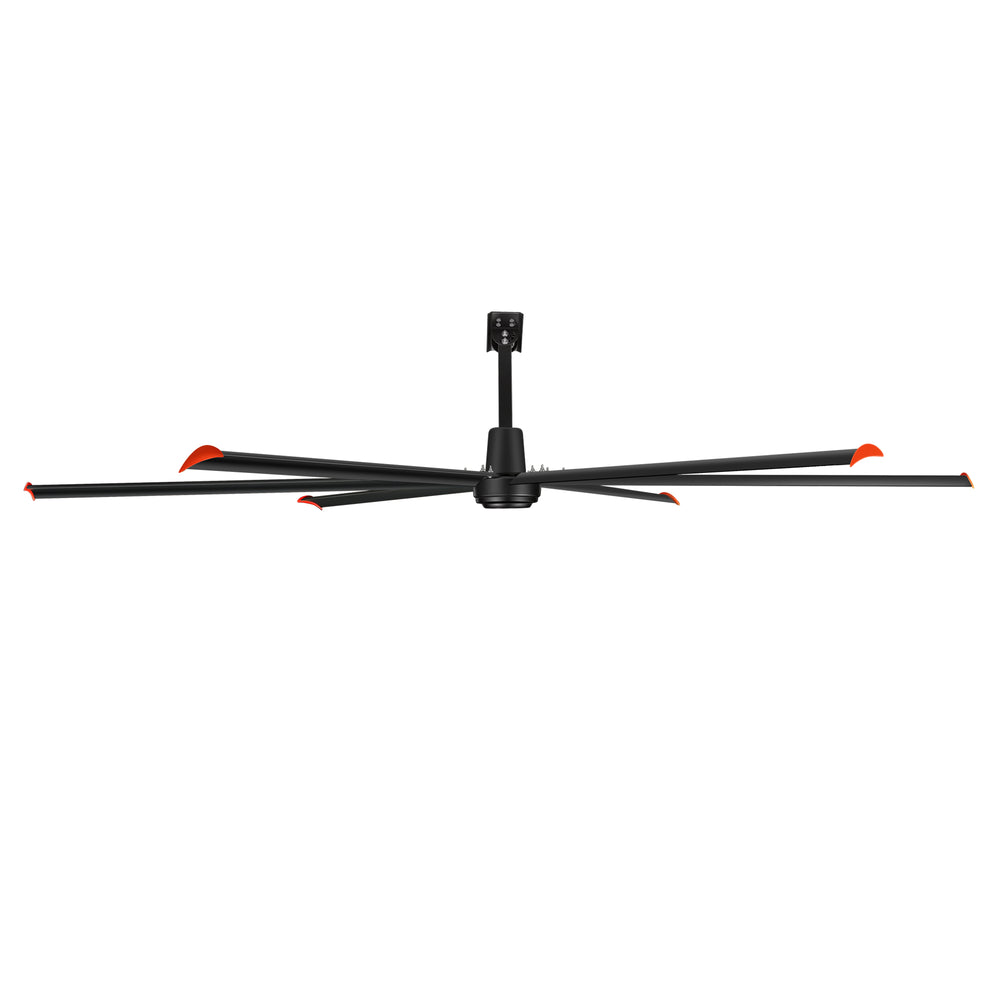

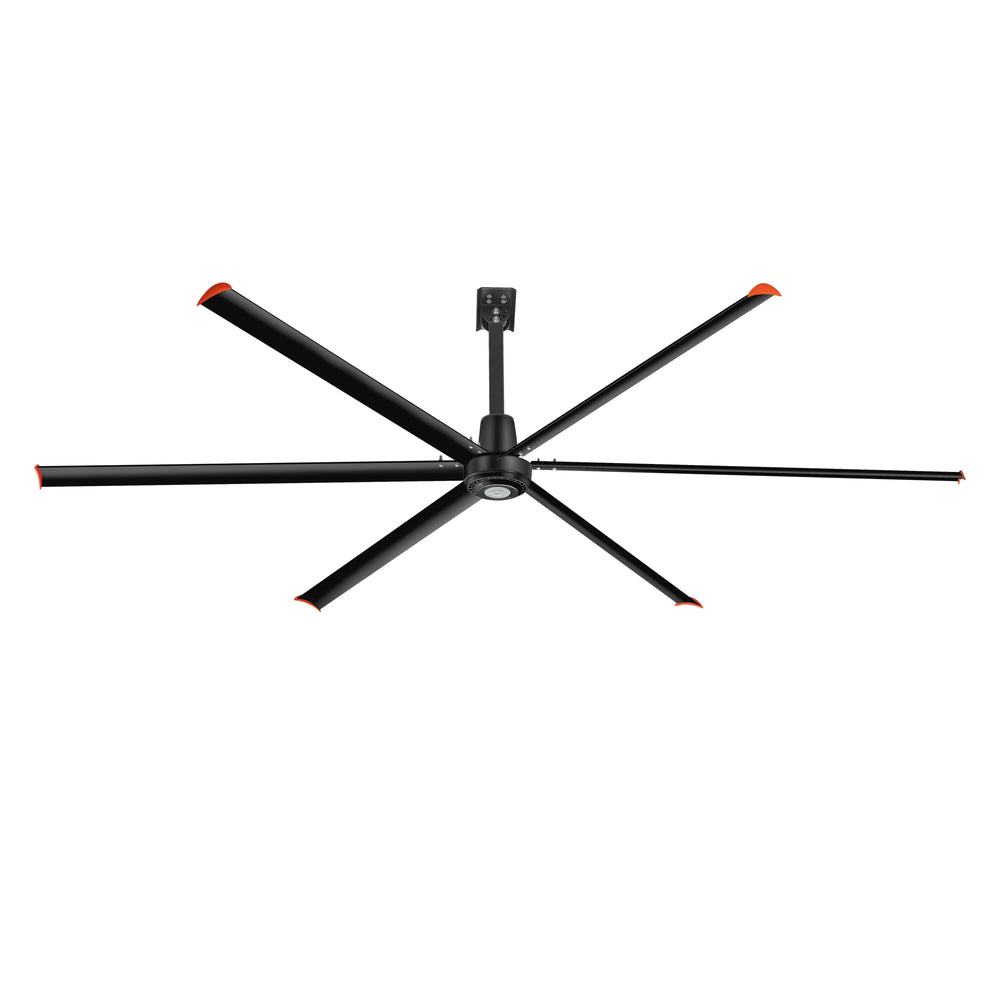

144-Inch HVLS Industrial Ceiling Fan for Large Indoor Workspaces
Model 29029-SR is a 144-inch HVLS industrial ceiling fan designed for broad, low-speed air movement in warehouses, manufacturing areas, gyms and other high-ceiling indoor facilities. Its 12 ft rotating span is substantially larger than a conventional ceiling fan but more compact than many 20–24 ft HVLS systems.

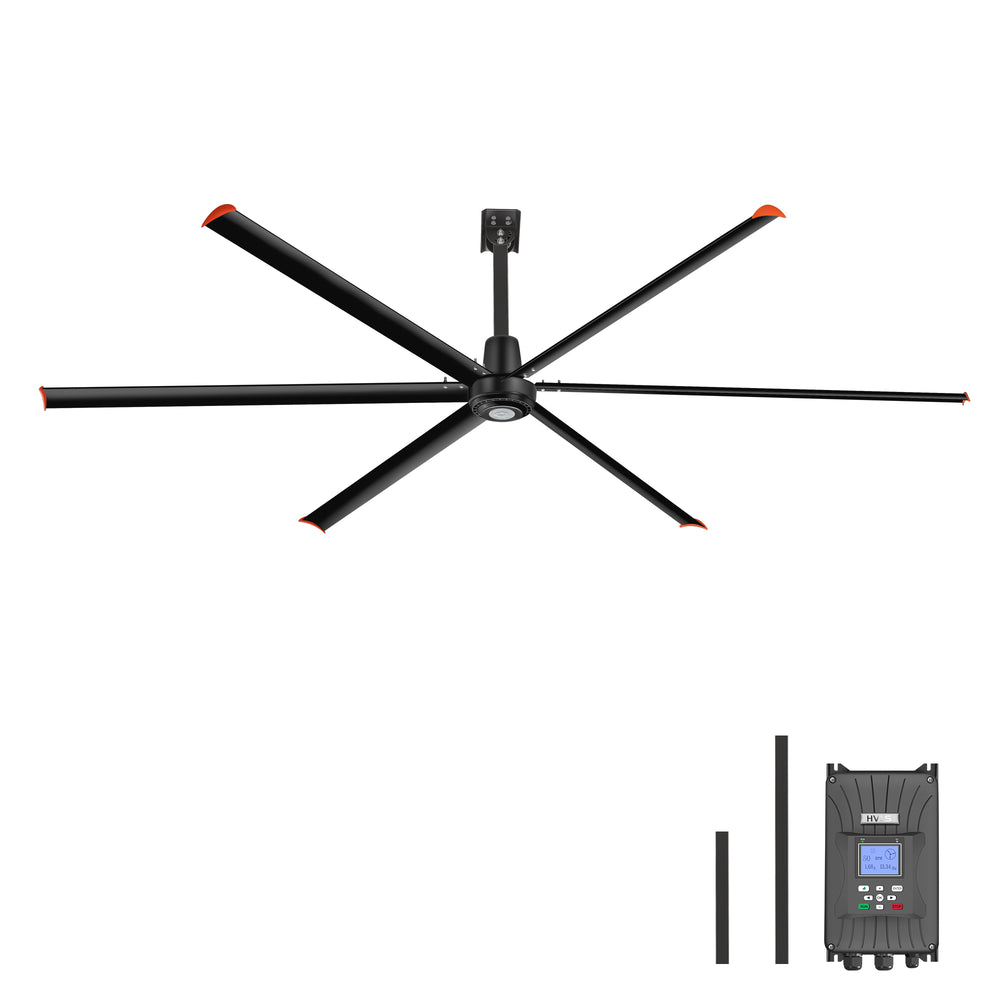

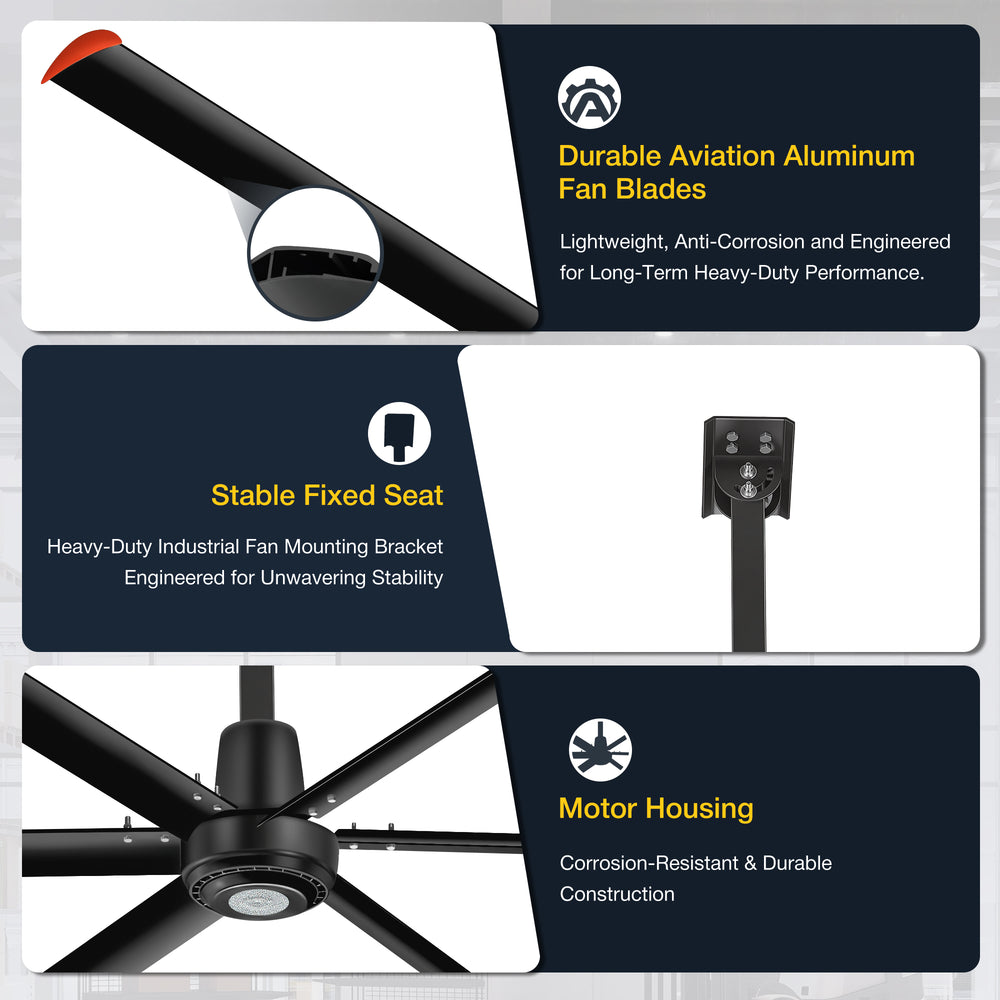

The system combines six aluminum blades, a permanent magnet synchronous motor, a wired wall-mounted variable-frequency controller and no-light construction. Current Breezary product media lists maximum airflow up to 141,000 CFM.
144"12 FT diameter
6Aluminum blades
PMSMDirect-drive system
20–80Manual RPM range
141KPublished max CFM
No LightDedicated airflow system
APPLICATION PLANNING

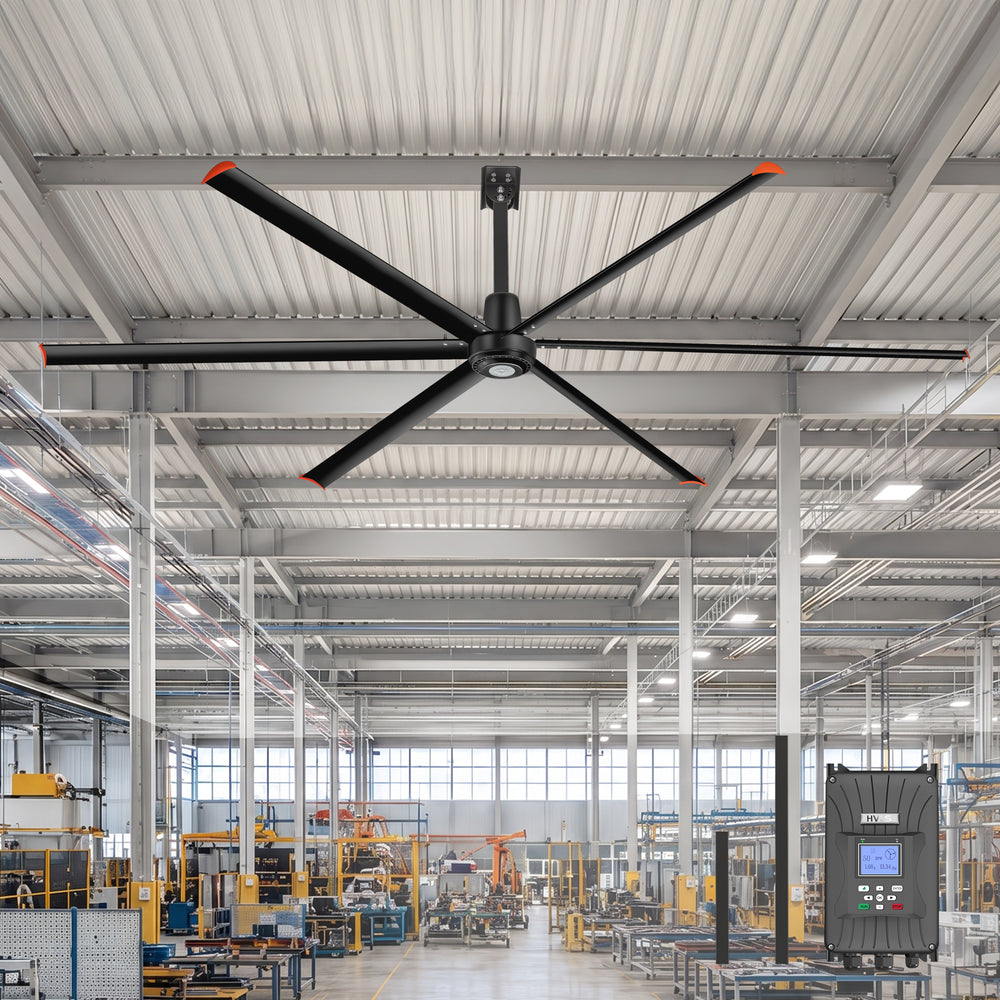

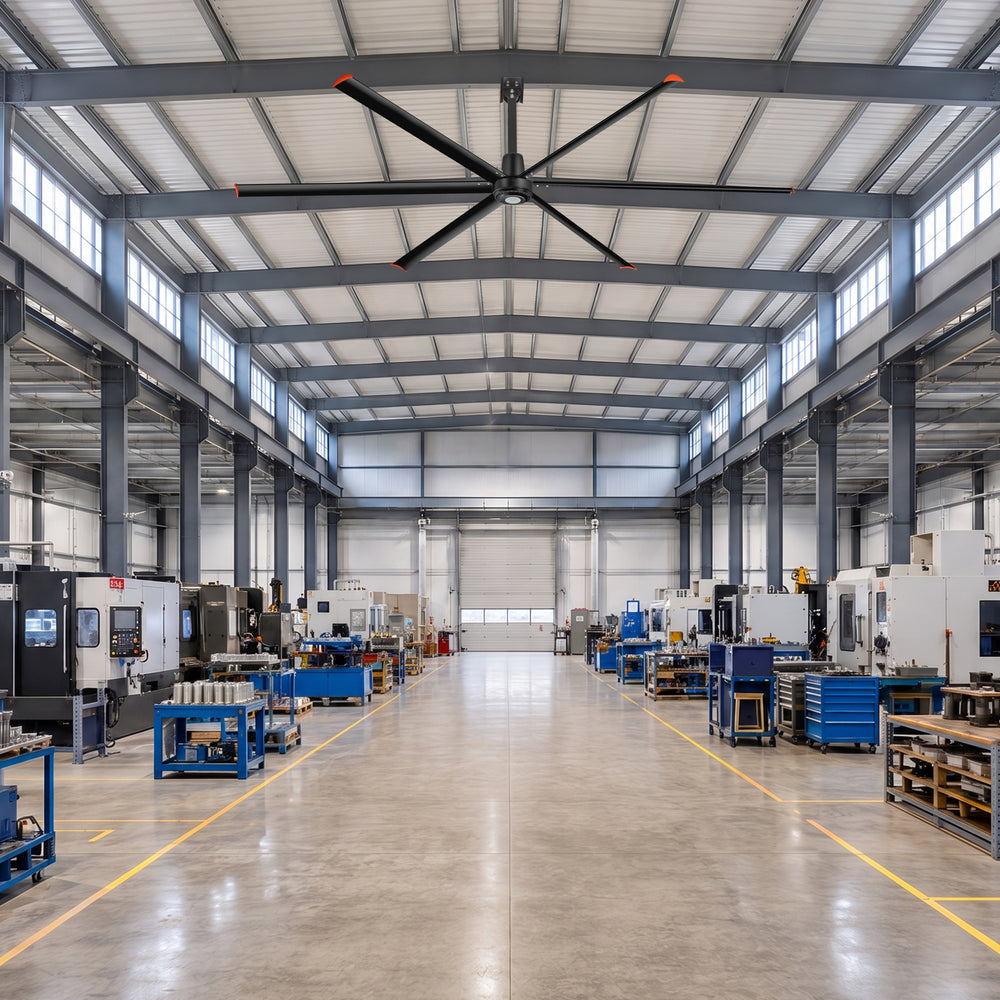

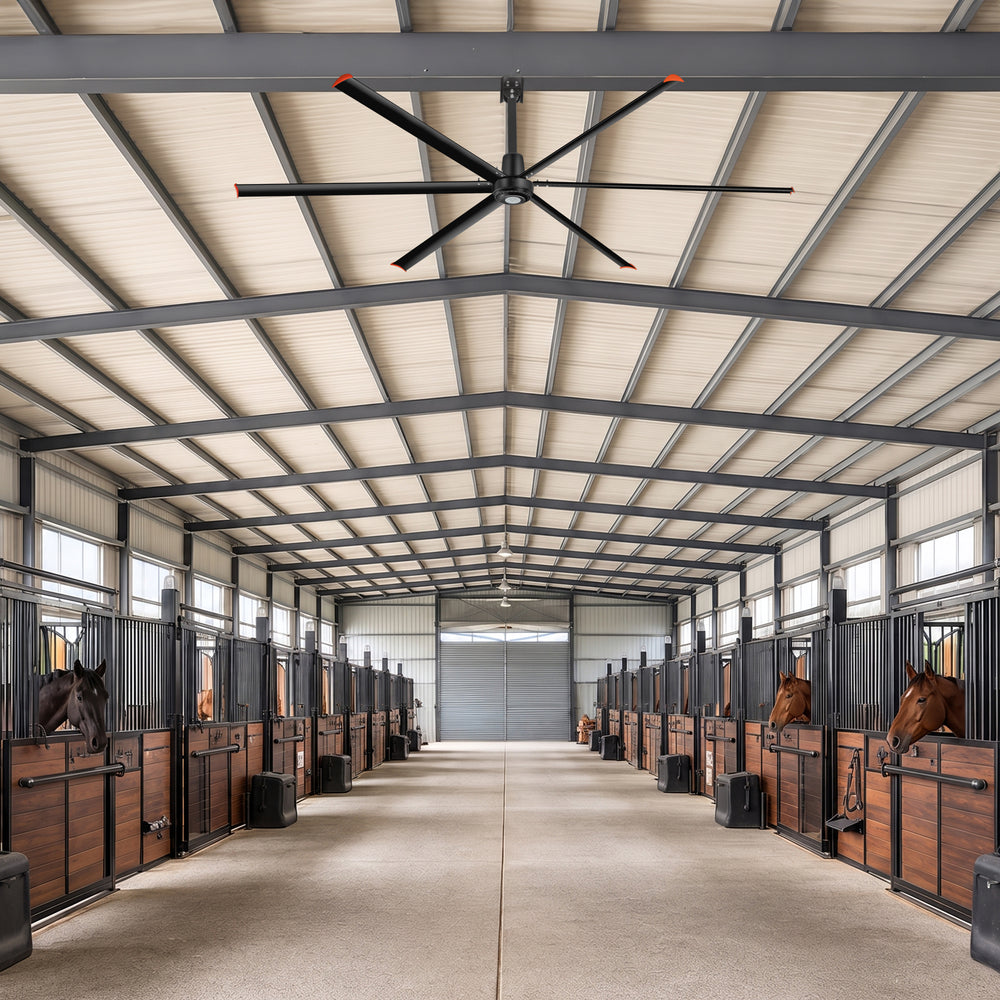

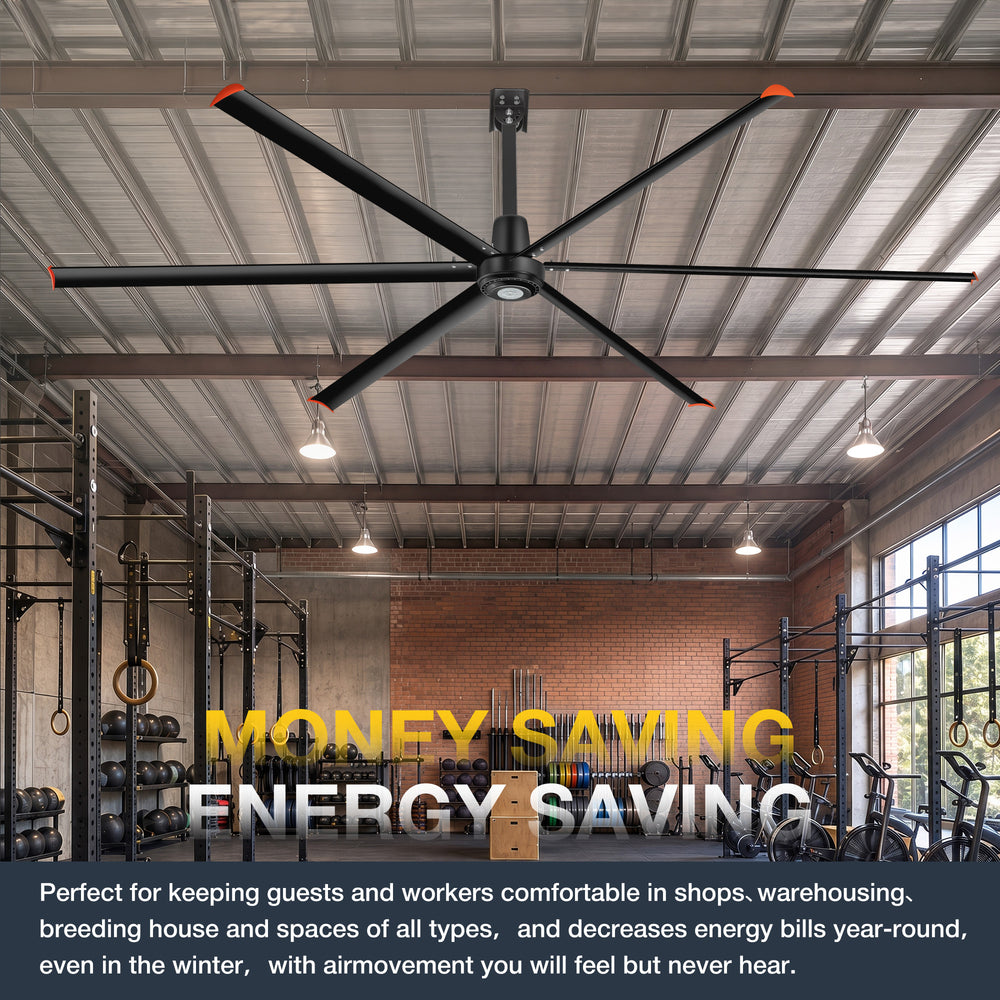

Industrial HVLS Fans for Warehouses, Manufacturing and Commercial Facilities
The supplied manual identifies logistics warehouses, industrial plants, fitness centers, supermarkets, exhibition halls and gymnasiums among the intended large-space applications. Final suitability still depends on the real mounting structure, electrical supply, obstacles and required air movement.
PUBLISHED PERFORMANCE

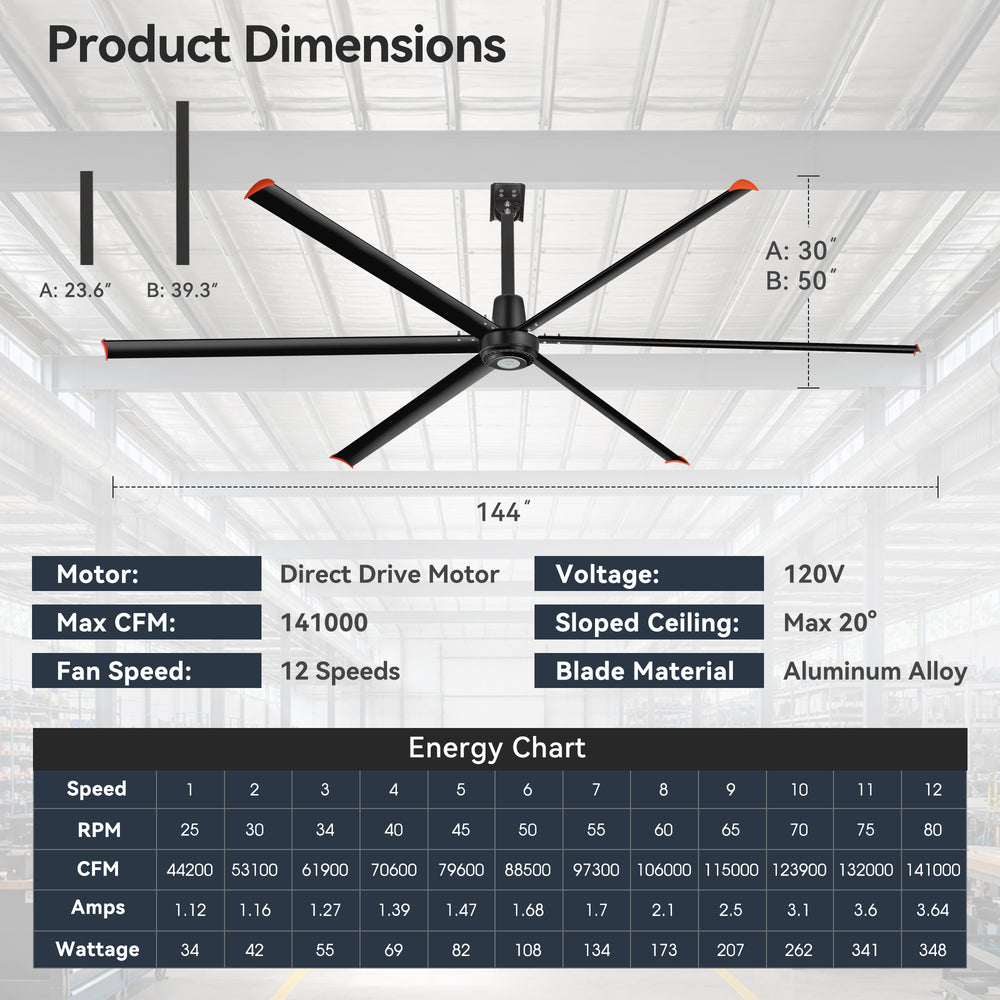

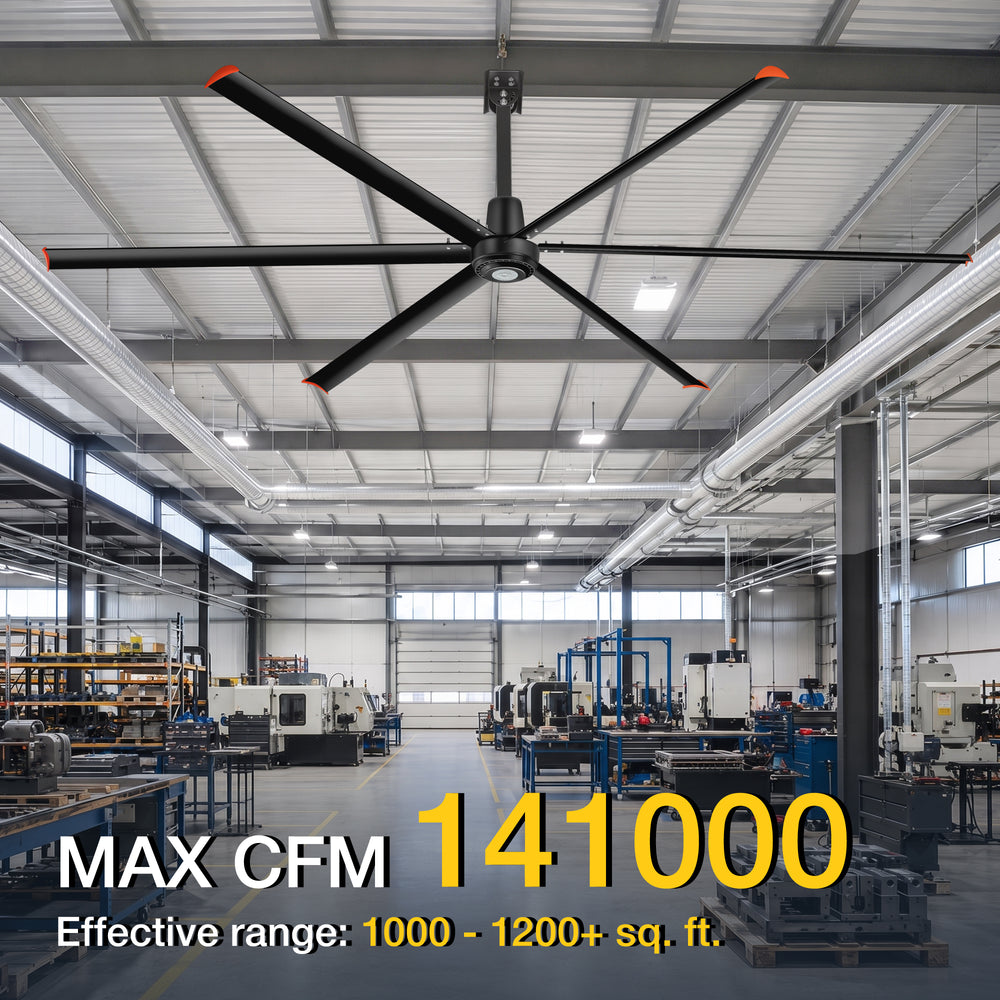

Warehouse HVLS Fan Airflow up to 141,000 CFM
Breezary's current product chart lists airflow from approximately 44,200 CFM at the lowest displayed level to 141,000 CFM at the highest displayed level. The supplied 29029 manual lists 4,000 m³/min, which is approximately the same maximum airflow range.
Airflow should not be treated as a universal coverage guarantee. Mounting height, racks, walls, machinery, roof geometry and the air speed required in occupied zones all affect the result inside a real building.
DIRECT-DRIVE MOTOR SYSTEM

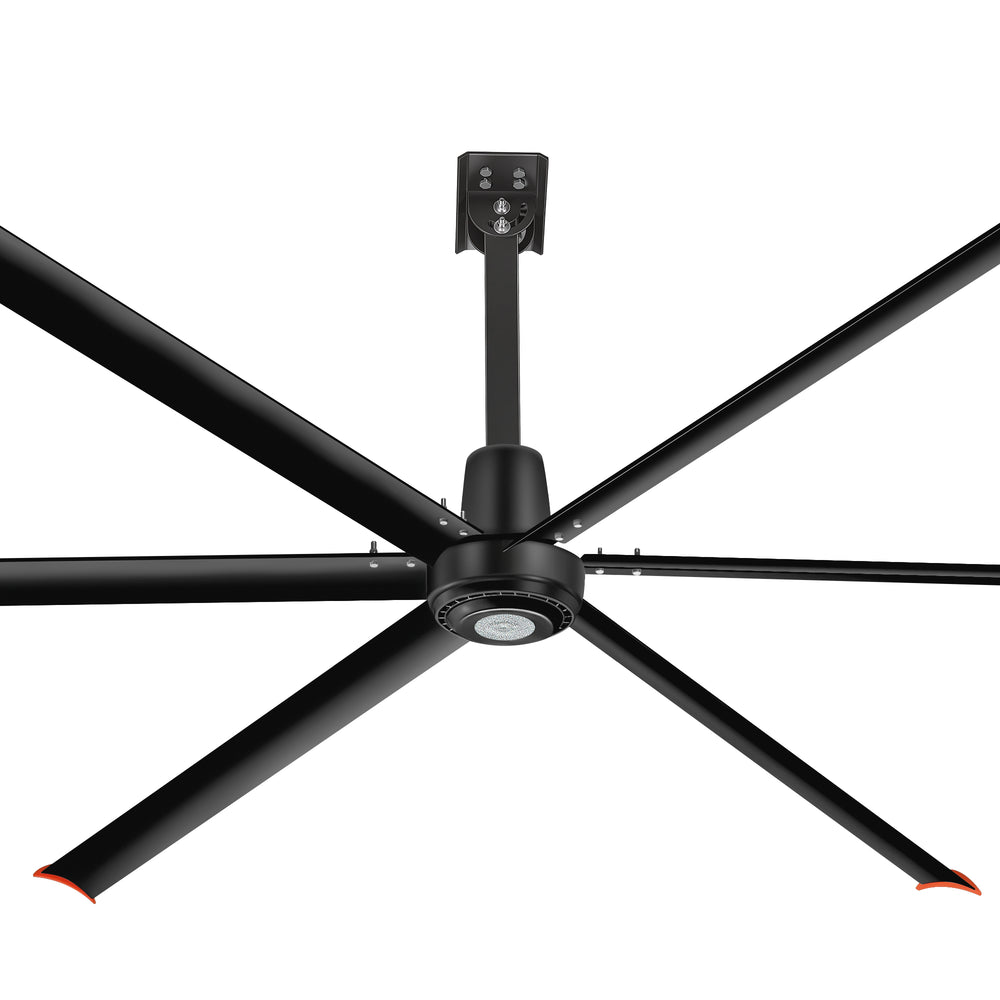

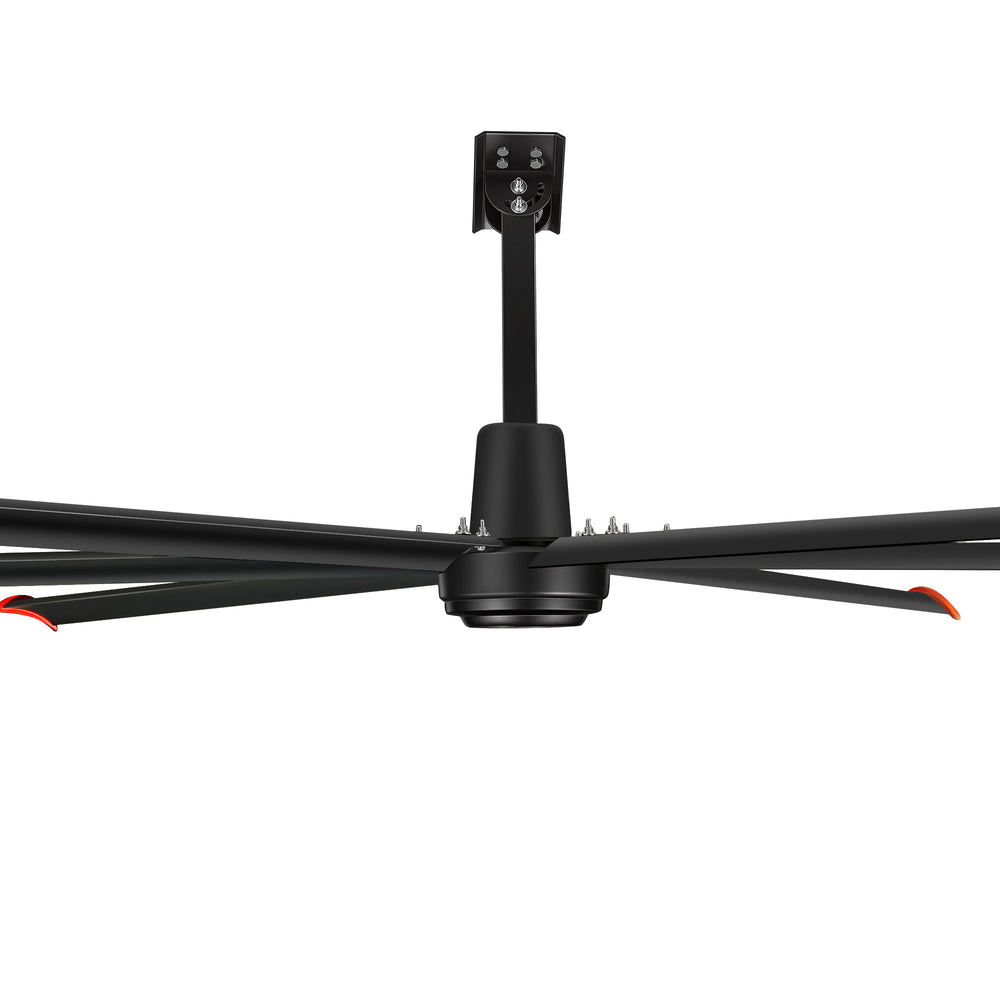

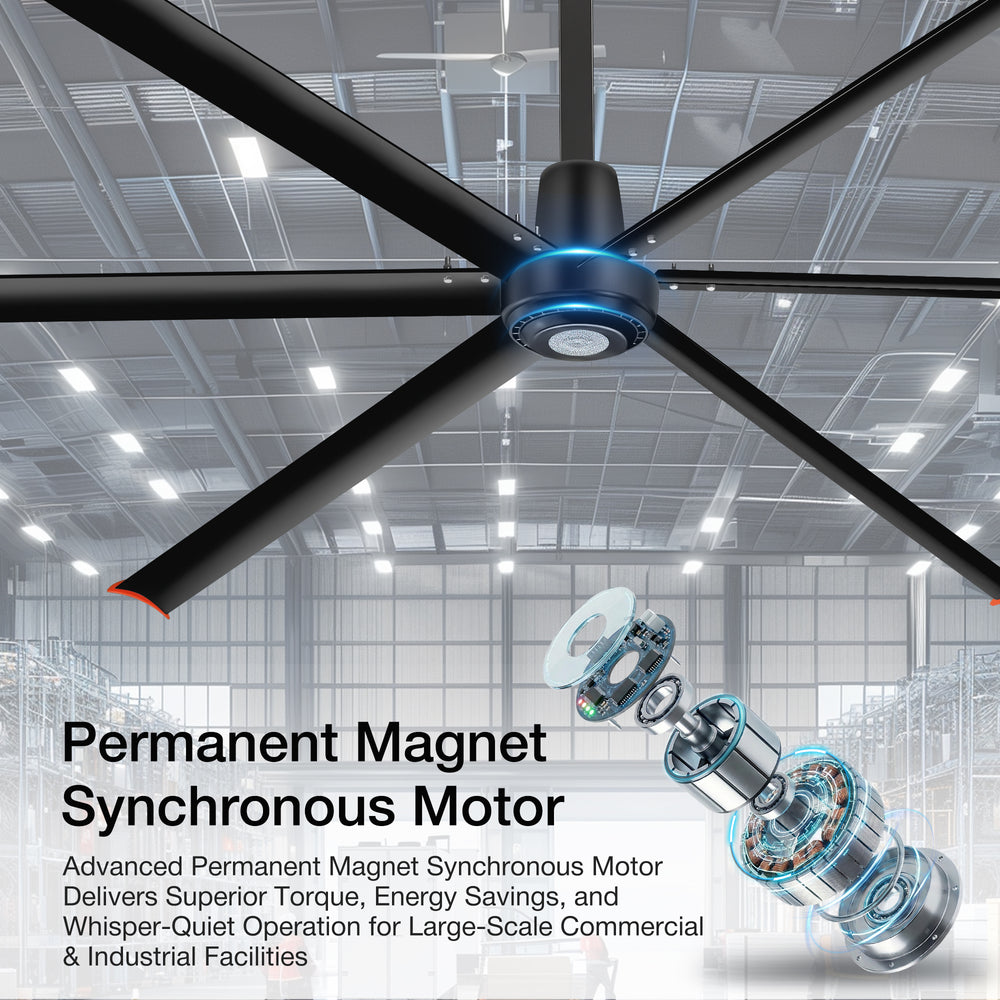

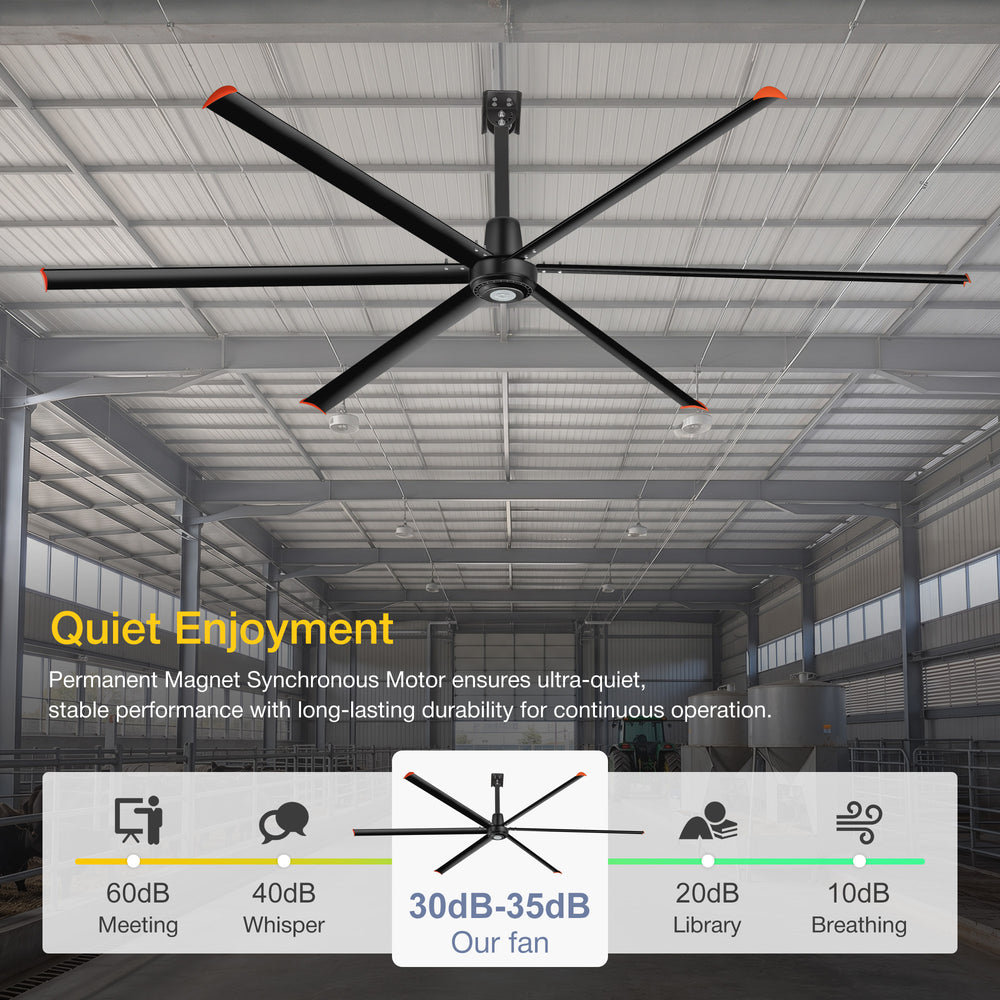

PMSM Direct Drive for an Industrial HVLS Ceiling Fan
Model 29029 uses a permanent magnet synchronous motor paired with a variable-frequency controller. The current product media identifies this as a direct-drive configuration, reducing the need for a separate reduction gearbox between the motor and rotating assembly.
Motor type alone does not determine complete fan performance. Blade design, controller tuning, mounting quality, balance and the building conditions should be evaluated as one system.
FIXED OPERATOR CONTROL

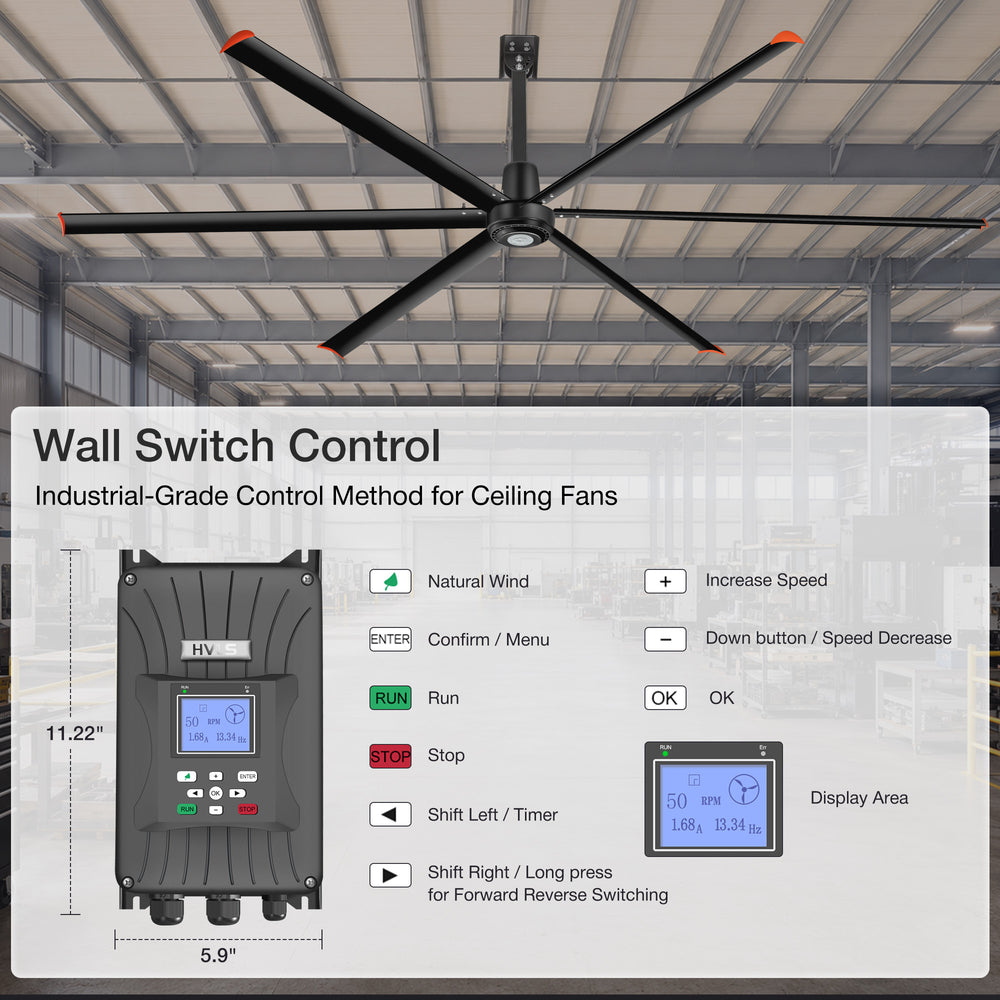

Wired Wall Controller for 12 FT HVLS Fan Operation

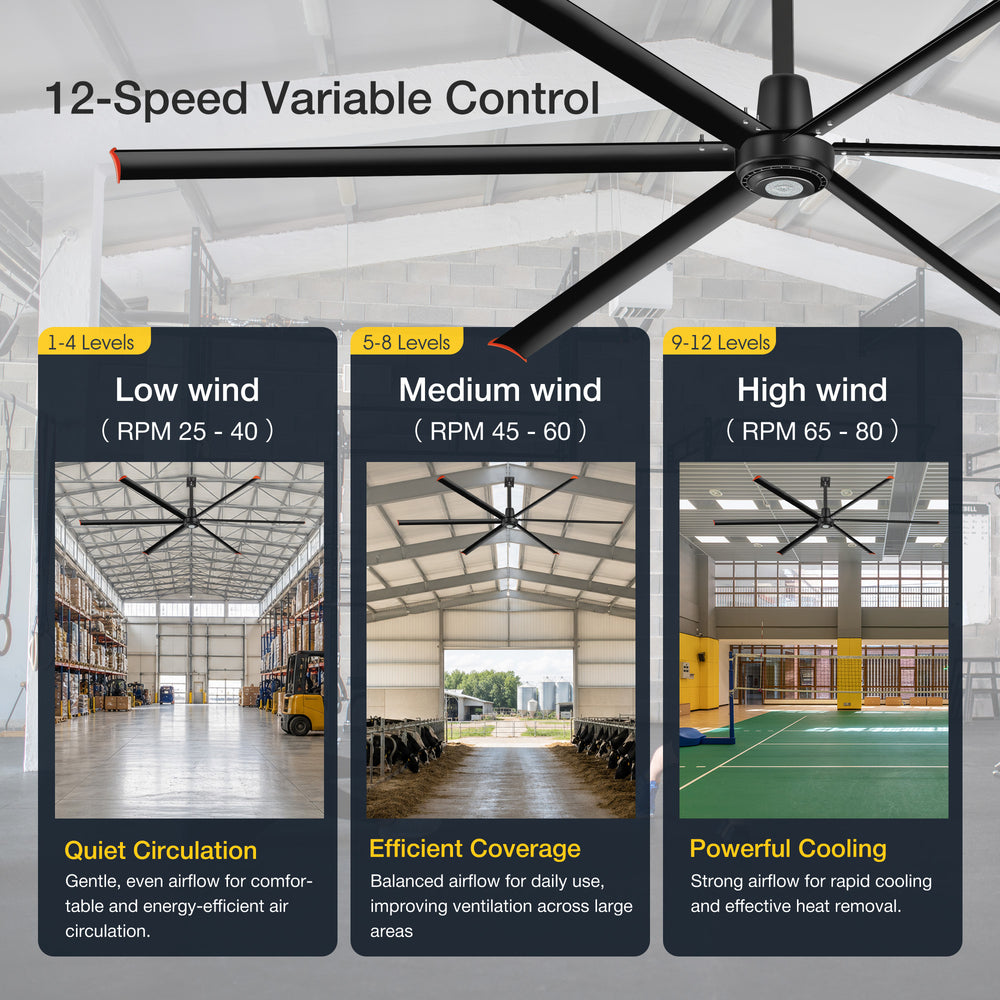

Unlike a residential fan that relies on a handheld remote, this 144-inch model uses a fixed wall-mounted controller. The current product media presents 12 selectable speed levels, while the manual specifies a 20–80 rpm operating range through the variable-frequency control system.

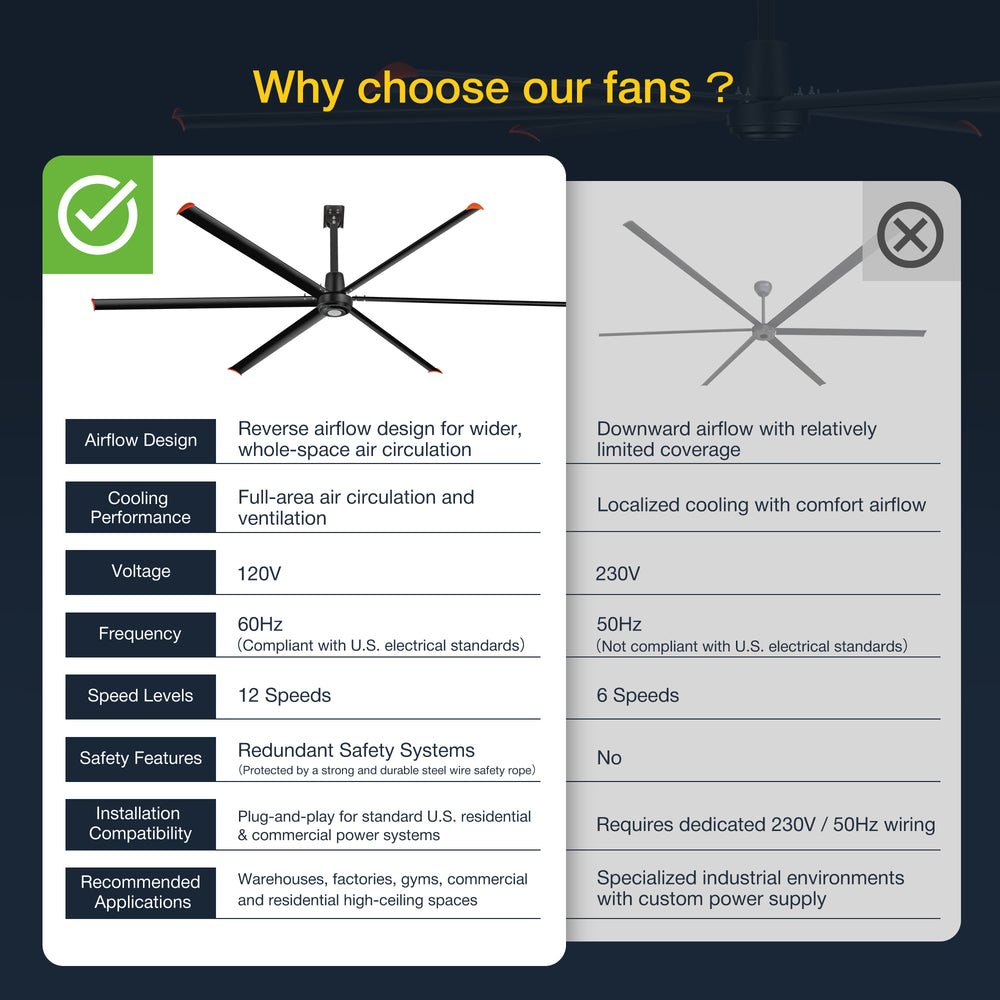

120V and 220V variants must be matched correctly.
The product listing currently offers 120V and 220V single-phase options. The supplied 29029 manual technical table specifically identifies the 120V 1-phase 60Hz version. Match the ordered fan, controller, wiring diagram, input voltage and nameplate before installation.
SEASONAL AIR MOVEMENT

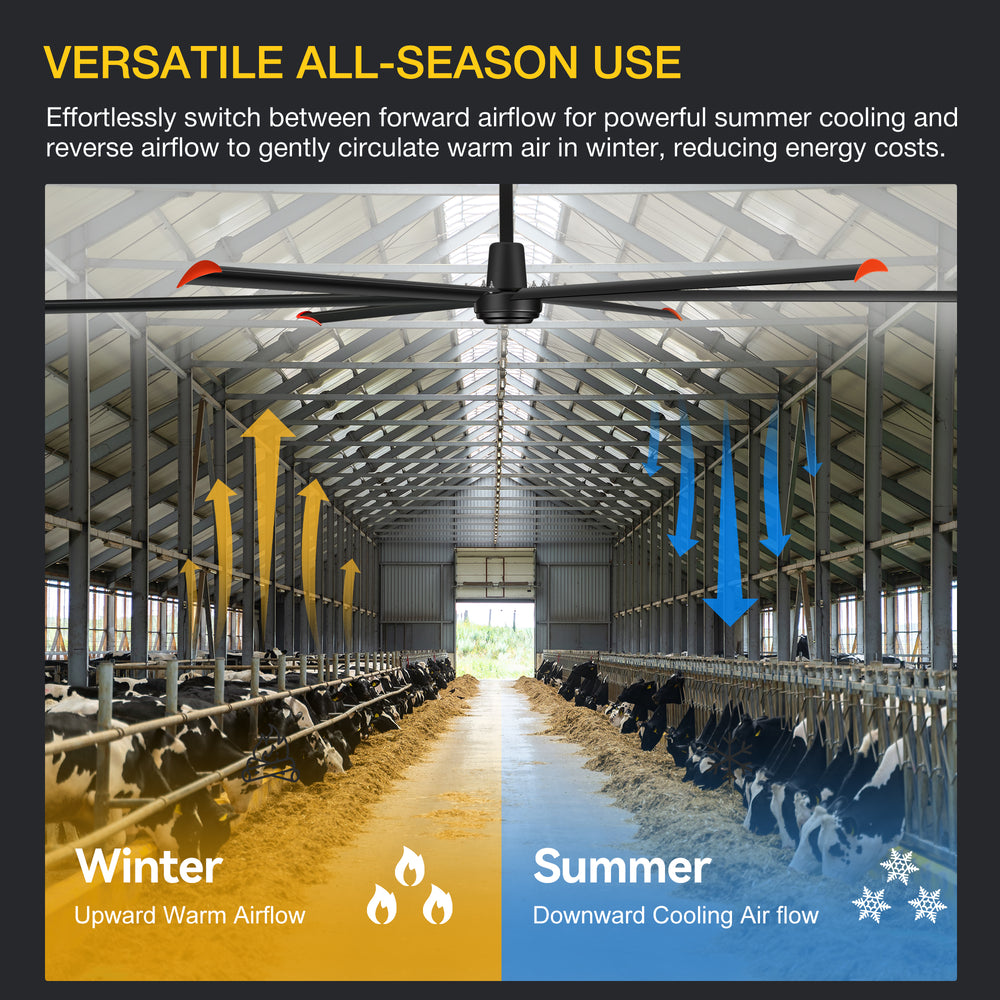

Forward and Reverse Airflow for Year-Round Facility Use
The controller supports direction changes so facility operators can select the airflow direction required for the operating season. In warmer conditions, downward air movement can increase air motion around occupied zones.
During heating periods, reverse operation may be used as part of a destratification strategy to help redistribute warmer air that collects higher in the building. Actual HVAC and energy results depend on the facility, thermostat strategy, fan speed and operating schedule.
FACILITY FIT
Is This 144-Inch HVLS Industrial Ceiling Fan Right for Your Facility?
Choose by building geometry, mounting structure, occupied zone, electrical supply and required airflow—not by diameter alone.
Good MatchDefined warehouse zones, workshops, manufacturing work areas, gyms and high-ceiling commercial spaces with adequate 12 ft blade clearance.
Compare a Larger HVLS FanVery large, open and unobstructed facilities may justify 14–24 ft systems when the structure, power supply and airflow plan support them.
Do Not Assume Environmental SuitabilityThe supplied manual does not publish a wet or outdoor rating and prohibits operation in freezing, corrosive, explosive and severely dusty environments.
BEFORE YOU ORDER
Structural Mounting and Electrical Planning for a 12 FT HVLS Fan

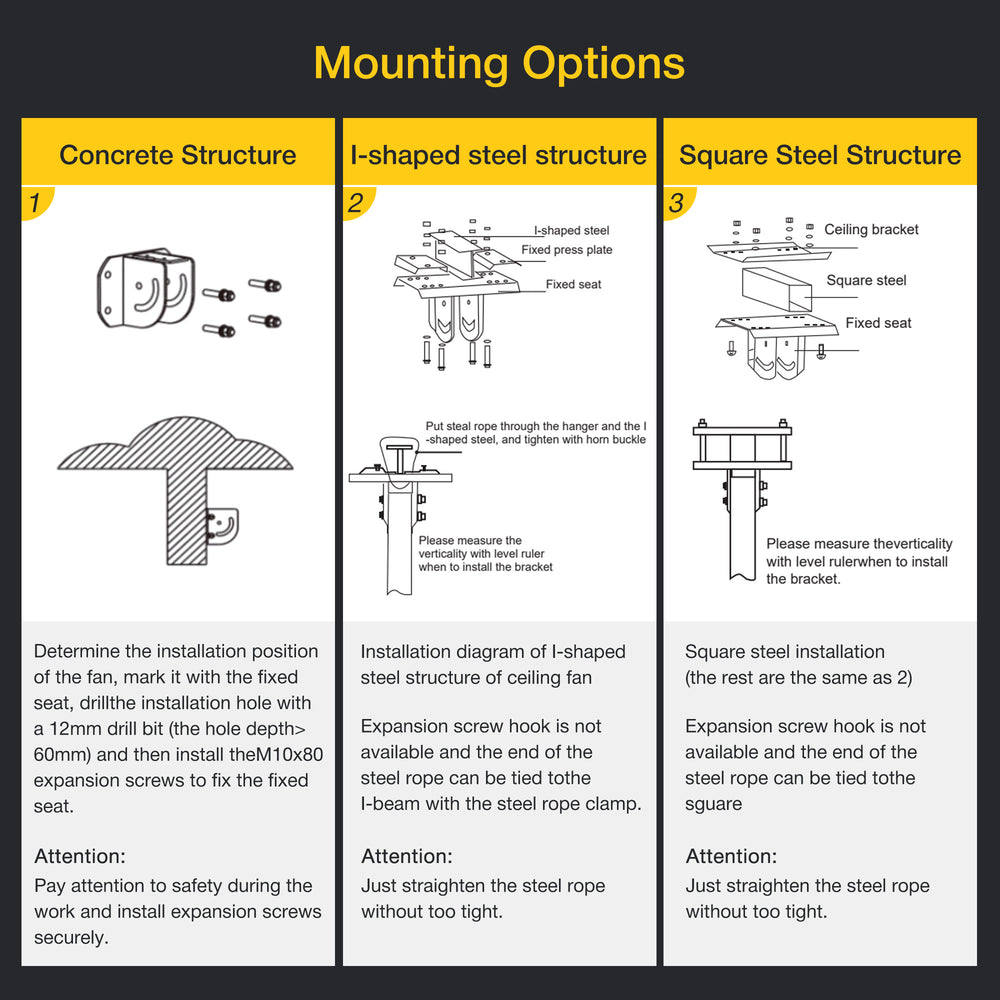

The supplied manual provides installation methods for concrete structures, I-shaped steel and square-steel structures. Installation and wiring must be completed by trained or qualified personnel using the exact controller and electrical configuration supplied for the fan.
Mounting StructureConfirm the actual beam or concrete structure before selecting hardware and fan position.
Full Rotating EnvelopePlan clearance around the complete 144-inch diameter, not only the motor location.
Controller MatchingUse the controller matched to the exact fan model and ordered voltage configuration.
Professional InstallationThe manual requires installation, maintenance and wiring by appropriately trained or qualified personnel.
COMPARE BY NEED
Compare Industrial HVLS Fans by Facility, Size and Motor System
If model 29029-SR is not the correct fit, continue to the Breezary page that matches the building type, fan diameter, motor preference or airflow requirement.
All large-space optionsHVLS FansCompare Breezary's complete HVLS range.
Dedicated 144-inch category12 FT Industrial HVLS FansCompare other 144-inch configurations and controls.
Warehouse airflow planningHVLS Fans for WarehousesReview racks, zones, spacing and warehouse applications.
Public and commercial buildingsCommercial HVLS FansCompare options for gyms, retail and public spaces.
Drive-system comparisonDirect Drive vs Gear DriveUnderstand HVLS motor-system tradeoffs.
Production-floor planningManufacturing Facility GuidePlan around machinery, work cells and heat-producing processes.
INSTALLATION & CONTROLLER SUPPORT
29029 3.7 m / 144-Inch HVLS Fan Operation Manual
Review the supplied manual before structural installation, electrical connection, controller setup, troubleshooting or maintenance.
View 29029 User ManualPRODUCT QUESTIONS
144-Inch HVLS Industrial Ceiling Fan FAQs
General & Warranty
x| Assembly Required | Yes | Fan Diameter (Inches) | 144 Inch |
|---|---|---|---|
| Fan Type | Standard | Fan Mounting Type | Angled, Downrod |
| Style | Industrial, Modern & Contemporary | Housing Color | Silver |
| Body Material | Metal | Number of Fan Speeds | 12 |
| Slope Ceiling Compatibility (in degrees) | 20° | Use Location | Indoor, Covered Outdoor |
| Compatible Room Size | Great Room(more than 350 sq. ft） | Room | Warehouse, Factory, Gym |
| Overall Width*Depth*Height (Inches) | 144*144*50(in.) | Net Weight (lbs) | 116.9 |
| Product Warranty | Yes | Warranty Length | 1 Year |
Blade & Lighting & Motor
x| Number of Blades | 6 | Blade Material | Aluminum |
|---|---|---|---|
| Blade Pitch (in degrees) | 20° | Reversible Blades | No |
| Blade Color | Silver | Blade Size (Inches) | 70.86*6.69(in.） |
| Light / No Light | No Light | Bulbs Included | No |
| Dimmable | No | Motor Type | Permanent Magnet Synchronous Motor, DC Motor |
| Motor Power (Watts) | 0.3KW | Reversible Motor | Yes |
| Maximum RPM | 80 | Maximum Airflow (CFM) | 141000 |
| Airflow Efficiency(CFM/W) | 471 |
