xQuick Browse: 14–16 FT HVLS Industrial Ceiling Fan Details
14 FT • 16 FT • 120V SINGLE-PHASE HVLS

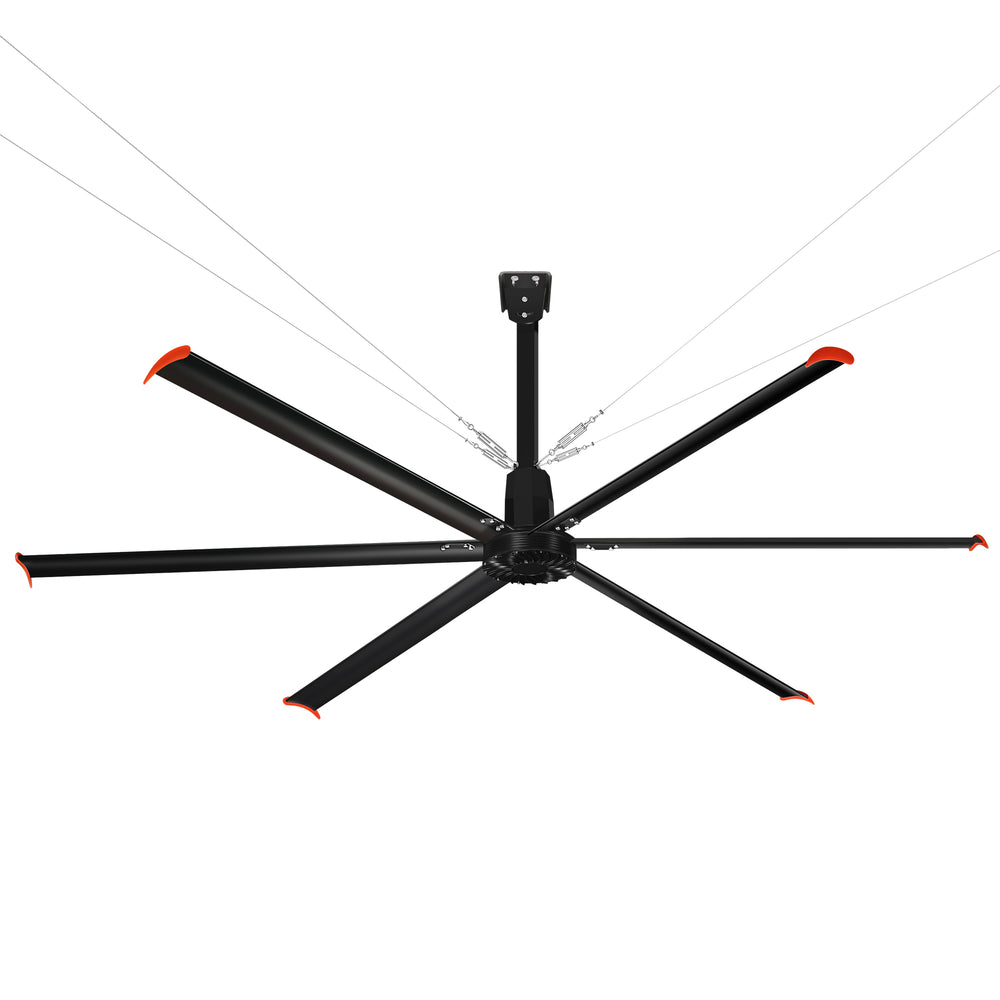

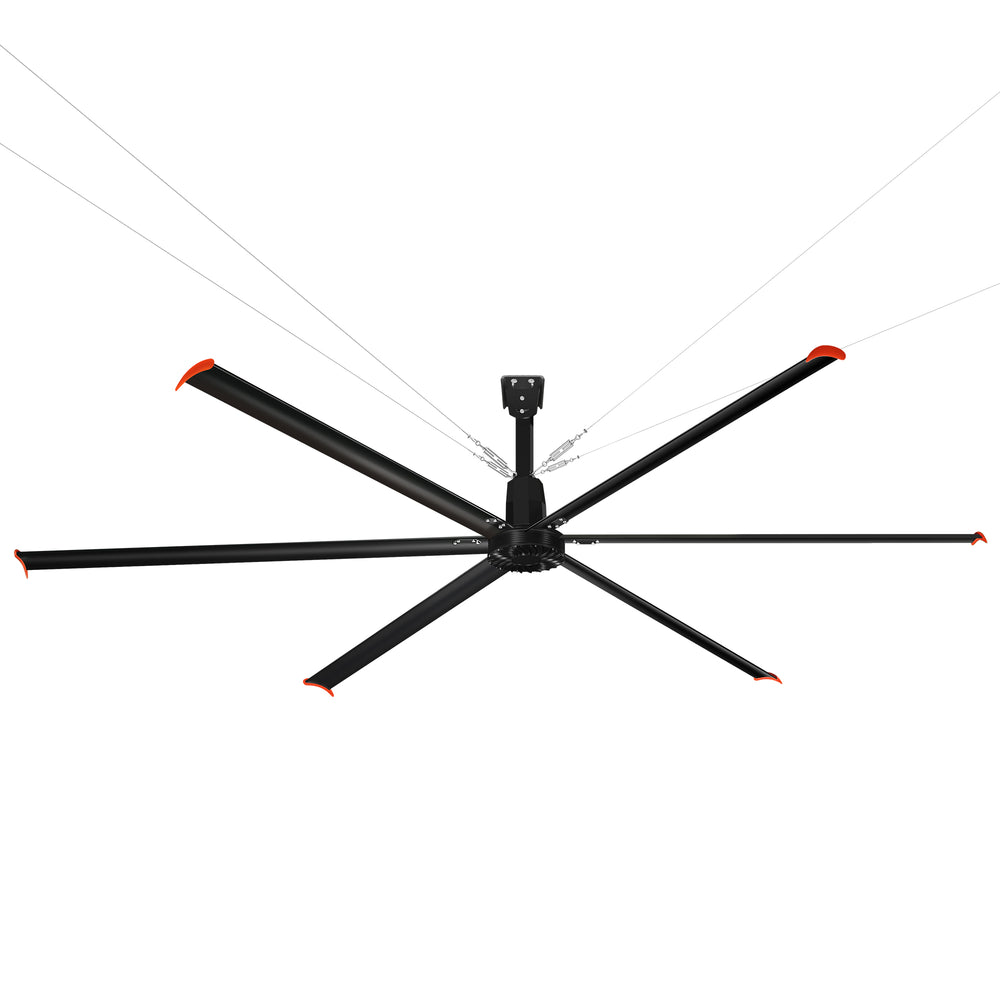

14–16 FT HVLS Industrial Ceiling Fans for Large Work Areas

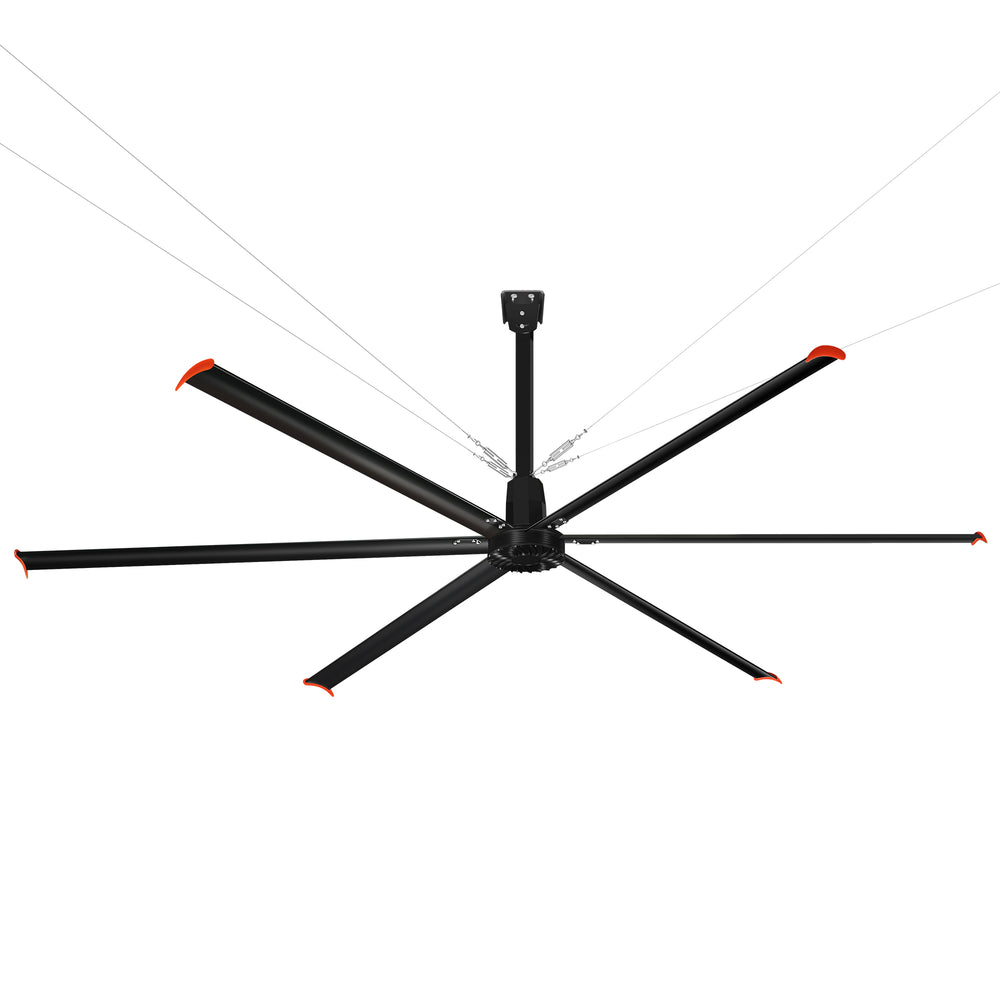

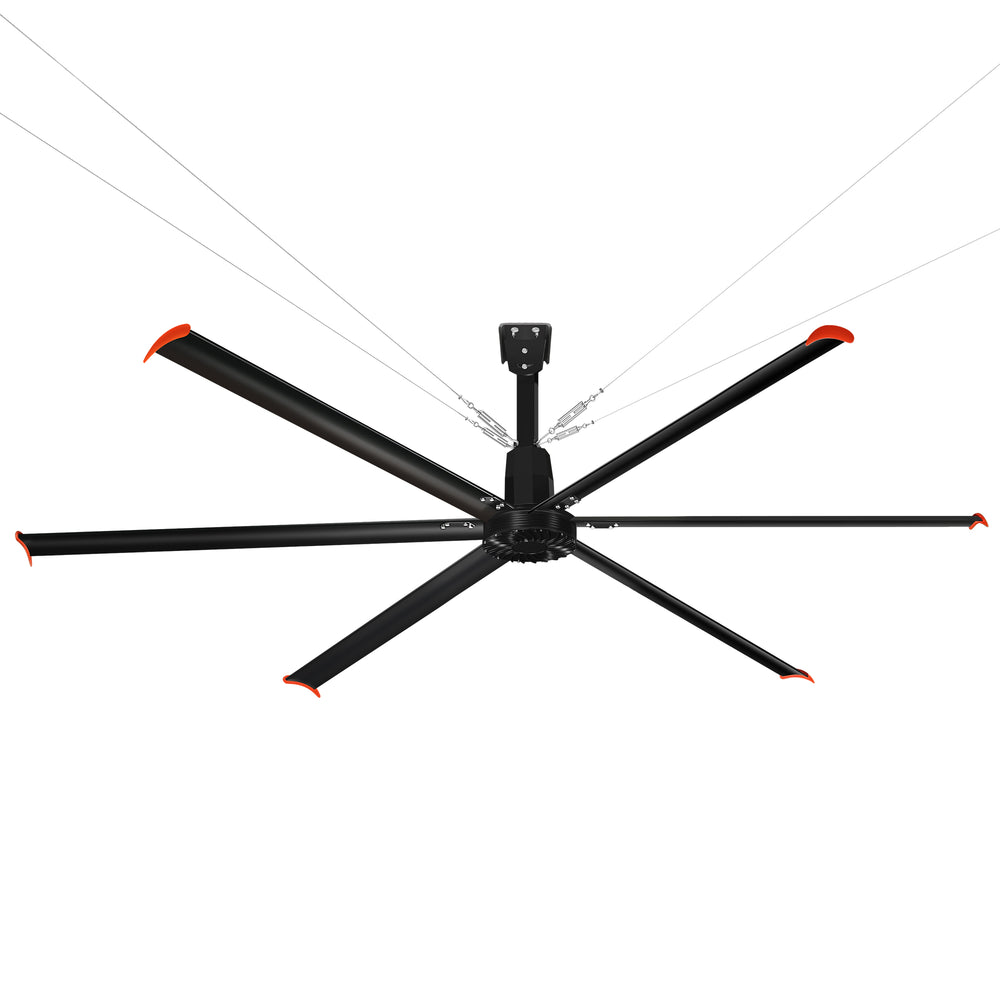

Breezary 29110-BK and 29111-BK provide two mid-to-large HVLS sizes for industrial and commercial buildings that need wider air circulation than a 12 ft fan but do not require a 20–24 ft rotating diameter. Both use six aluminum alloy blades, a 0.75 kW permanent magnet motor, 120V single-phase power and a wired wall controller. Published maximum airflow is approximately 247,000 CFM for the 14 ft model and 353,000 CFM for the 16 ft model.

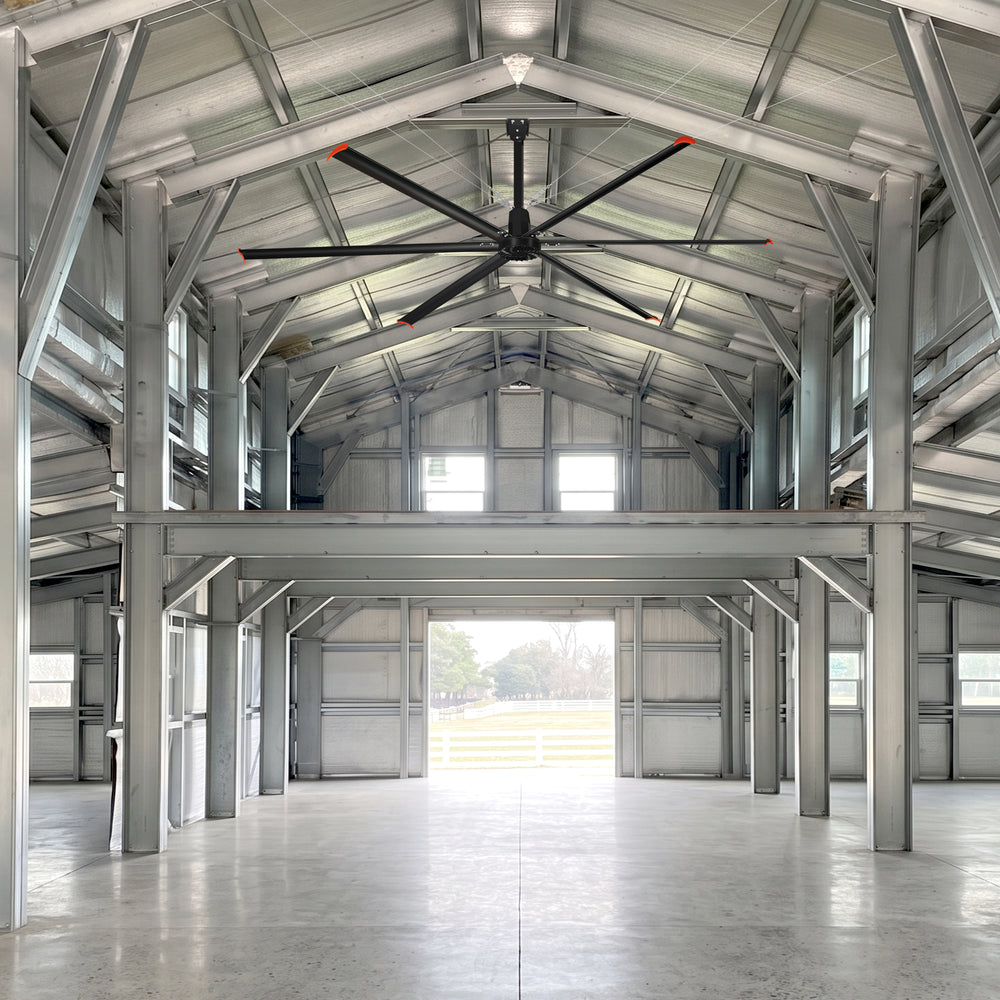

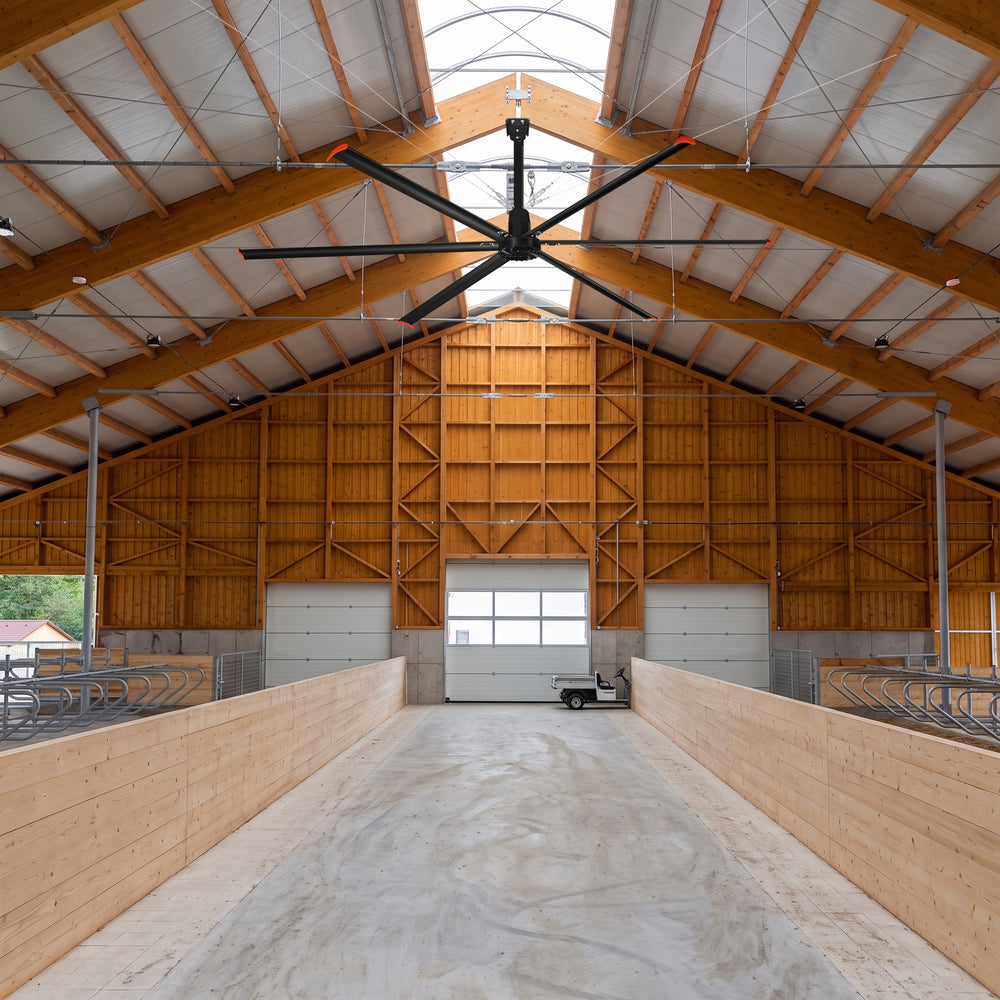

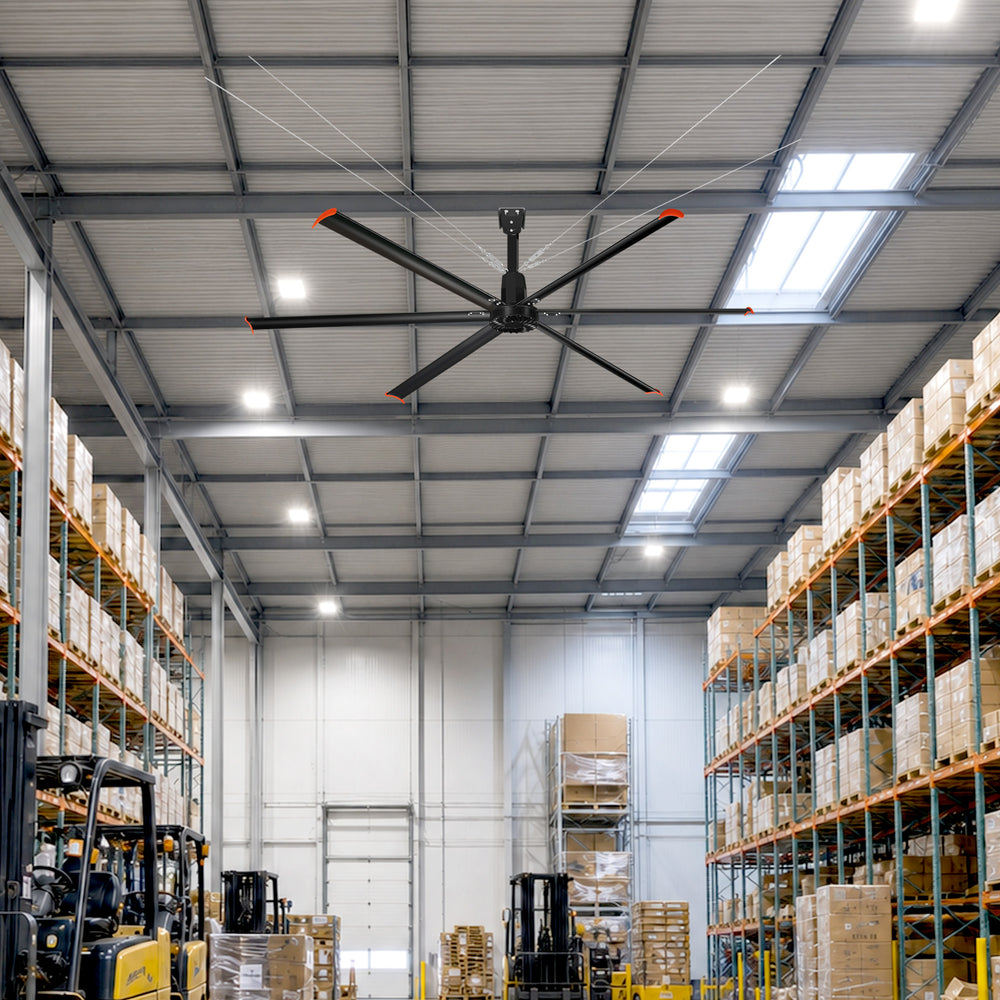

29110-BK shown in a high-ceiling warehouse application. Final size selection should account for building structure, clearances, obstructions and the airflow zone that needs to be served.
SIZE COMPARISON
Compare the 14 FT and 16 FT HVLS Industrial Ceiling Fans
The 16 ft model provides a wider rotating diameter and higher published airflow, while the 14 ft model requires less horizontal clearance. Select the size from the actual building layout rather than choosing only from the highest airflow number.

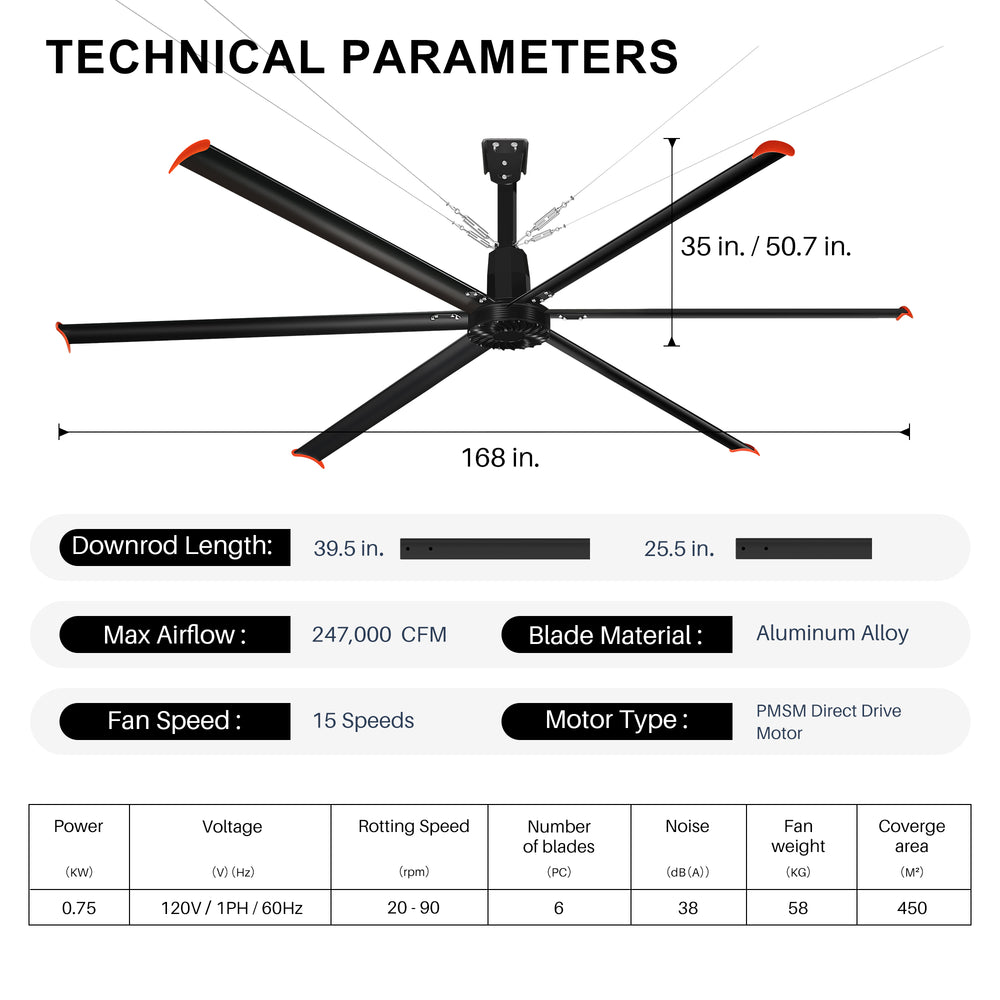

14 FT / 168"
Air volume: 7,000 m³/min ≈ 247,000 CFM
RPM: 20–90
Published speed settings: 15
Manual effective area: 256 m²
Manual coverage area: 450 m²
Manual fan weight: 58 kg

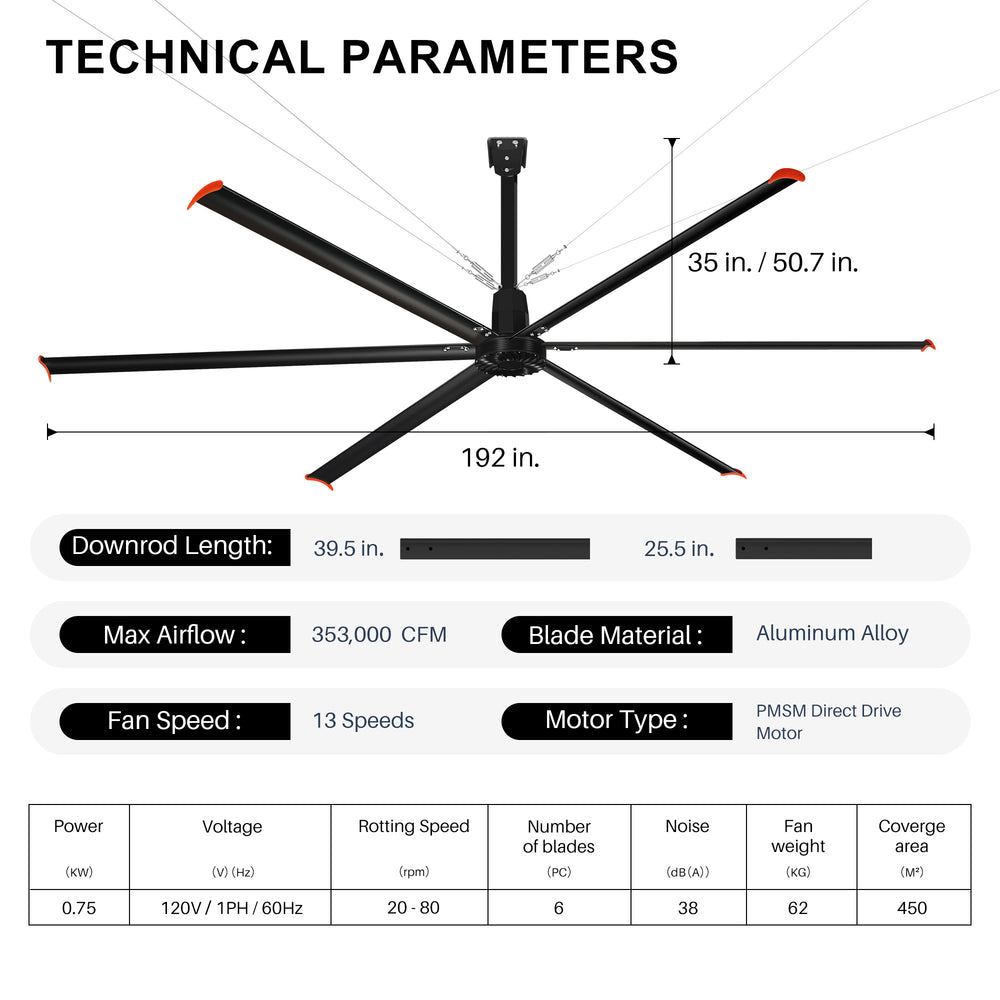

16 FT / 192"
Air volume: 10,000 m³/min ≈ 353,000 CFM
RPM: 20–80
Published speed settings: 13
Manual effective area: 300 m²
Manual coverage area: 500 m²
Manual fan weight: 62 kg
Coverage values above follow the supplied 29110/29111 manual. They should be used as model references, not as a universal guarantee for every warehouse, factory or commercial building.

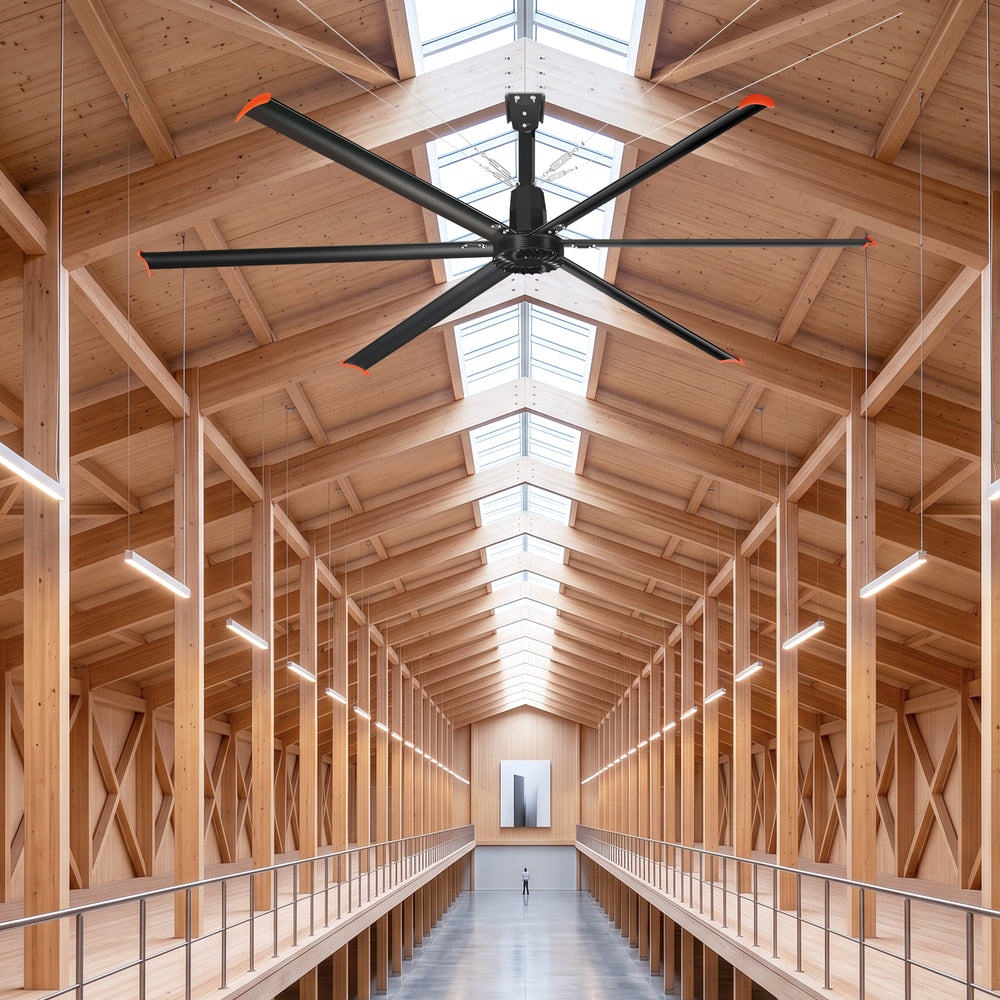

INDUSTRIAL & COMMERCIAL APPLICATIONS

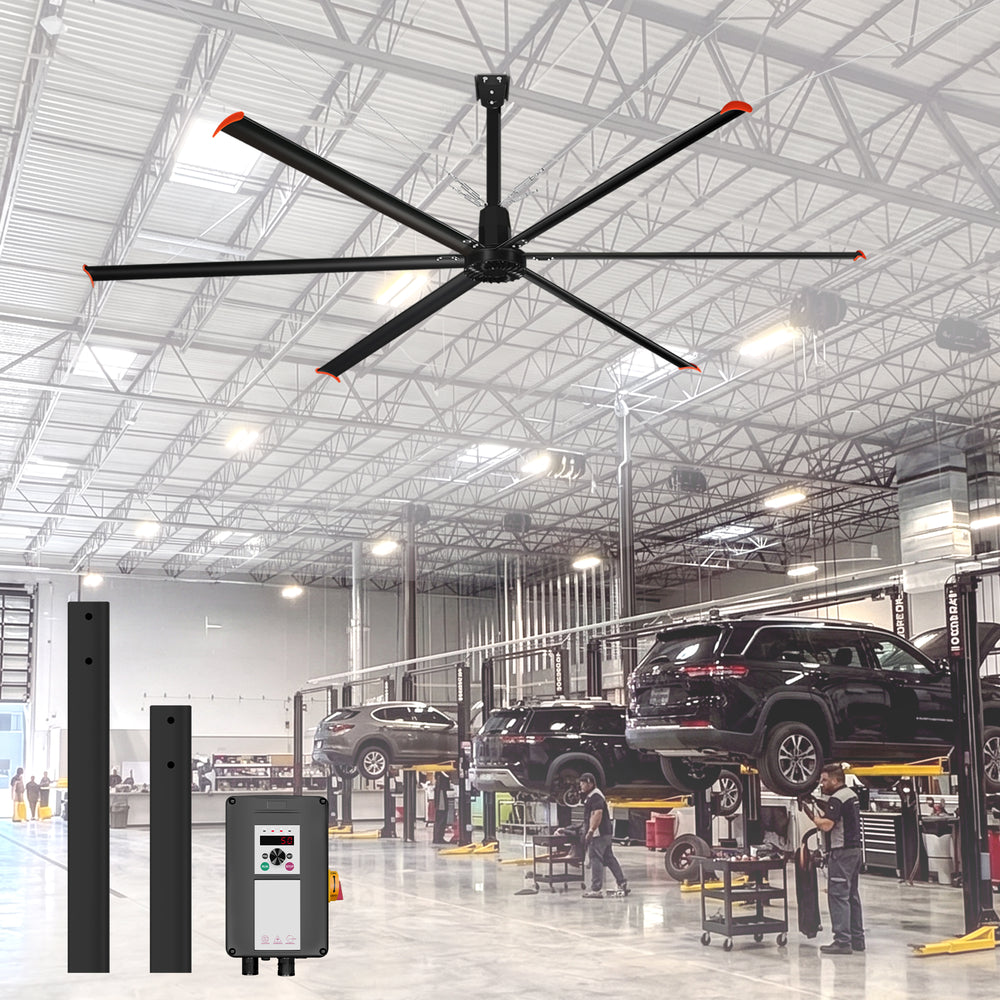

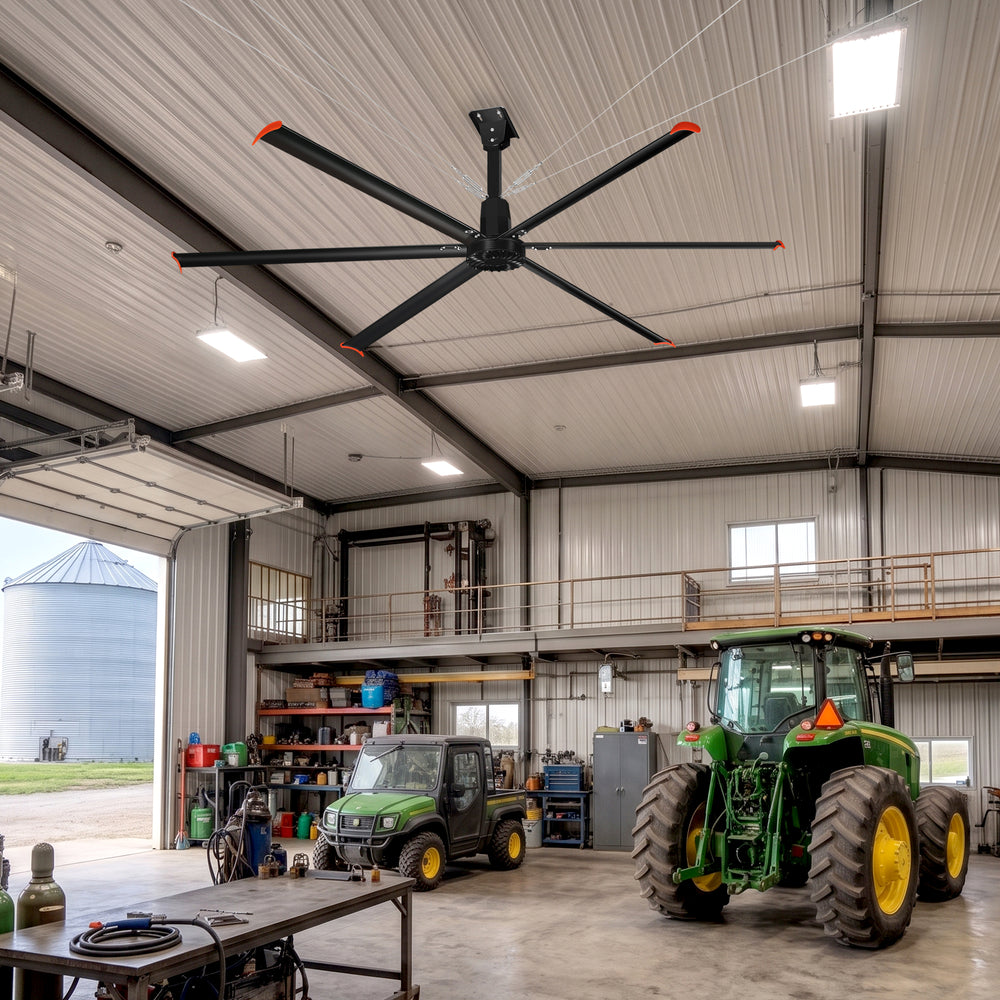

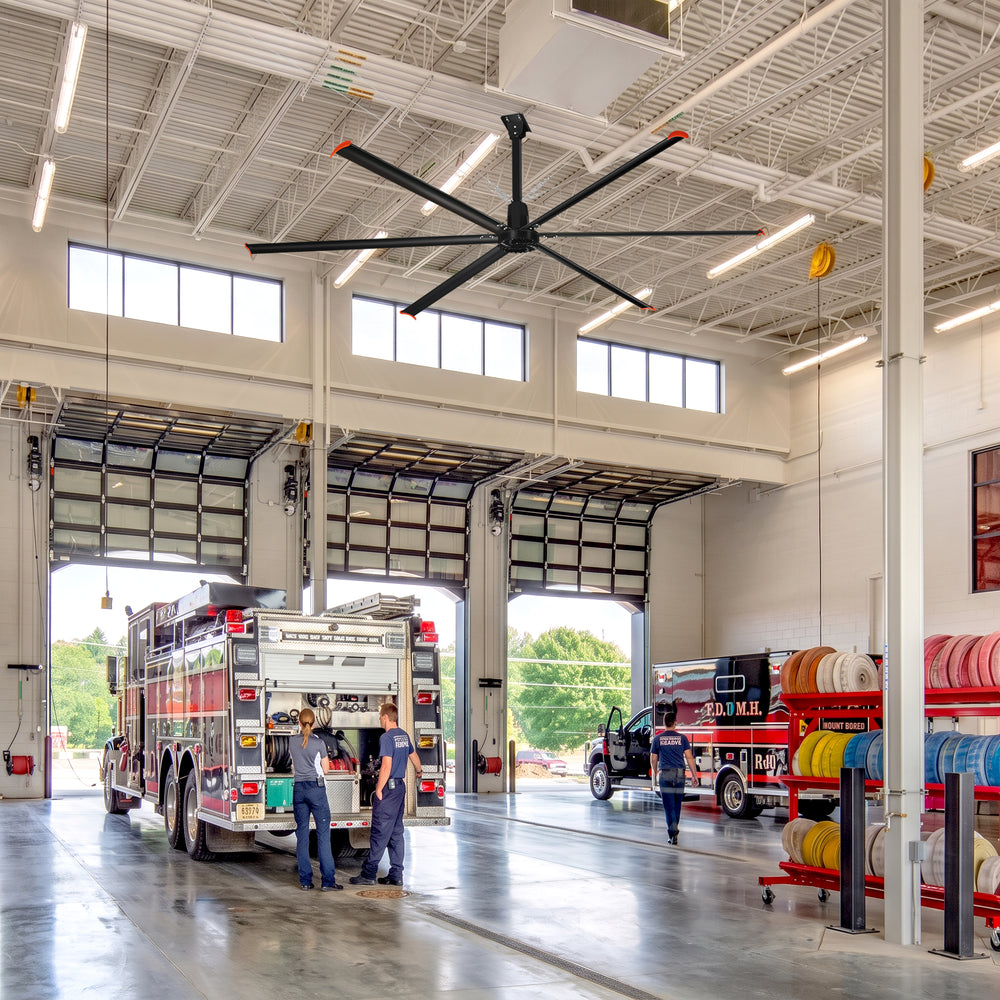

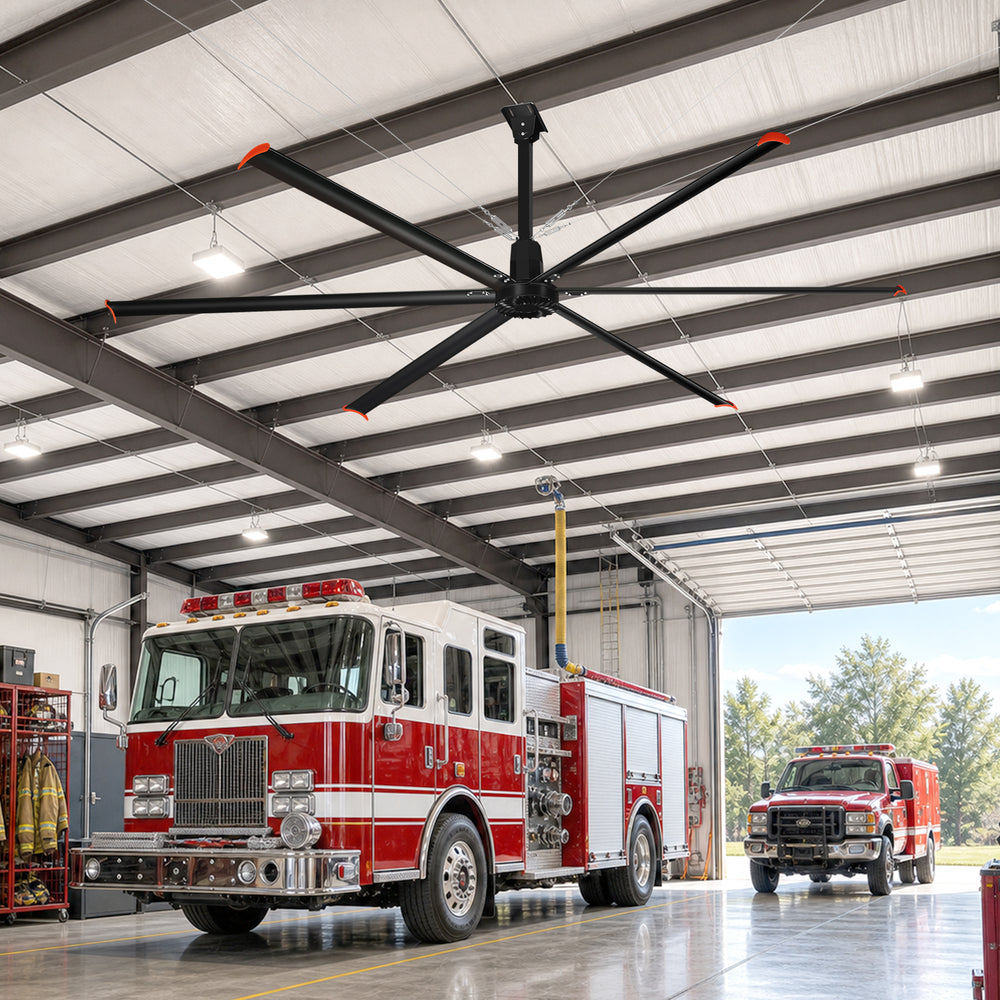

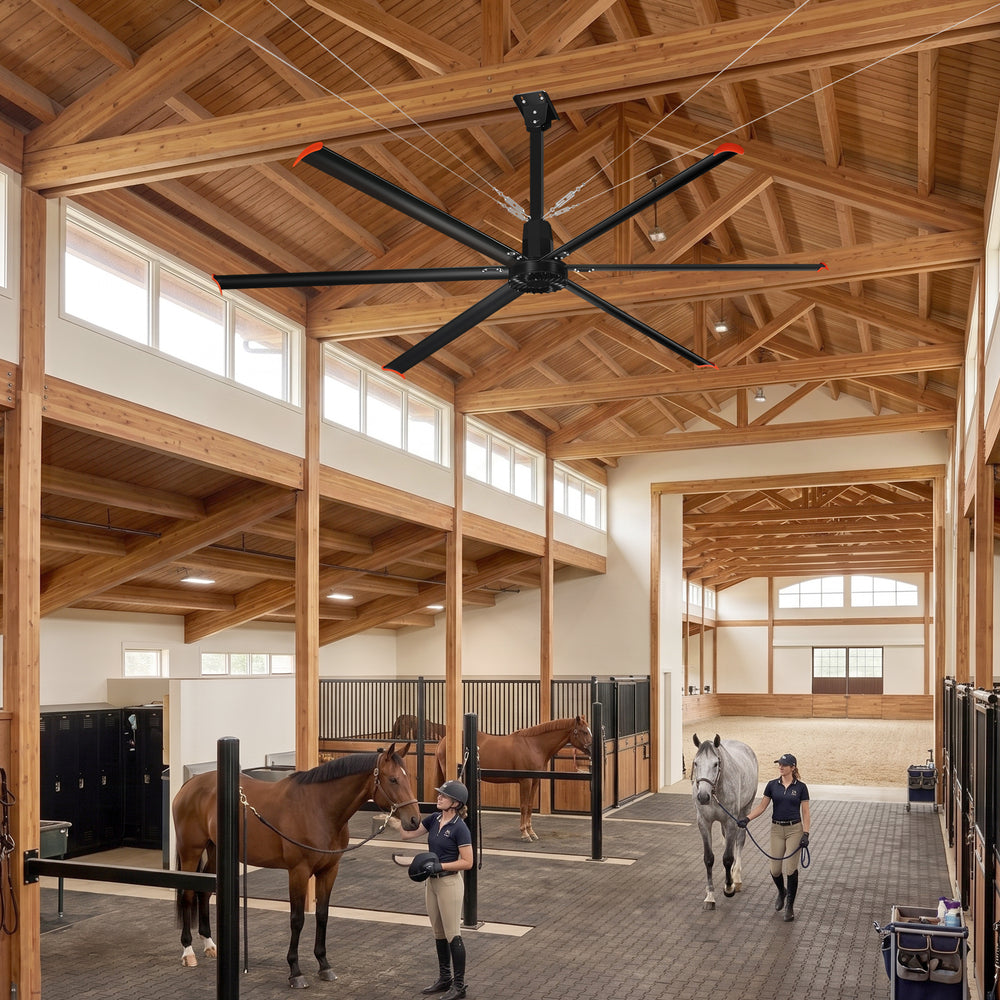

HVLS Fans for Warehouses, Workshops, Service Bays & Gyms
These 14–16 ft fans sit between compact 12 ft HVLS models and extra-large 20–24 ft systems, making them relevant for medium-to-large indoor zones where building structure and equipment still limit the available rotating diameter.
HIGH VOLUME • LOW SPEED

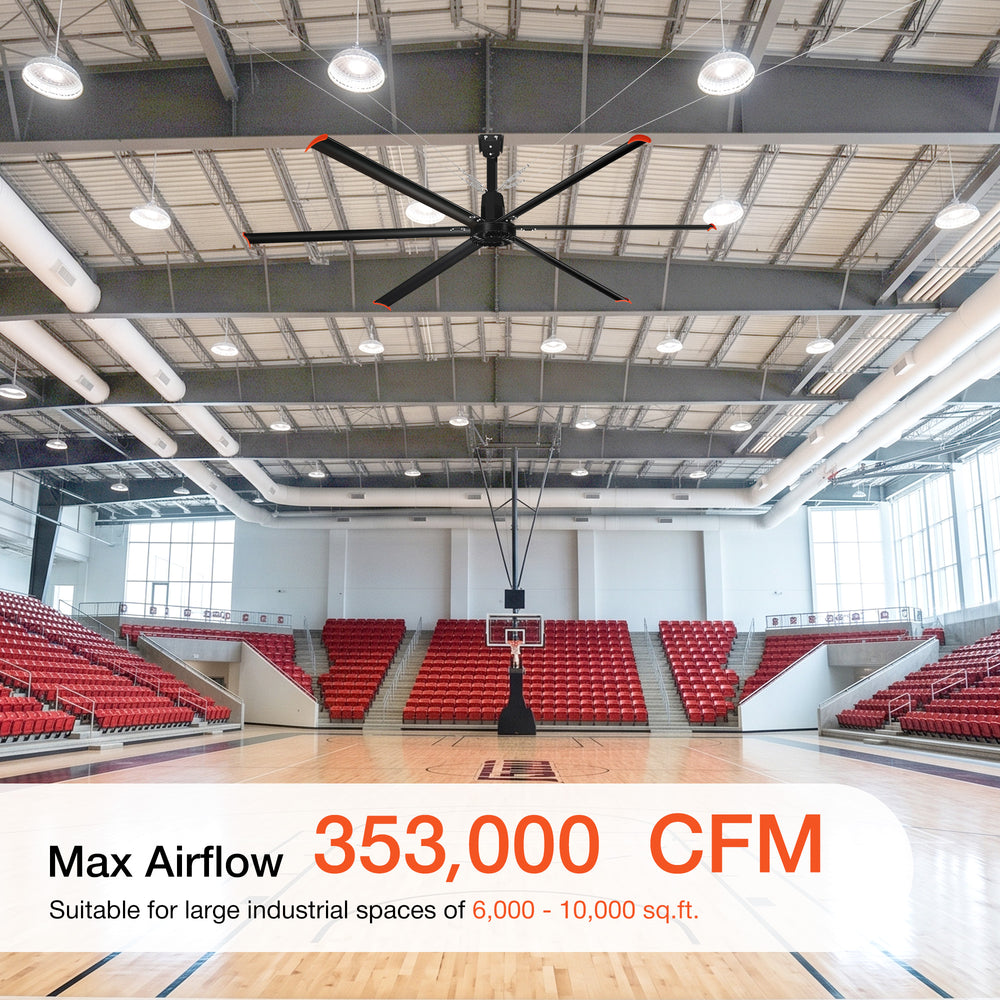

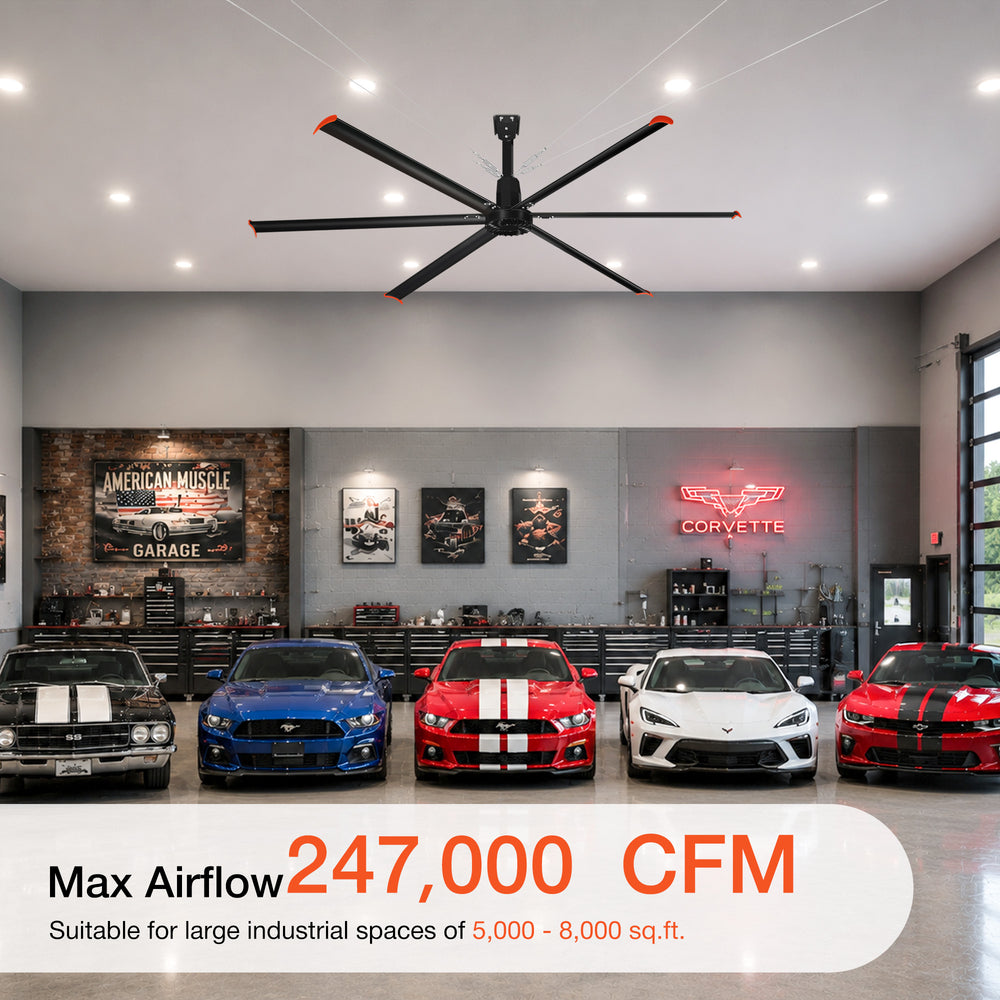

247,000–353,000 CFM Published Airflow
The manual lists an air volume of 7,000 m³/min for 29110-BK and 10,000 m³/min for 29111-BK. These convert to approximately 247,000 CFM and 353,000 CFM.
A higher CFM value does not automatically make the 16 ft model the better choice. The selected diameter still has to fit between beams, lights, ducts and other obstacles while moving air through the zones that people actually occupy.

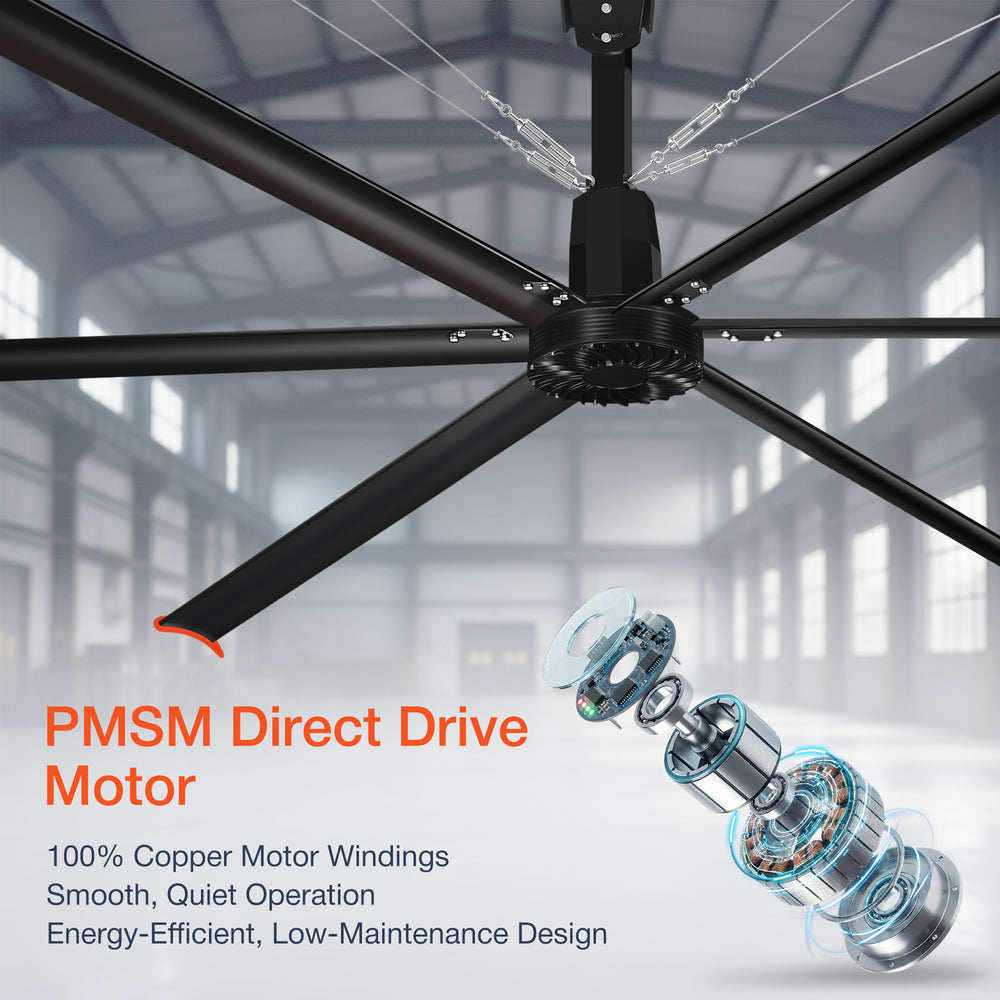

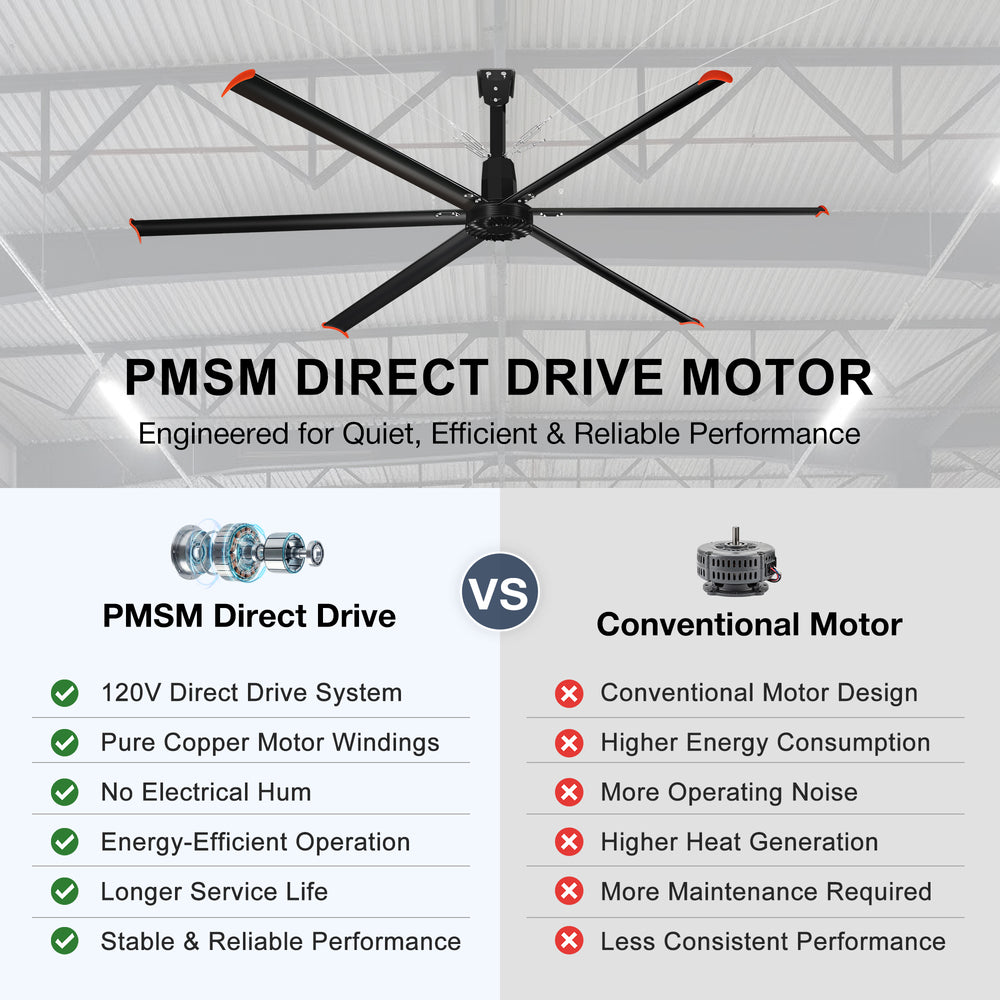

PMSM DIRECT DRIVE

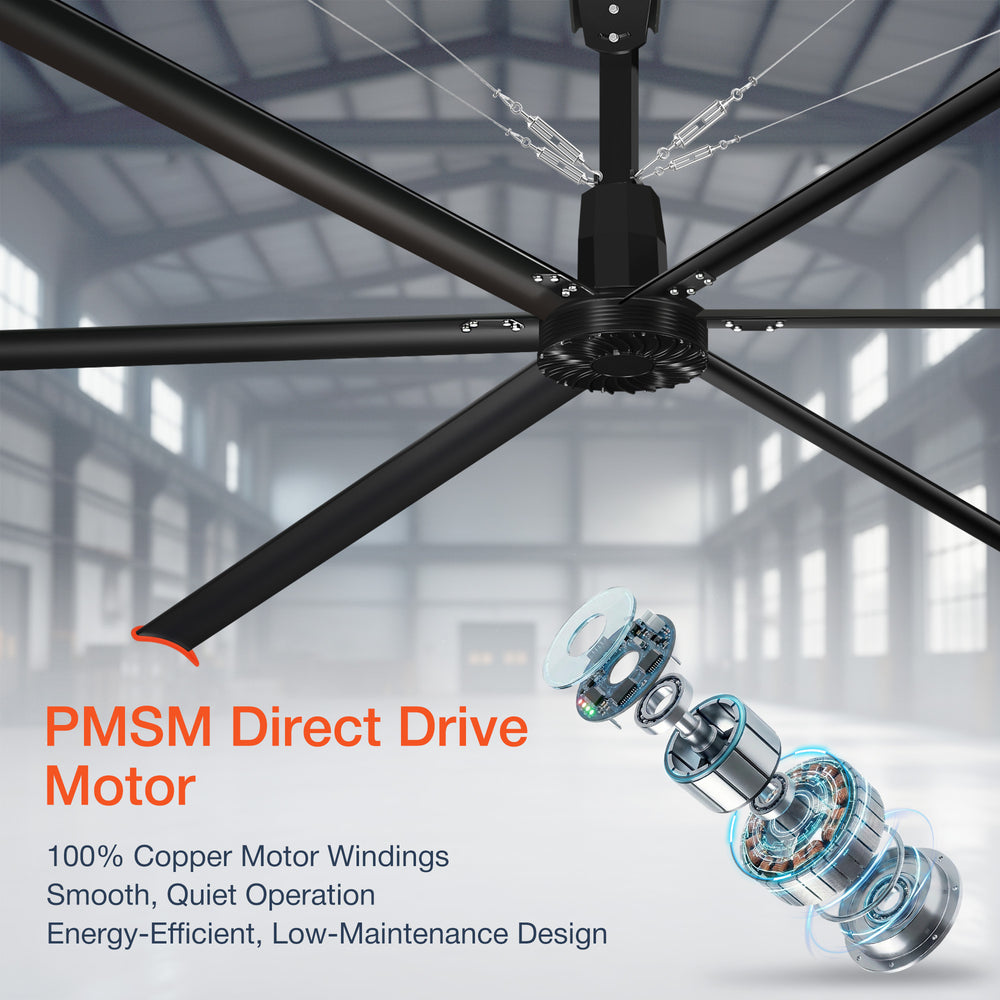

0.75 kW Permanent Magnet Motor with 6 Aluminum Blades
Both models use a 0.75 kW / 1 HP permanent magnet motor and six aluminum alloy blades. The product page describes the motor as PMSM direct drive and identifies 100% copper motor windings.

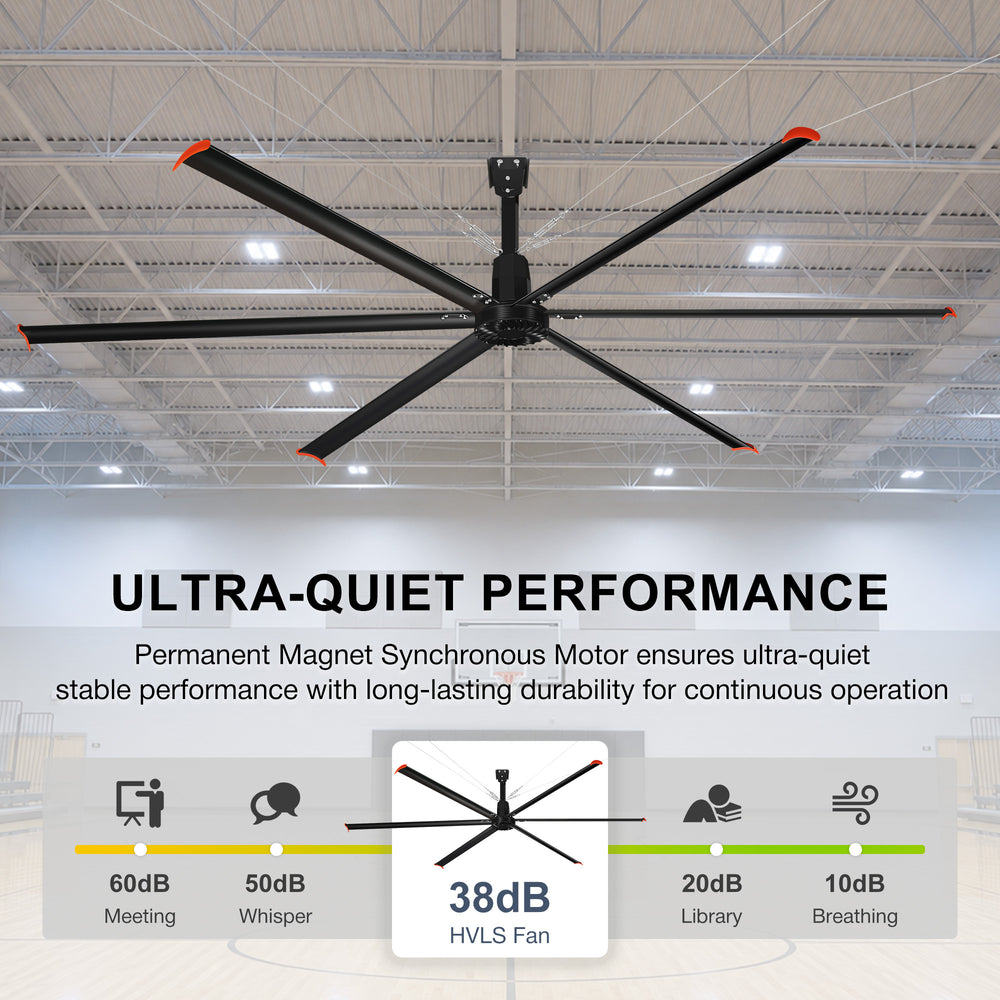

Published operating noise is 38 dB(A) for both models. For real project comparison, use the documented noise value together with mounting structure, operating speed and background facility noise rather than relying on broad terms such as “silent.”

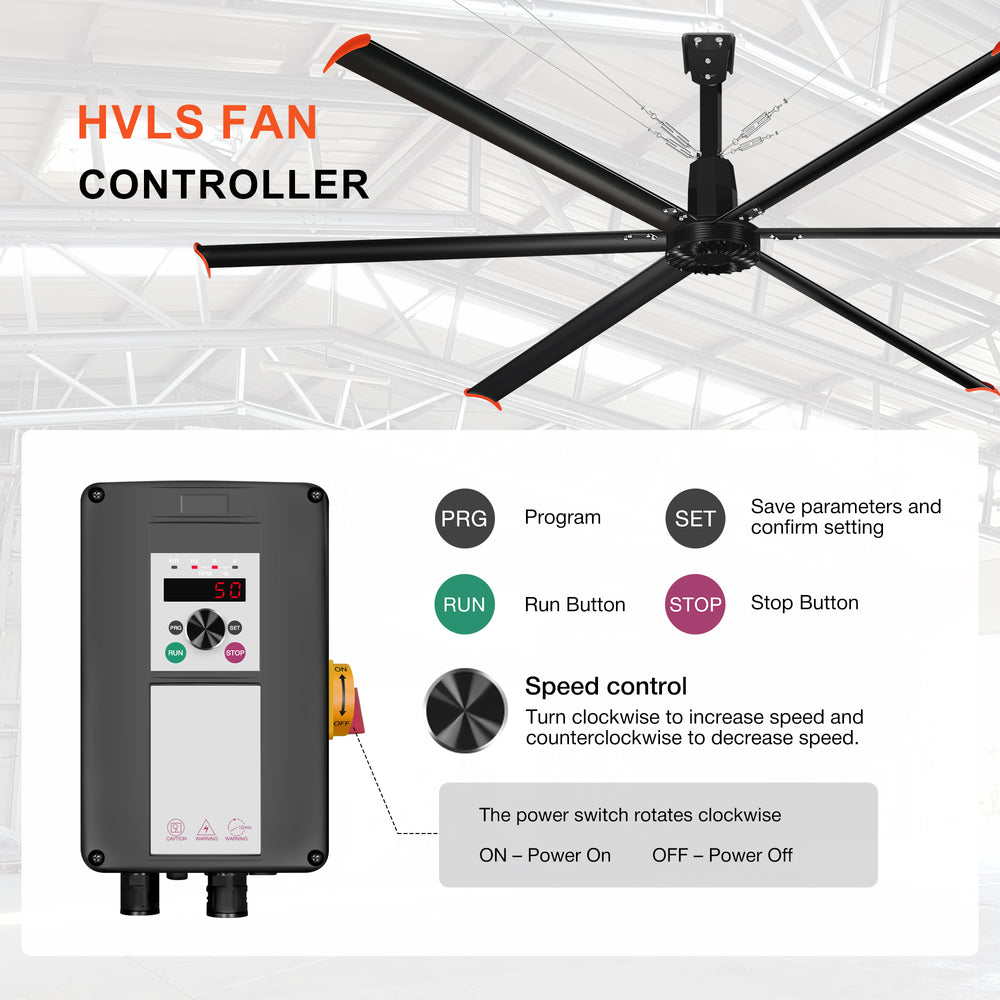

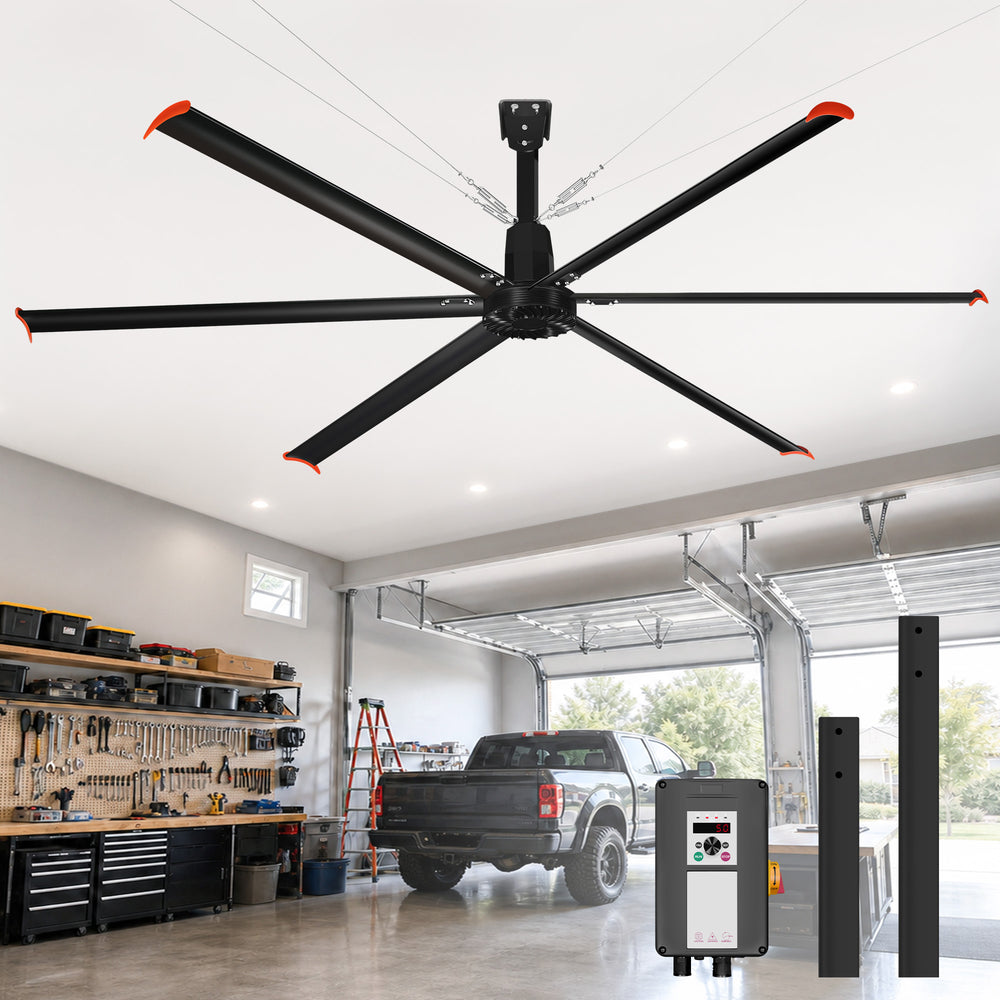

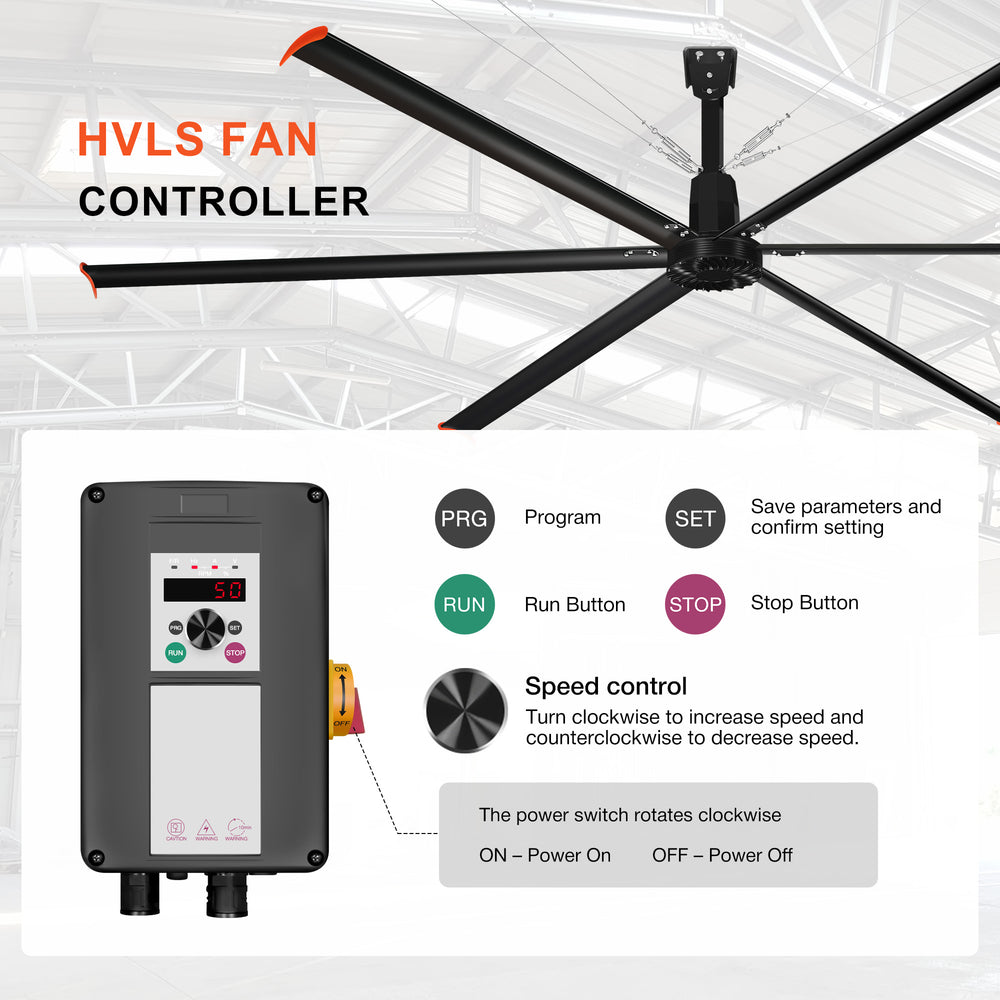

WIRED INDUSTRIAL CONTROL
Wall-Mounted Controller for Variable-Speed HVLS Operation
The manual specifies a permanent magnet motor controller and HD02 frequency converter. Its documented operating functions include run, stop, accelerate and decelerate.
Use only the controller specified for the selected model. The manual warns not to connect mains power directly to the ceiling fan and requires confirmation that supply voltage matches the controller.
NO-LIGHT INDUSTRIAL CONFIGURATION
HVLS Ceiling Fans with No Lights for Existing Facility Lighting
Neither model includes an integrated light kit. That makes this series relevant to warehouses, factories, workshops and gyms that already use dedicated high-bay or task lighting and want the ceiling fan to remain a separate air-movement system.
BUILDING FIT
Is a 14–16 FT HVLS Industrial Fan Right for Your Facility?
This size range is most useful when a 12 ft fan is too compact for the intended zone but a 20 ft or larger diameter would create clearance or placement problems.
BEFORE YOU ORDER
Installation Planning for 168-Inch and 192-Inch HVLS Fans

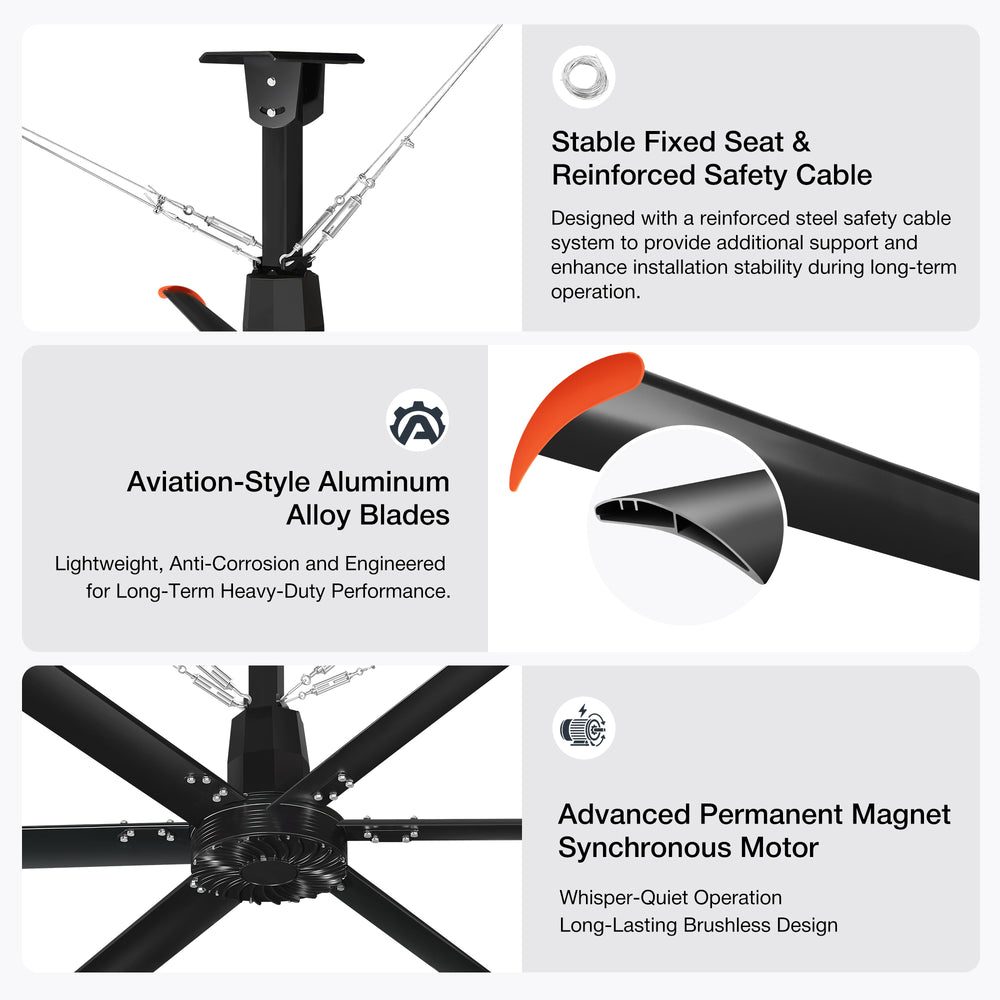

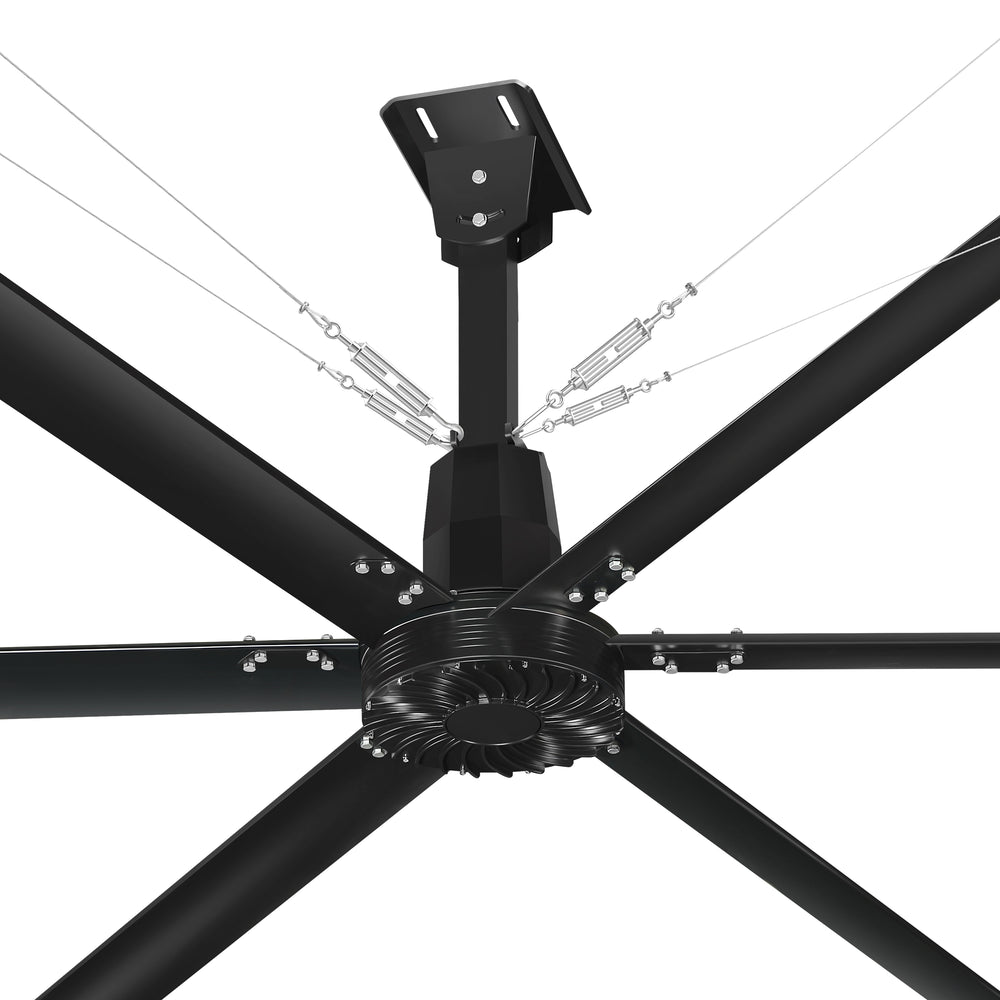

Installation and maintenance must be handled by professionally trained or experienced personnel with electrician qualifications. The fan uses a connecting rod, steel safety ropes, a permanent magnet motor controller and model-specific structural mounting hardware.

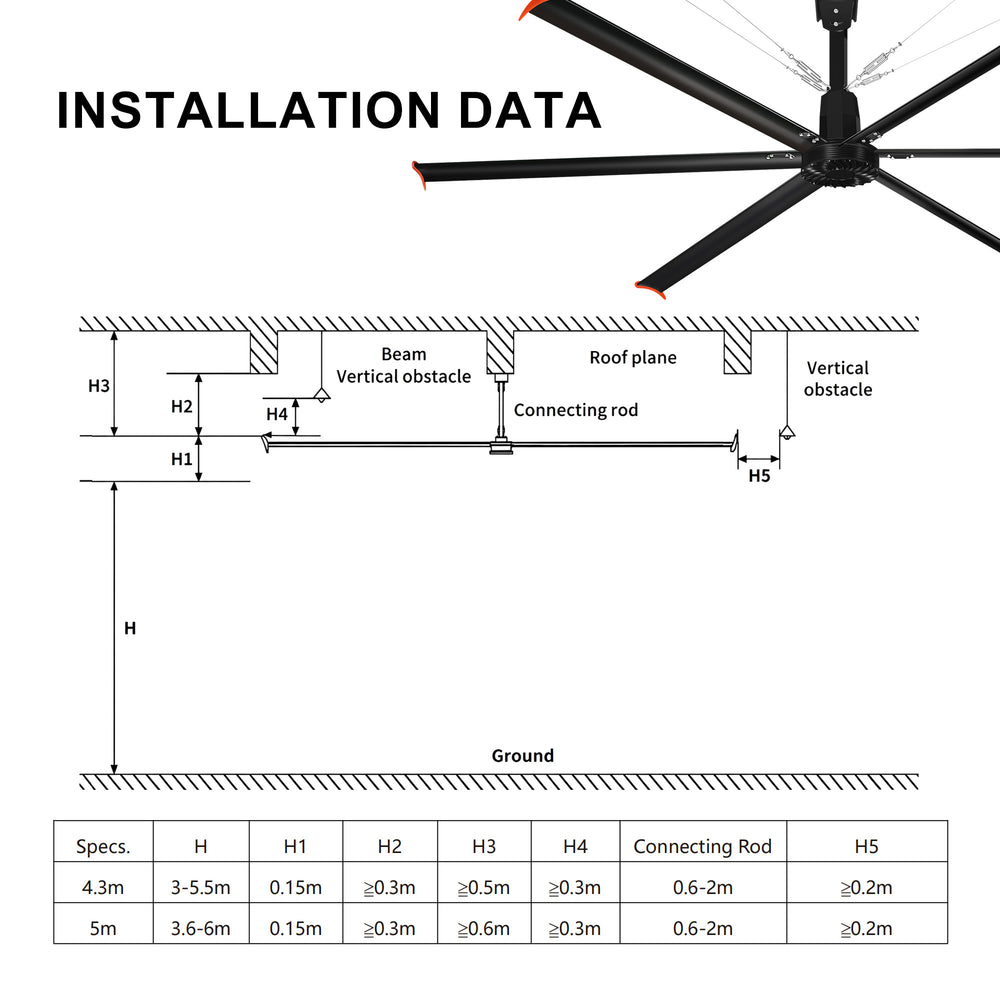

The manual also specifies H1–H5 clearance dimensions and illustrates concrete, I-shaped steel and square-steel mounting methods. Use the manual drawing to interpret those labels; do not substitute residential ceiling-fan clearance rules.
INSTALLATION VIDEO
Watch the 14–16 FT HVLS Fan Installation Video
The product gallery includes a “Before Installation” video. Review it before starting work, then use it together with the official 29110/29111 manual. The video is a visual aid and does not replace structural, electrical or safety instructions.
COMPARE BY SIZE & PROJECT NEED
Compare 12 FT, 14–16 FT & 20–24 FT HVLS Fans
The best HVLS fan is not automatically the largest model. Move down to 12 ft when horizontal clearance is limited, or up to the 20–24 ft platform when a very large open floor and mounting structure can accommodate the additional diameter.
OFFICIAL PRODUCT SUPPORT
29110 / 29111 HVLS Fan User Manual
Review the official manual for technical parameters, H/H1–H5 installation dimensions, concrete and steel-structure mounting, safety-rope installation, HD02 controller connection, operation and troubleshooting.
View 29110 / 29111 User ManualPRODUCT QUESTIONS
14–16 FT HVLS Industrial Ceiling Fan FAQs
General & Warranty
x| Assembly Required | Yes | Fan Diameter (Inches) | 14FT(168 Inch)/16FT(192 Inch) |
|---|---|---|---|
| Fan Type | Standard, Windmill | Fan Mounting Type | Angled, Downrod |
| Style | Industrial, Modern & Contemporary | Housing Color | Matte Black |
| Body Material | Metal | Number of Fan Speeds | 14FT: 15 Speeds; 16FT: 13 Speeds |

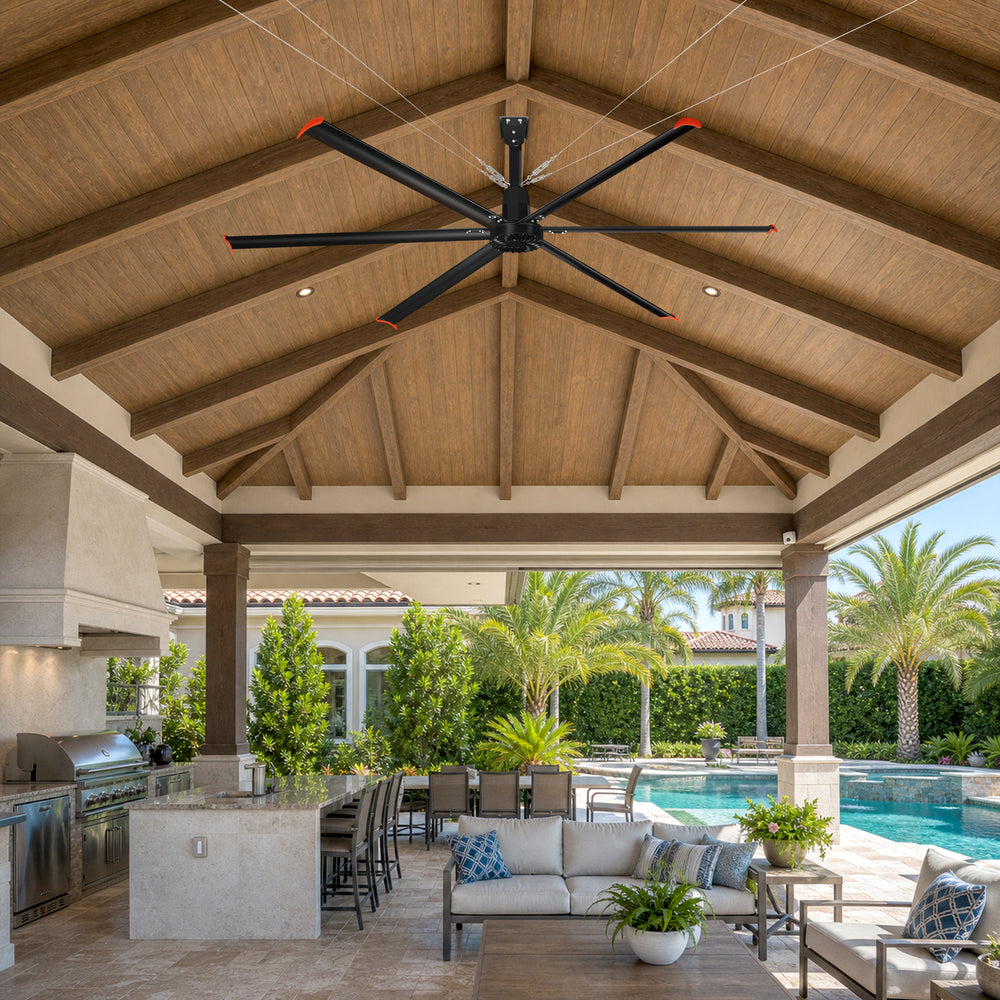

| Slope Ceiling Compatibility (in degrees) | 20° | Use Location | Indoor, Covered Outdoor |
| Compatible Room Size | Great Room(more than 350 sq. ft） | Room | Warehouse, Factory, Gym, Office |
| Overall Width*Depth*Height (Inches) | 168*168*50.7 in; 192*192*50.7 in | Net Weight (lbs) | 14FT: 197.3 lbs; 16FT: 203.9 lbs |
| Product Warranty | Yes | Warranty Length | 1 Year |
Blade & Lighting & Motor

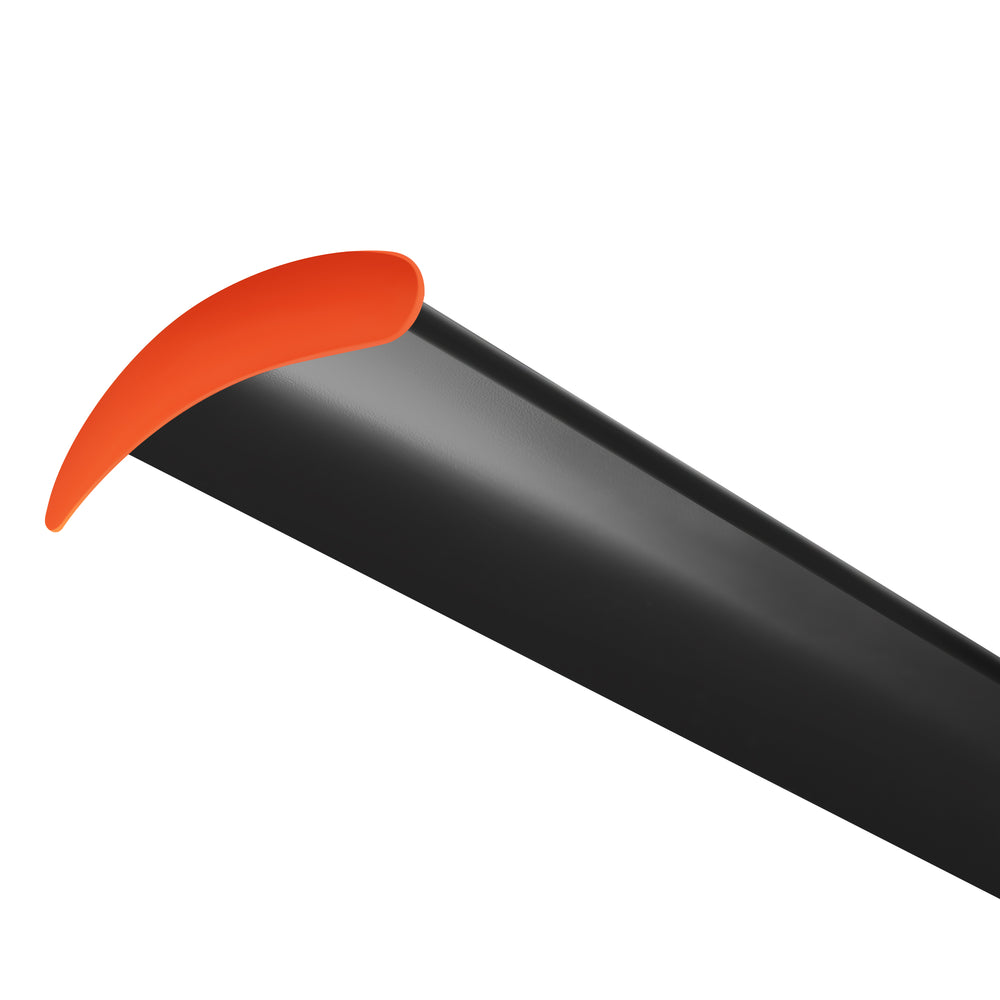

x| Number of Blades | 6 | Blade Material | Aluminum |
|---|---|---|---|
| Blade Pitch (in degrees) | 23° | Blade Color | Black |
| Blade Size (Inches) | 14FT: 79.1*7.09 in; 16FT: 92.9*7.09 in | Light / No Light | No Light |
| Motor Type | DC Motor | Motor Power (Watts) | 0.75KW |

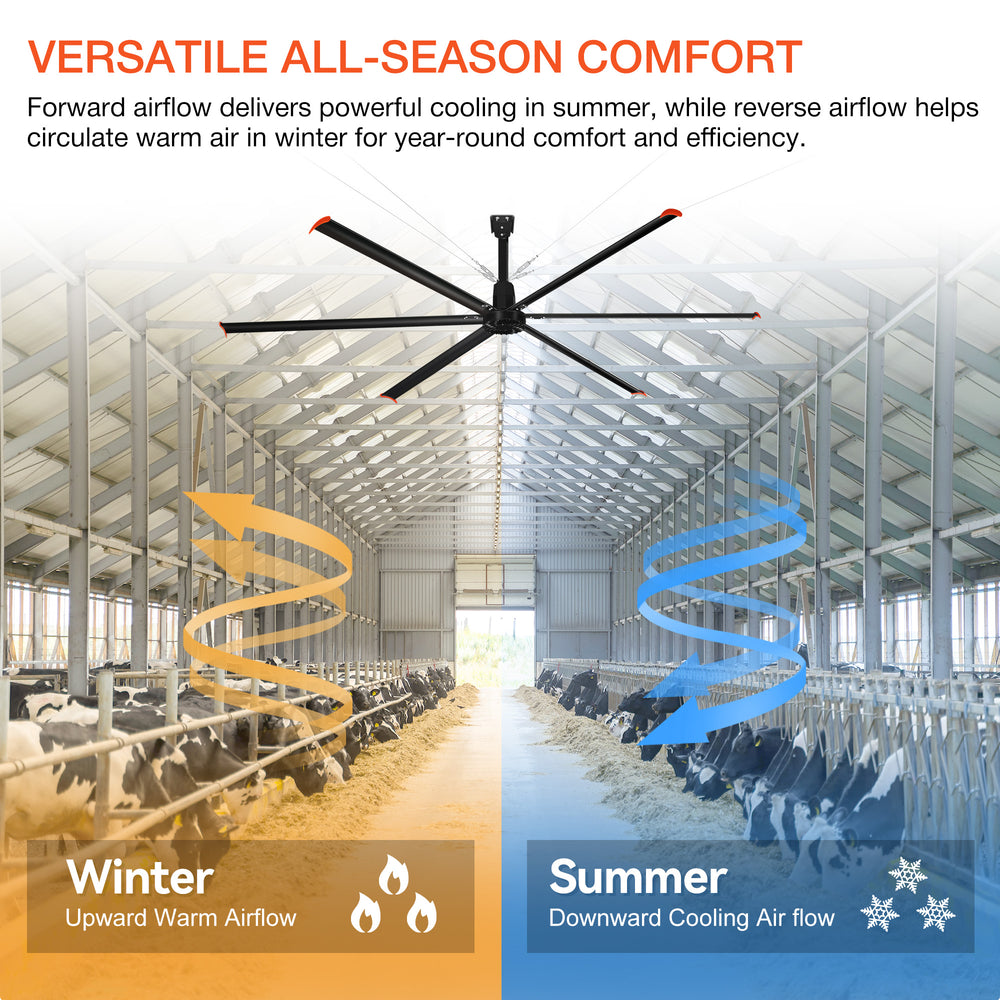

| Reversible Motor | Yes | Maximum RPM | 14FT: 20-90; 16FT: 20-80 |
| Maximum Airflow (CFM) | 14FT: 247000 CFM; 16FT: 353000 CFM |
