20-Inch Outdoor Caged Ceiling Fan With Light
Nelis brings a compact fan, a full perimeter light, and a sculptural black cage into one fixture. The 20-inch format works well where a full-size exposed-blade fan would feel oversized, while the remote keeps airflow, white-light brightness, RGB lighting, reverse direction, and the timer within easy reach.

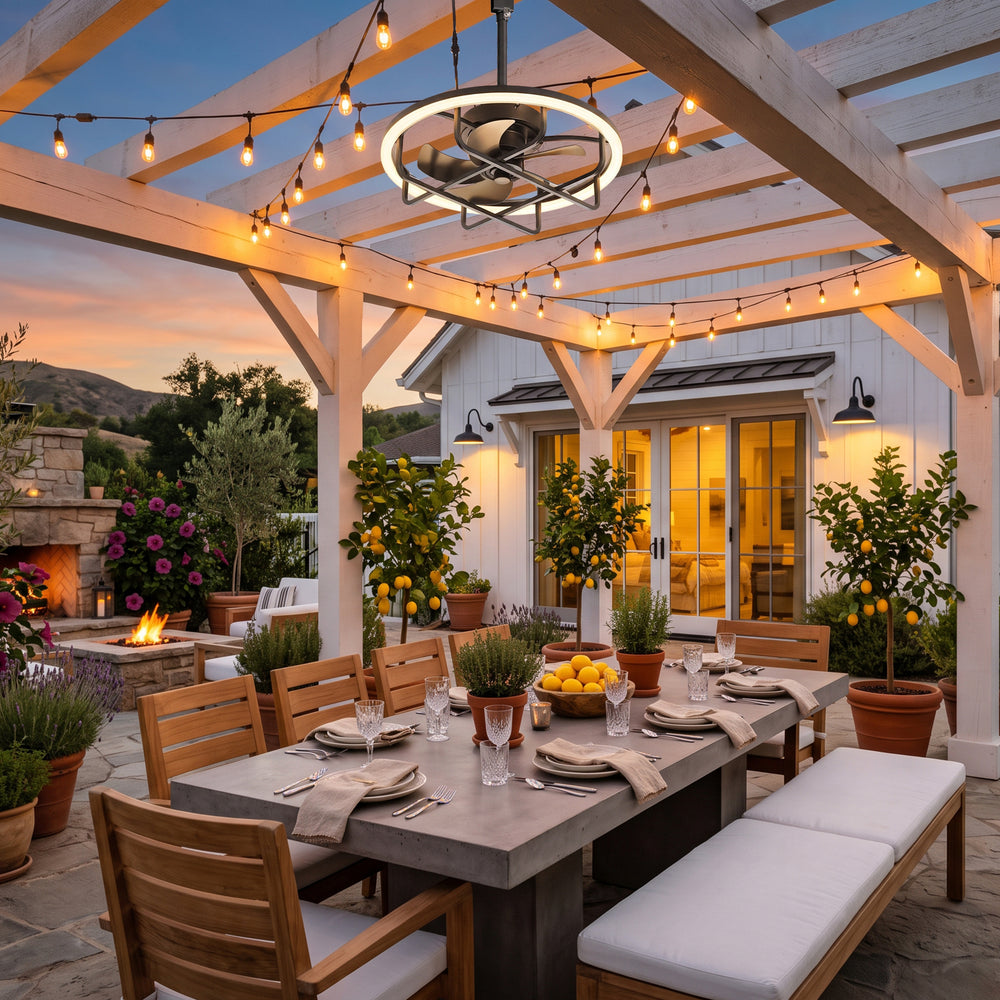

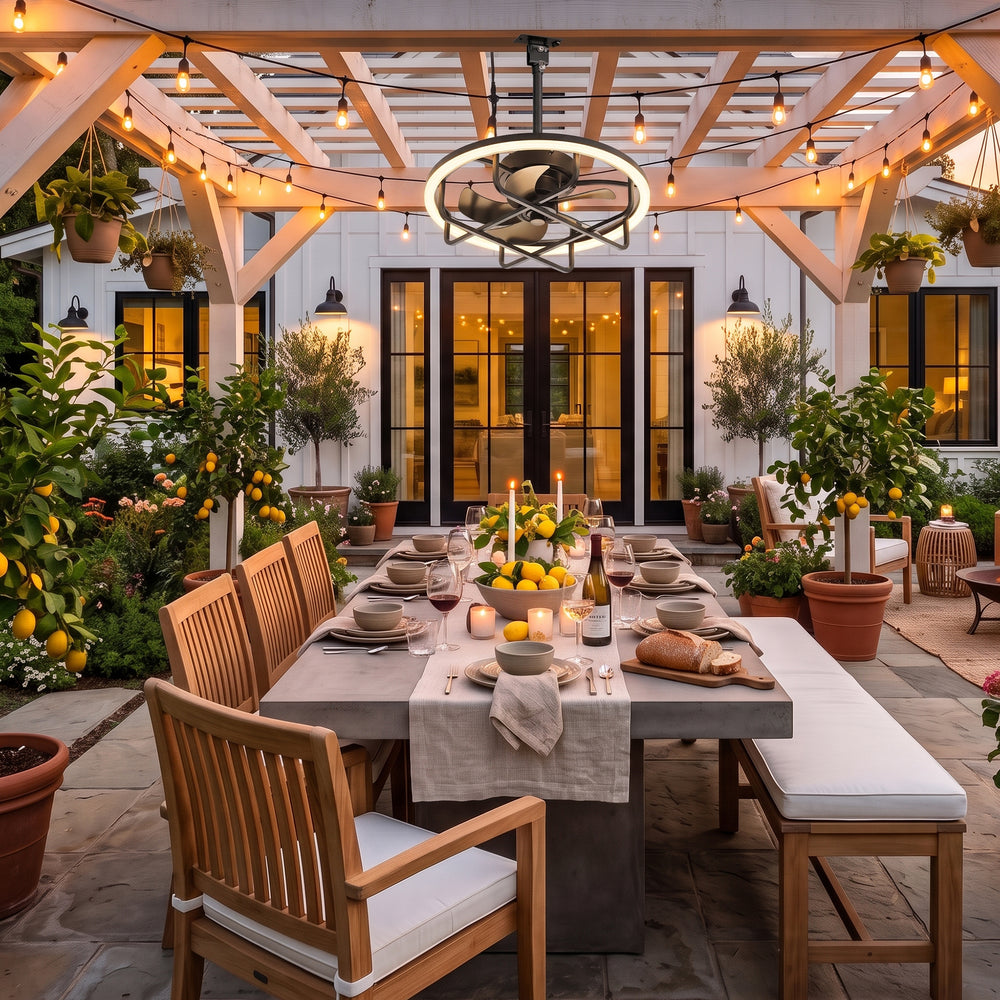

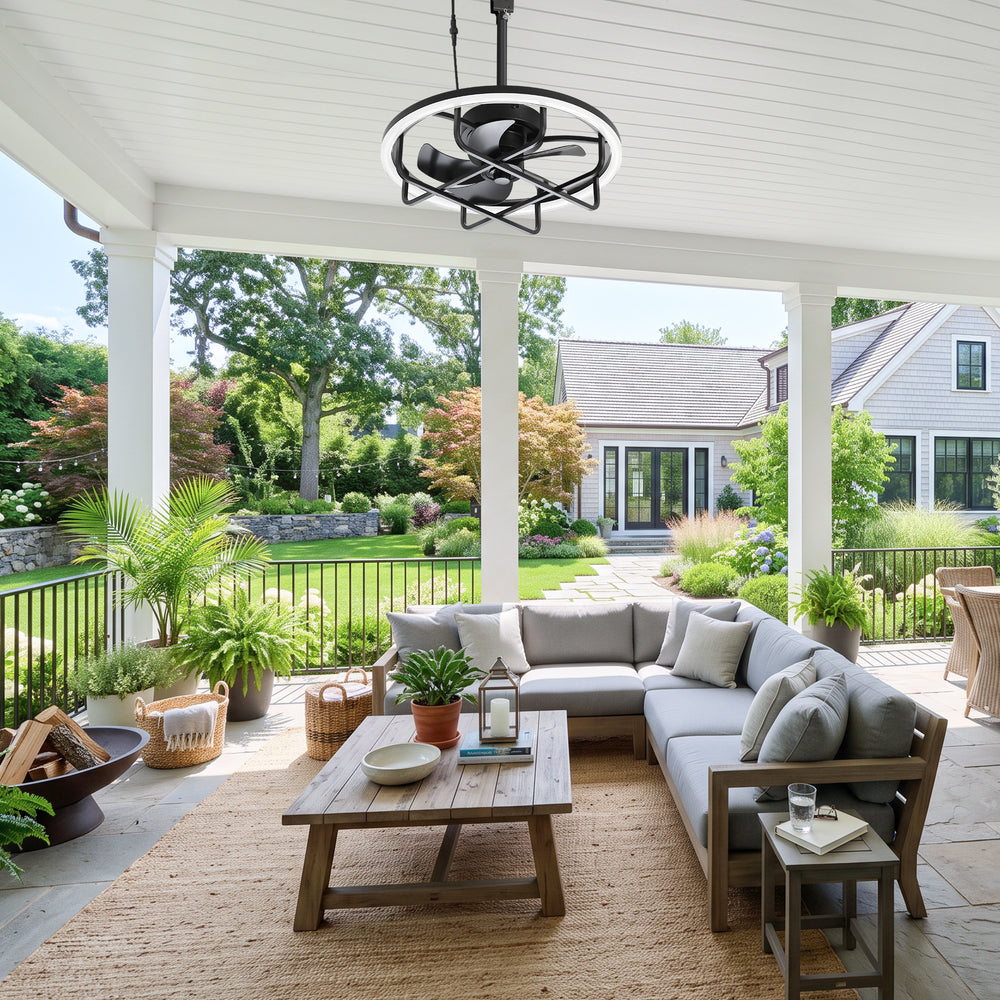

Shown in a covered outdoor dining setting. For locations with direct rain or water exposure, confirm the required location rating before installation.
Quick Facts Before You Choose Nelis
Where This Small Outdoor Ceiling Fan With Lights Fits Best

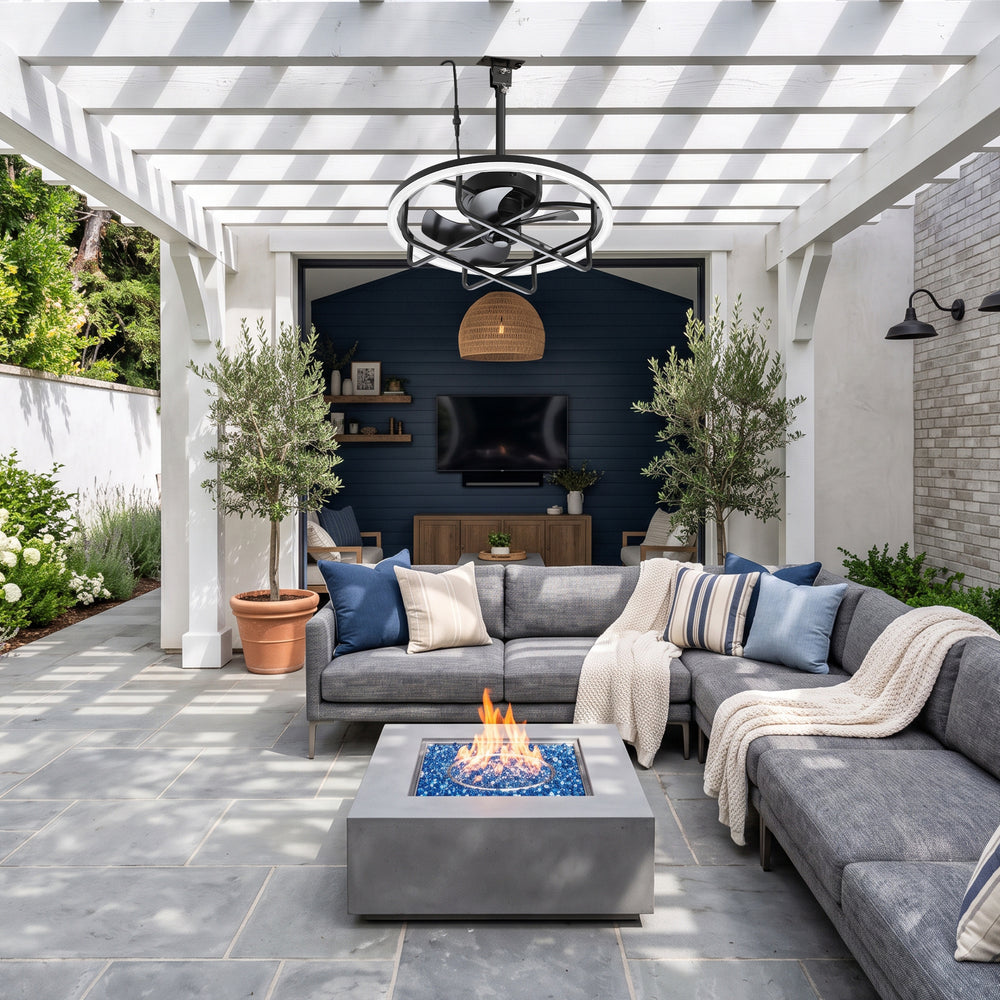

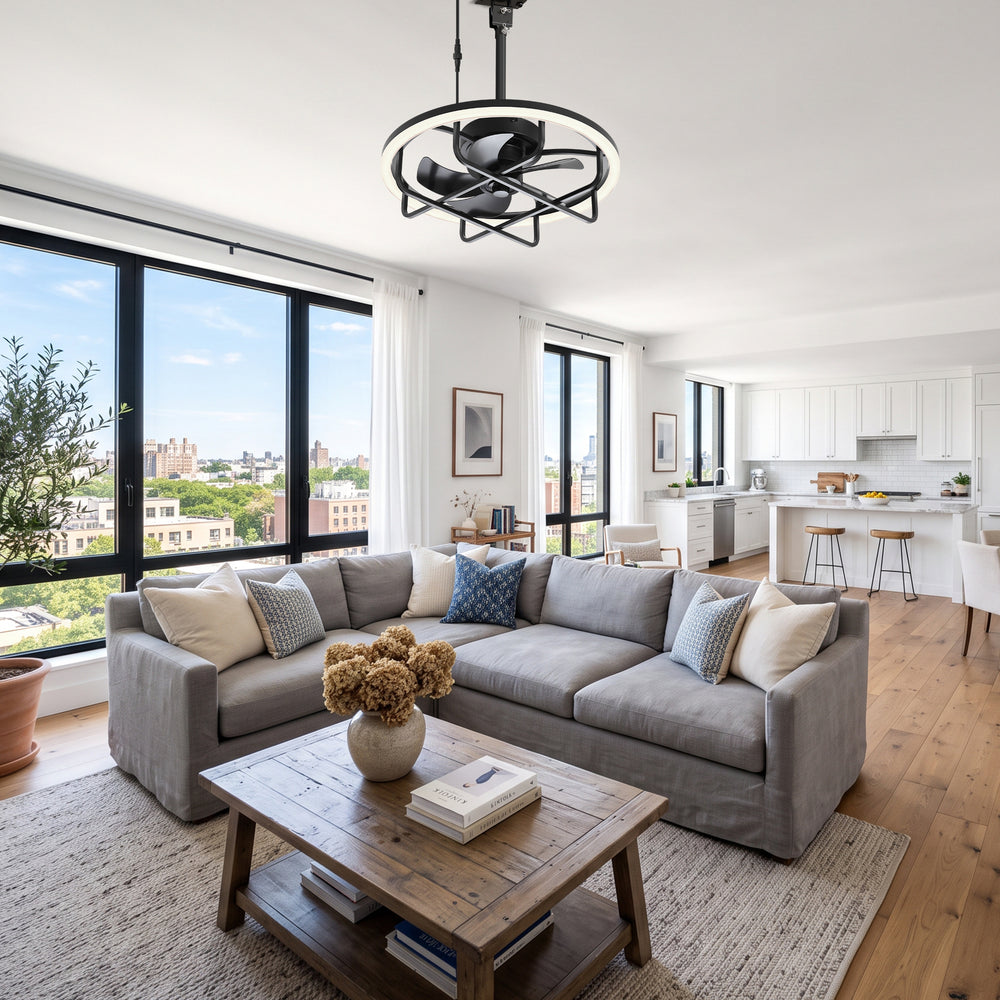

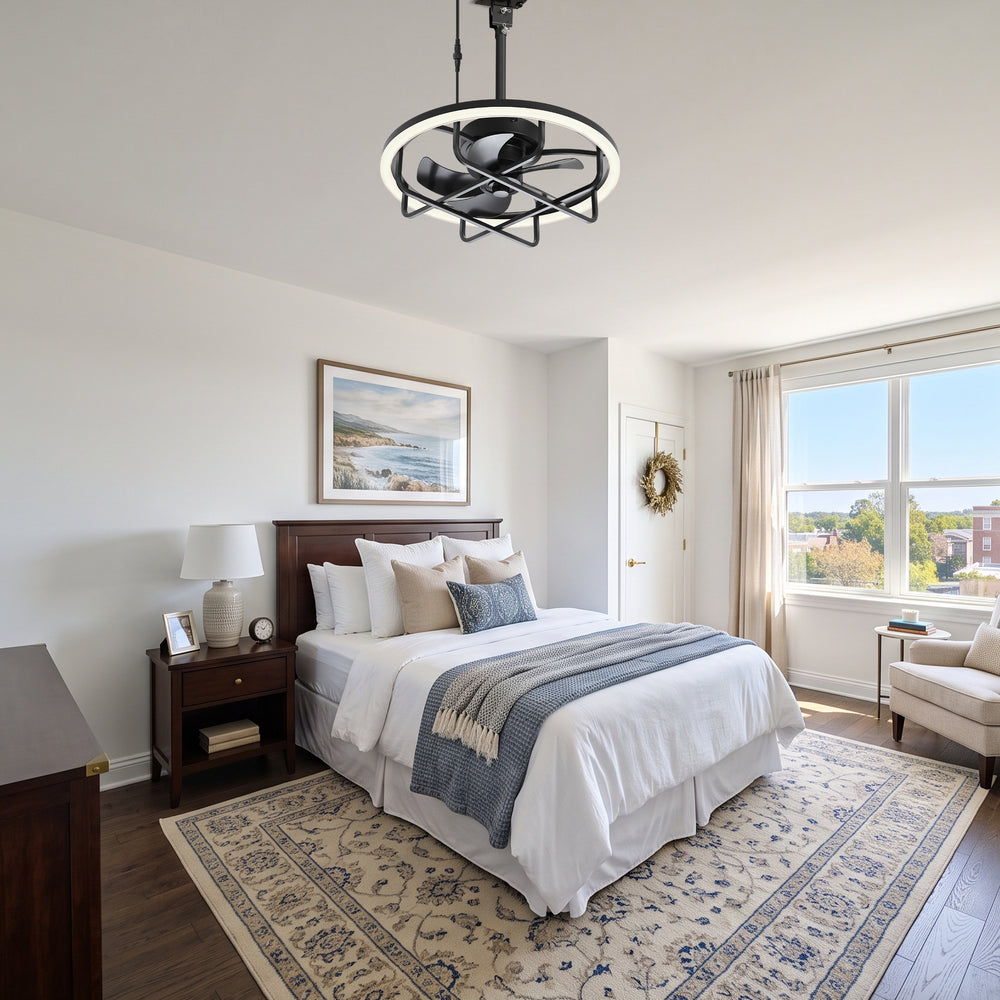

Nelis is sized for spaces where you want localized airflow and a strong decorative fixture without the span of a conventional large fan. The current product listing identifies indoor and outdoor use, including bedrooms, dining areas, covered patios and porches.
Black Caged Ceiling Fan With Light

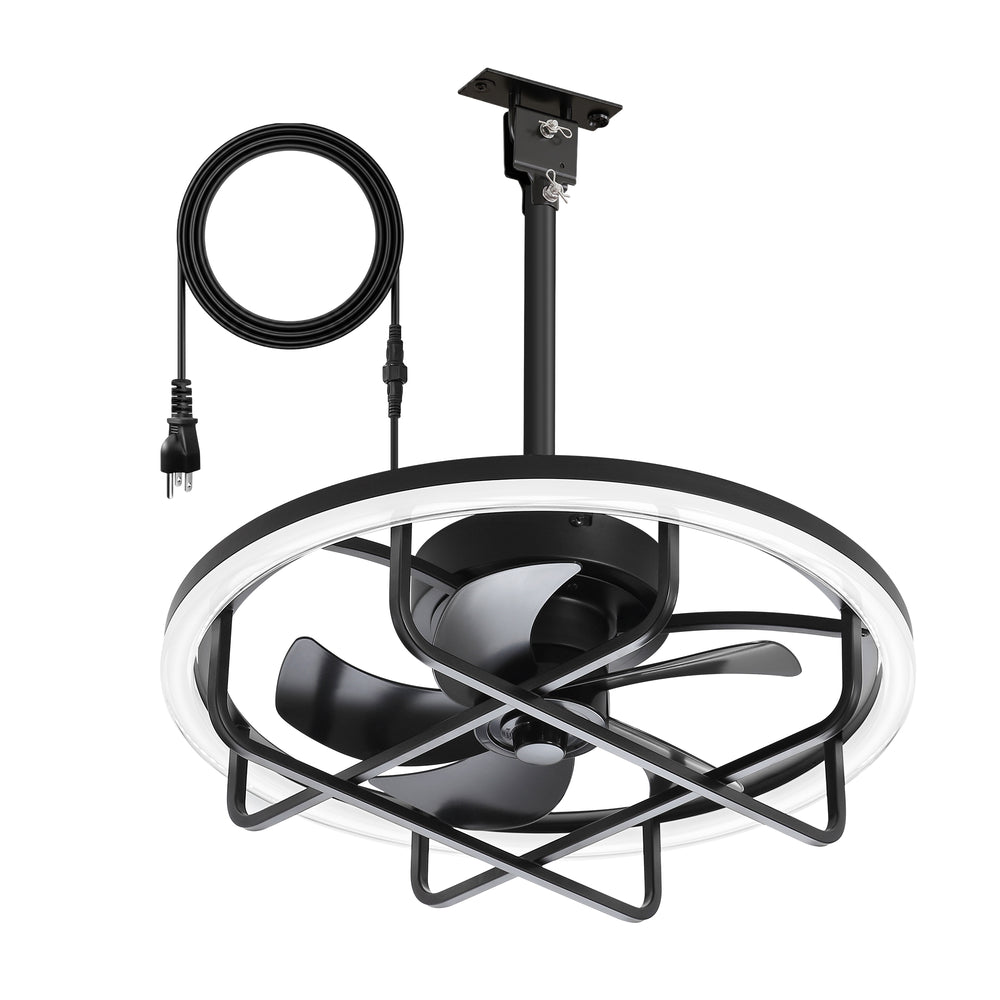

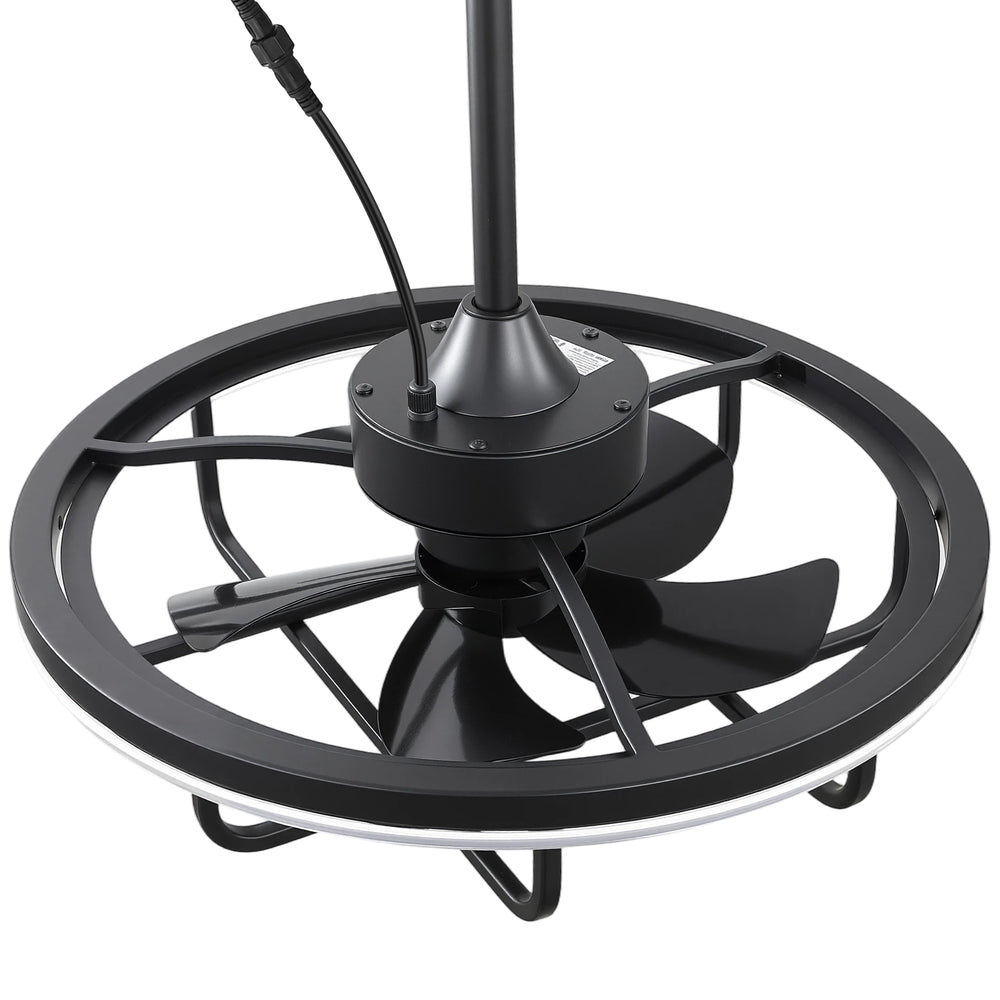

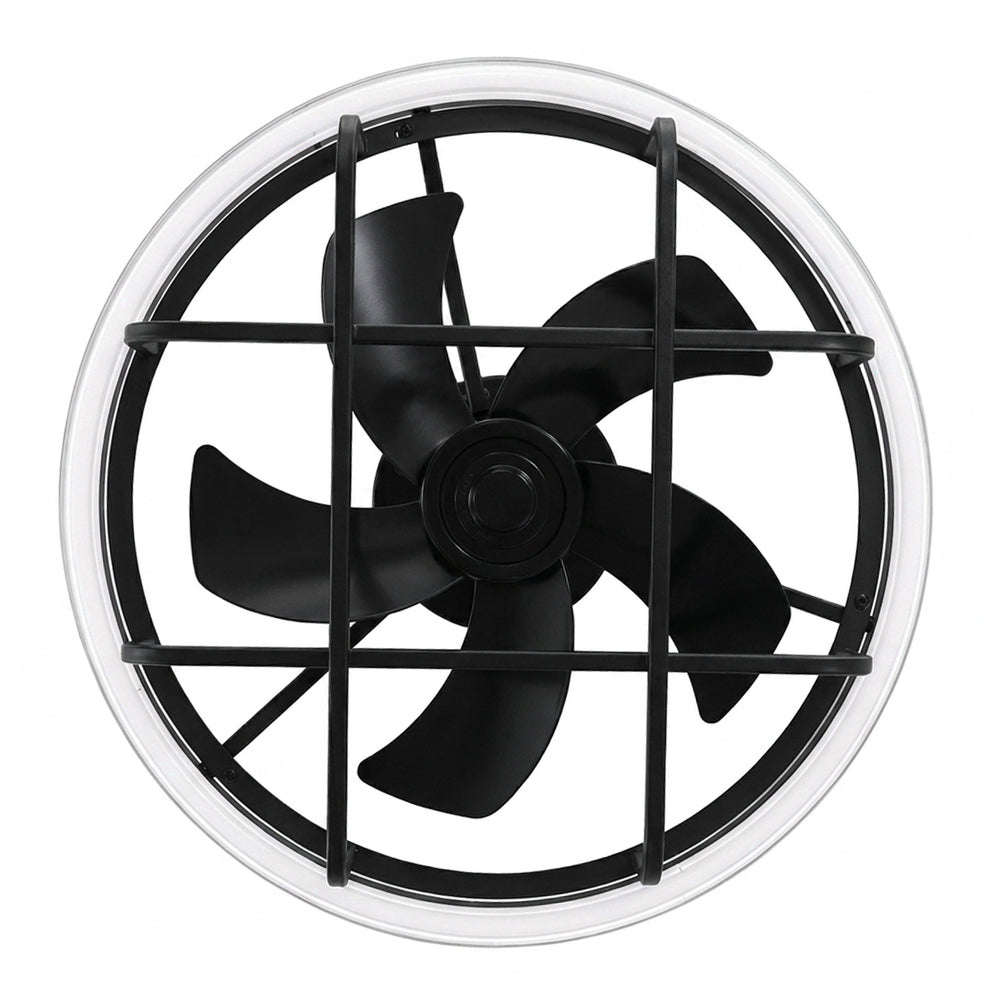

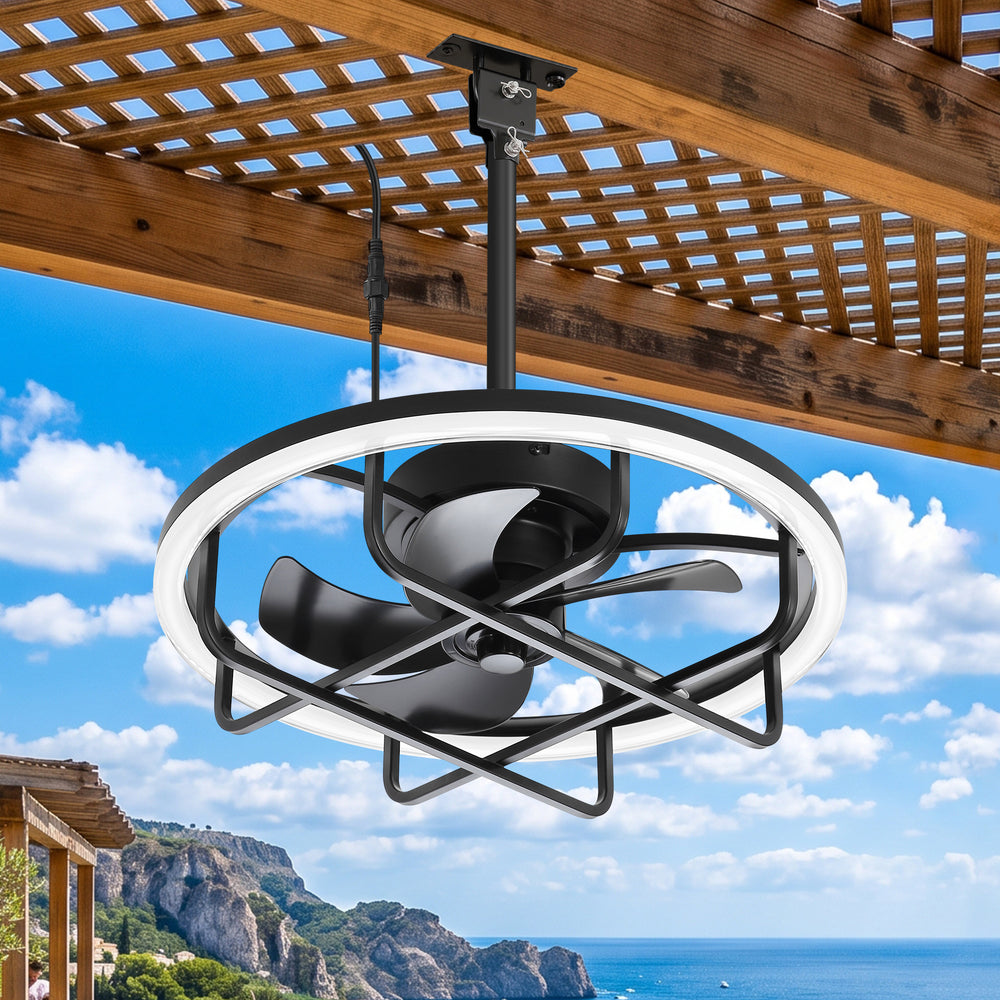

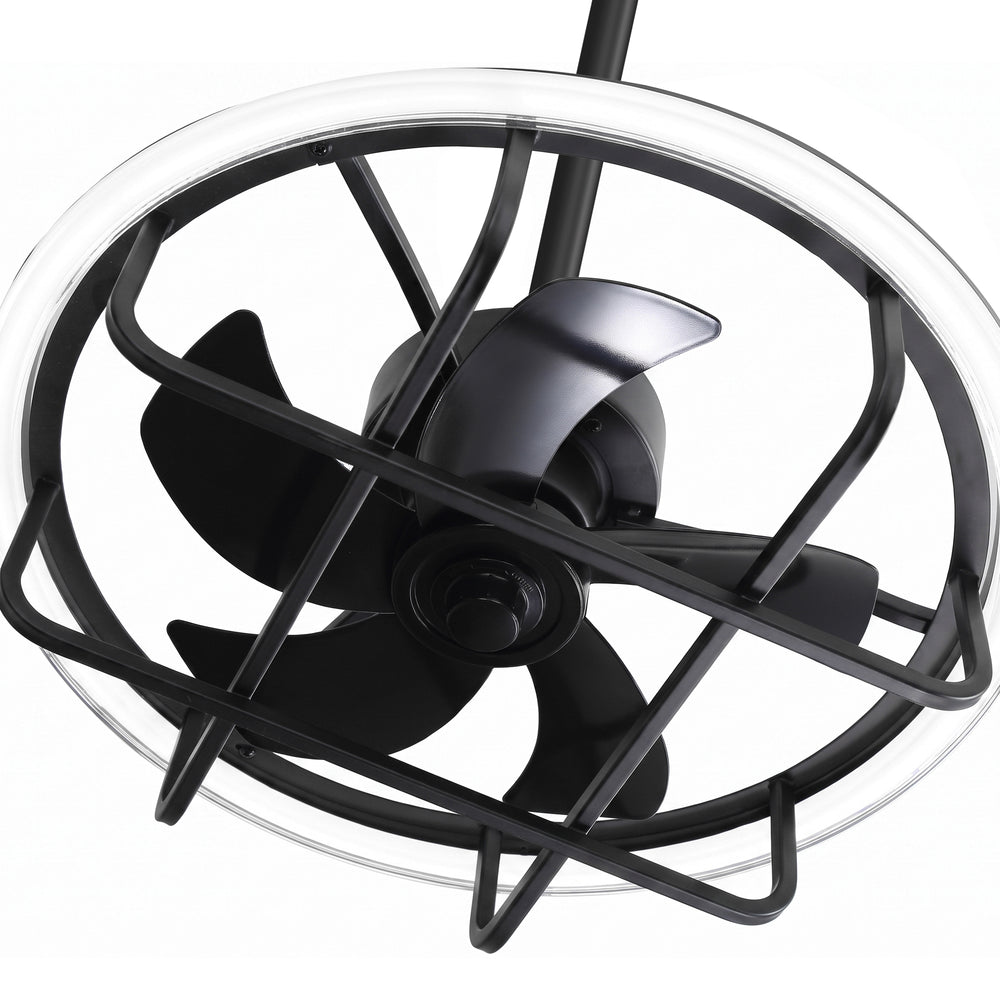

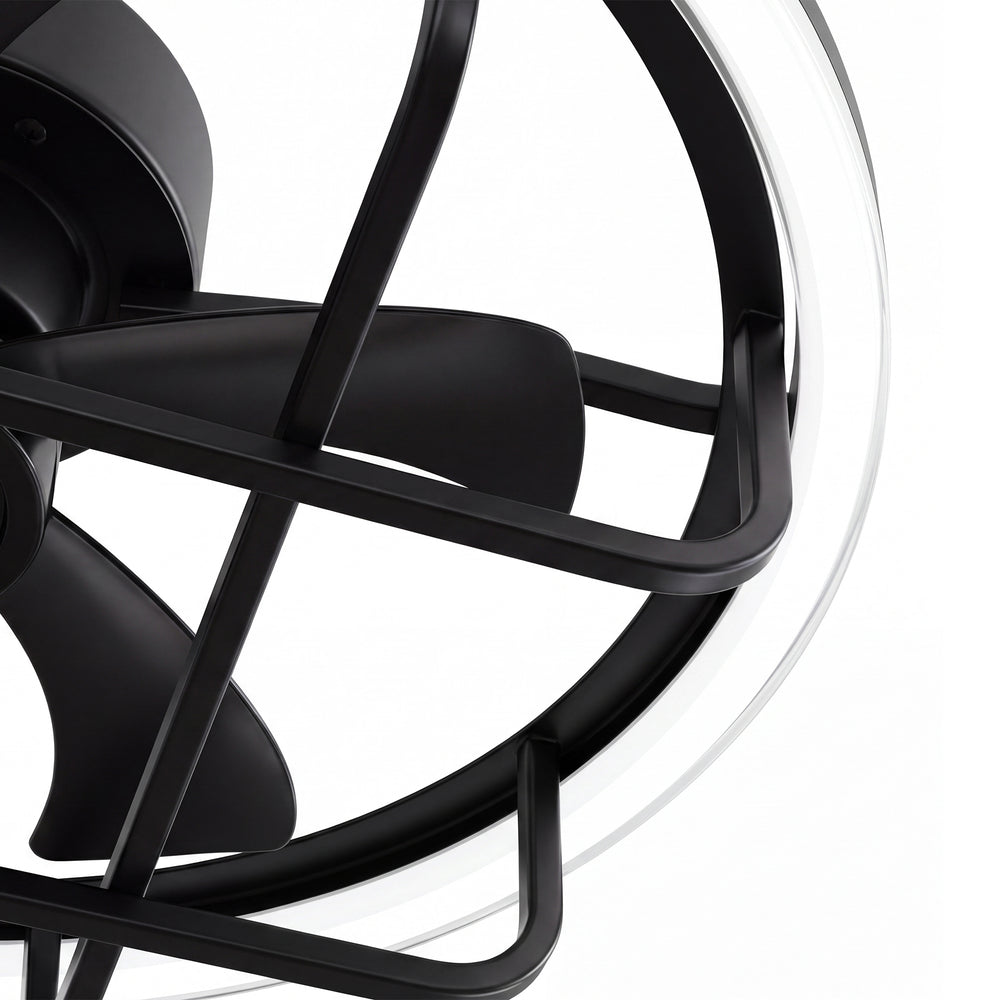

The matte-black metal frame forms an open geometric cage around the five internal blades. A continuous acrylic light ring sits around the outer edge, so the fan reads as a finished light fixture even when the blades are not moving.
This is a downrod-mounted design rather than a flush-mount fan. Choose between the included 6-inch and 10-inch downrods based on the ceiling and the clearance you need.
Ceiling Fan With RGB Light and Remote

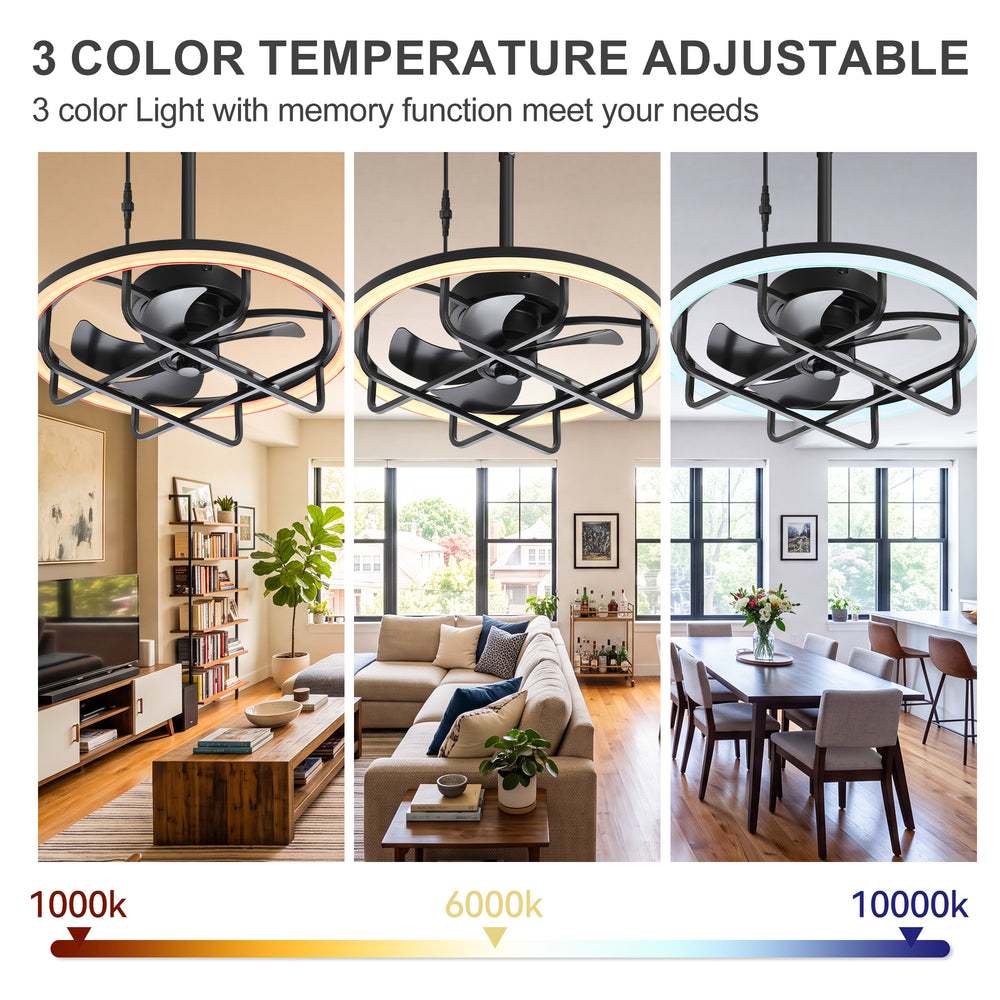

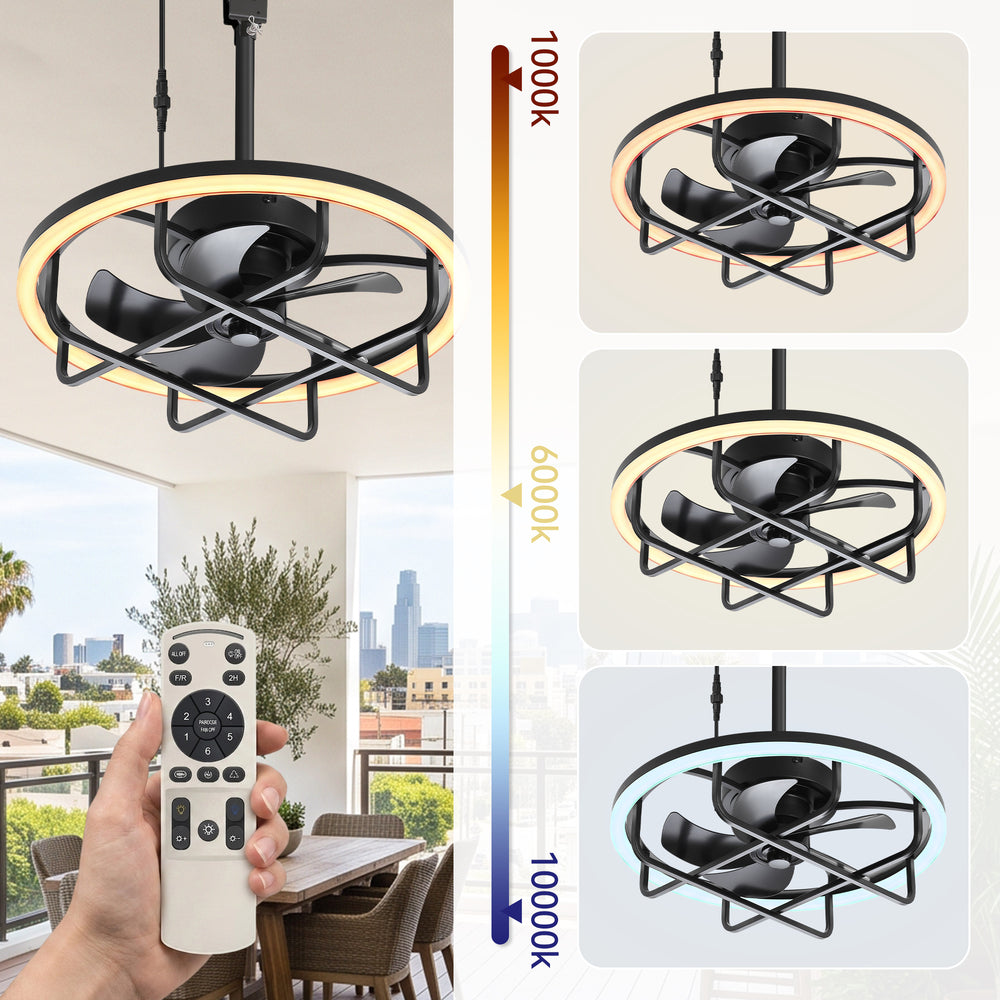

The integrated light is designed for more than a single fixed setting. The remote provides warm, neutral and cool-white selections, brightness adjustment, RGB mode selection, RGB on/off and RGB color selection. The current product listing also specifies a light-memory function for the previously selected light setting.
Outdoor Ceiling Fan With Light and Remote Control

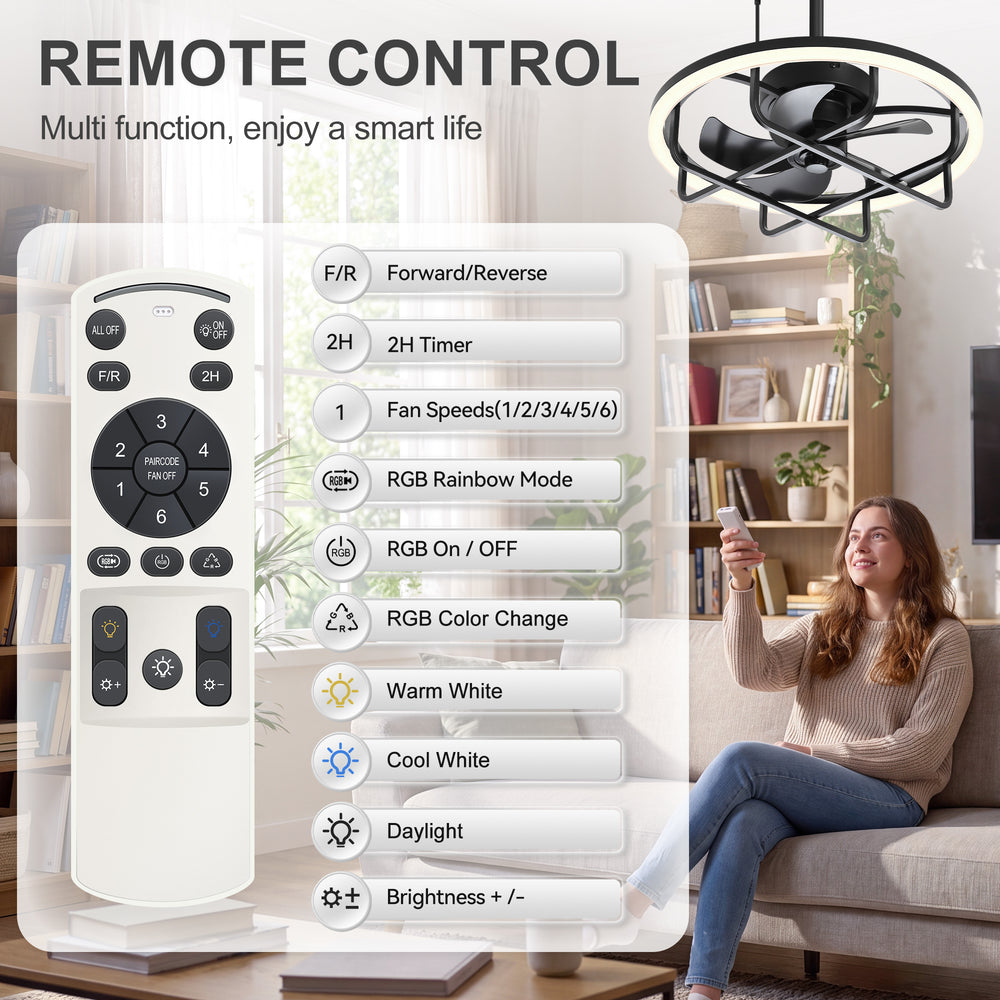

The remote handles the main day-to-day functions from one controller: six fan speeds, fan off, forward/reverse, light on/off, white-light selection, brightness, RGB controls and a 2-hour timer.
Pairing is completed after power is restored by pressing the Pair Code button within the timing described in the manual. The remote uses two AAA batteries, which the manual notes are not included.
Is Nelis Right for Your Space?
Good Match
- You want a compact 20-inch caged fan instead of a wide exposed-blade design.
- You need remote-controlled fan speed, reverse and lighting.
- You want white-light adjustment plus RGB ambient lighting.
- Your installation can use a 6-inch or 10-inch downrod.
- You are planning an indoor room or a documented covered outdoor application.
Choose Another Fan If
- You specifically need flush-mount or hugger installation.
- You need a published wet or damp rating for direct weather exposure.
- You need a fan substantially larger than 20 inches for broad room-wide airflow.
- You need smart-app or voice-assistant control.
- Your ceiling cannot maintain the clearance required by the manual.
Before You Order: Ceiling Height and Installation Planning

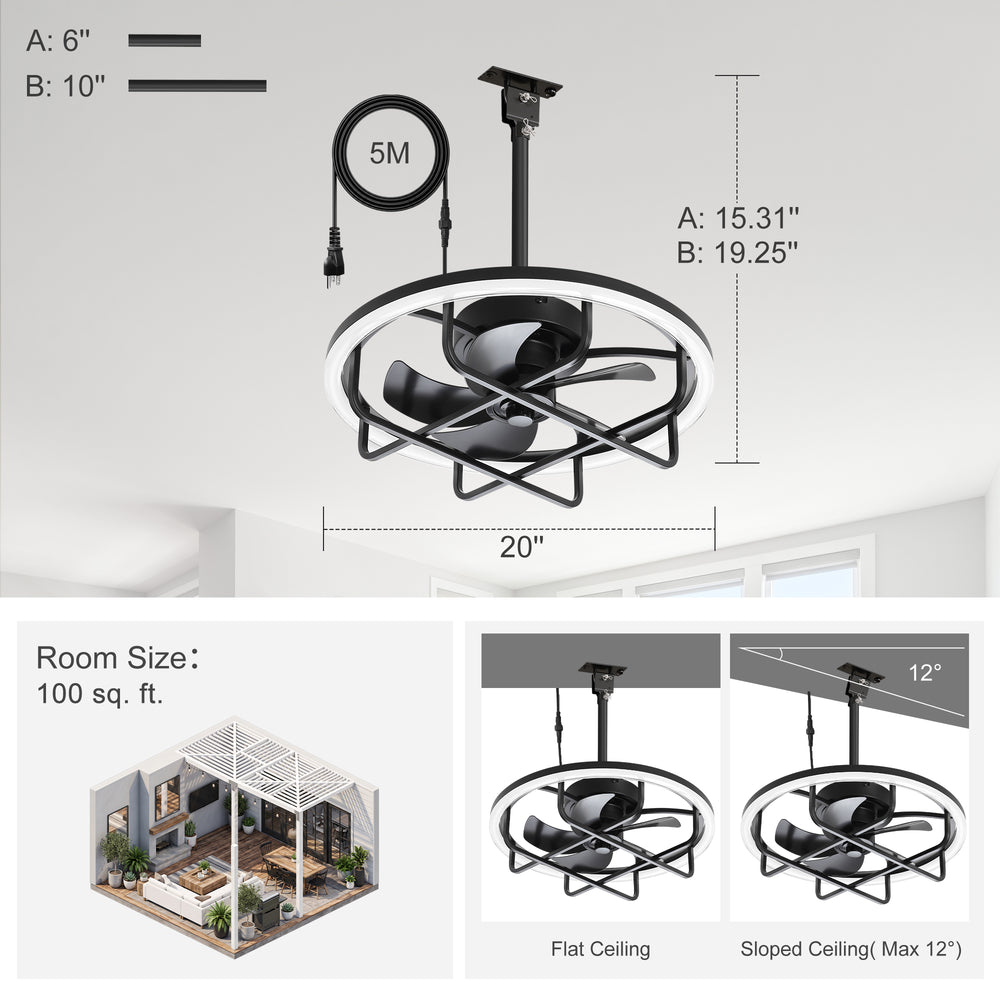

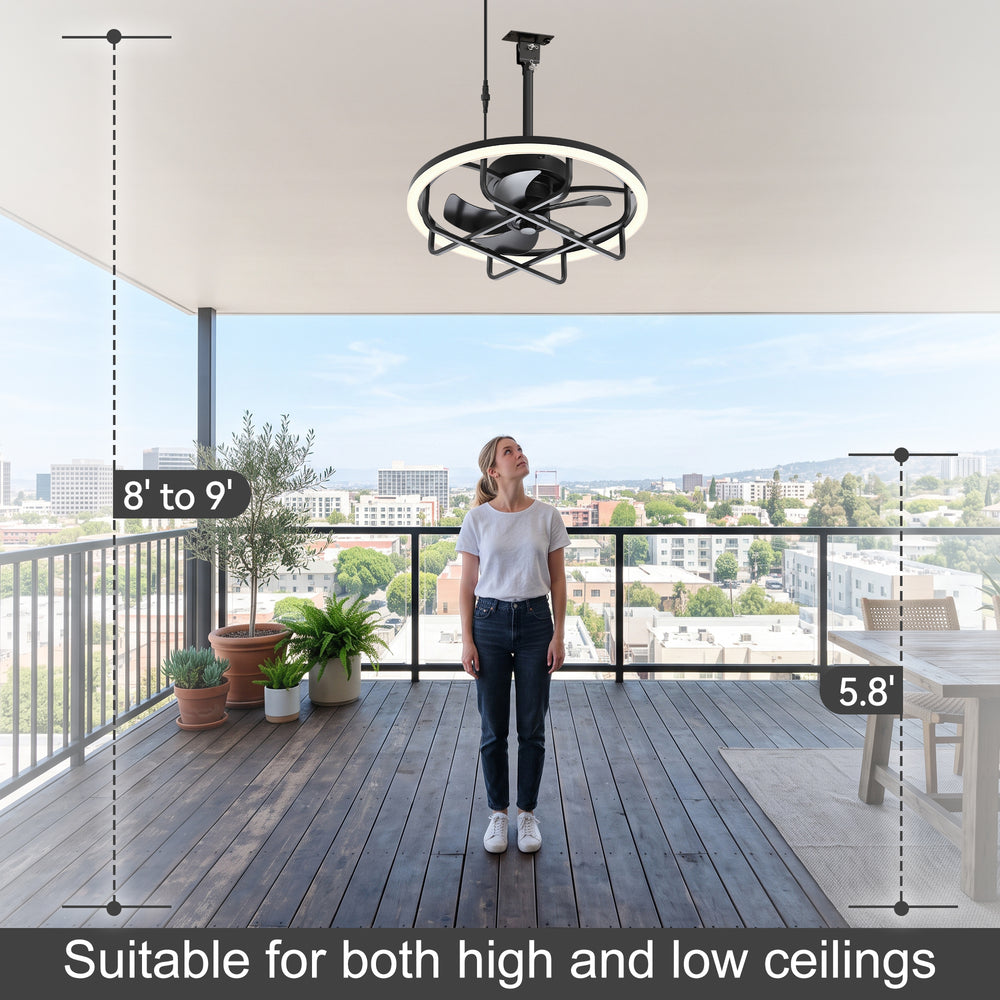

The manual shows a 20-inch diameter, a 6-inch and 10-inch downrod, and approximate installed heights of 15.31 inches and 19.25 inches. The current product specifications also list sloped-ceiling compatibility up to about 12 degrees.
General Ceiling Fan Installation Video
A model-specific Nelis 40022-BK installation video is not currently available on the product page. The video below is provided only as a general ceiling-fan installation reference and shows a different Breezary model. Use the 40022 manual for the actual parts, downrod assembly, wiring, pairing and safety requirements for Nelis.
Compare Breezary Ceiling Fans by What You Need
If Nelis is close but not quite right for your ceiling, room or installation, use these collections to narrow the next option.
Nelis 40022 Product Manual
Review the manual before installation for the supplied parts, downrod assembly, electrical warnings, remote pairing and clearance requirements.
Open 40022 User ManualNelis 20-Inch Ceiling Fan FAQs
Is the Nelis 20-inch ceiling fan suitable for outdoor use?

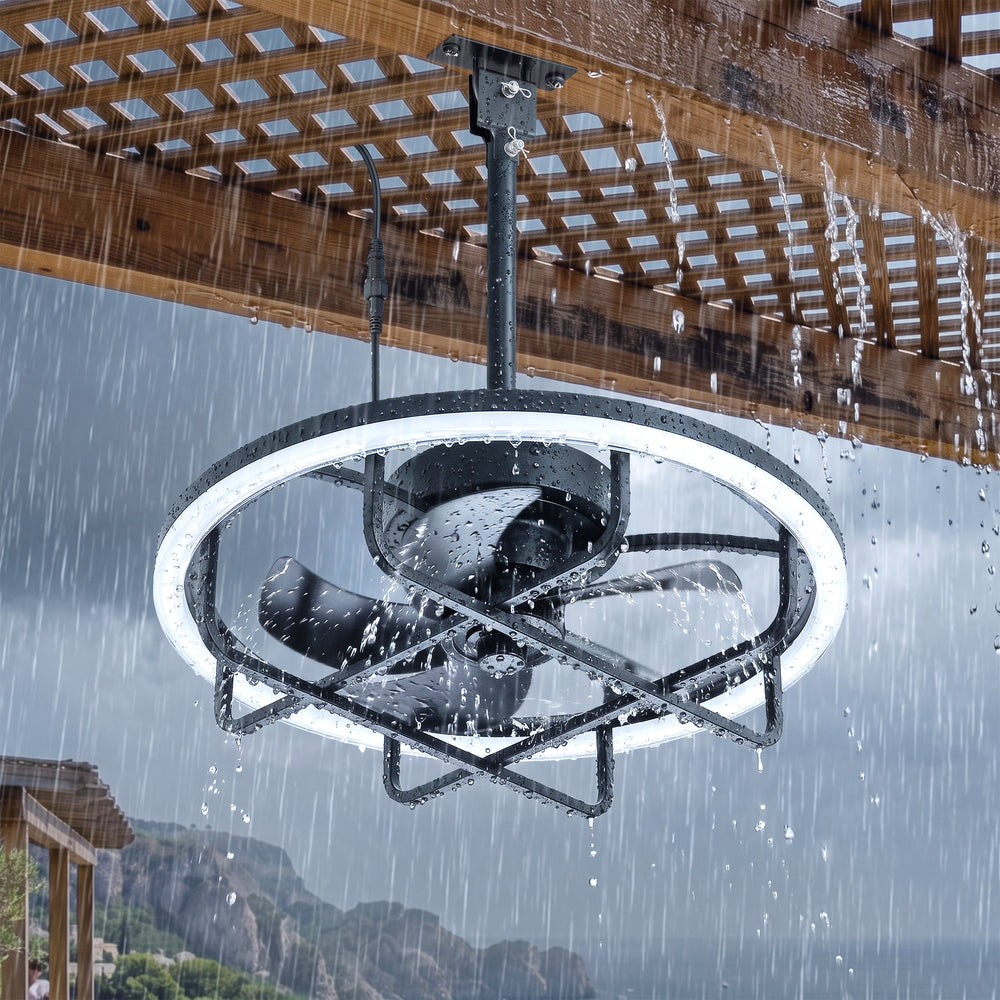

The current Breezary listing identifies model 40022-BK for indoor and outdoor use and shows covered patio and porch applications. The supplied manual does not publish an IP, damp, or wet rating, so confirm the required location rating before installing it where direct rain or water exposure is expected.
What are the dimensions of the Nelis ceiling fan?
The fan diameter is 20 inches. The manual shows an installed height of approximately 15.31 inches with the 6-inch downrod and 19.25 inches with the 10-inch downrod.
Which downrods are included?
Nelis includes one 6-inch downrod and one 10-inch downrod so you can choose the documented installation height that better fits the ceiling.
Does the Nelis light support dimming and color adjustment?
Yes. The remote provides brightness adjustment plus warm, neutral, and cool-white light selections. It also provides separate RGB mode, RGB on/off, and RGB color-selection controls.
Does this ceiling fan have RGB lighting?
Yes. The integrated light system includes RGB ambient-light controls on the remote, including RGB mode selection, RGB on/off, and RGB color selection.
How many fan speeds does the Nelis have?
The remote provides six fan-speed settings. It also includes forward and reverse control so the fan direction can be changed from the remote.
What timer setting is documented in the manual?
The supplied 40022 manual documents a 2-hour timer on the remote.
Can the Nelis be installed on a sloped ceiling?
The current product specifications list angled or downrod mounting and slope-ceiling compatibility up to approximately 12 degrees.
What should I check before installation?
Use a fan-rated outlet box and support structure, keep at least 7 feet of clearance from the trailing edge of the blades to the floor, and follow the supplied manual. The manual states that electrical installation should be performed by a qualified licensed electrician.
General & Warranty
x| Assembly Required | Yes | Fan Diameter (Inches) | 20 in |
|---|---|---|---|
| Fan Type | Chandelier, Cage | Fan Mounting Type | Angled, Downrod |
| Style | Modern & Contemporary, Traditional , Farmhouse | Housing Color | Matte Black |
| Body Material | Metal | Shade Material | Acrylic |
| Number of Fan Speeds | 6 | Slope Ceiling Compatibility (in degrees) | 10-12° |
| Control Type | Remote Control | Use Location | Indoor, Outdoor |
| Compatible Room Size | Small Room(Up to 75 sq. ft）, Medium Room(up to 175 sq. f） | Room | Bedroom, Dining Room, Hallway, Entryway, Patio, Porch |
| Overall Width*Depth*Height (Inches) | 20*20*19.25 in | Net Weight (lbs) | 12.43 lbs |
| Product Warranty | Yes | Warranty Length | 1 Year |
Blade & Lighting & Motor
x| Number of Blades | 5 | Blade Material | ABS |
|---|---|---|---|
| Reversible Blades | No | Blade Color | Black |
| Light / No Light | With Light | Light Kit Type | LED Integrated |
| Number of Lights | 1 | Color Temperature | Soft White 3000K - 4000K, Bright White 4000K - 5000K, Daylight 5000K - 6500K |
| Integrated LED Wattage | 30W+10W(RGB) | Dimmable | Yes |
| Light Direction | Multi-directional | Light Memory Function | Yes |

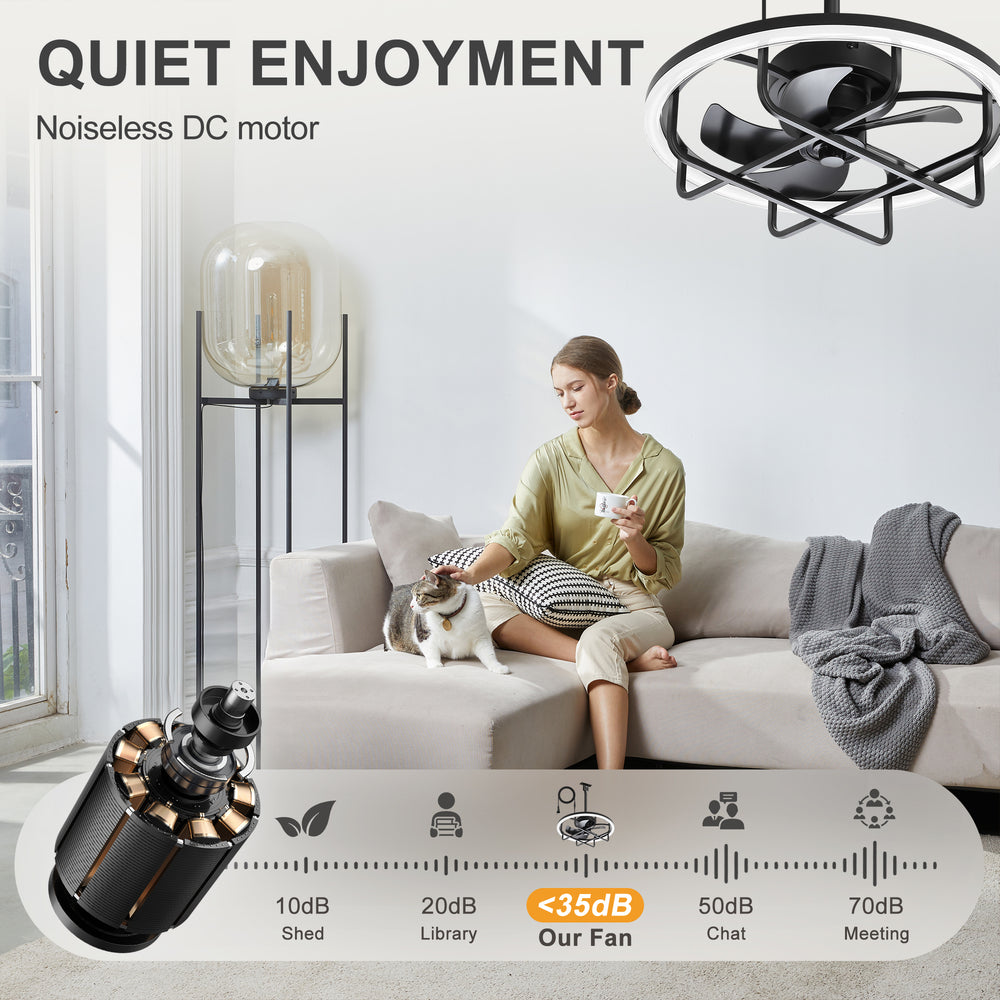

| Motor Type | DC Motor | Motor Power (Watts) | 35 W |
| Reversible Motor | Yes | Maximum RPM | 950 |
