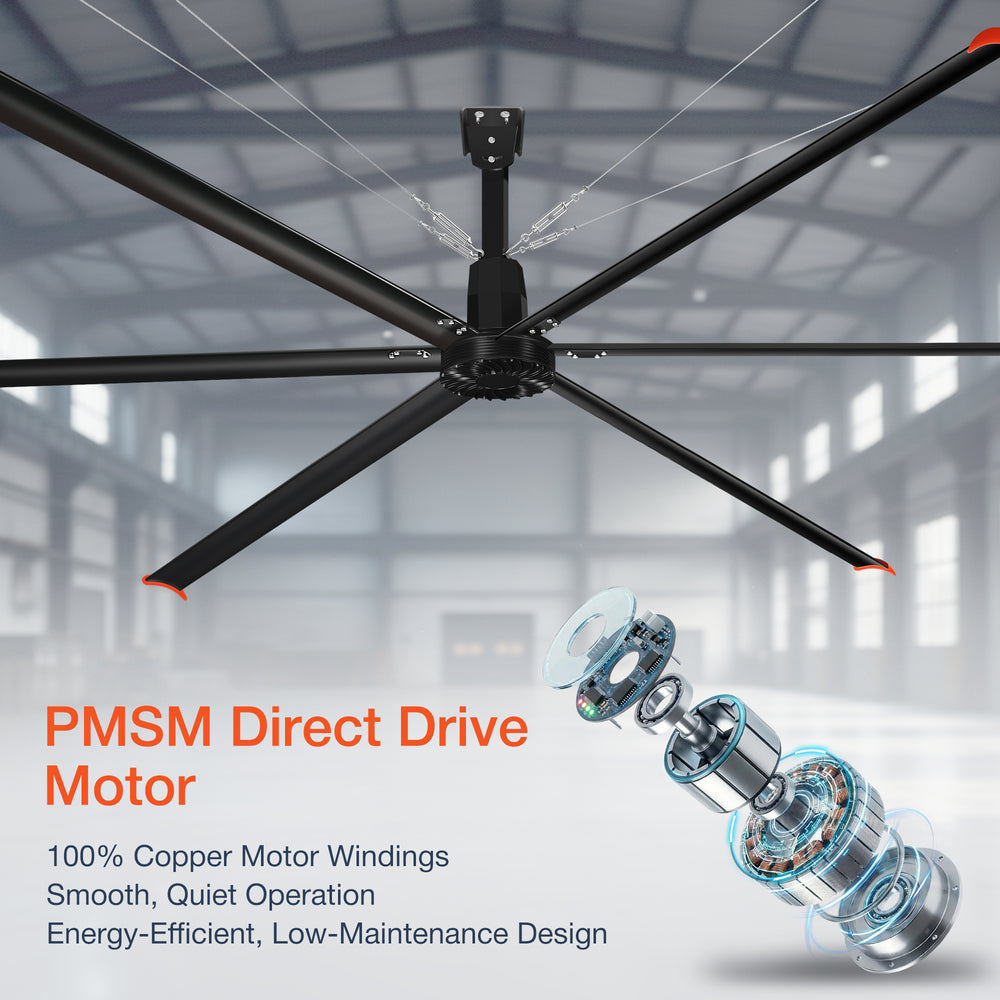

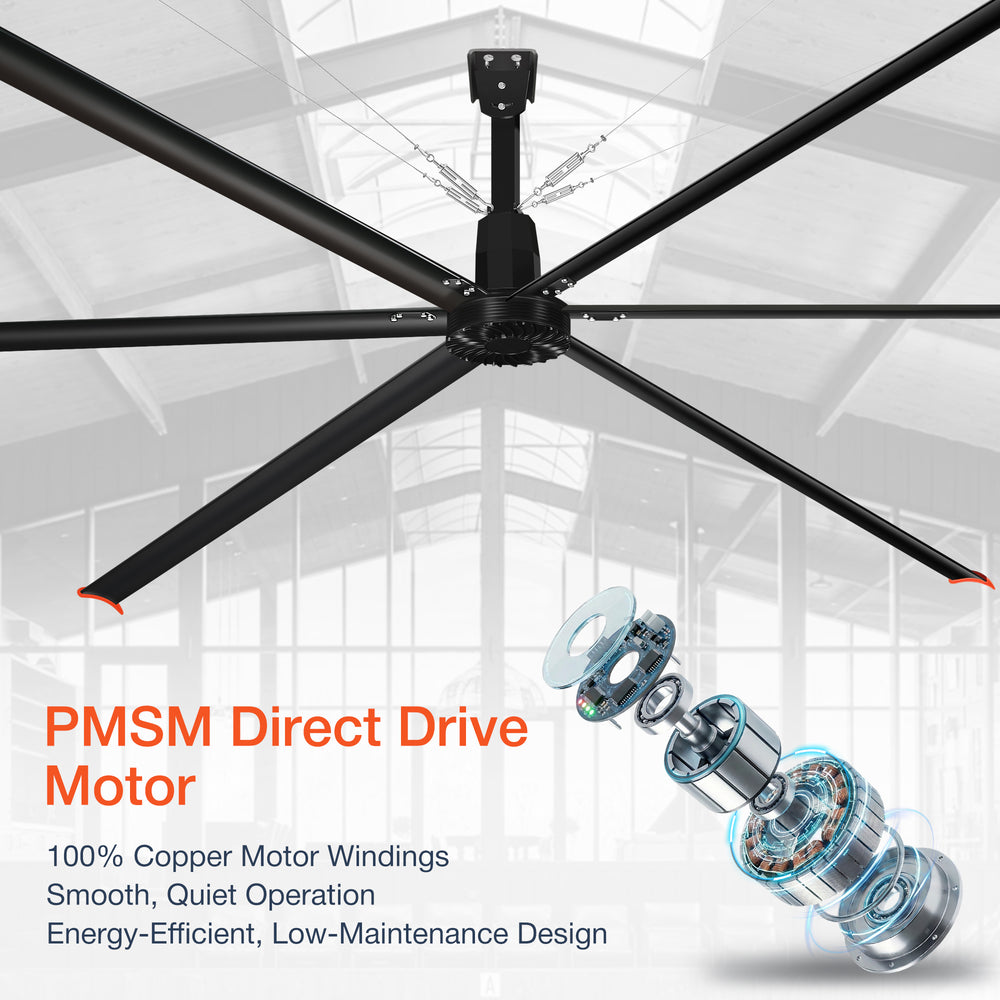

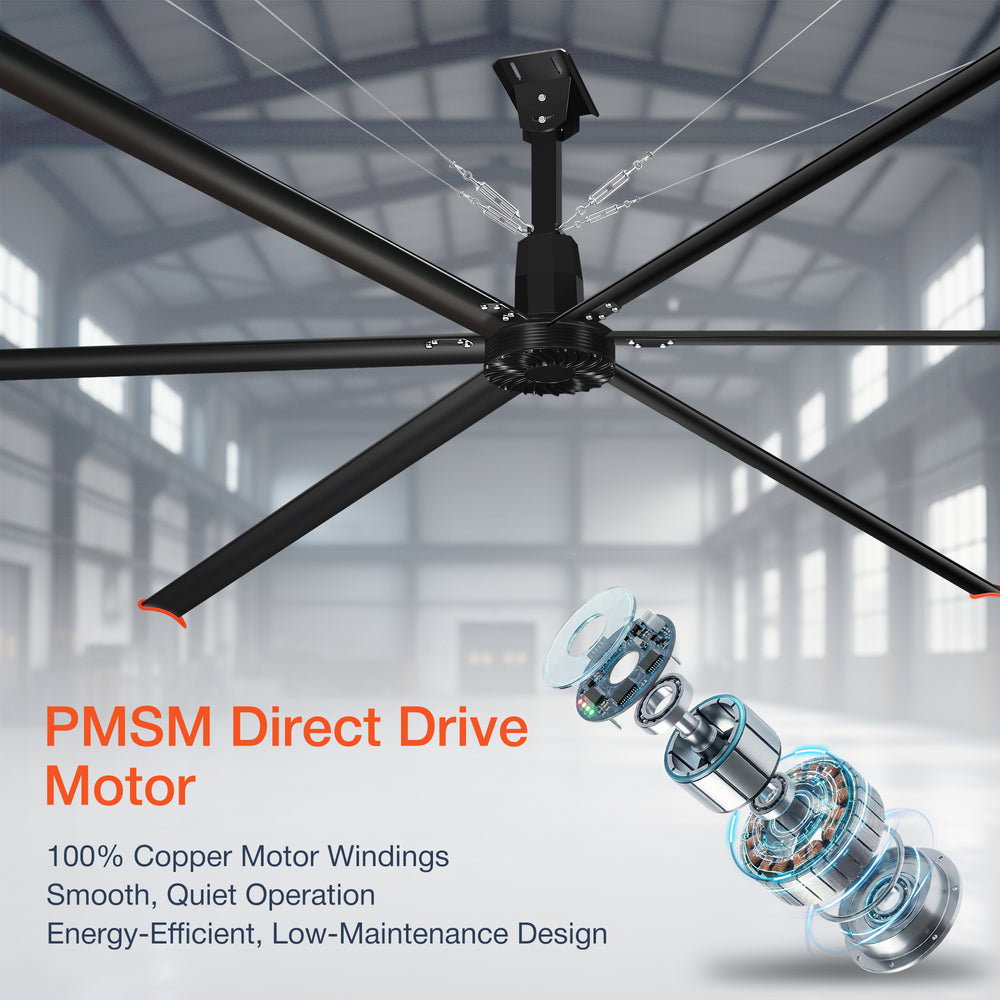

PMSM Direct-Drive Motor
A 1.1 kW permanent magnet synchronous motor drives all three sizes with variable-frequency speed adjustment from the wired controller.
">
Free Shipping
On all orders
Free Returns
Hassle-free
Secure Payments
Safe & encrypted
High-Volume Air Circulation
Variable Speed Control
1.1 kW PMSM Motor
Wired Wall Controller
6 Aluminum Alloy Blades
Reversible Airflow
Steel Safety-Rope System
20 / 22 / 24 FT Options
General & Warranty
| Assembly Required | Yes | Fan Diameter (Inches) | 240 in/264 in/288 in |
|---|---|---|---|
| Fan Type | Standard, Windmill | Fan Mounting Type | Angled, Downrod |
| Style | Industrial, Modern & Contemporary | Housing Color | Matte Black |
| Body Material | Metal | Number of Fan Speeds | 20FT: 15-65; 22FT: 15-60; 24FT: 15-55 |
| Slope Ceiling Compatibility (in degrees) | 20° | Use Location | Indoor |
| Compatible Room Size | Great Room(more than 350 sq. ft） | Room | Office, Warehouse, Factory, Gym |
| Net Weight (lbs) | 20FT: 333 lbs; 22FT: 332 lbs; 24FT: 343 lbs | Product Warranty | Yes |
| Warranty Length | 1 Year |
Blade & Lighting & Motor
| Number of Blades | 6 | Blade Material | Aluminum |
|---|---|---|---|
| Blade Pitch (in degrees) | 23° | Blade Color | Black |
| Blade Size (Inches) | 20FT: 112.1*7.09 in; 22FT: 123.9*7.09 in; 24FT: 135.7*7.09 in | Light / No Light | No Light |
| Motor Type | Permanent Magnet Synchronous Motor | Motor Power (Watts) | 20FT: 1.1KW; 22FT: 1.1KW; 24FT: 1.1KW |
| Reversible Motor | Yes | Maximum RPM | 20FT: 65; 22FT: 60; 24FT: 55 |

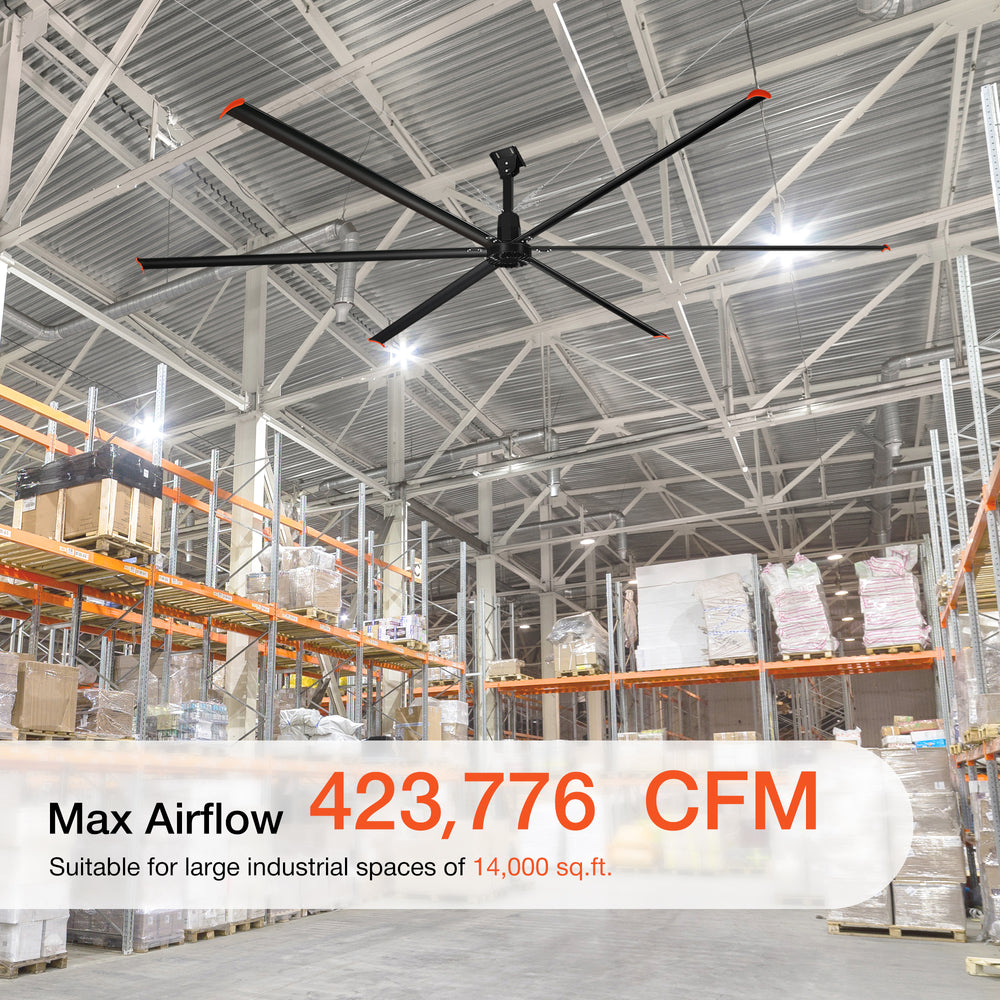

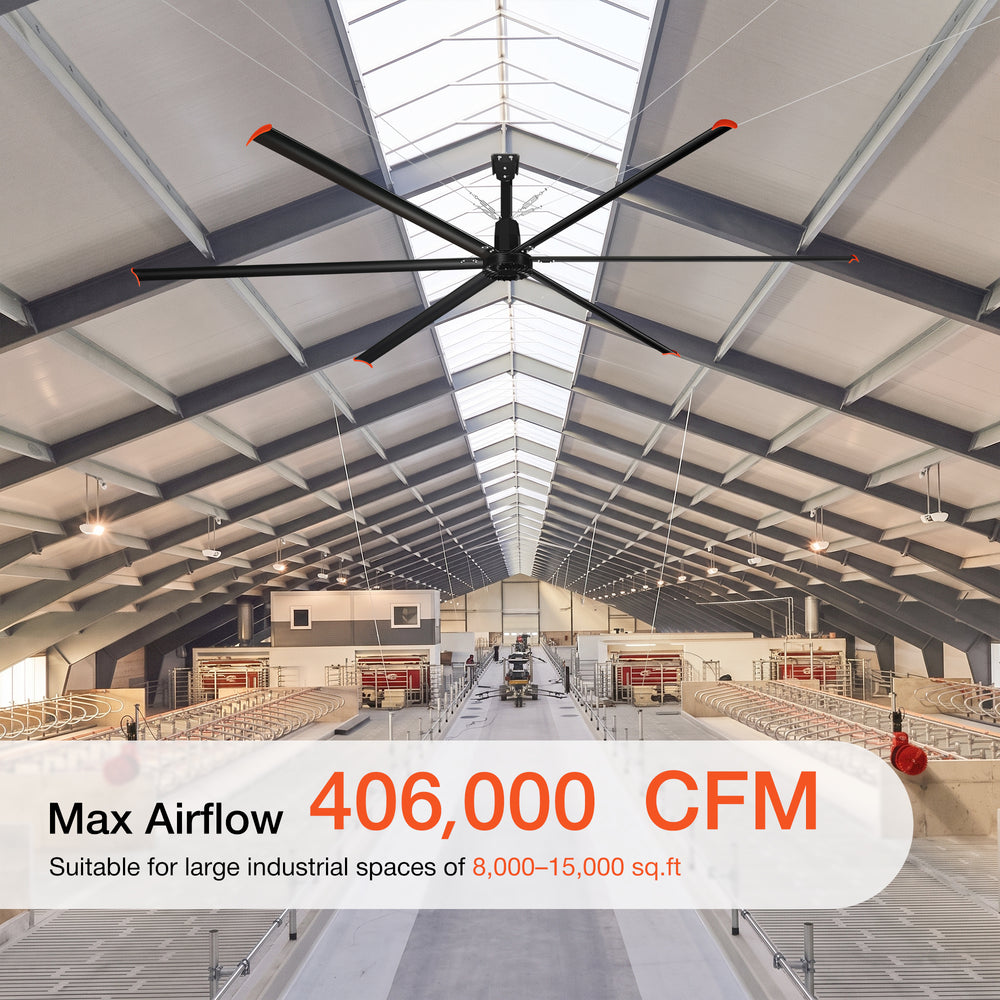

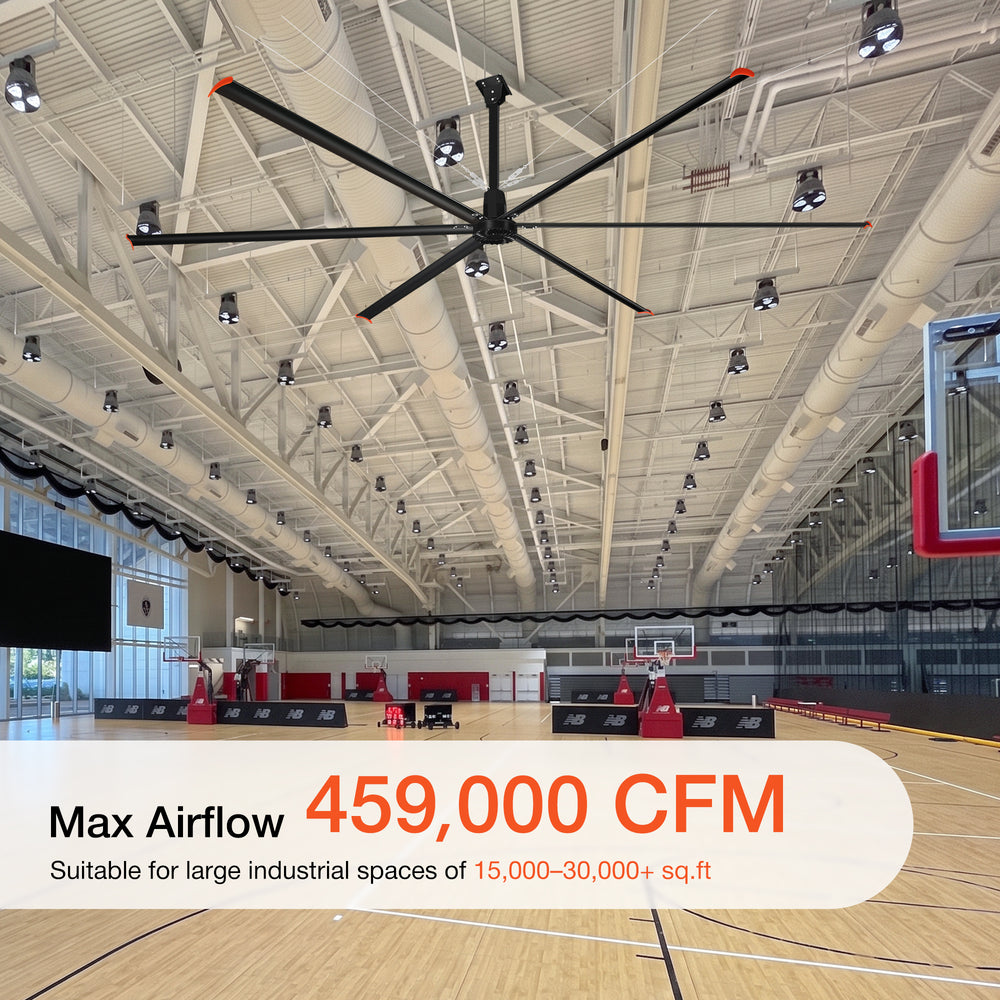

| Maximum Airflow (CFM) | 20FT: 406000 CFM; 22FT: 423776 CFM; 24FT: 459000 CFM |
Shipping
We offer free standard shipping on most eligible orders within the contiguous United States. Most in-stock items are processed and shipped within 1–3 business days.
- Delivery Time: Most orders arrive within approximately 3–7 business days after shipment.
- Shipping Carriers: Orders may ship via UPS, FedEx, USPS, regional delivery providers, or freight carriers depending on the product and destination.
- Tracking: Once your order ships, available tracking information will be sent by email.
View Full Shipping & Delivery Policy
Returns & Refunds
Most unused and uninstalled products may be returned within 30 days of delivery, provided they remain in their original condition with all parts, accessories, manuals, and packaging included.
- 30-Day Returns: Return requests must be made within 30 days after receiving your order.
- Damaged or Incorrect Items: Please contact Breezary within 48 hours if your order arrives damaged, defective, or incorrect.
- Return Shipping: Breezary covers return shipping when the return is caused by our error. For personal-reason returns, applicable return shipping costs are the customer's responsibility.
- Refund Processing: Approved refunds are processed within 7 business days after the returned item has been received and inspected.
Please contact Breezary Customer Support before sending any item back so we can provide the correct return instructions.

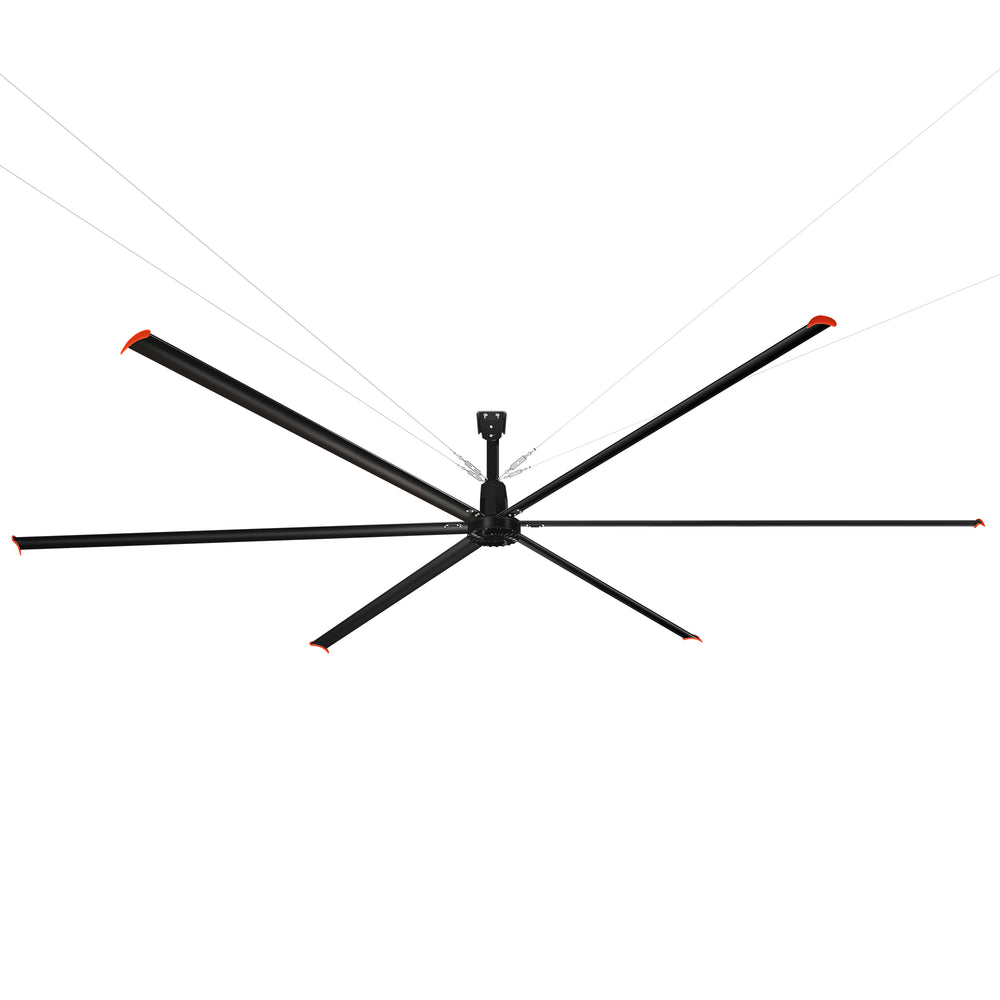

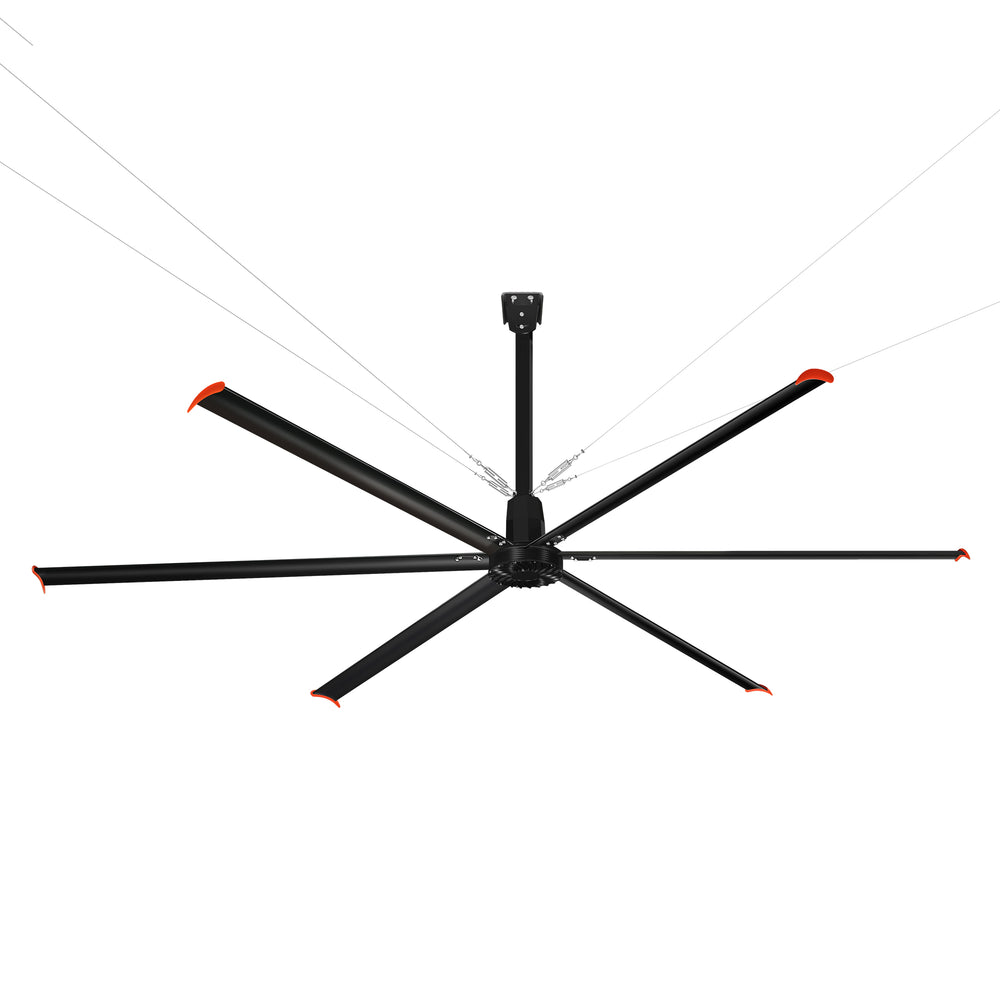

20, 22 & 24 FT Industrial HVLS Ceiling Fans

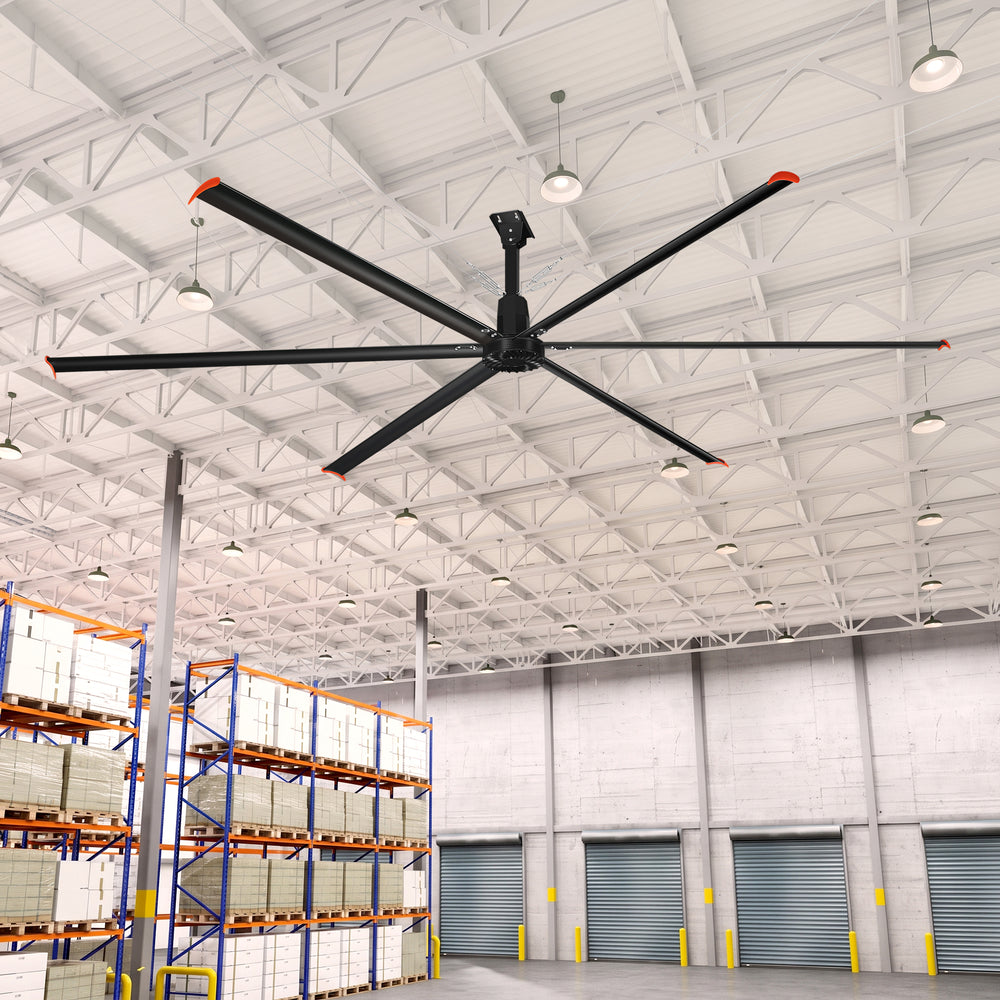

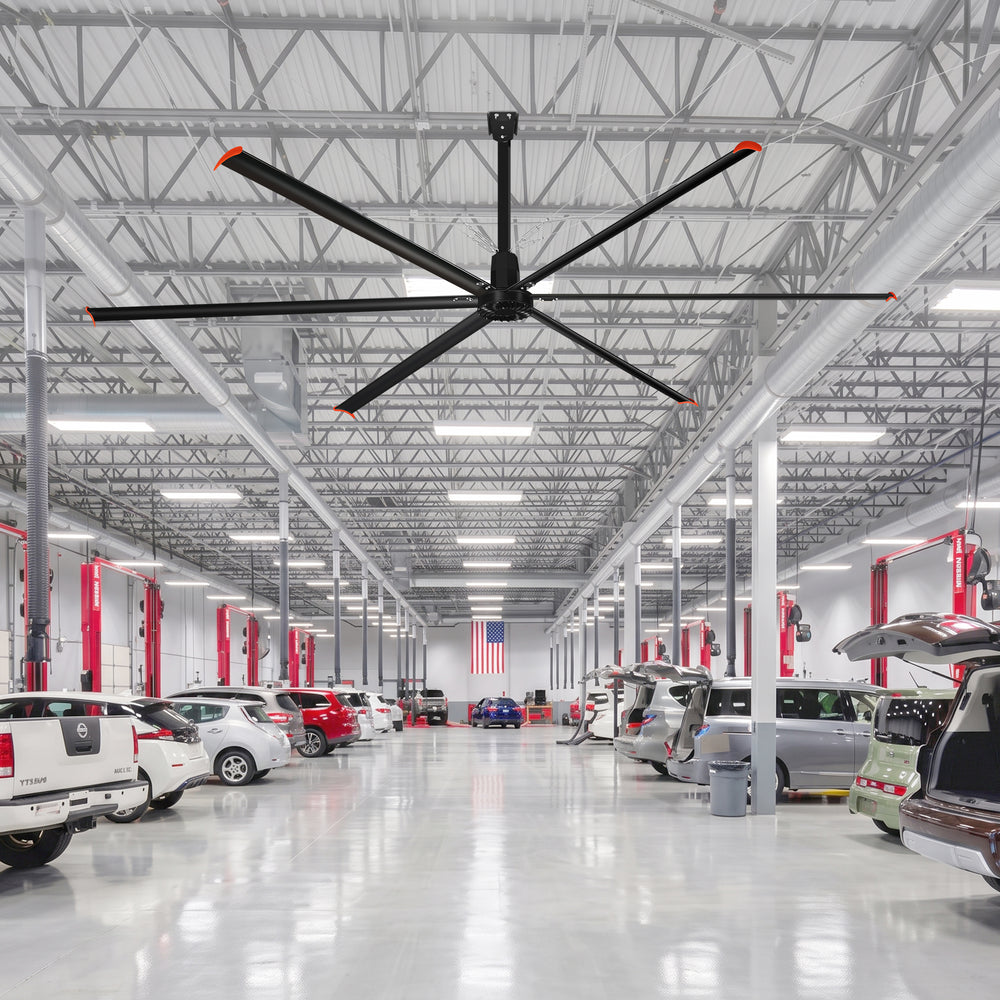

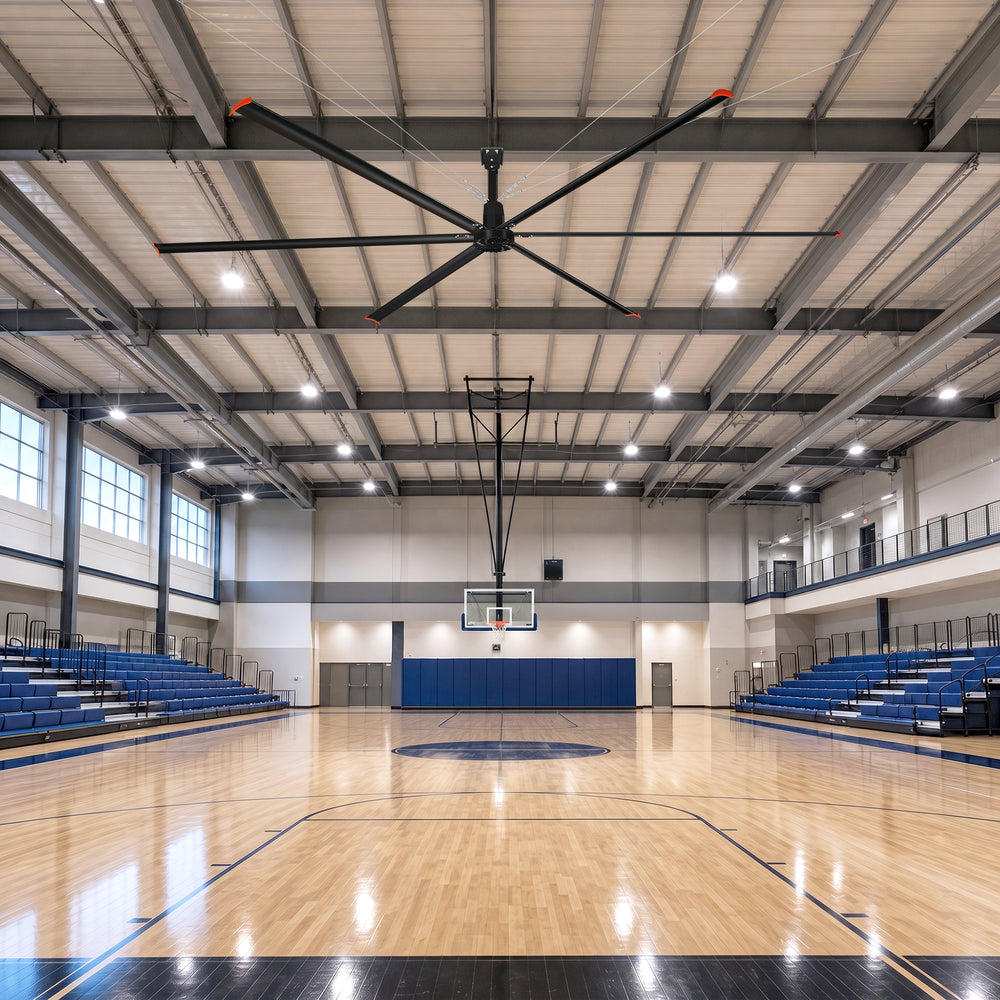

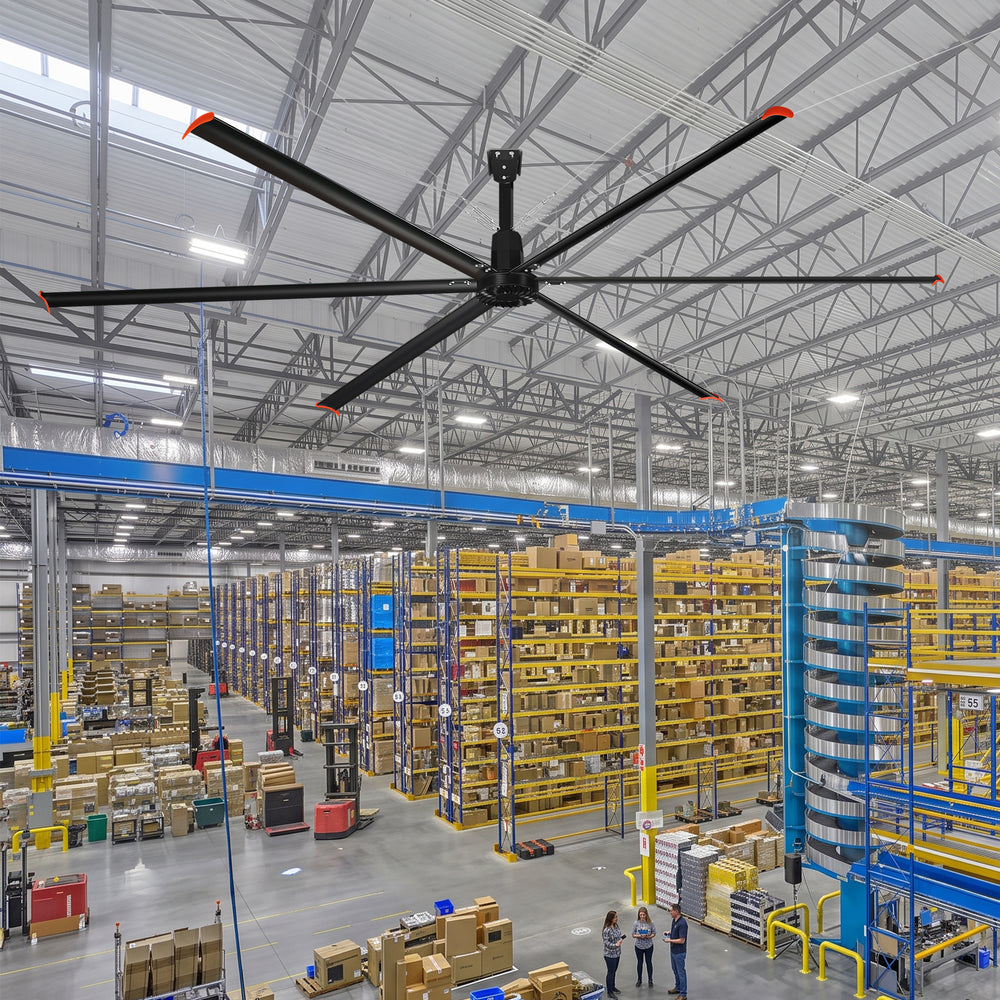

Plan wide-area overhead circulation for warehouses, distribution centers, factories and gyms with these 20, 22 and 24-foot HVLS industrial ceiling fans. Six aluminum alloy blades span 240, 264 or 288 inches, and the no-light design works alongside separate high-bay or task lighting.

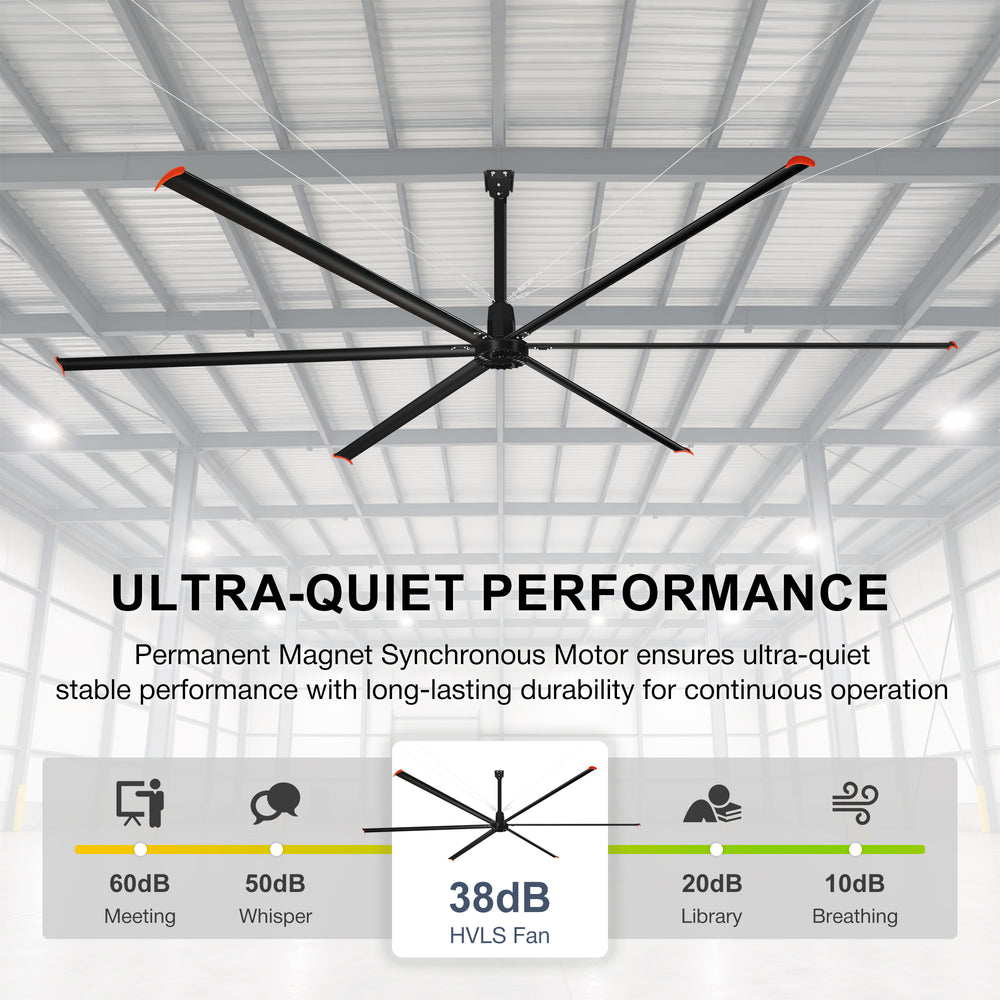

A 1.1 kW (1.5 HP) permanent magnet motor with variable-frequency speed control runs from 15 RPM up to 65, 60 or 55 RPM by size, moving a published 406,000, 423,776 or 459,000 CFM at a rated 38 dB(A). The wired controller handles run, stop, accelerate and decelerate.
Note: Professional installation by qualified personnel is required, and the fan must be powered through the included motor controller. Do not operate in freezing, corrosive, explosive or severely dusty environments.

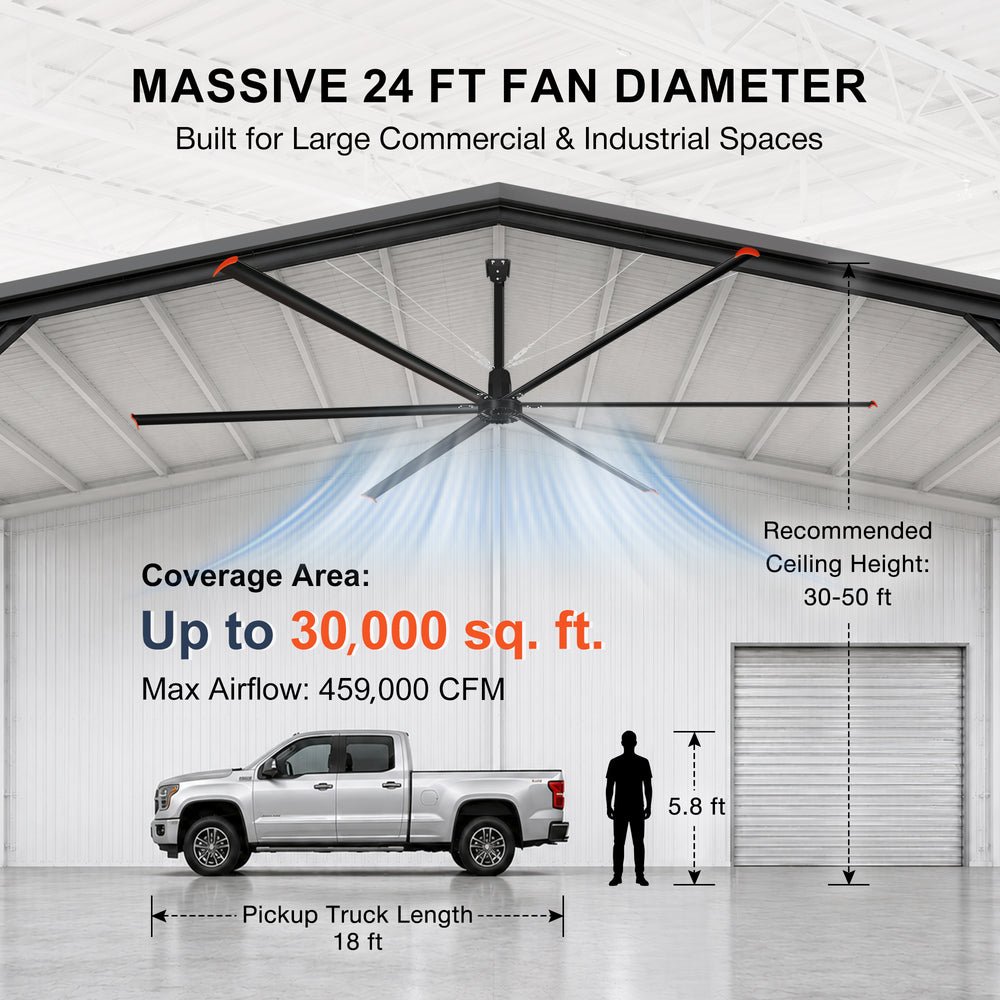

Three Diameters for Open Facilities
Choose a 240, 264 or 288-inch rotating diameter to match the mounting zone, structural clearances and air circulation area of your building.
Planned for Industrial Circulation
Variable speed, reversible airflow and a wired controller for large facilities.
Variable Speed Control
Step speed up or down with the accelerate and decelerate controls, from 15 RPM to a maximum of 65, 60 or 55 RPM depending on size.

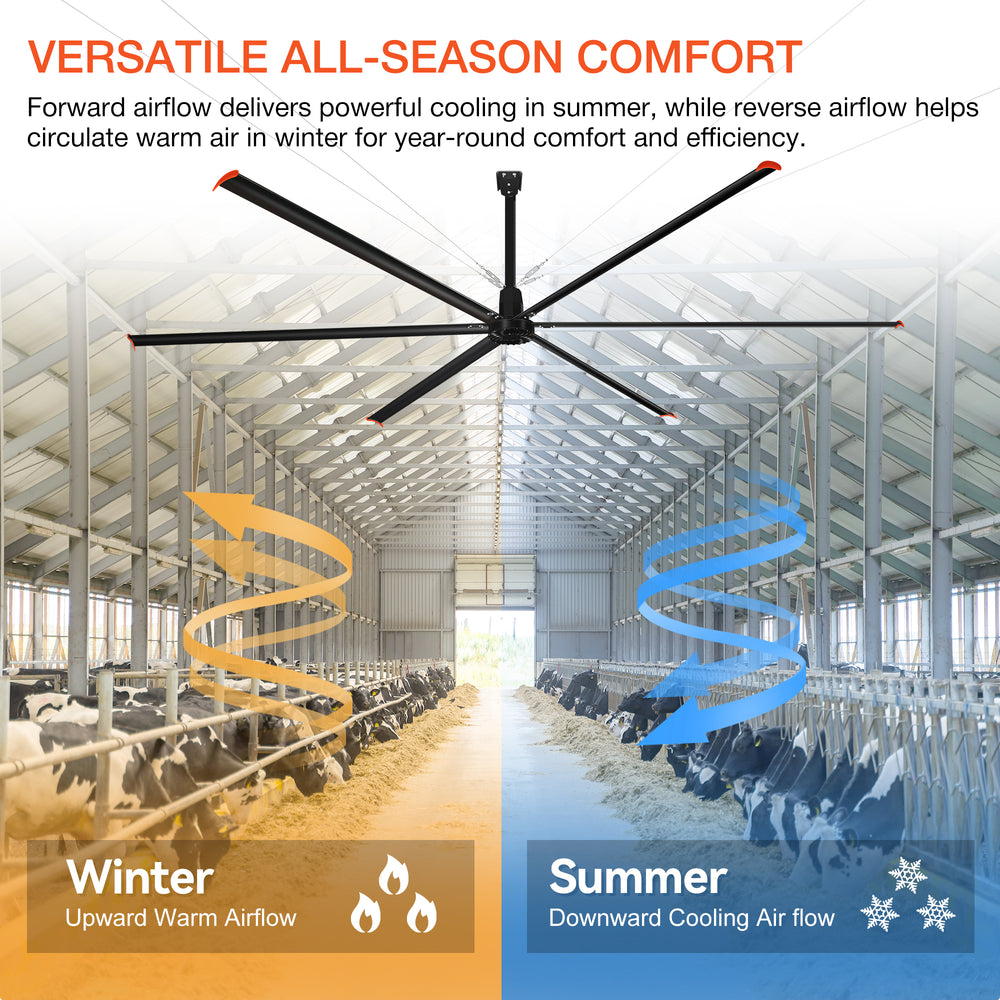

Forward & Reverse Airflow

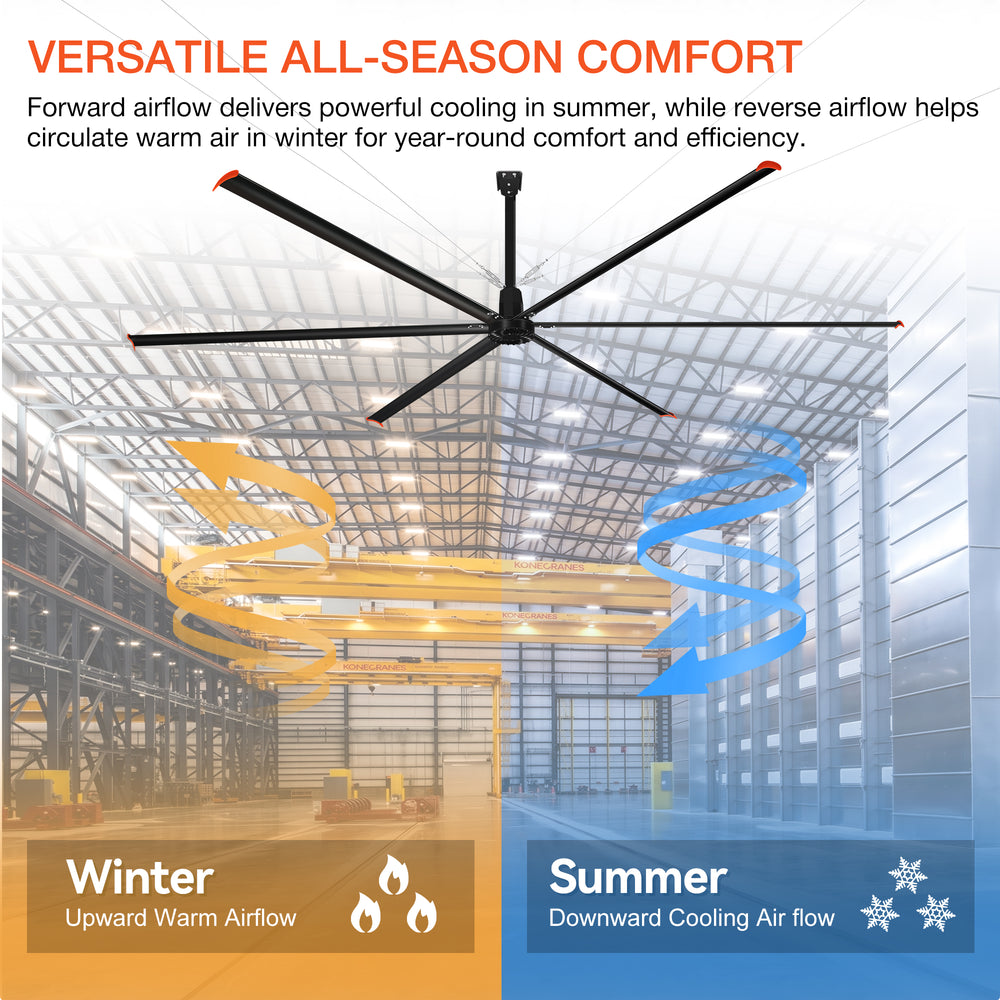

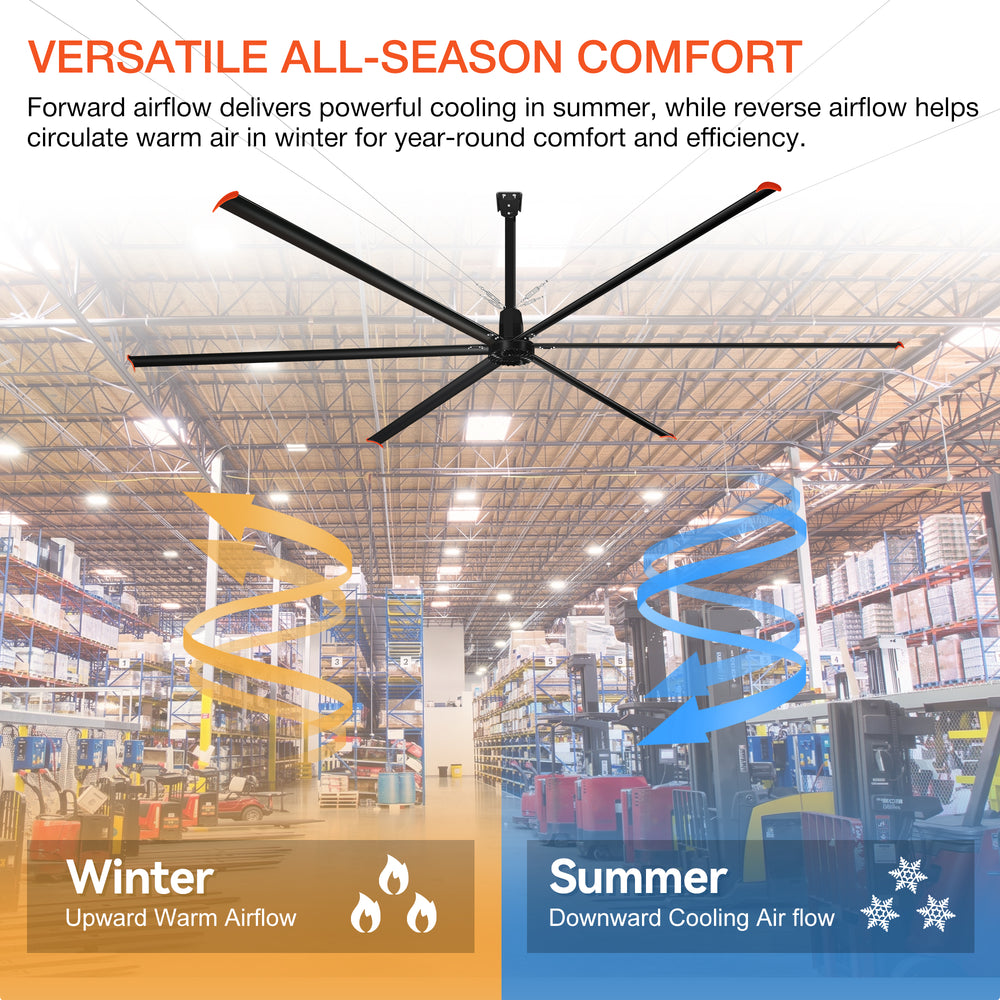

Forward airflow supports summer circulation, while reverse airflow helps circulate warm air in winter for year-round use.

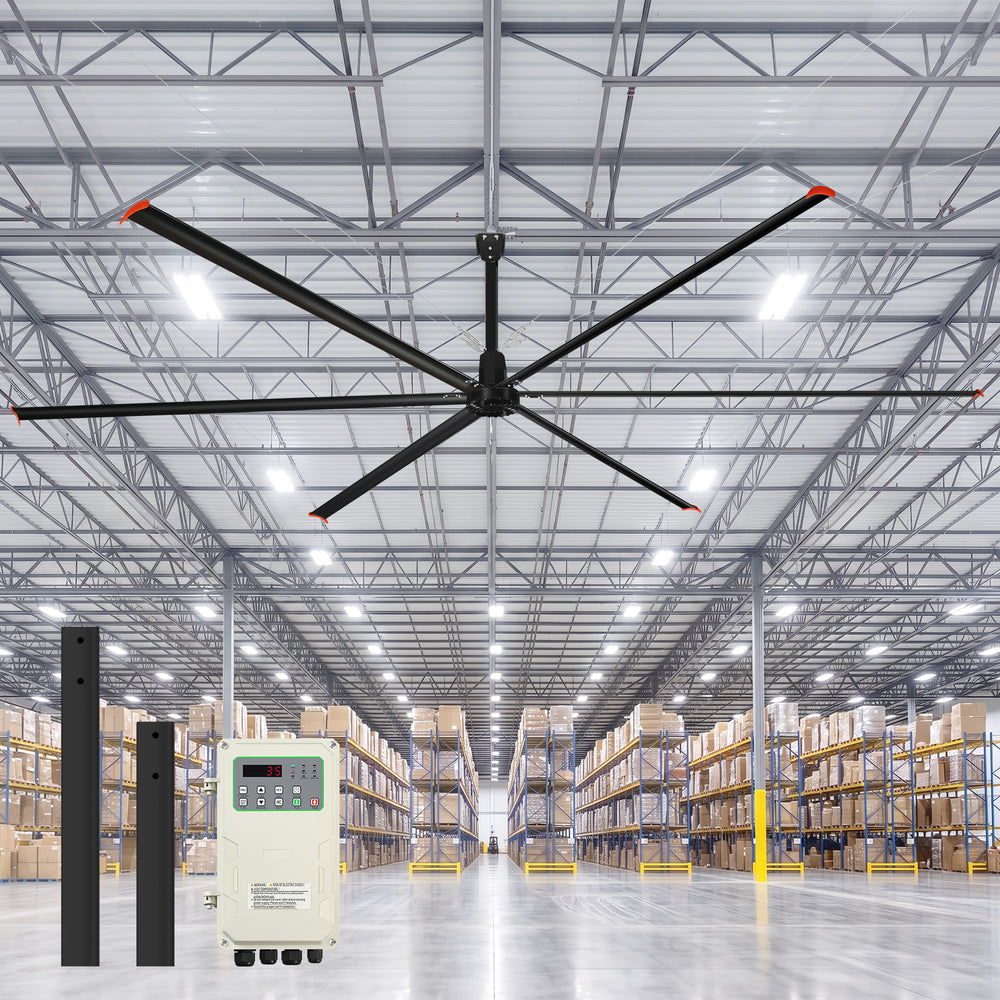

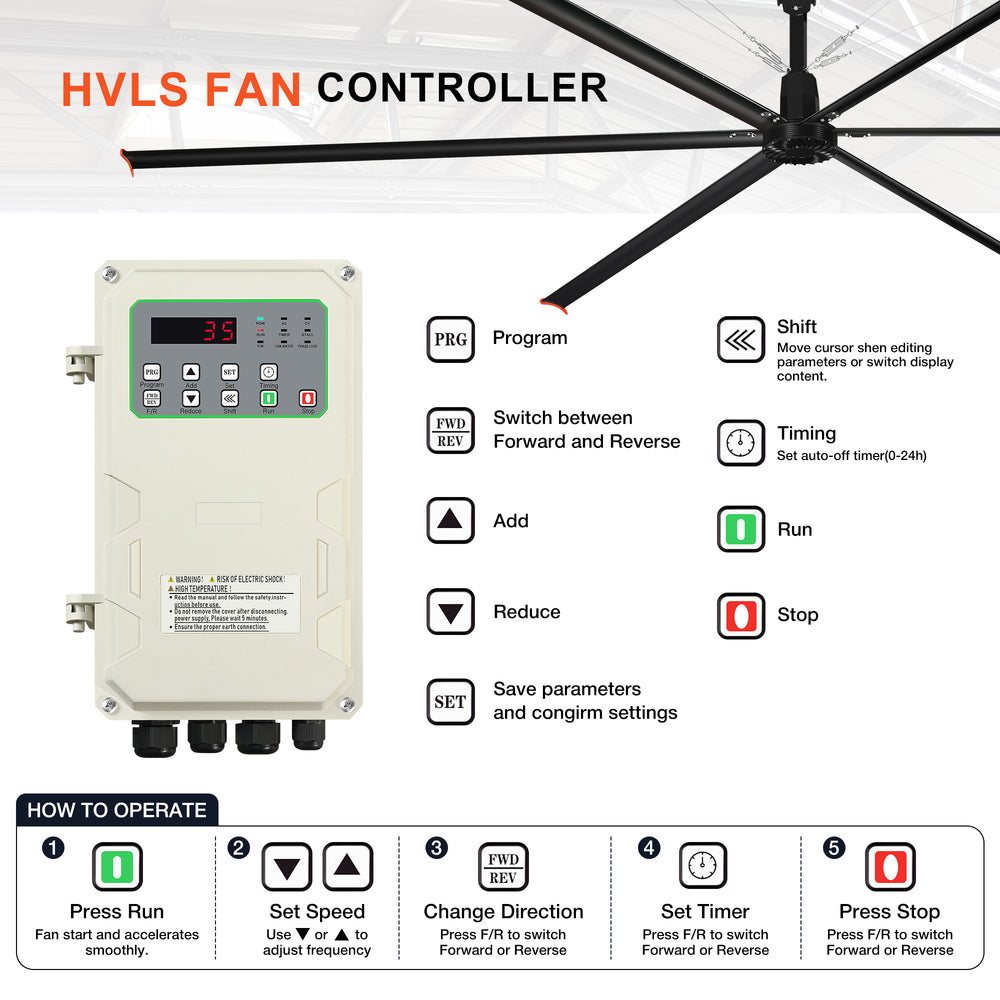

Wired Motor Controller

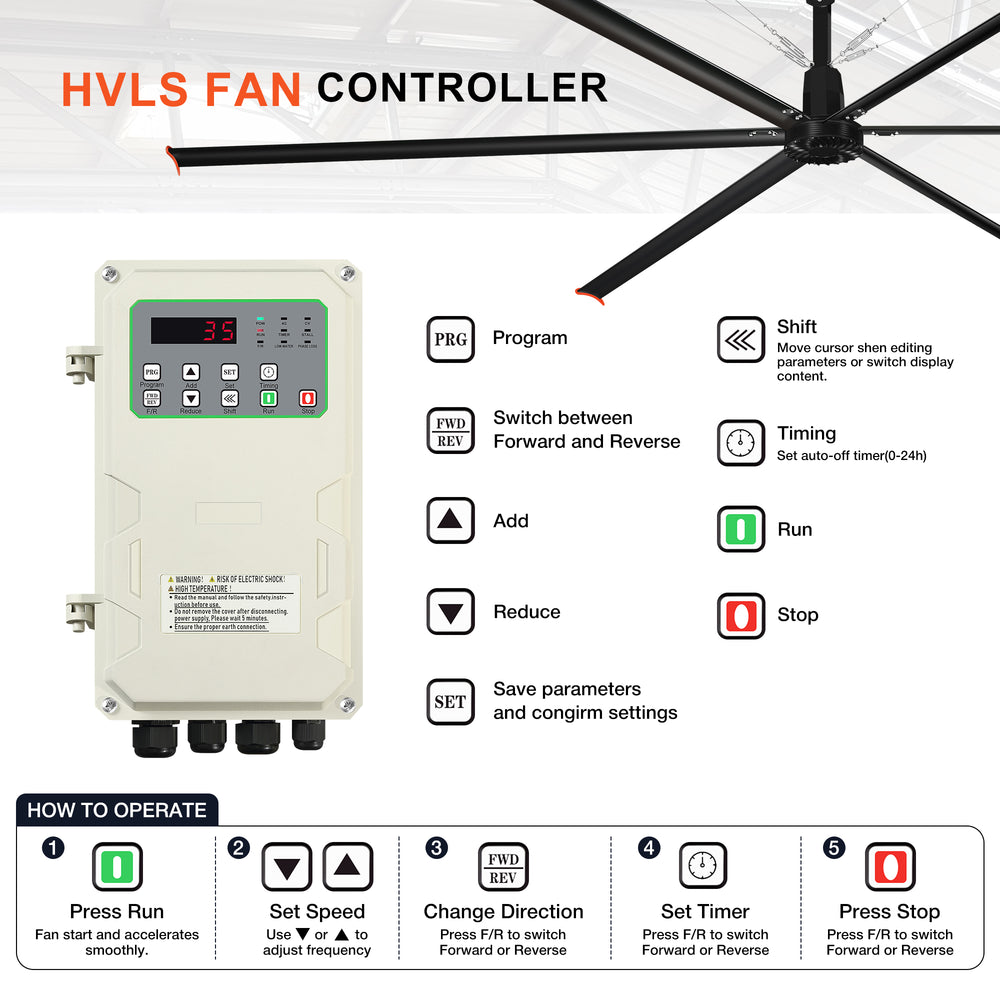

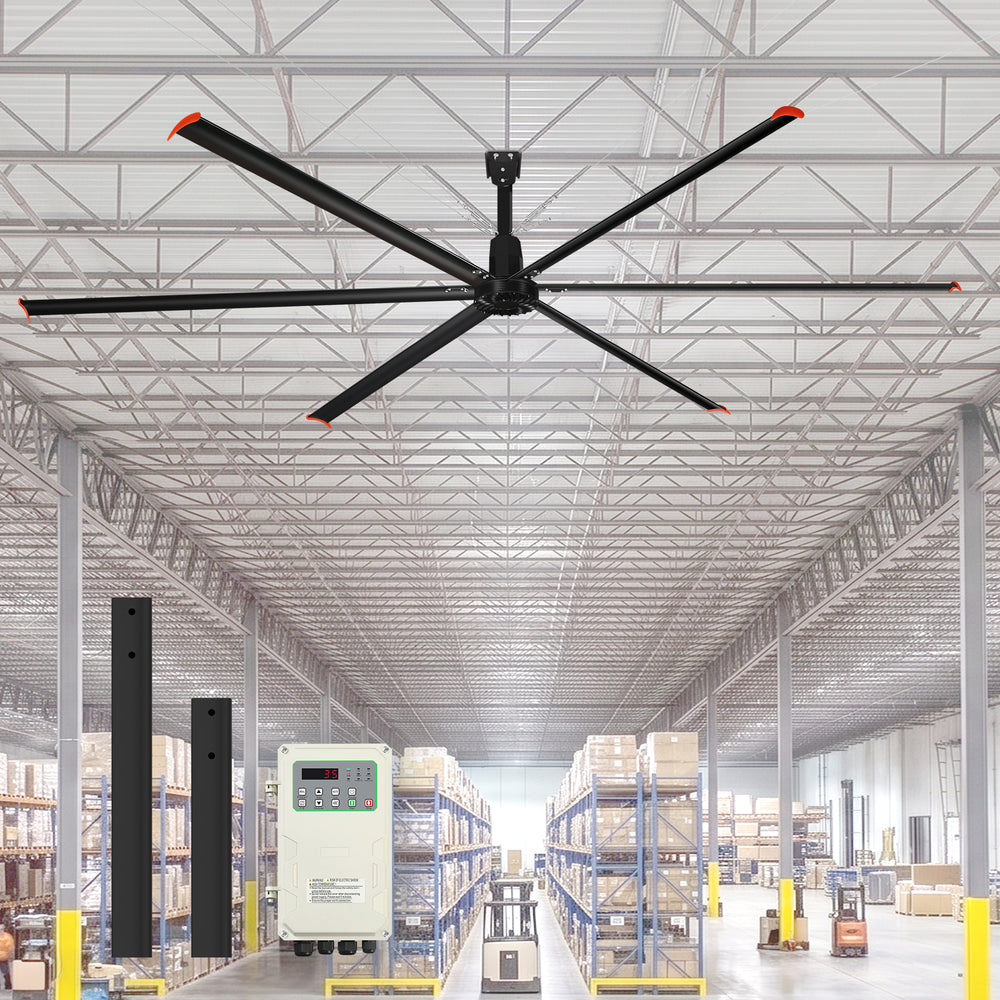

The wired controller provides run, stop, accelerate, decelerate, forward/reverse and an auto-off timer, backed by overvoltage, phase-loss, overload and overheating protection.

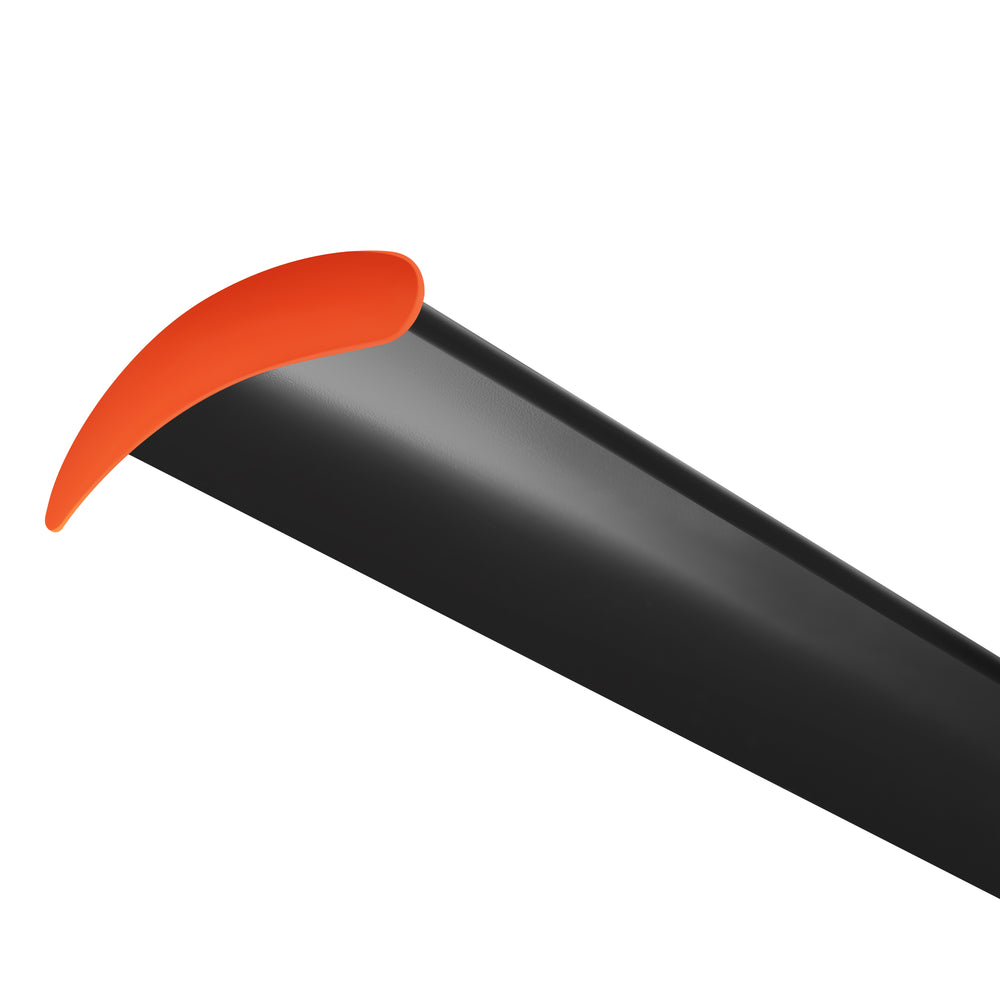

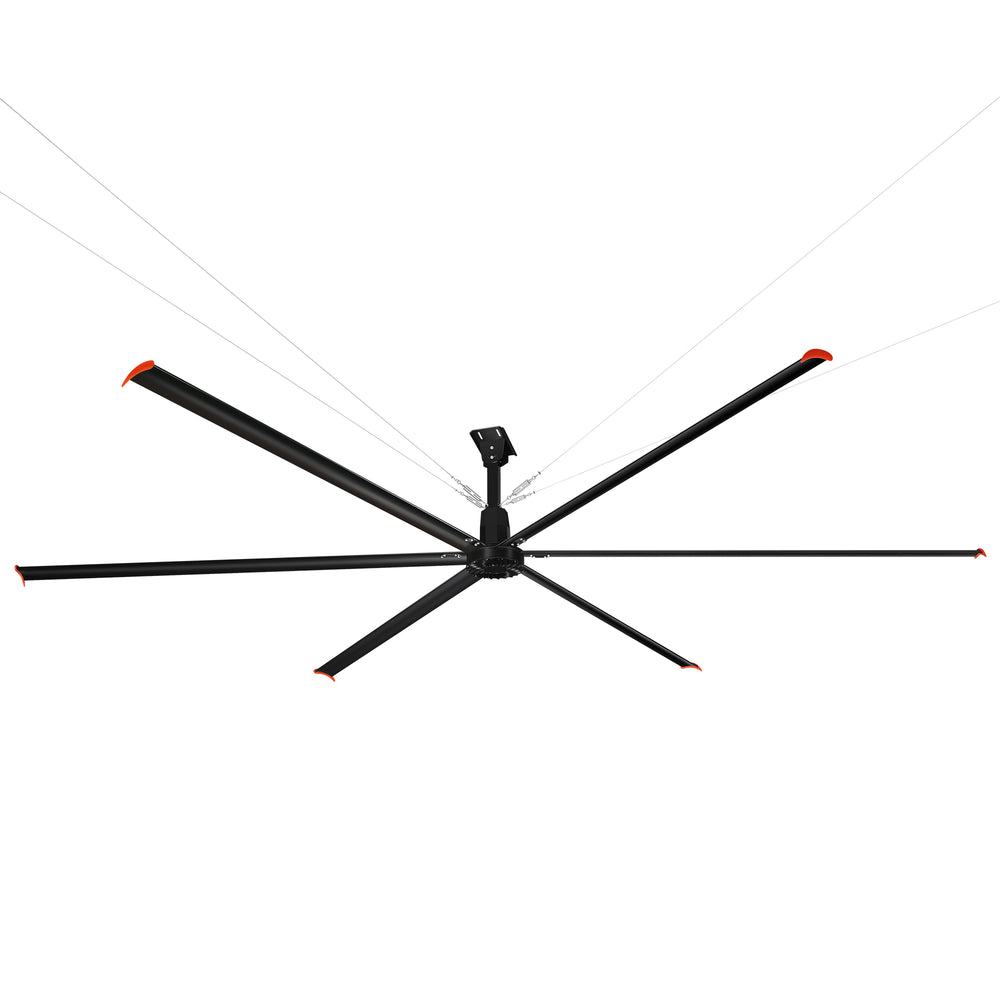

Six Aluminum Alloy Blades

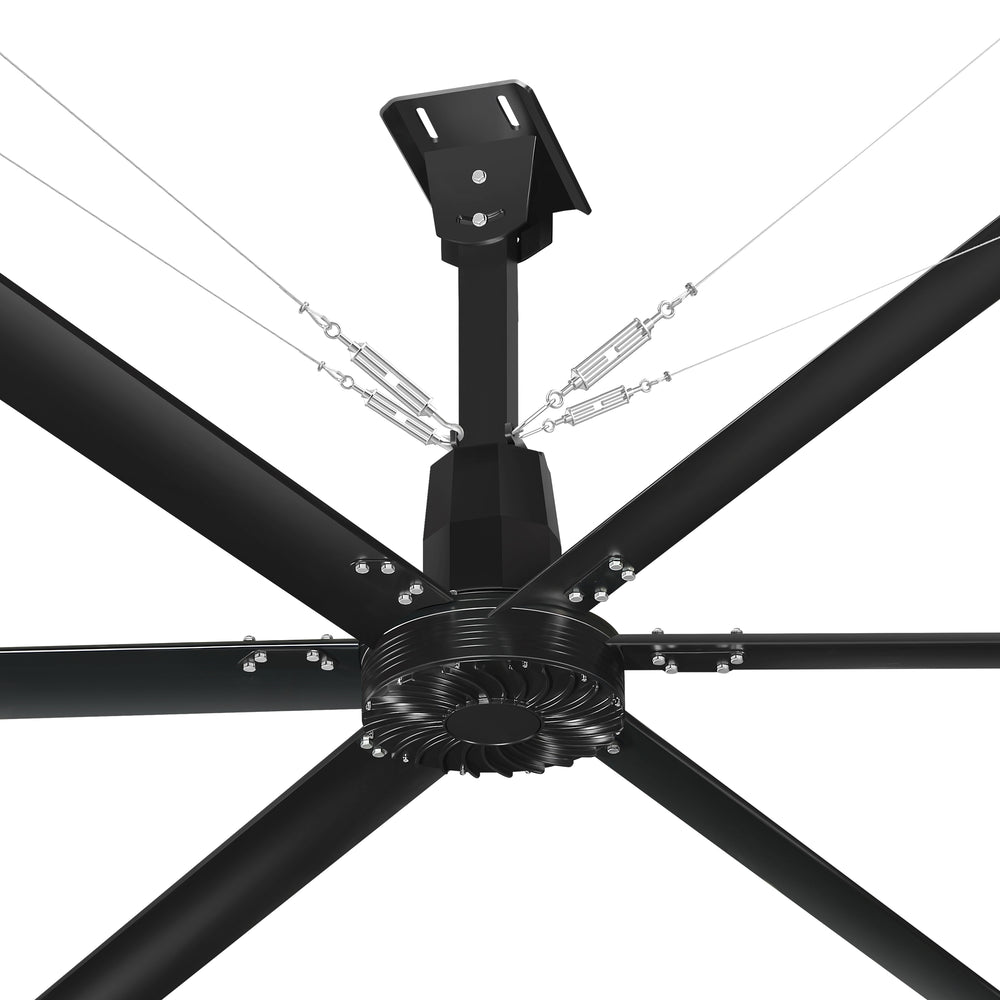

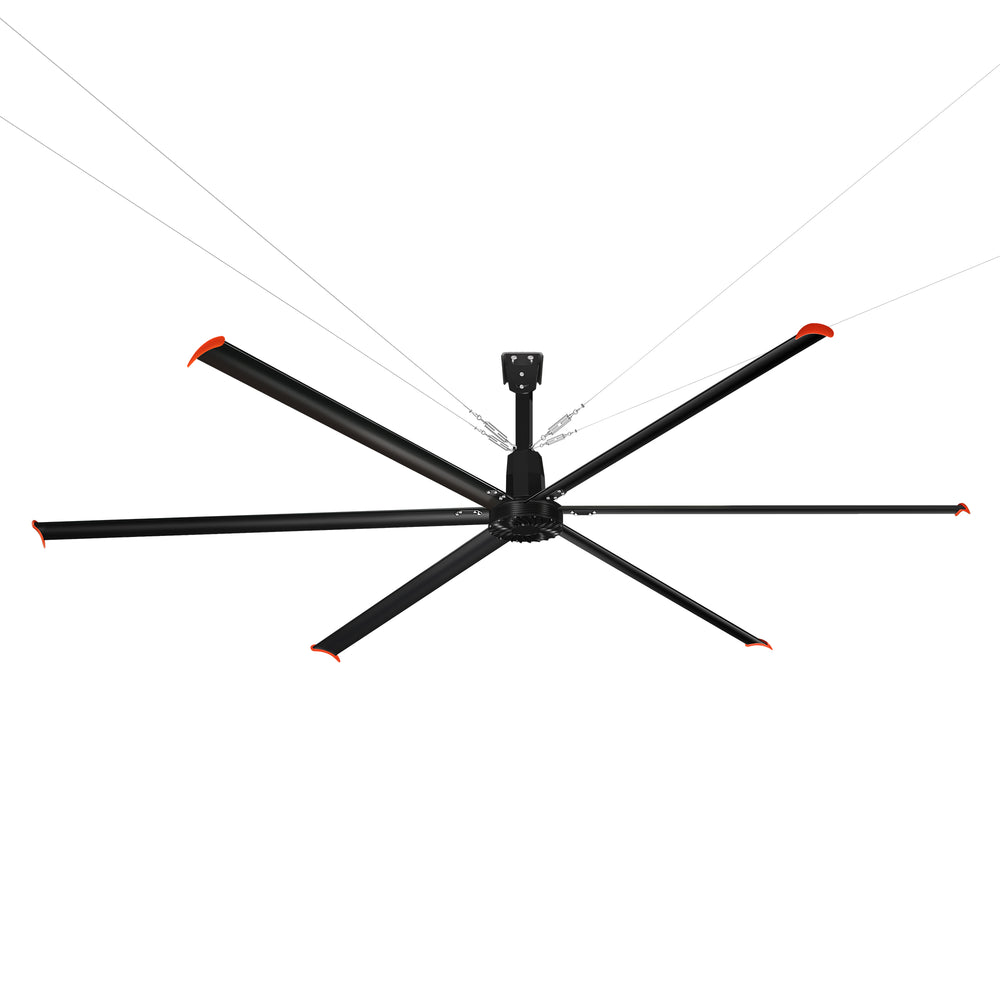

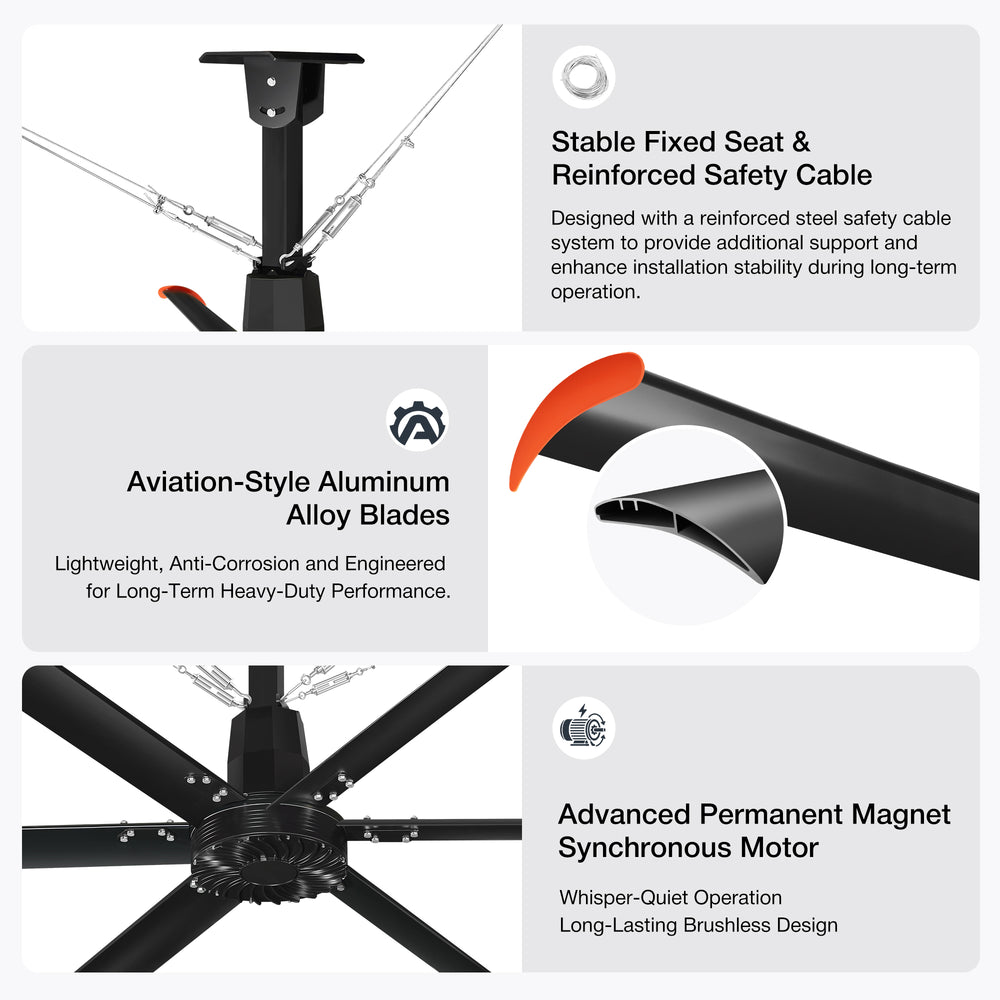

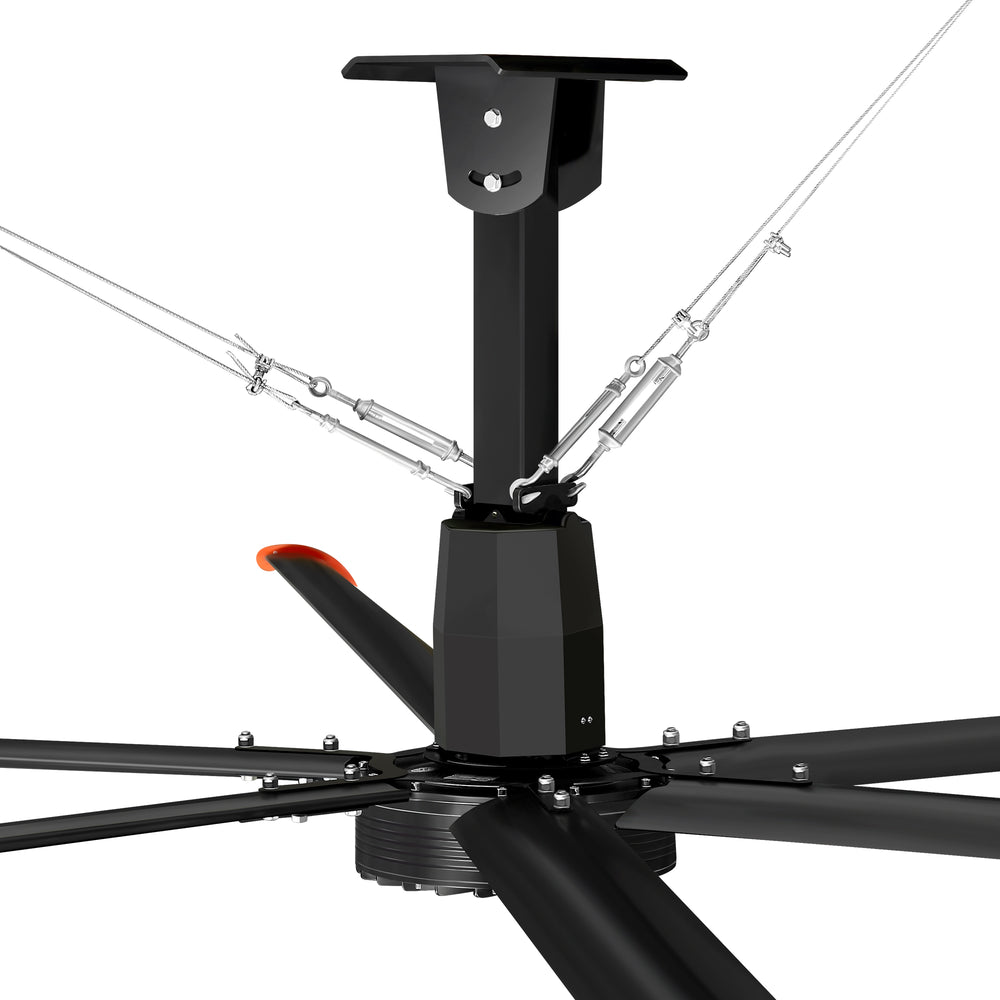

Six aluminum alloy blades fix to the motor with press plates, while a 30 m steel safety-rope system braces the assembly once professionally installed.

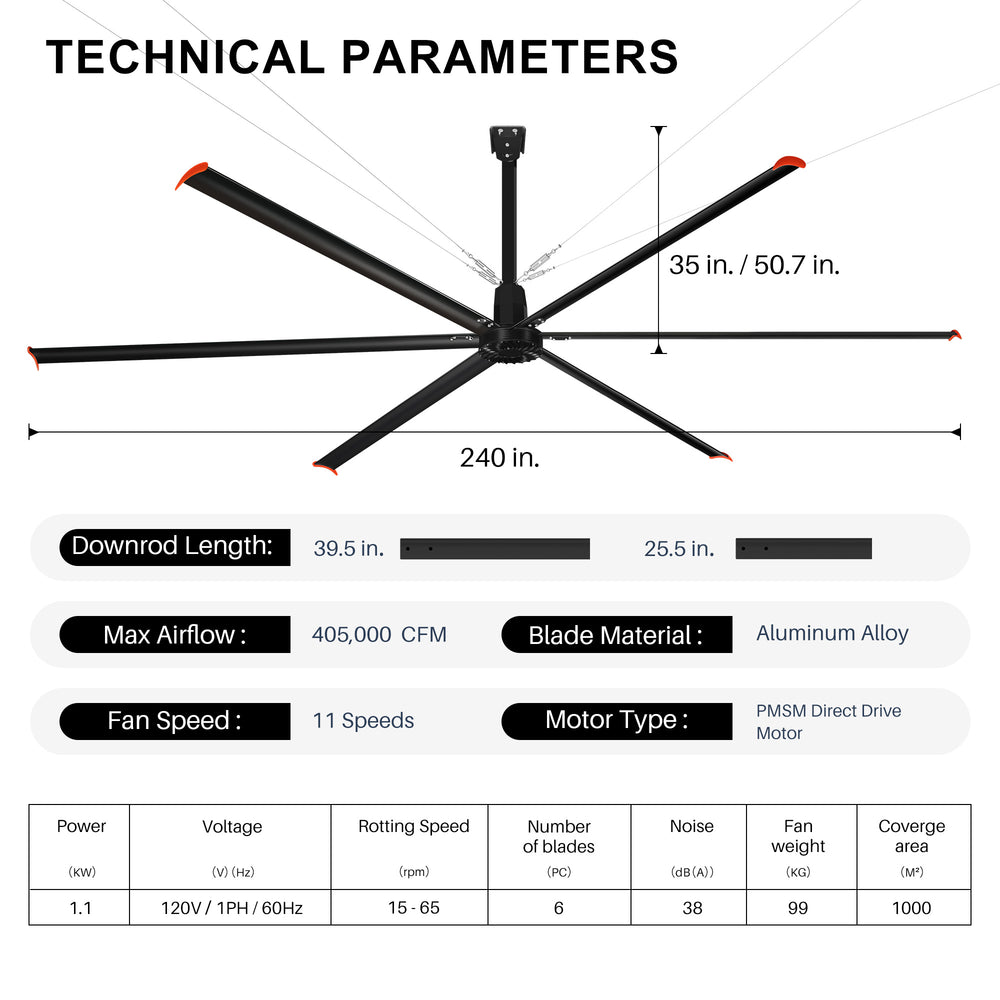

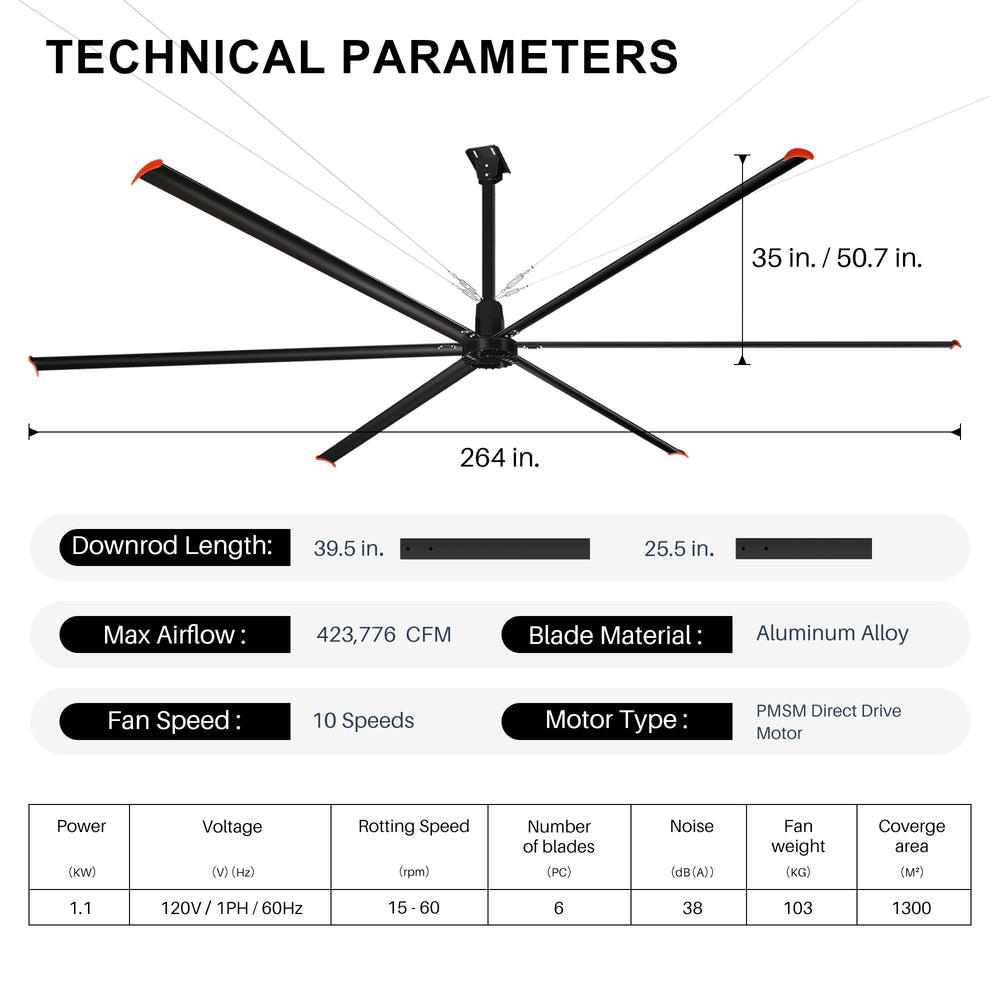

Quick Specifications
Essential sizing, lighting and room-fit details at a glance.

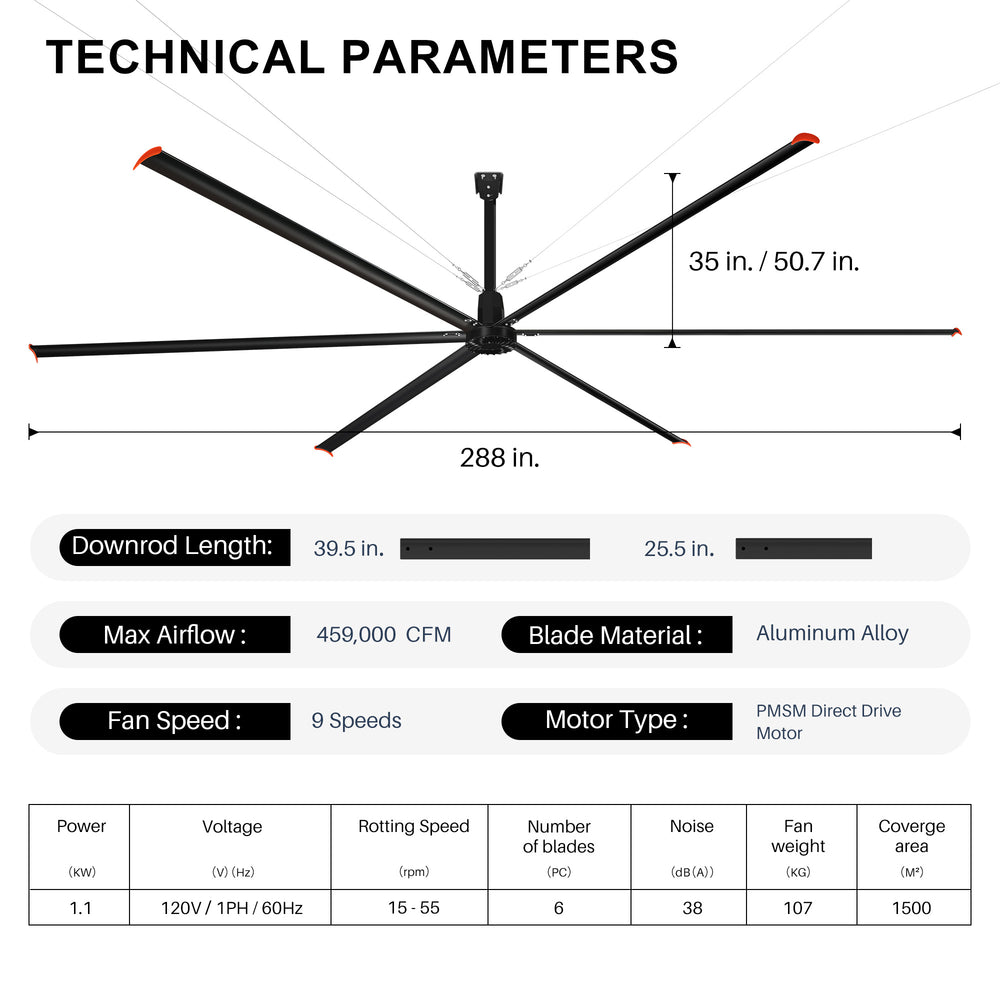

- Fan Size: 240" / 264" / 288"
- Overall Height: 35" / 50.7"
Key Product Details
- Size240 Inches / 264 Inches / 288 Inches
- LightingNo Integrated Light
- Blades6 Aluminum Alloy Blades
Comfort & Control
PMSM Motor1.1 kW motor power
Wall Control0-24H timer + reverse function
Noise Level38 dB

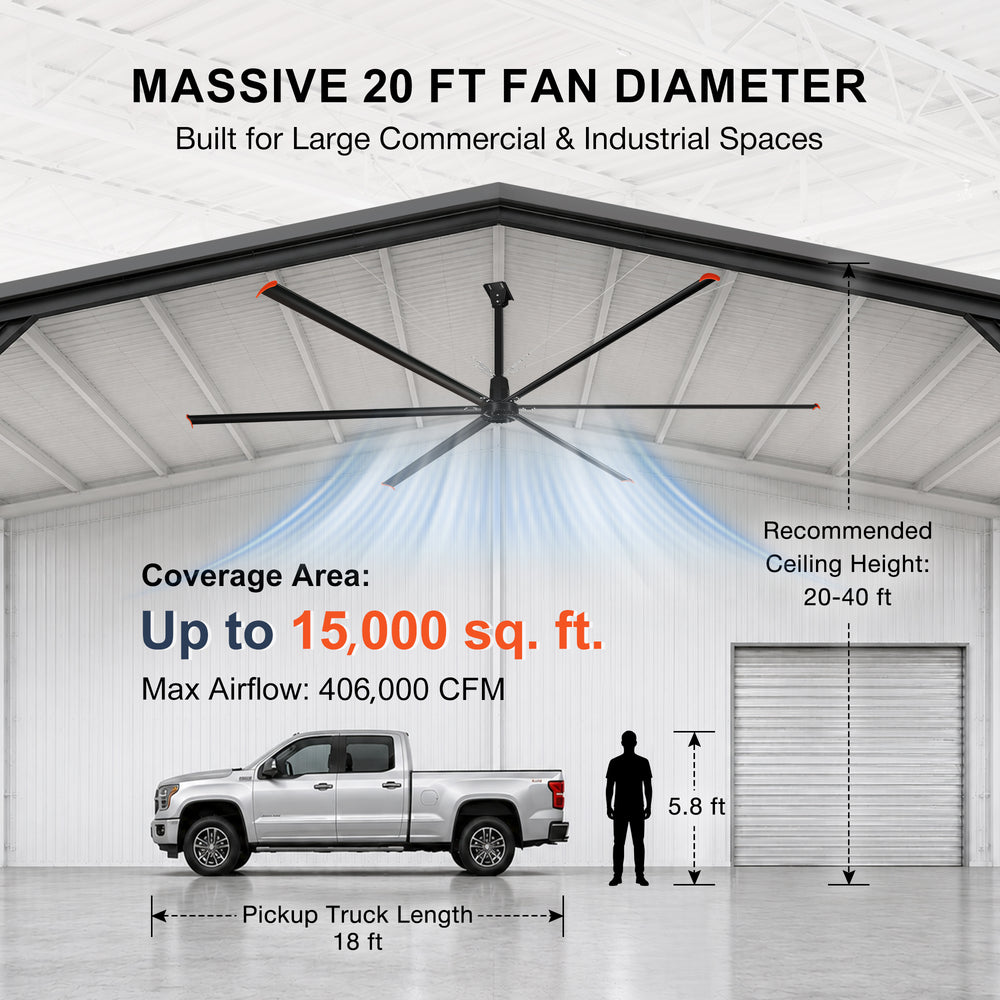

Recommended Room SizeCoverage 1,000 / 1,300 / 1,500 m² (about 10,764 / 13,993 / 16,146 sq. ft.); effective area 600 / 650 / 700 m² (20 / 22 / 24 ft)
- Warehouse
- Factory
- Distribution Center

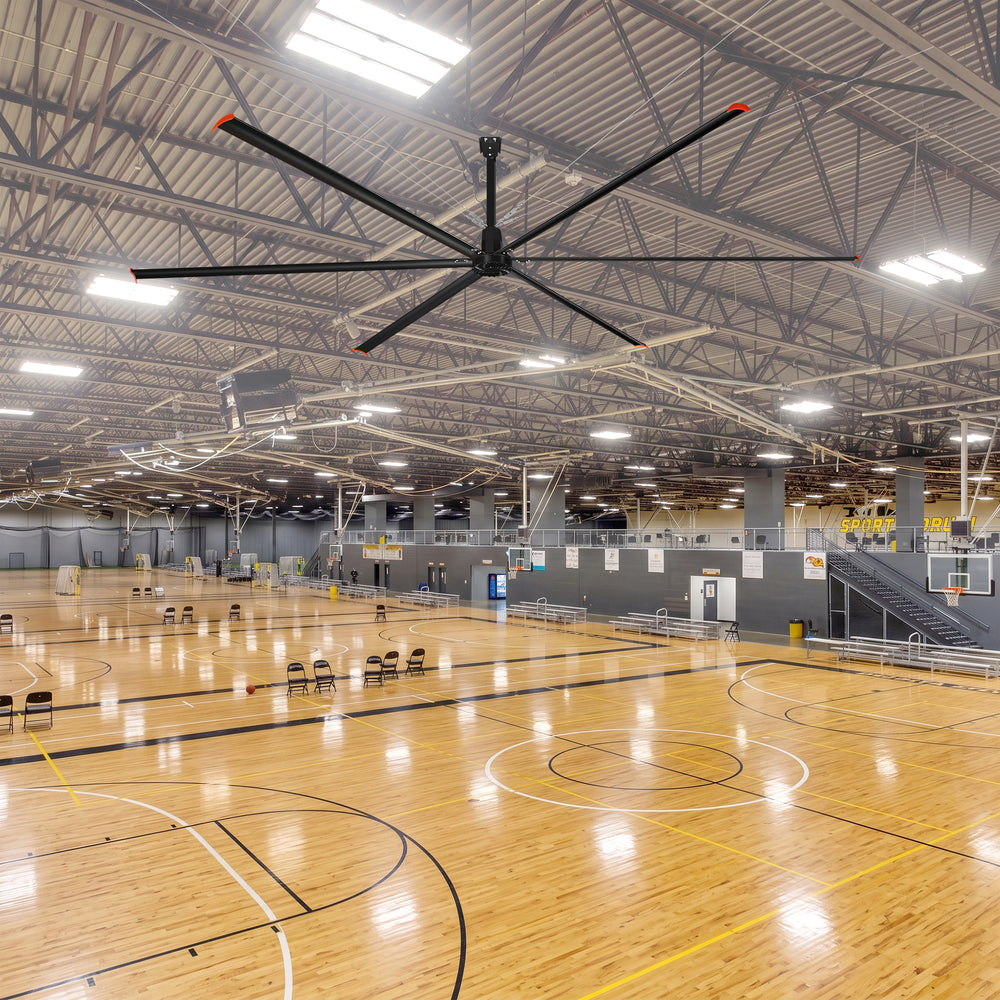

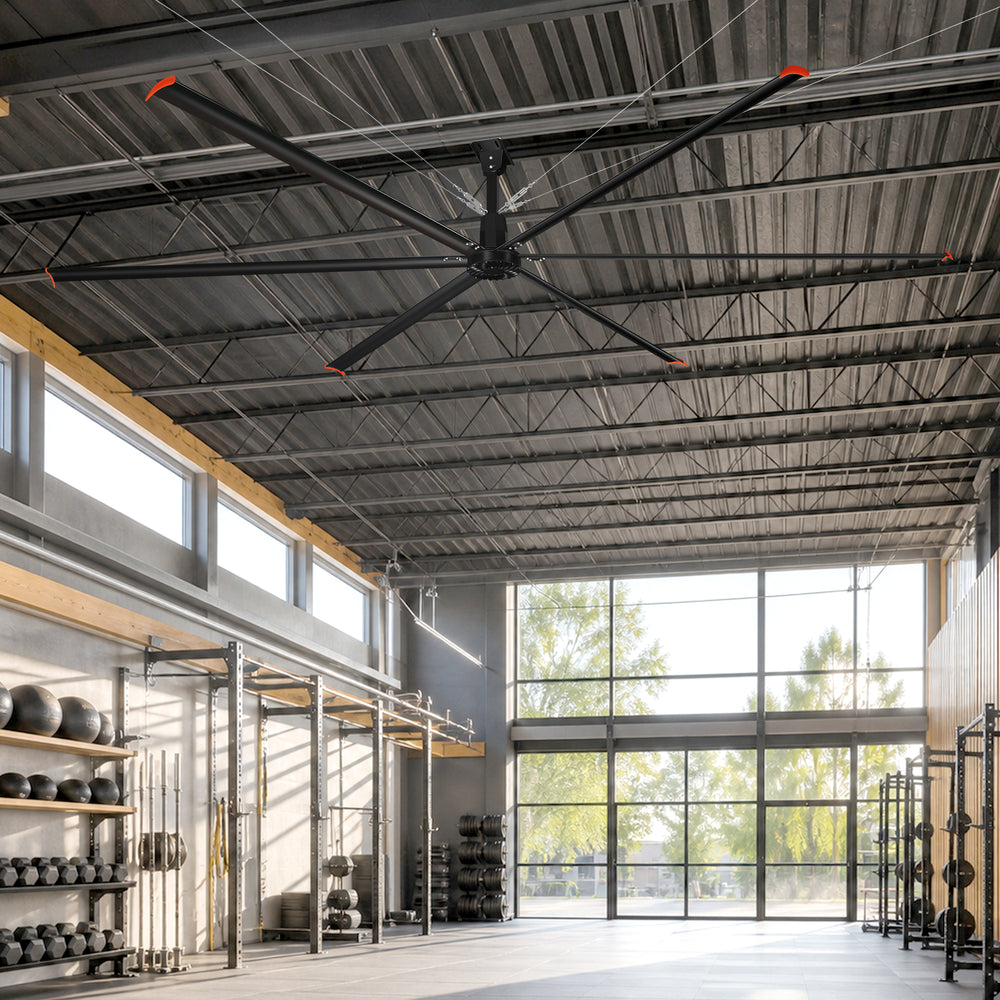

- Gym
20–24 FT HVLS Fan Installation Video
Watch the existing installation reference for the AeroVault large-diameter HVLS series. Actual mounting, wiring, safety restraints, and commissioning must follow the documentation supplied for your selected diameter and electrical variant and be handled by qualified personnel.
Explore Industrial HVLS Fan Options
Compare larger and smaller industrial circulation solutions for your building.
Frequently Asked Questions
What sizes are available in this HVLS fan series?
The AeroVault series on this page offers 20-foot (240-inch), 22-foot (264-inch), and 24-foot (288-inch) models. Each uses six aluminum-alloy blades. Compare the diameter with structural obstructions, equipment, overhead lighting, and usable circulation zones before selecting a size.
Are the 20 FT, 22 FT and 24 FT speed ranges identical?
No. The supplied product information lists a 15 RPM minimum across the range, with maximum speeds of 65 RPM for 20 FT, 60 RPM for 22 FT, and 55 RPM for 24 FT. Select the correct size-specific operating information.
Which voltage and phase options can I order?
The Shopify product includes 120V single-phase, 208–240V three-phase, and 480V three-phase variants for each of the three diameters. Confirm the facility supply and exact variant before ordering. Do not interchange electrical configurations or connect the motor without its controller.
Does the fan need a separate ceiling light?
Yes, if the area requires artificial illumination. These industrial HVLS fans have no integrated light. Plan high-bay or task lighting separately, and coordinate its position with the rotating fan envelope and facility requirements.
How is fan speed controlled?
The included wired motor controller provides run, stop, acceleration, and deceleration controls. The supplied product information also describes forward/reverse operation and a timer. Install and configure the controller according to the exact equipment documentation and site electrical design.
Can these fans reverse airflow in winter?
The supplied product information describes forward and reverse airflow. Reverse operation can help redistribute warmer air collecting near high ceilings, subject to the facility configuration and controller instructions. Confirm the direction setting before operation.
Can I install an HVLS fan close to sprinklers or roof steel?

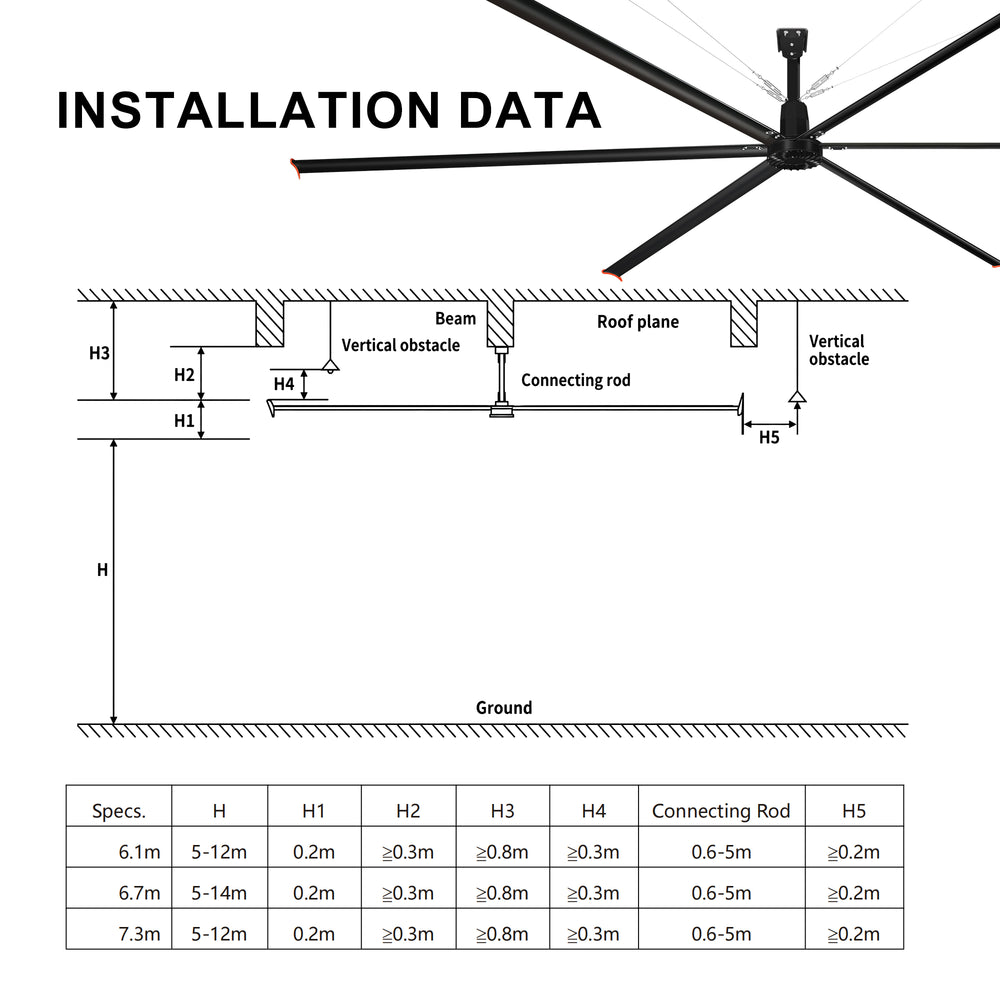

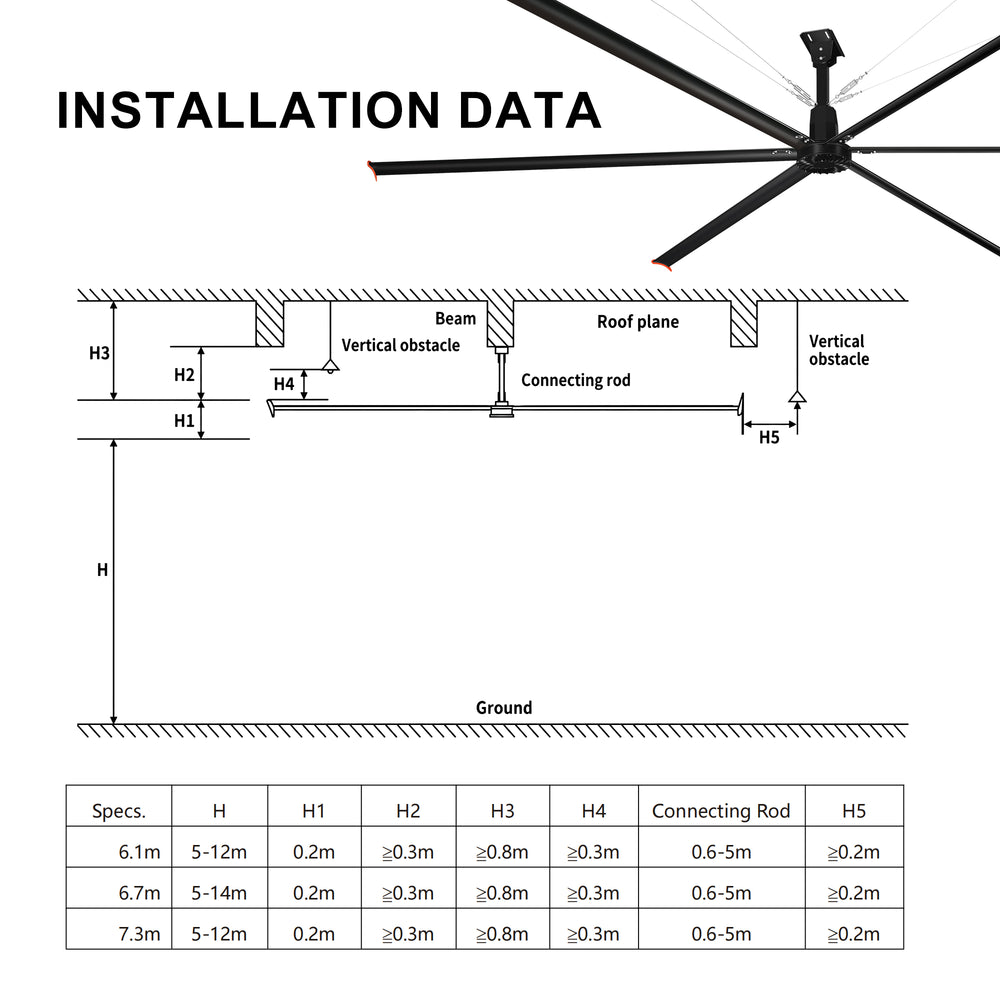

Do not assume a universal safe spacing. A qualified installation team must assess structure, blade sweep, sprinklers, suspended equipment, occupancy, and applicable fire-protection requirements. Obtain the required approvals before mounting or operating the fan.
Can these fans operate in explosive, corrosive or freezing environments?
The supplied product information excludes freezing, corrosive, explosive, and severely dusty environments. Do not use this general indoor HVLS fan in classified hazardous locations or other excluded conditions without verified equipment suitability and a professional site assessment.
